The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Reduce the turbulence of adjacent fans and increase airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

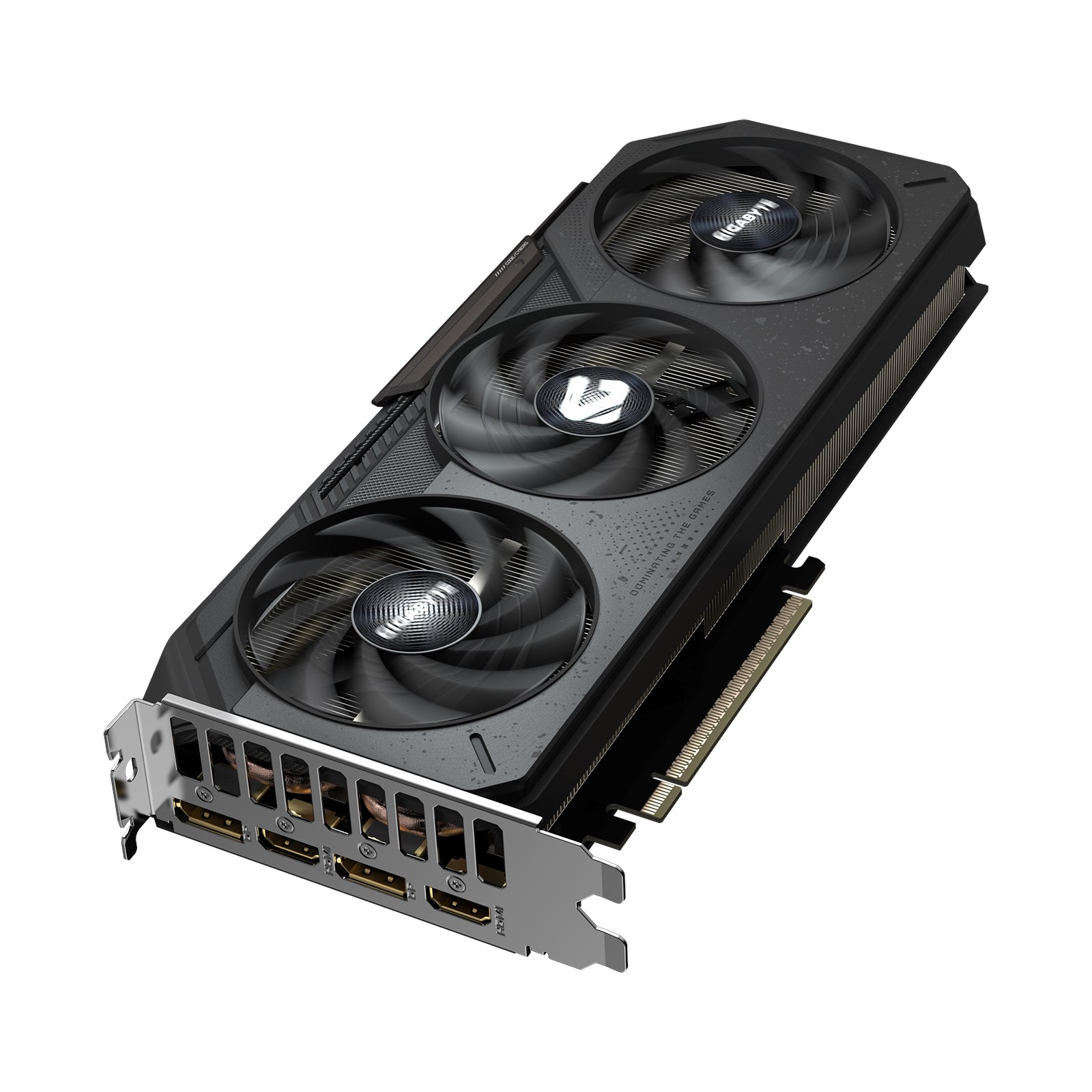

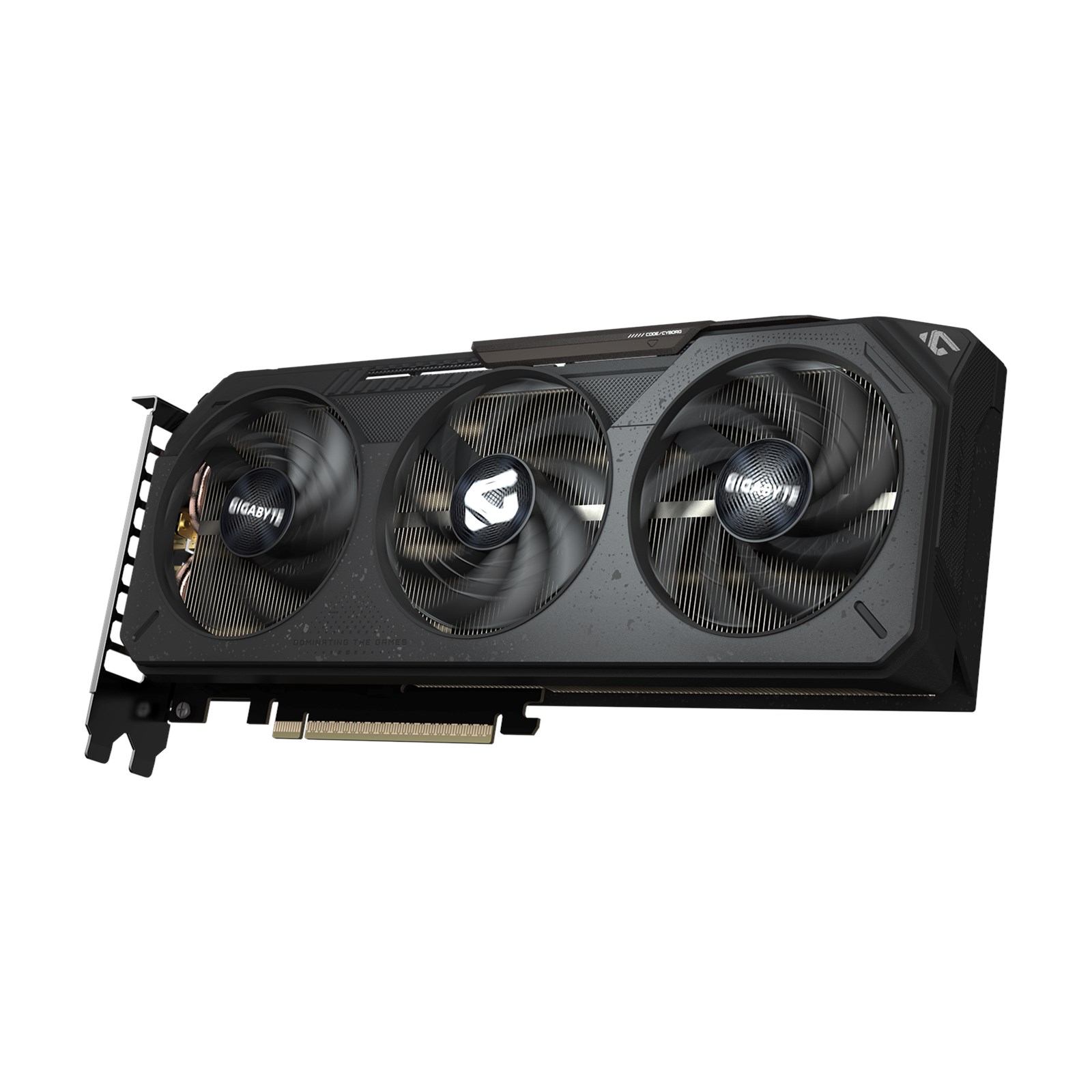

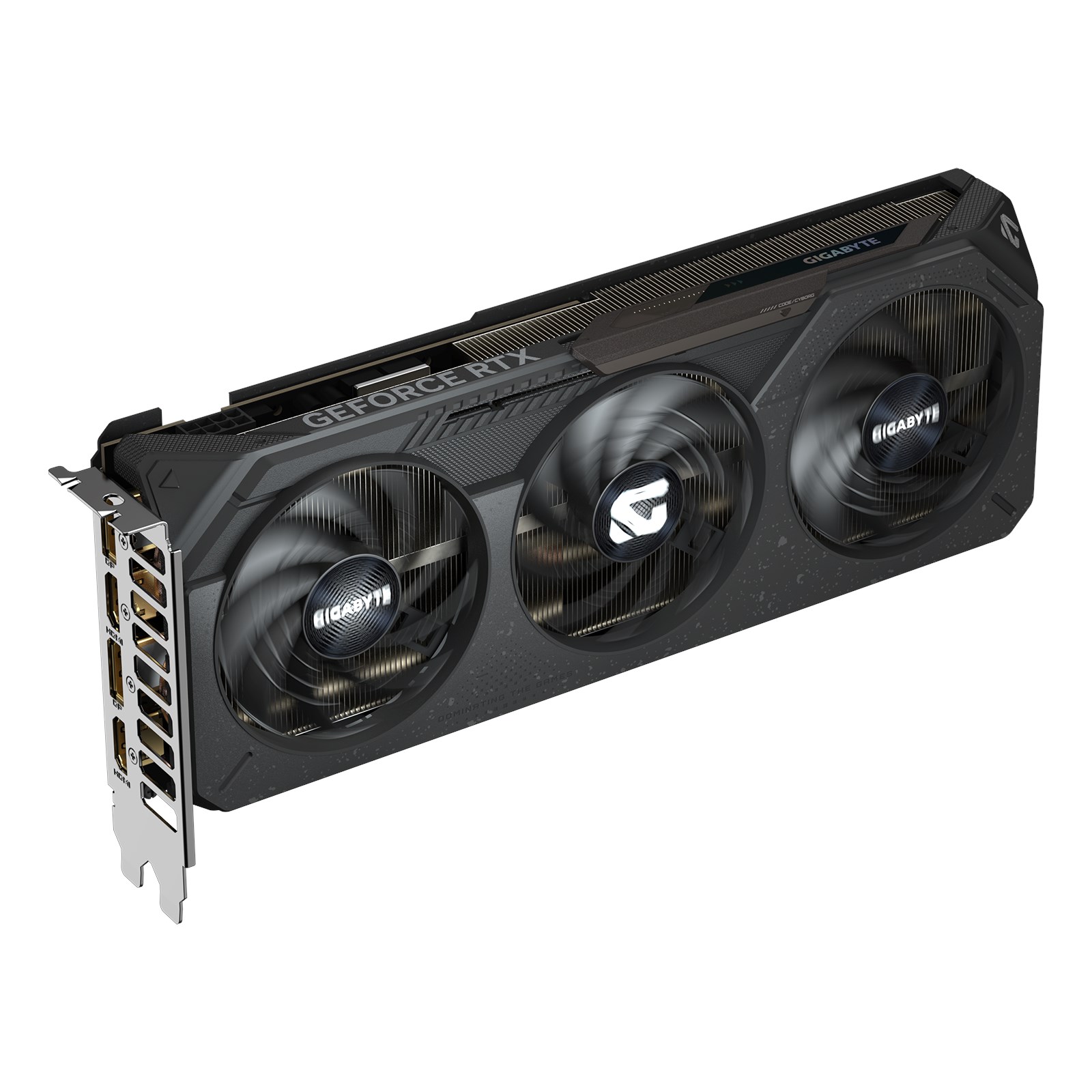

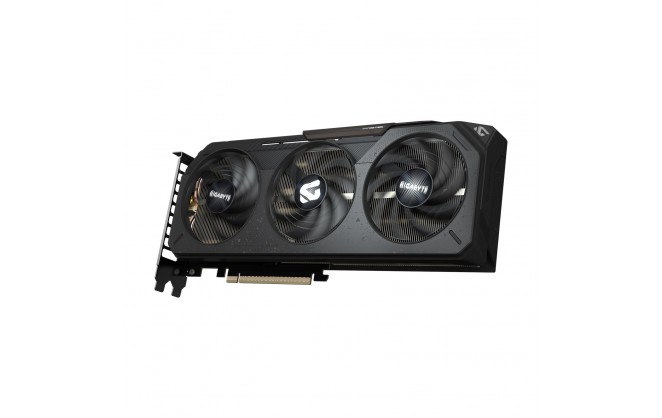

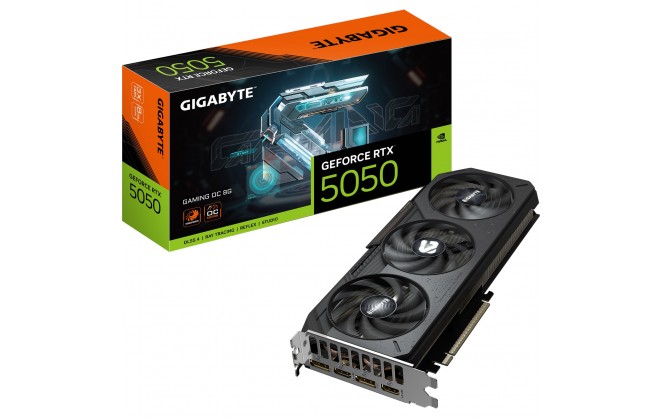

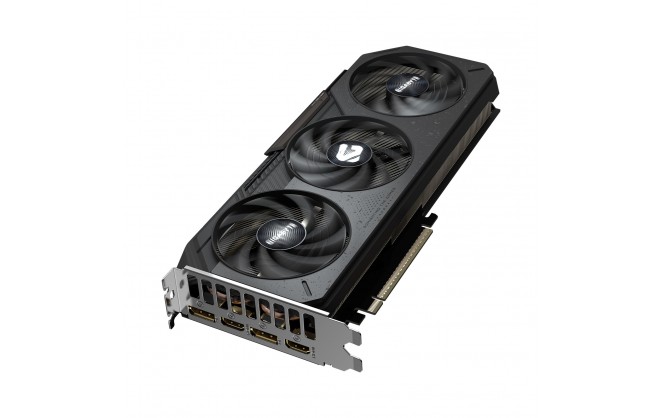

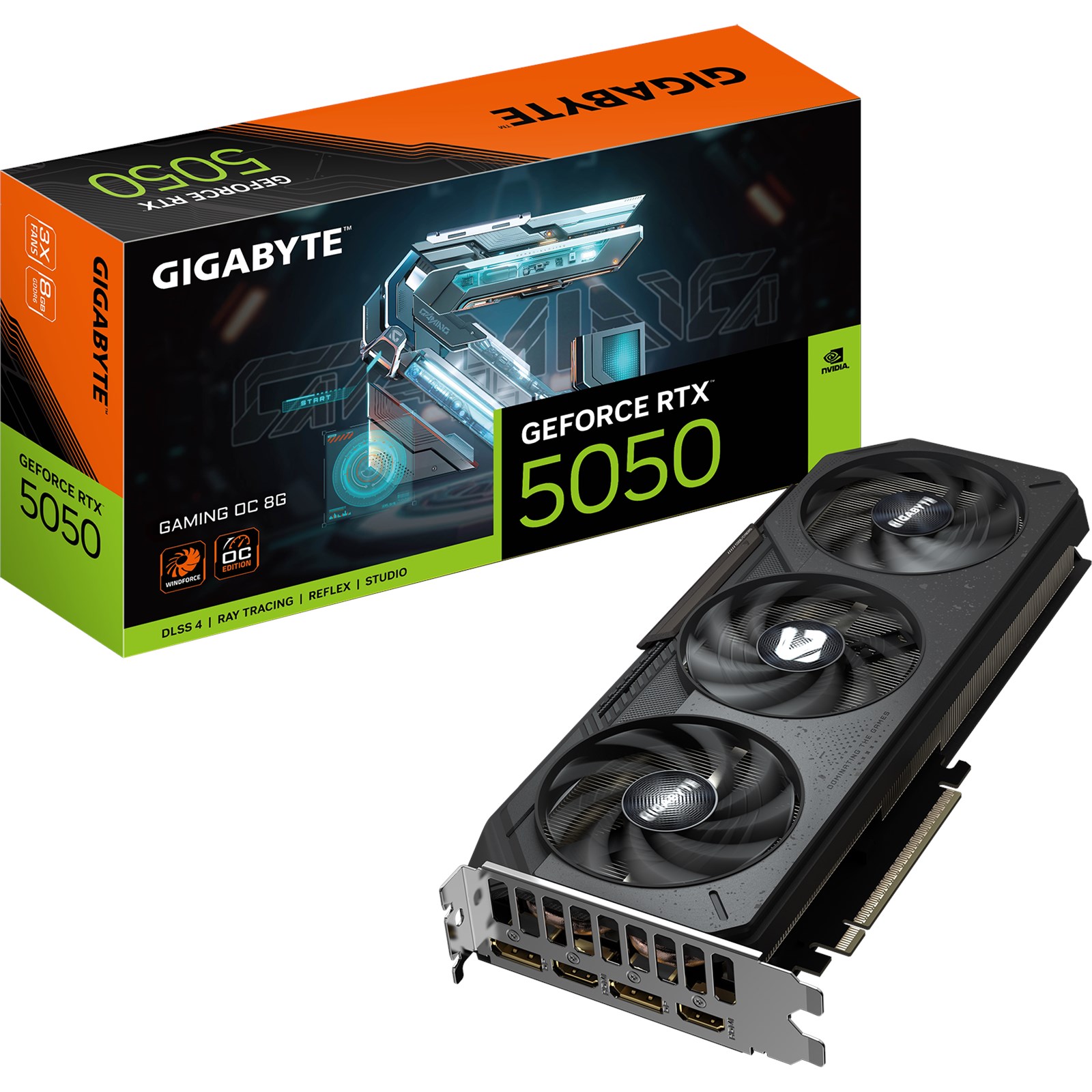

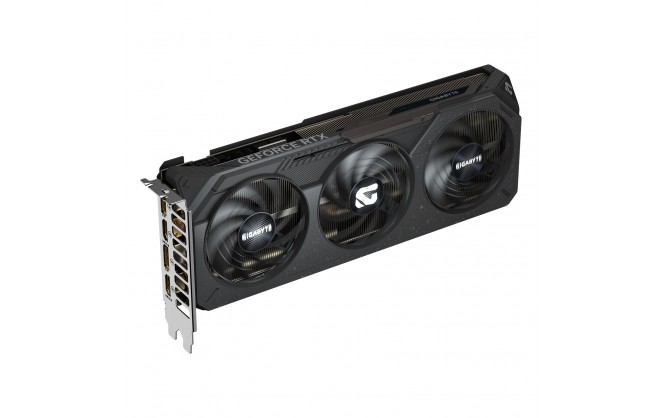

Gigabyte GeForce RTX 5050 GAMING OC 8GB GDDR6 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5050 |
| Chipset Additional Information | GAMING OC |
| Graphics Core | CUDA |
| Number of Cores | 2560 |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 128 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x8 |
| HDMI Port | 2 x HDMI 2.1b |
| DisplayPort | 2 x DisplayPort 2.1b |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | 130 W |
| Recomended Power Supply | 550 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 40 mm (Dual Slot) |
| Depth | 280 mm |
| Height | 117 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x8 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR6 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5050 |
| PCIe Pin Type | 6+2-Pin |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 280 mm |
| Card Width | 2 |
| Power Requirement (auto) | 130 W |
| GPU Power (TDP) | 130 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 8 |
| PCIe Physical Slot required | 16 |
| AI Ready | Yes |
Graphics
| Graphics Chipset | GeForce RTX 5050 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N5050GAMING OC-8GD |
| EAN | 4719331356750 |
