The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

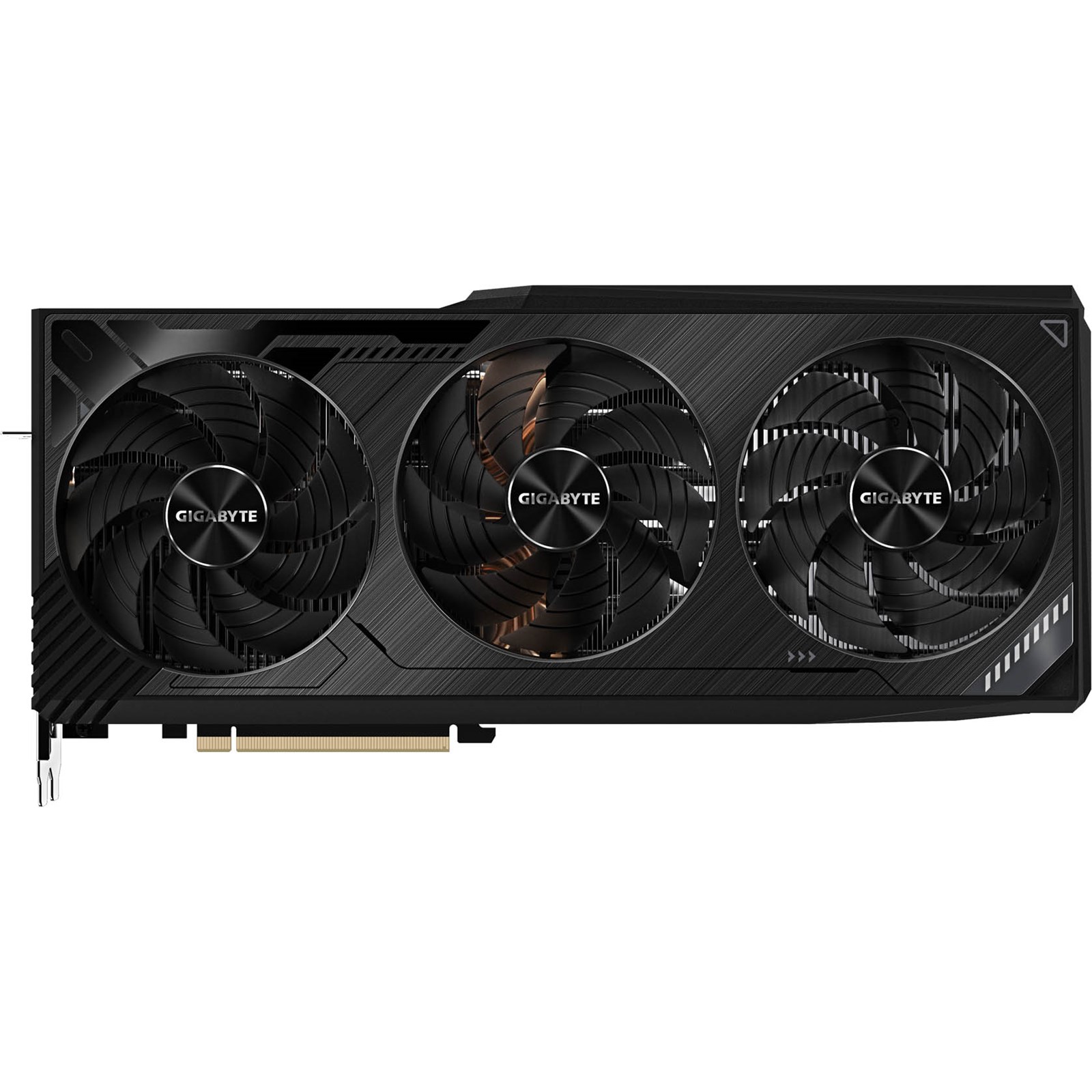

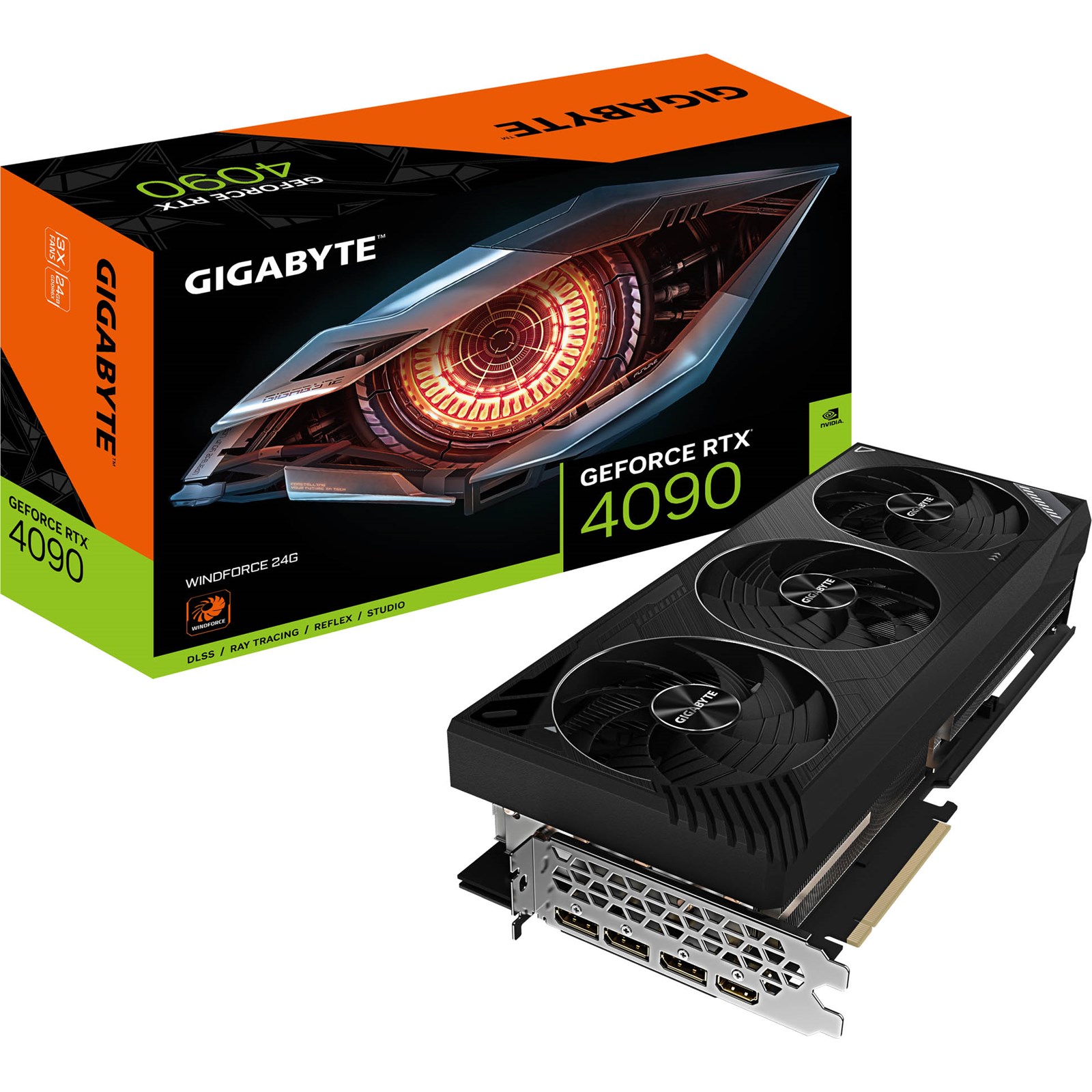

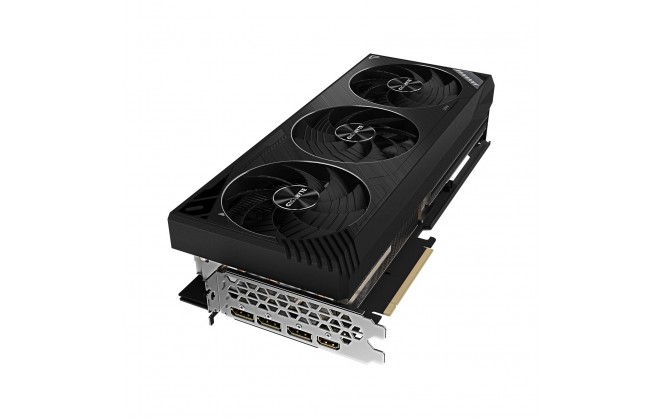

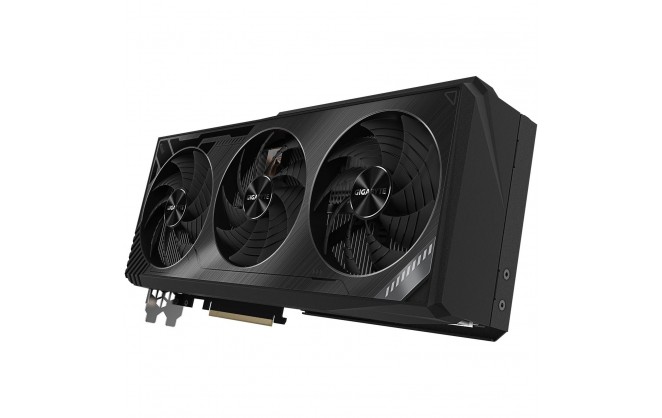

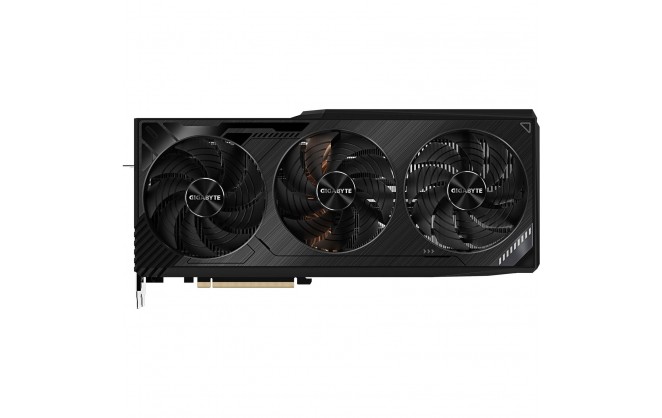

Gigabyte GeForce RTX 4090 Windforce 24GB Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | |
| Chipset Additional Information | WINDFORCE |
| Boost Chip Clock | 2520 MHz |
| Number of Cores | 16384 cores |
| Graphics Core | CUDA |
Memory
| Memory Size | 24576 MB |
| Memory Clock | 21 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 384 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 850W PSU or greater with 1 x 16-pin or 4 x 8-pin PCIe connectors |
Electrical
| Power Connector | 1 x 16-pin |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide VGA Holder 1 x 16-pin to 4 x 8-pin PCIe Power Adapter |
| Width | 70 mm (3.5 slot) |
| Depth | 331 mm |
| Height | 150 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| Interface Type | |
| NVIDIA GeForce | RTX 4090 |
| AMD Radeon | |
| PCI-E Pin Type | 12+4-Pin |
| Screen Type | |
| FreeSync | |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| VR Ready PC | |
| GPU Length | 331 mm |
| Card Width | 4 |
| GPU Power (TDP) | W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
Graphics
| Graphics Chipset | GeForce RTX 4090 |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N4090WF3-24GD |
| EAN | 4719331311476 |
| UPC | 889523033975 |
| Condition | New |
