The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 11 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

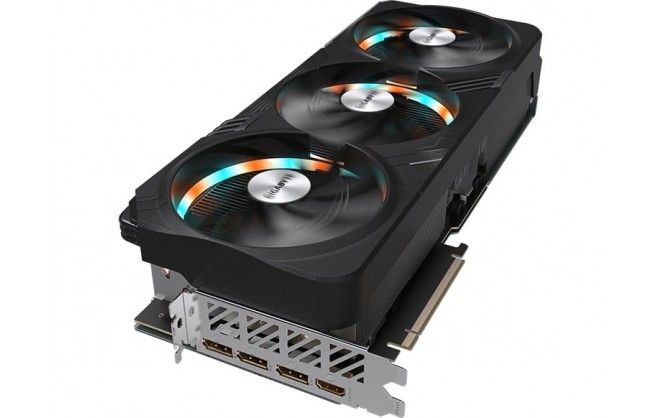

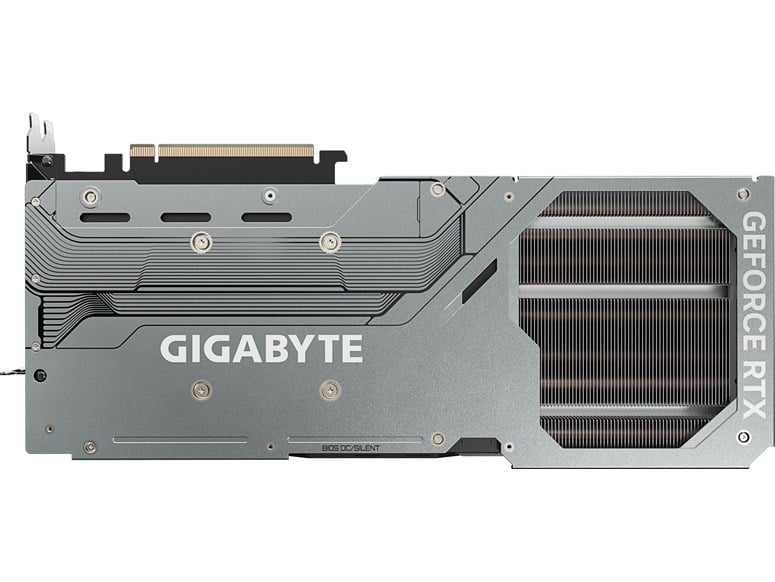

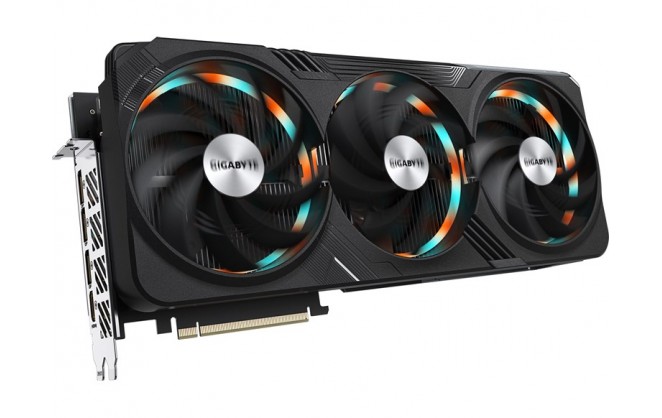

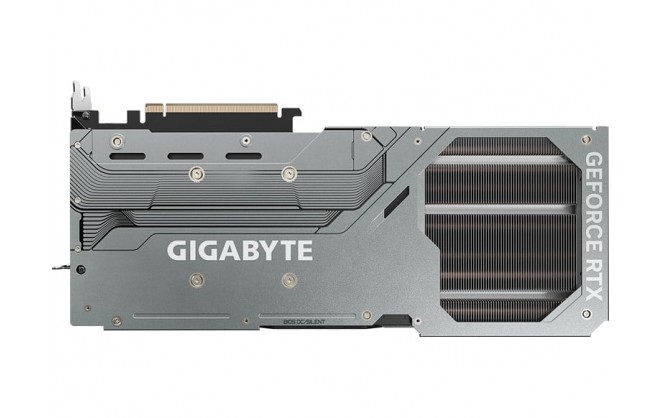

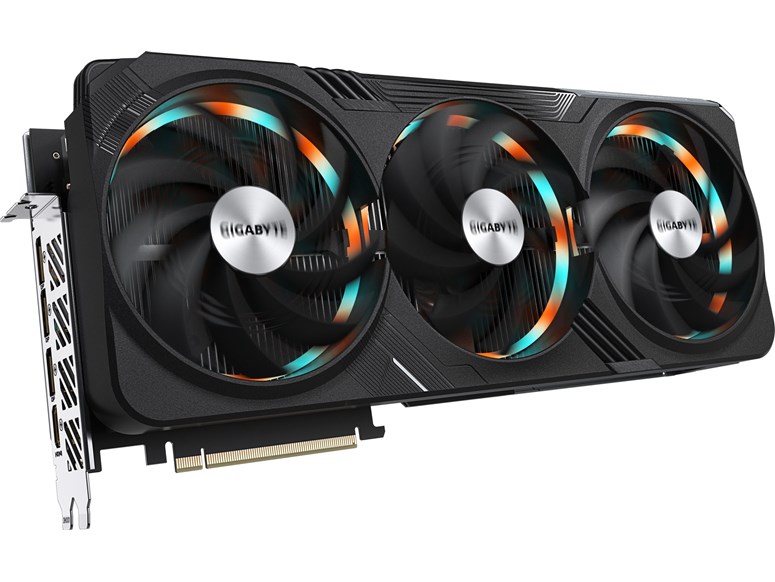

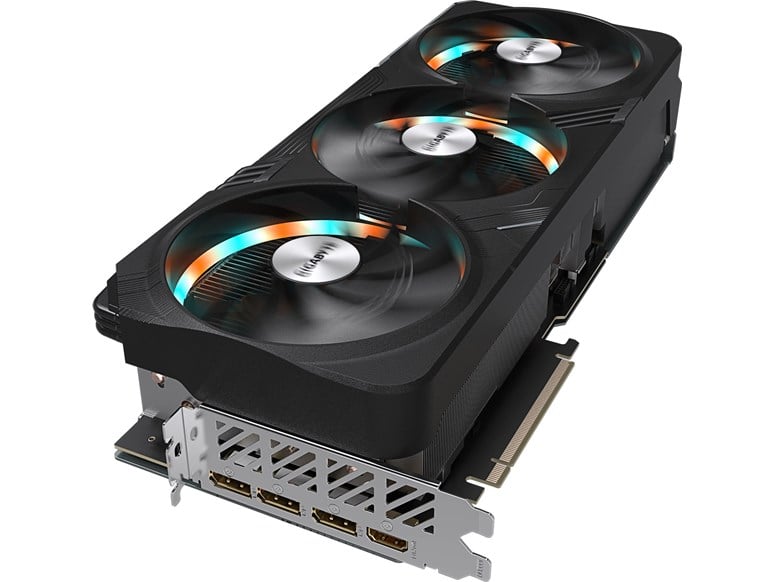

Gigabyte GeForce RTX 4080 GAMING OC 16GB Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | |
| Chipset Additional Information | GAMING OC |
| Boost Chip Clock | 2535 MHz |
| Graphics Core | CUDA |
| Number of Cores | 9728 cores |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 22.4 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 850W or greater PSU with 1 x 16-pin or 3 x 8-pin PCIe connectors |
Electrical
| Power Connector | 1 x 16-pin PCIe |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |

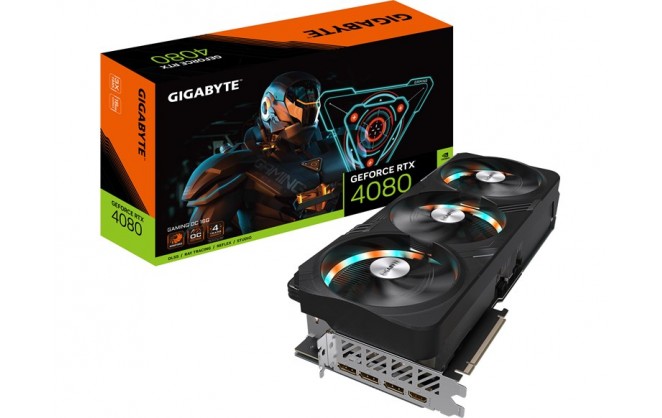

| In The Box | Graphics Card Quick Guide Warranty Registration Anti-Sag Bracket Anti-Sag Bracket Installation Guide 1 x 16-pin to 3 x 8-pin PCIe Adapter |
| Width | 75 mm (Quad Slot) |
| Depth | 342 mm |
| Height | 150 mm |
| Weight | 2.04 kg |
Warranty
| Warranty | 3 Years 4 Years with Registration |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| Interface Type | |
| NVIDIA GeForce | RTX 4080 |
| AMD Radeon | |
| PCI-E Pin Type | 12+4-Pin |
| Screen Type | |
| FreeSync | |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| VR Ready PC | |
| GPU Length | 342 mm |
| Card Width | 4 |
| GPU Power (TDP) | W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
Graphics
| Graphics Chipset | GeForce RTX 4080 |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N4080GAMING OC-16GD |
| EAN | 4719331311520 |
| UPC | 889523034354 |
| Condition | New |
