WINDFORCE COOLING SYSTEM
The Windforce cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

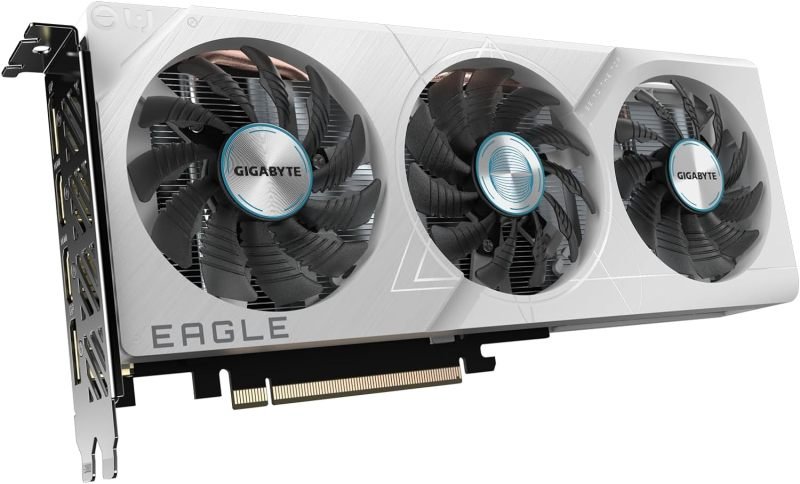

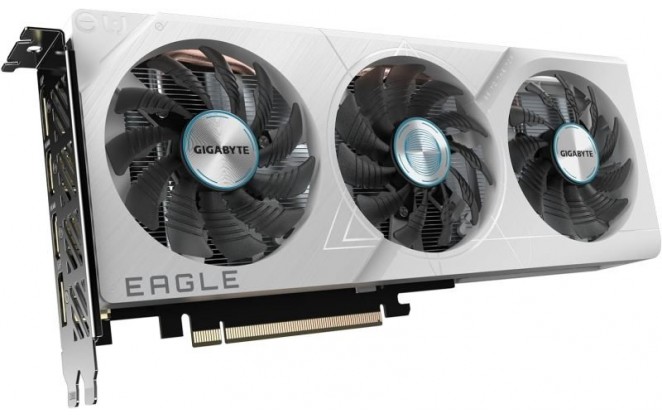

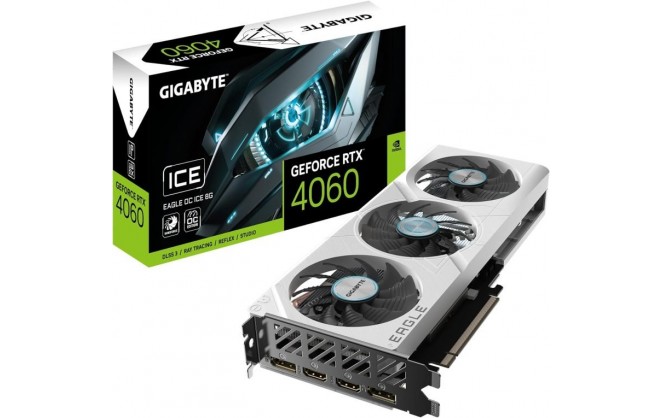

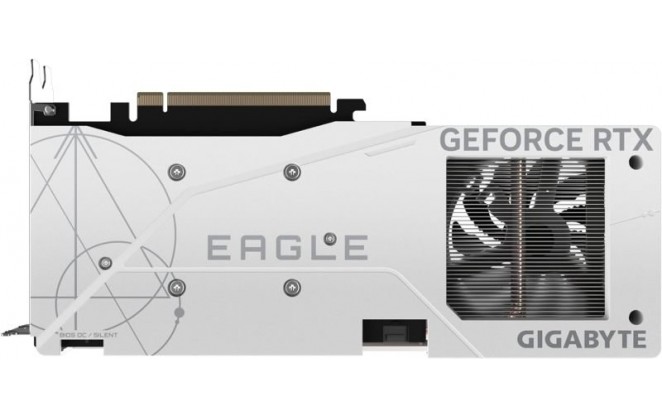

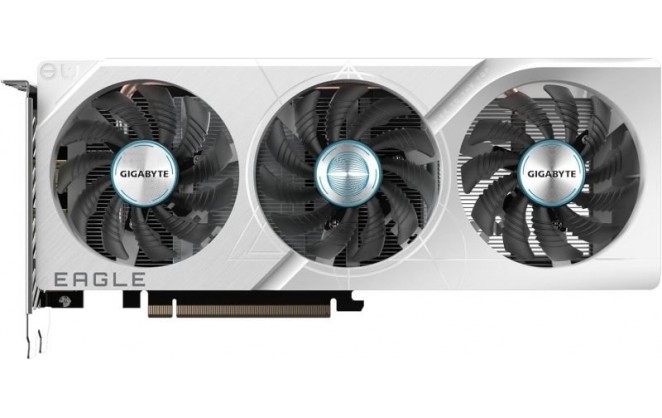

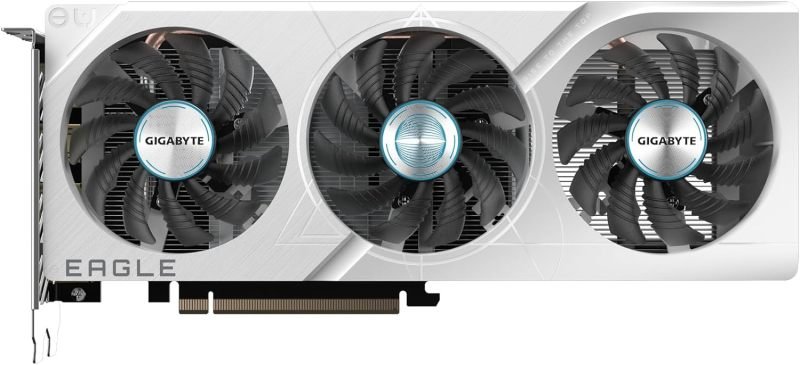

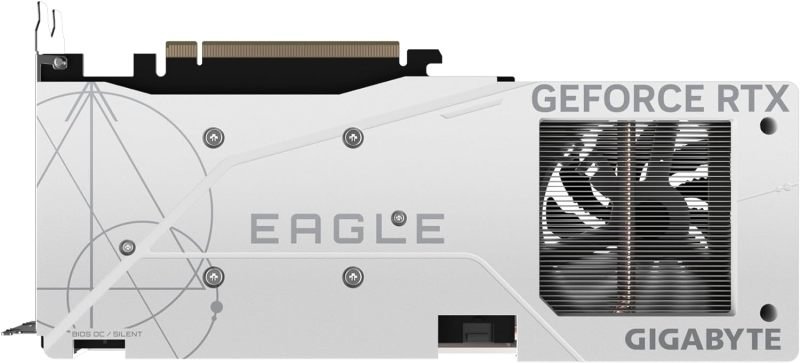

Gigabyte GeForce RTX 4060 EAGLE OC 8GB White Graphics Card for Gaming
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 4060 |
| Chipset Additional Information | EAGLE OC ICE |
| Boost Chip Clock | 2505 MHz |
| Graphics Core | CUDA |
| Number of Cores | 3072 |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 17 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 128 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1a |
| DisplayPort | 2 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 450W or greater PSU with 1 x 8-pin PCIe connector |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Recomended Power Supply | 450 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 40 mm (Dual Slot) |
| Depth | 272 mm |
| Height | 115 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| Config Gaming x8 (CB/CCL) | Yes |
| Graphics Memory Type | GDDR6 |
| Main Colour | White |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 4060 |
| PCIe Pin Type | 6+2-Pin |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 272 mm |
| Card Width | 2 |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 8 |
| PCIe Physical Slot required | 16 |
| 12VHPVR 16-pin Connector | No |
Graphics
| Graphics Chipset | GeForce RTX 4060 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N4060EAGLEOC ICE-8GD |
| EAN | 4719331354336 |
| UPC | 889523042366 |
| Condition | New |
