DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.

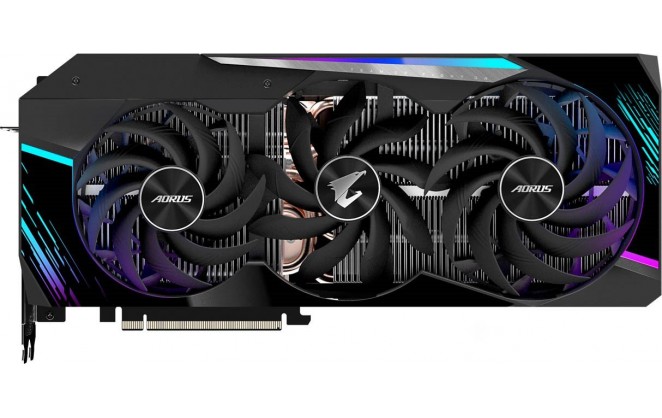

MAX-COVERED COOLING
The Max-Covered cooling features 2x 115mm and 1x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.

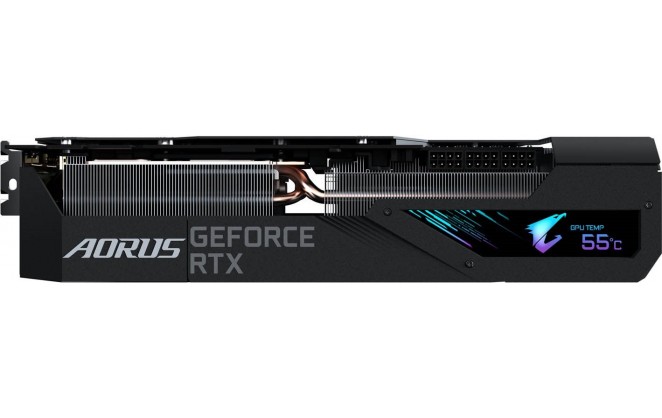

LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3090 with 24G memory and 936 GB/s memory bandwidth has 10496 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

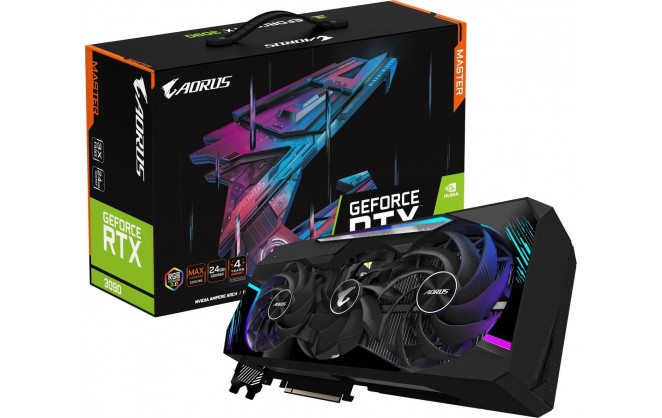

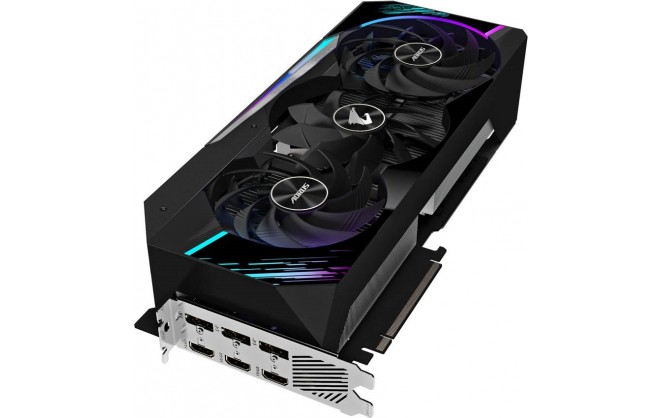

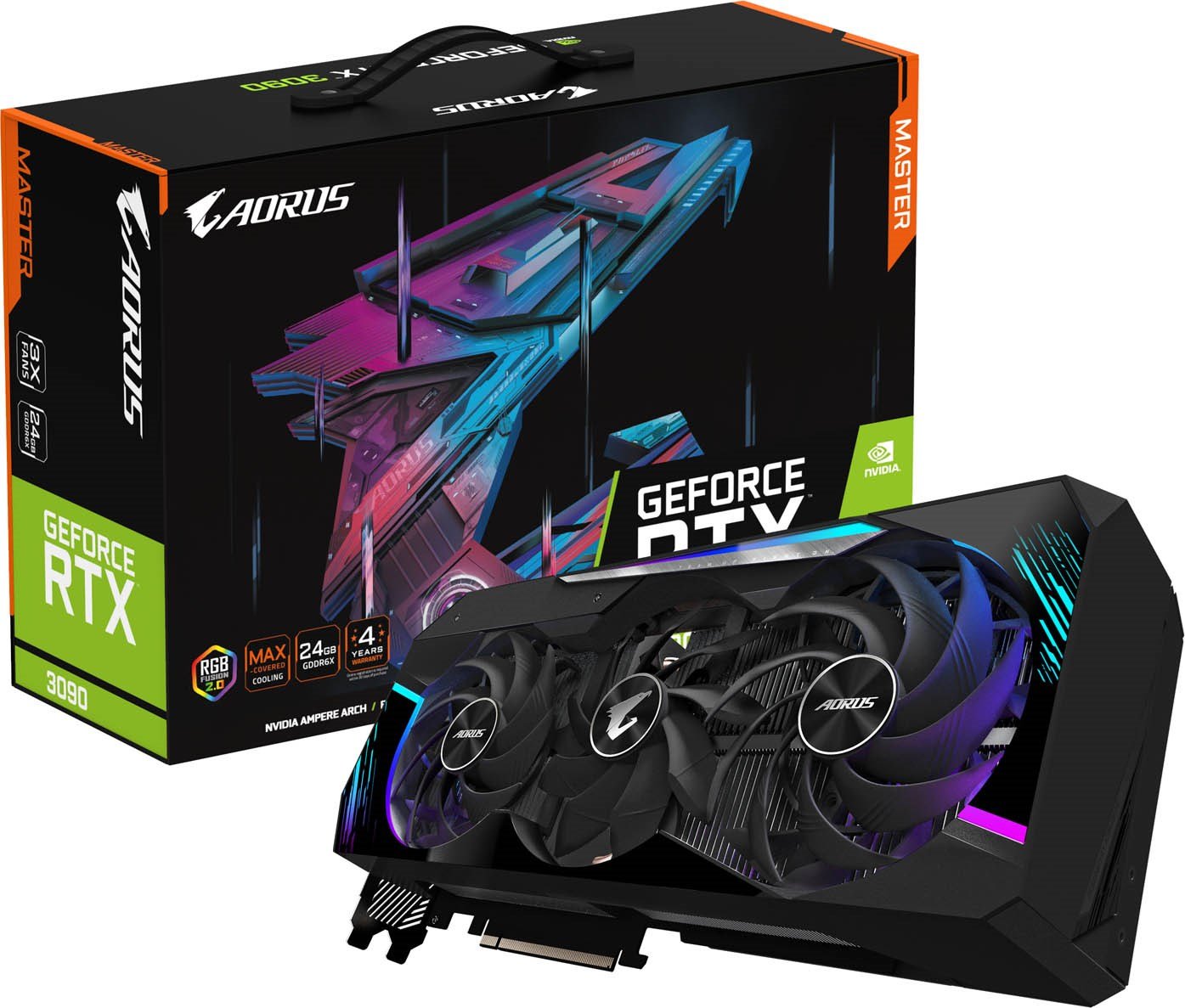

Gigabyte GeForce RTX 3090 Aorus Master 24GB OC GPU
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 3090 |
| Chipset Additional Information | AORUS MASTER Rev 2.0 |
| Boost Chip Clock | 1785 MHz |
| Number of Cores | 10496 cores |
| Graphics Core | CUDA |
Memory
| Memory Size | 24576 MB |
| Memory Clock | 19.5 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 384 bit |
| Memory Bandwidth | 936 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 1 x HDMI 2.0 |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 850W PSU with 3 x 8-pin PCIe connectors |
Electrical
| Power Connector | 3 x 8-pin PCIe |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide 4-year Warranty Registration Metal Sticker |
| Width | 770 mm (Quadruple Slot) |
| Depth | 319 mm |
| Height | 140 mm |
| Weight | 1.89 kg |
Warranty
| Warranty | 3 Years 4 Years with Registration |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 3090 |
| PCI-E Pin Type | 8-Pin x 3 |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 319 mm |
| Card Width | Quadruple Slot |
Graphics
| Graphics Chipset | GeForce RTX 3090 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N3090AORUS M-24GD V2 |
| EAN | 4719331308254 |
| Condition | New |
