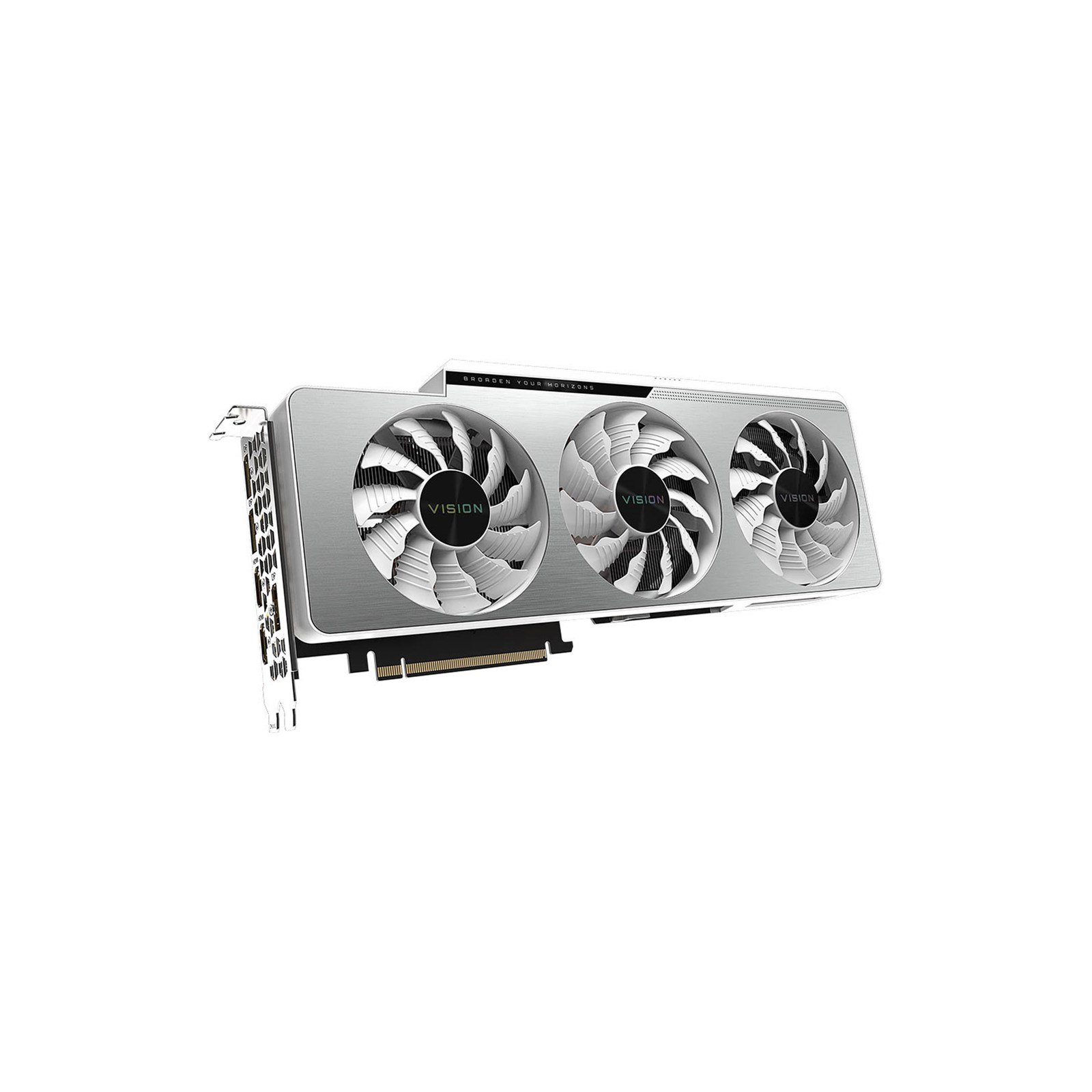

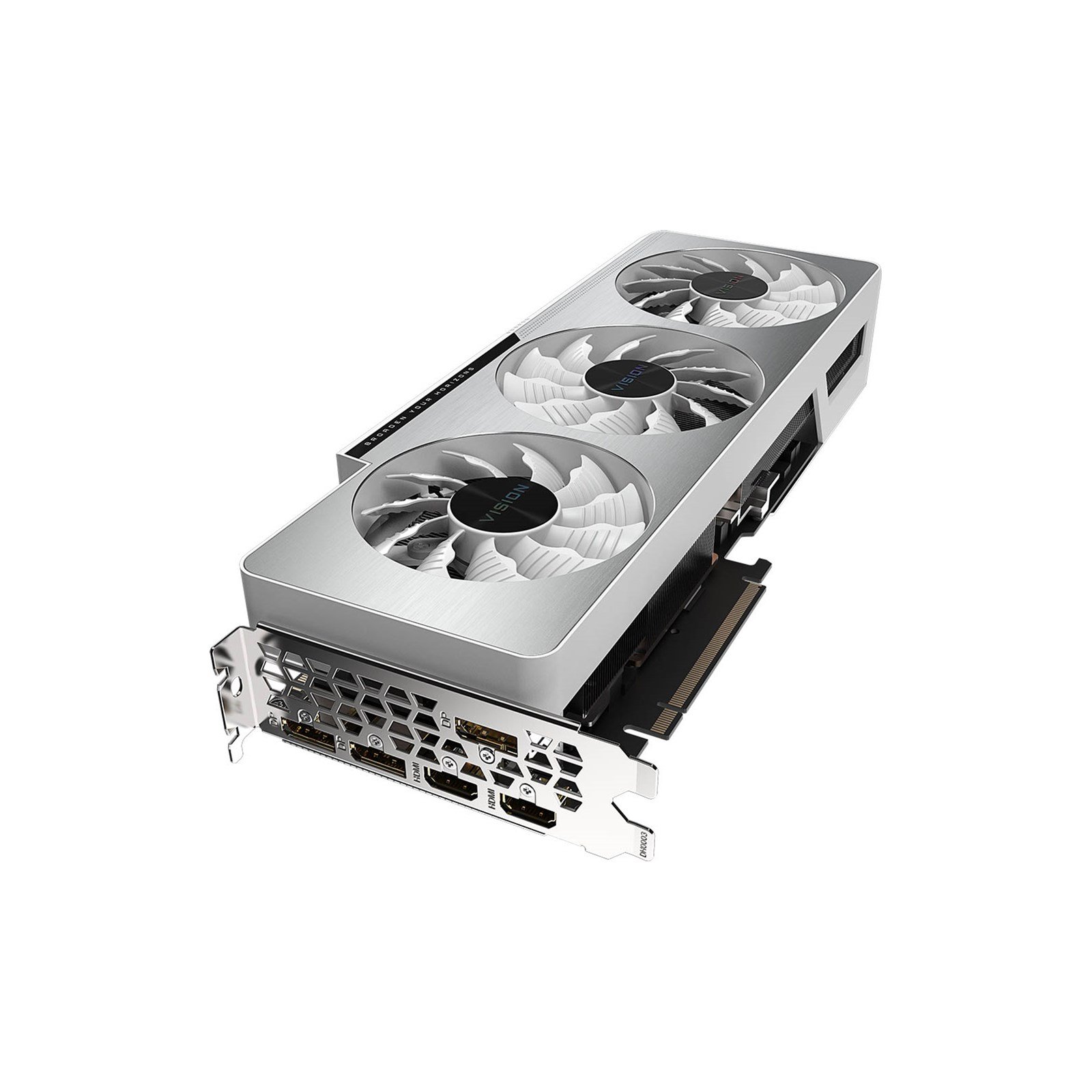

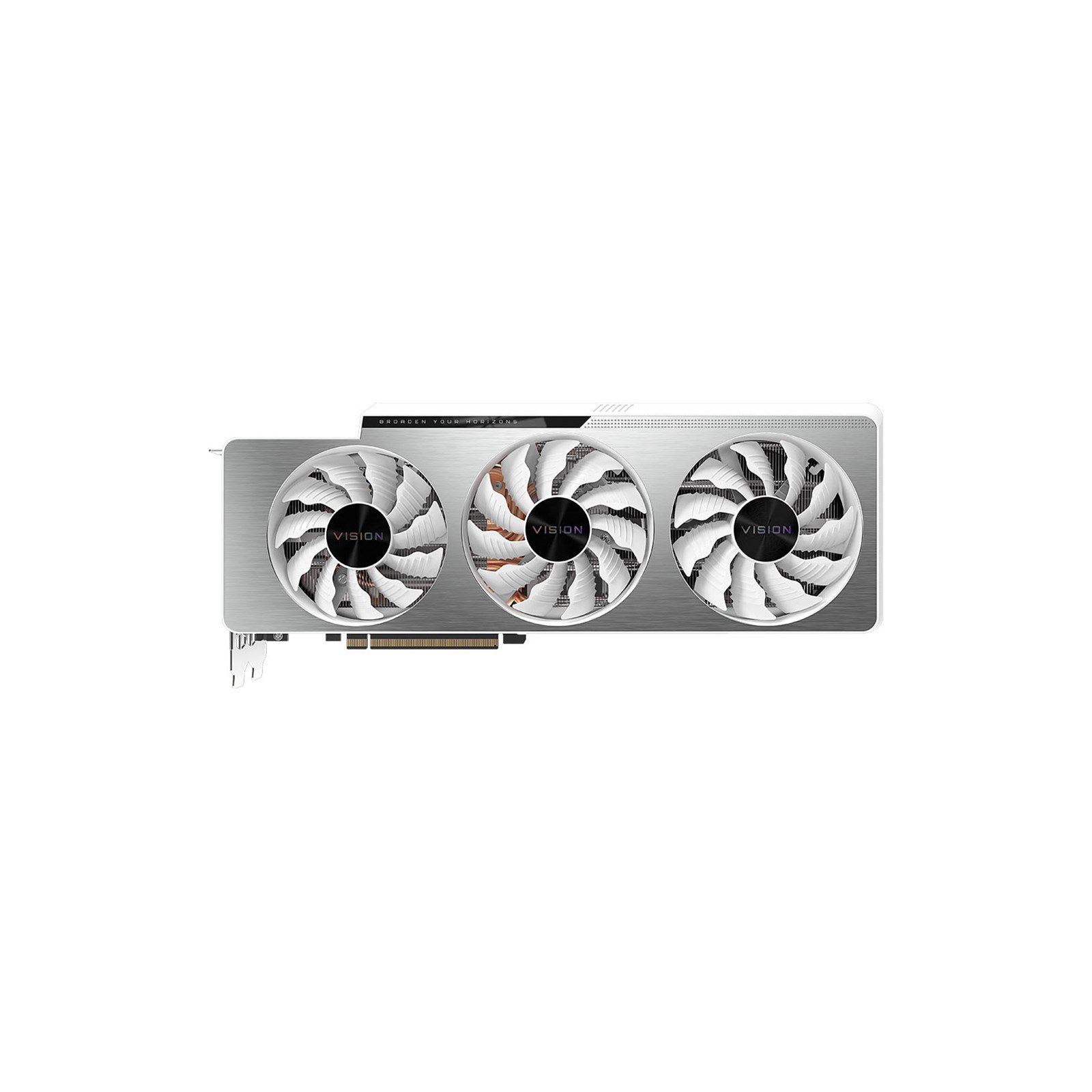

Gigabyte introduces the powerful GeForce RTX™ 3080 Ti VISION overclocked graphics card, designed to accelerate your workflow with an incredible boost in performance. Aimed for content creators, the Gigabyte GeForce RTX™ 3080 Ti VISION is the ideal choice whether you are doing animation, photography, video editing and more. Utilisitng NVIDIA's Ampere architecture with their 2nd Generation RT cores and 3rd Generation Tensor Cores, the Gigabyte GeForce RTX™ 3080 Ti VISION brings you the biggest graphical performance leap of the modern era.
The Gigabyte GeForce RTX™ 3080 Ti VISION overclocked graphics card uses the Windforce 3X Cooling System to keep your graphics card cool and quiet. It Utilises two 90mm fans and one 80mm fan, seven composite copper heat pipes, variable fan speeds and screen cooling, enxsuring a highly efficient heat dissipation whilst keeping noise levels as low as possible.
| ALTERNATE SPINNING | 3D ACTIVE FAN | UNIQUE BLADE FAN |
|---|---|---|
| Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. | The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. | The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. |
| GRAPHENE NANO LUBRICANT | SCREEN COOLING | LARGE COPPER PLATE & HEAT-PIPE |
|---|---|---|
| Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. | Extended heatsink design allows air flow to pass through, providing better heat dissipation. | With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink. |
RGB Fusion 2.0 has been designed by Gigabyte to provide you with the best software for customising your ARGB and RGB lighting across multiple supported devices. You can match the lighting effects of your Gigabyte GeForce RTX™ 3080 Ti VISION graphics card with compatible Gigabyte products such as motherboards and peripheral products, personalising your gaming rig with your own style.
The Gigabyte GeForce RTX™ 3080 Ti VISION features a full metal back plate, designed to strengthen the structure of the graphics card and prevent bending after installation. It looks pretty good too!
| EXTREME DURABILITY & OVERCLOCKING | FRIENDLY PCB DESIGN |
|---|---|
| The Gigabyte GeForce RTX™ 3080 Ti VISION uses a better power pahse design than standard, allowing the MOSFETs to operate at a lower temperature. With OTP and load balancing, along with Ultra Durable-certified chokes and capacitors, you get improved performance and reliability. | Thanks to a fully-automated production process you get excellent circuit board quality and soldering, with the added benefit of no sharp protrusions, protecting your hands from being cut during installation. |
AORUS Engine is a intuitive interface that allows you to control the performance of your Gigabyte GeForce RTX 3080 Ti VISION graphics card. You can adjust the clock speed, voltage settings, power target and fan performance, all according to your requirements.
Gigabyte GeForce RTX 3080 Ti Vision 12GB OC GPU
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 3080 Ti |
| Chipset Additional Information | VISION OC |
| Boost Chip Clock | 1710 MHz |
| Number of Cores | 10240 units |
| Graphics Core | CUDA |
Memory
| Memory Size | 12288 MB |
| Memory Clock | 19 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 384 bit |
| Memory Bandwidth | 912 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 750W PSU with 2 x 8-pin PCIe connectors |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Recomended Power Supply | 750 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 55 mm (Triple Slot) |
| Depth | 320 mm |
| Height | 126 mm |
| Weight | 1.37 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 3080 Ti |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 320 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | GeForce RTX 3080 Ti |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N308TVISION OC-12GD |
| EAN | 4719331308810 |
| UPC | 889523027936 |
| Condition | New |
