FEATURES
WINDFORCE 3X - COOLING SYSTEM
The WINDFORCE 3X cooling system features two 90mm and one 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE - & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4 YEARS WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game's requirements.

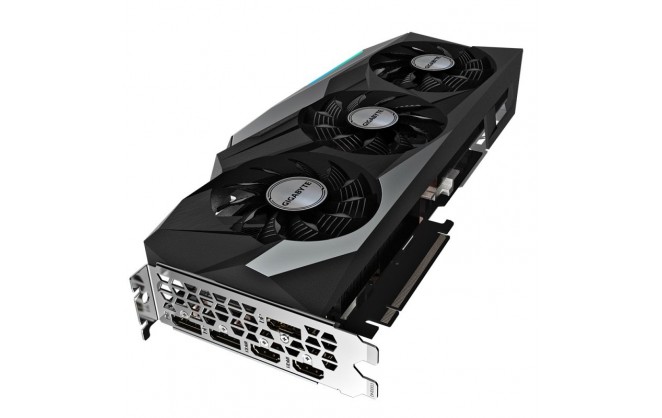

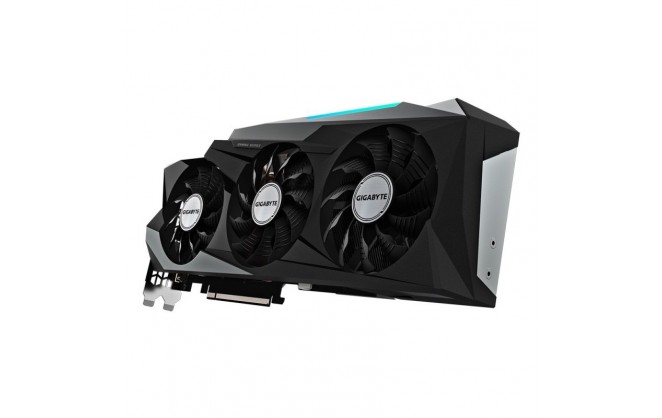

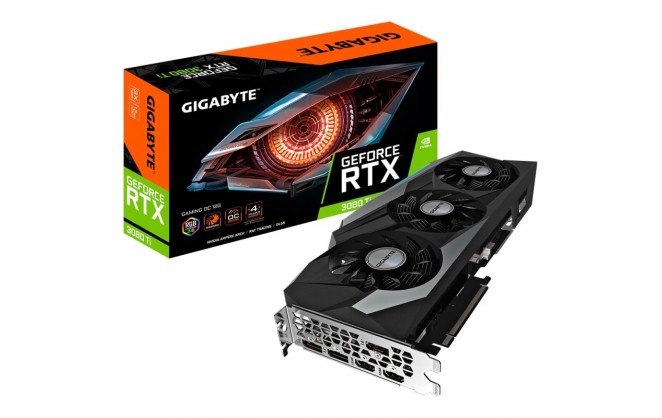

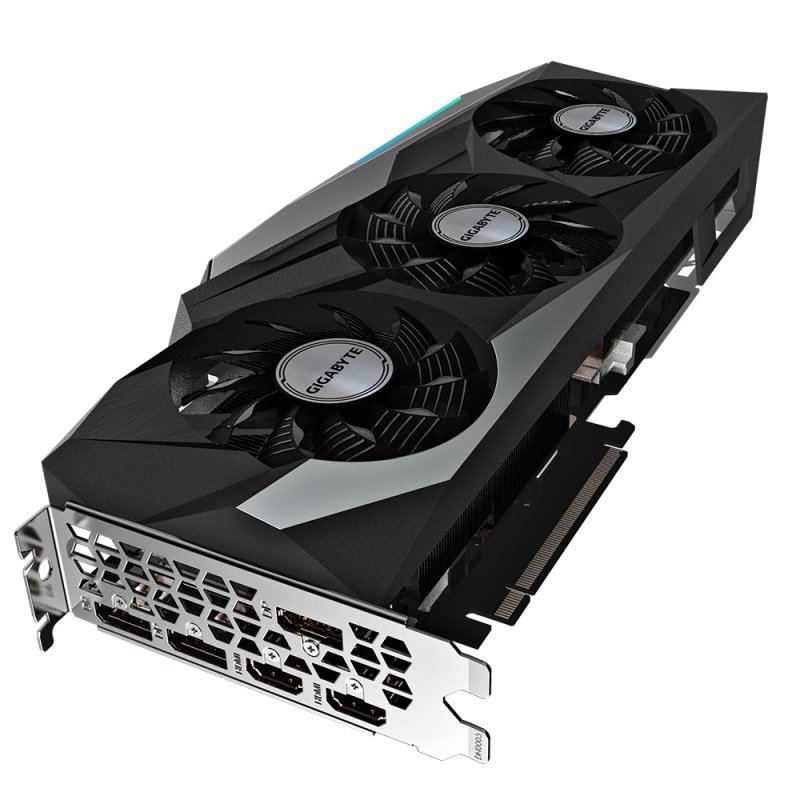

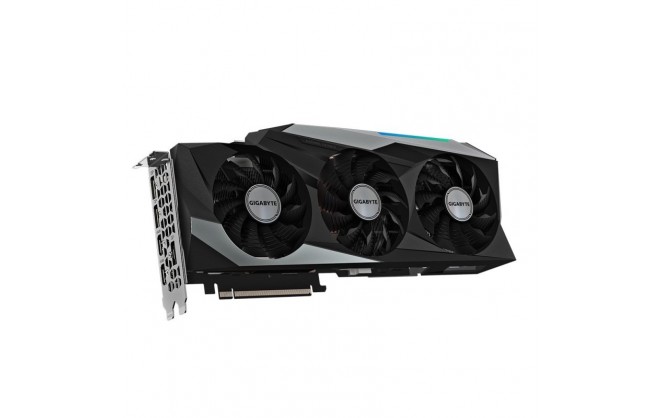

Gigabyte GeForce RTX 3080 Ti 12GB GAMING OC Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 3080 Ti |
| Core Clock | 1710 MHz |
| CUDA Cores | 10240 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | 3 x DisplayPort ¦ 2 x HDMI |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | Dual Bios, GIGABYTE WindForce 3x, NVIDIA G-Sync ready, Heat Pipe Direct Touch technology, metal wraparound backplate, 90mm Unique blade fan design, 80mm Unique blade fan design, AORUS Graphics Engine, Real-Time Ray Tracing, 2.7-slot Fan Cooler, RGB Fusion 2.0, Gigabyte Alternate Spinning, Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, 3D Active Fan, NVIDIA Reflex, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores |
Memory | |
| Size | 12 GB |
| Technology | GDDR6X SDRAM |
| Effective Clock Speed | 19000 MHz |
| Bus Width | 384-bit |
| Bandwidth | 912 GBps |
System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
Miscellaneous | |
| Software Included | AORUS Engine |
| Compliant Standards | DisplayPort 1.4a |
| Width | 5.5 cm |
| Depth | 32 cm |
| Height | 12.9 cm |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 Years |
