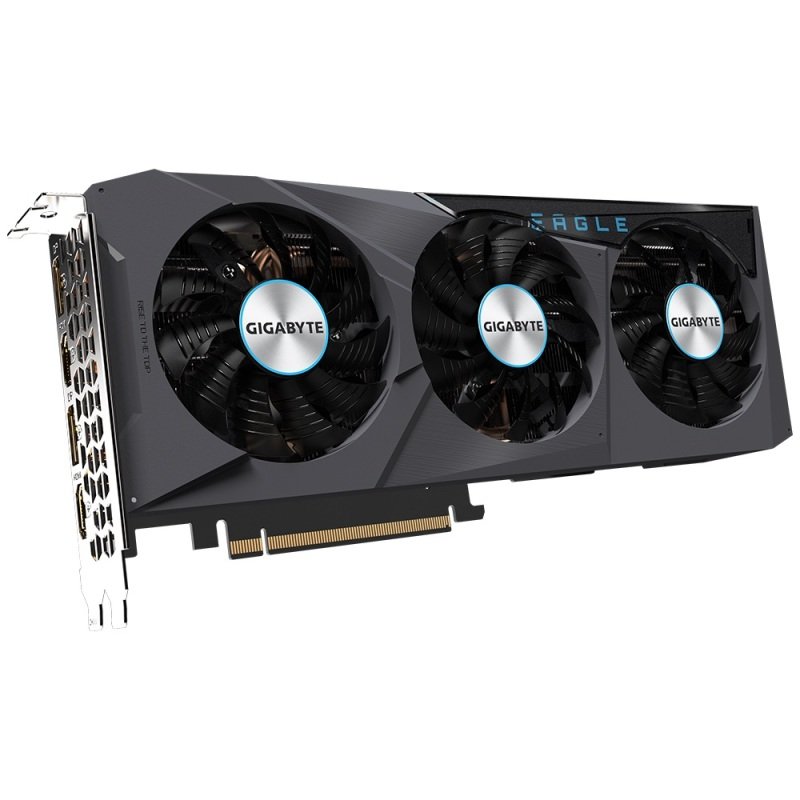

Gigabyte GeForce RTX 3070 EAGLE V2 8GB Graphics Card

Part Number: GV-N3070EAGLE-8GD V2
Manufacturer: Gigabyte
Quickfind Code: 125481

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RTX 3070
Capacity 8GB
Connection PCI-E
Memory Type GDDR6
Series RTX
GPU Manufacturer Nvidia

+ Read More Information

Gigabyte GeForce RTX 3070 EAGLE V2 8GB Graphics Card

Features

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3070
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0
Protection metal back plate
LHR (Lite Hash Rate) version

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

Technical Specification

Gigabyte GeForce RTX 3070 EAGLE V2 8GB Graphics Card

General
Device Type	Graphics card
Bus Type	PCI Express 4.0 x16
Graphics Engine	NVIDIA GeForce RTX 3070
Core Clock	1725 MHz
CUDA Cores	5888
Max Resolution	7680 x 4320
Max Monitors Supported	4
Interfaces	2 x DisplayPort ¦ 2 x HDMI
API Supported	OpenGL 4.6, DirectX 12 Ultimate
Features	GIGABYTE WindForce 3x, NVIDIA G-Sync ready, Heat Pipe Direct Touch technology, metal wraparound backplate, 80mm Unique blade fan design, AORUS Graphics Engine, Real-Time Ray Tracing, RGB Fusion 2.0, Gigabyte Alternate Spinning, Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, 3D Active Fan, NVIDIA Reflex, LHR (Lite Hash Rate), 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores
Memory
Size	8 GB
Technology	GDDR6 SDRAM
Effective Clock Speed	14000 MHz
Bus Width	256-bit
Bandwidth	448 GBps
System Requirements
Required Power Supply	650 W
Additional Requirements	6-pin + 8-pin PCI Express power connectors
Miscellaneous
Software Included	AORUS Engine
Compliant Standards	DisplayPort 1.4a
Width	4.1 cm
Depth	28.2 cm
Height	11.5 cm
