WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

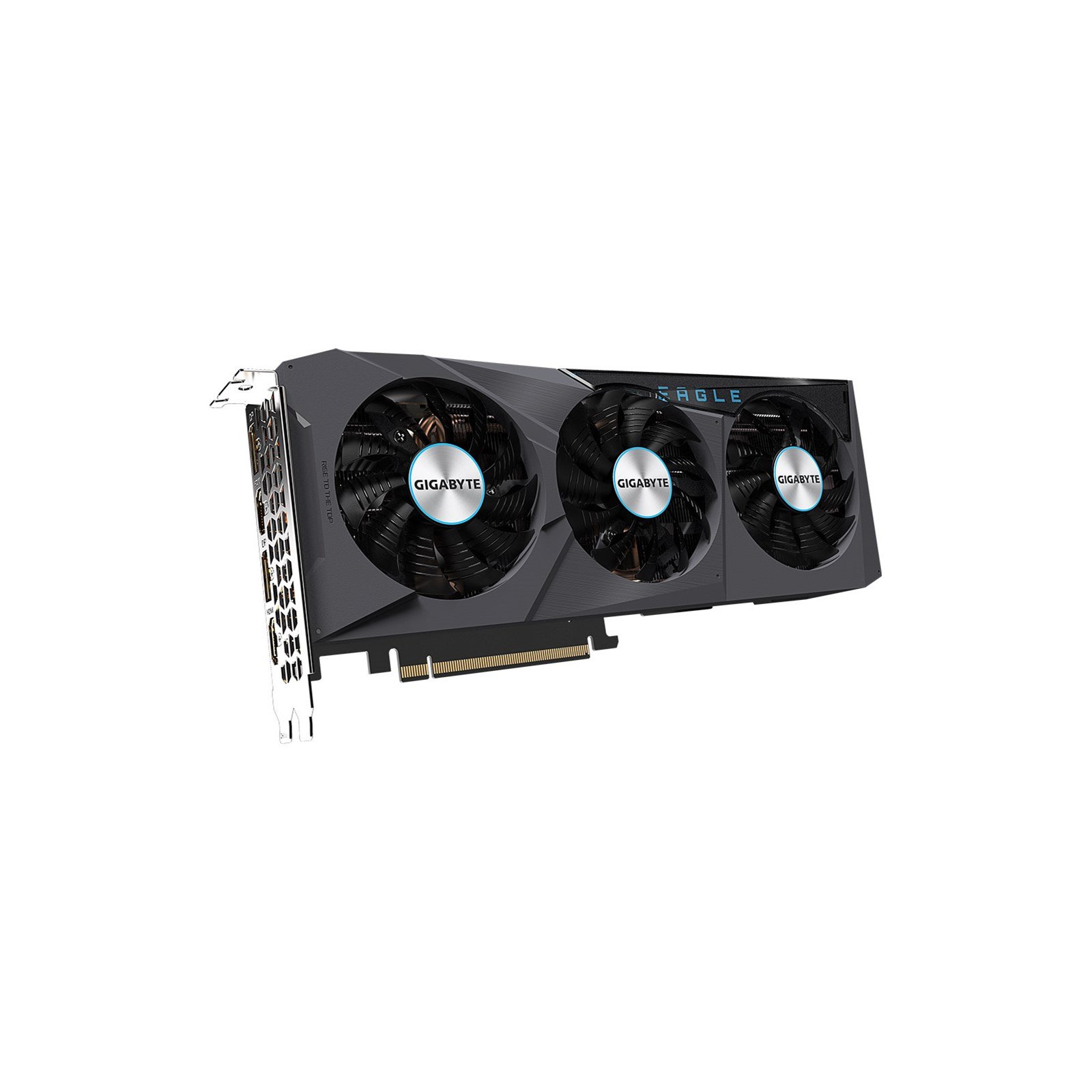

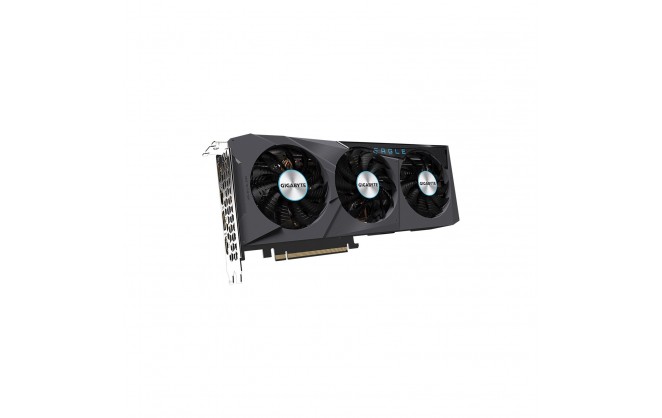

Gigabyte GeForce RTX 3070 EAGLE OC 8GB Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | |
| Chipset Additional Information | EAGLE OC |
| Boost Chip Clock | 1770 MHz |
| Number of Cores | 5888 x CUDA |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 14 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
| Memory Bandwidth | 448 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Minimum 650W power supply with 1 x 8-pin & 1 x 6-pin PCIe connectors |
Electrical
| Power Connector | 1 x 8-pin PCIe 1 x 6-pin PCIe |
| Recomended Power Supply | 650 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 41 mm (Dual Slot) |
| Depth | 282 mm |
| Height | 115 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| Interface Type | |
| NVIDIA GeForce | RTX 3070 |
| AMD Radeon | |
| PCI-E Pin Type | 6-Pin + 6+2-Pin |
| Screen Type | |
| FreeSync | |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| VR Ready PC | |
| GPU Length | 282 mm |
| Card Width | 2 |
| Power Requirement (auto) | 220 W |
| GPU Power (TDP) | 220 W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
| Config Business | |
| Config Enterprise | |
| Config Gaming | Yes |
| Config Home Office | |
| Config Lifestyle | |
| Config Professionals | |
| Config Quiet | |
| Config Rugged | |
| Config Server Rack | |
| Config Silence | |
| Config Students |
Graphics
| Graphics Chipset | GeForce RTX 3070 |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N3070EAGLE OC-8GD |
| EAN | 4719331307677 |
| UPC | 889523024751 |
| Condition | New |
