WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 82mm unique blade fans, alternate spinning fan, 6 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
Extreme durability and overclocking
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
4 years warranty
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
NVIDIA NVLink™ Support
Support for NVIDIA NVLink™ (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.

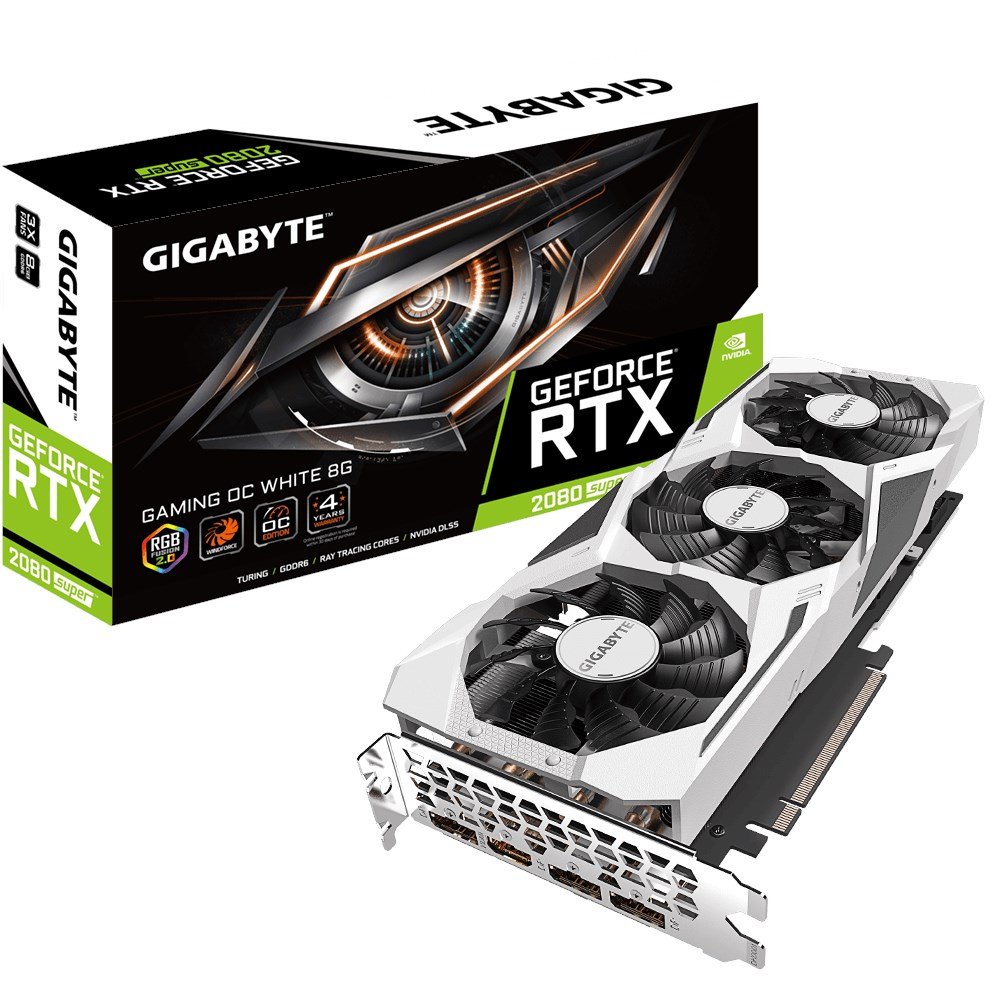

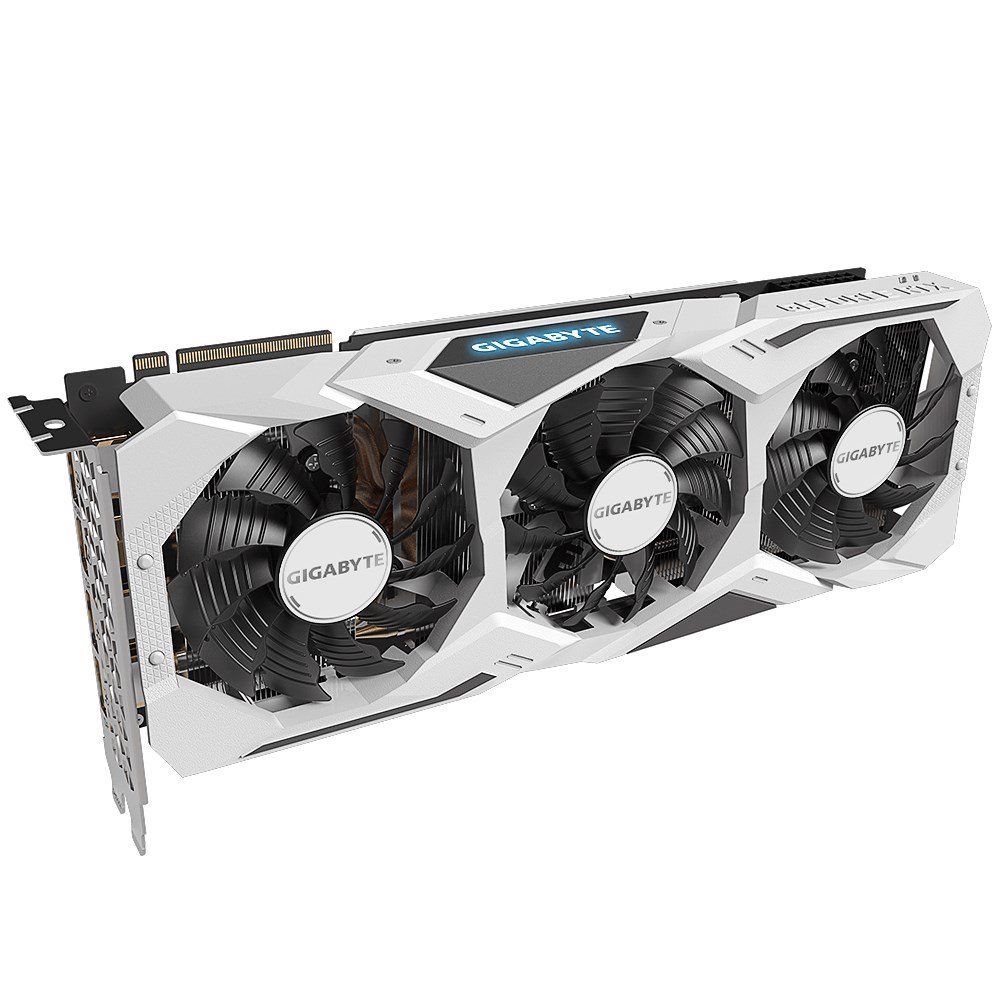

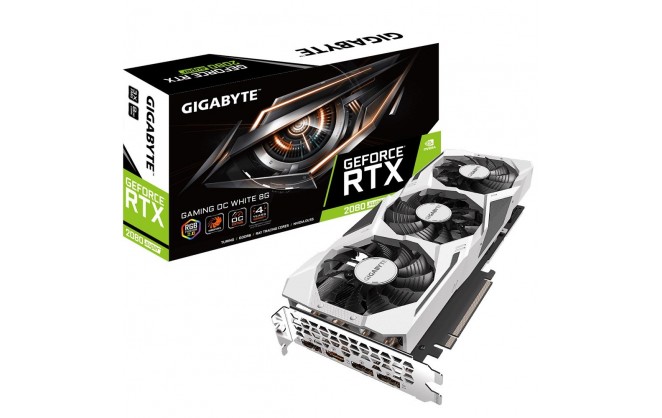

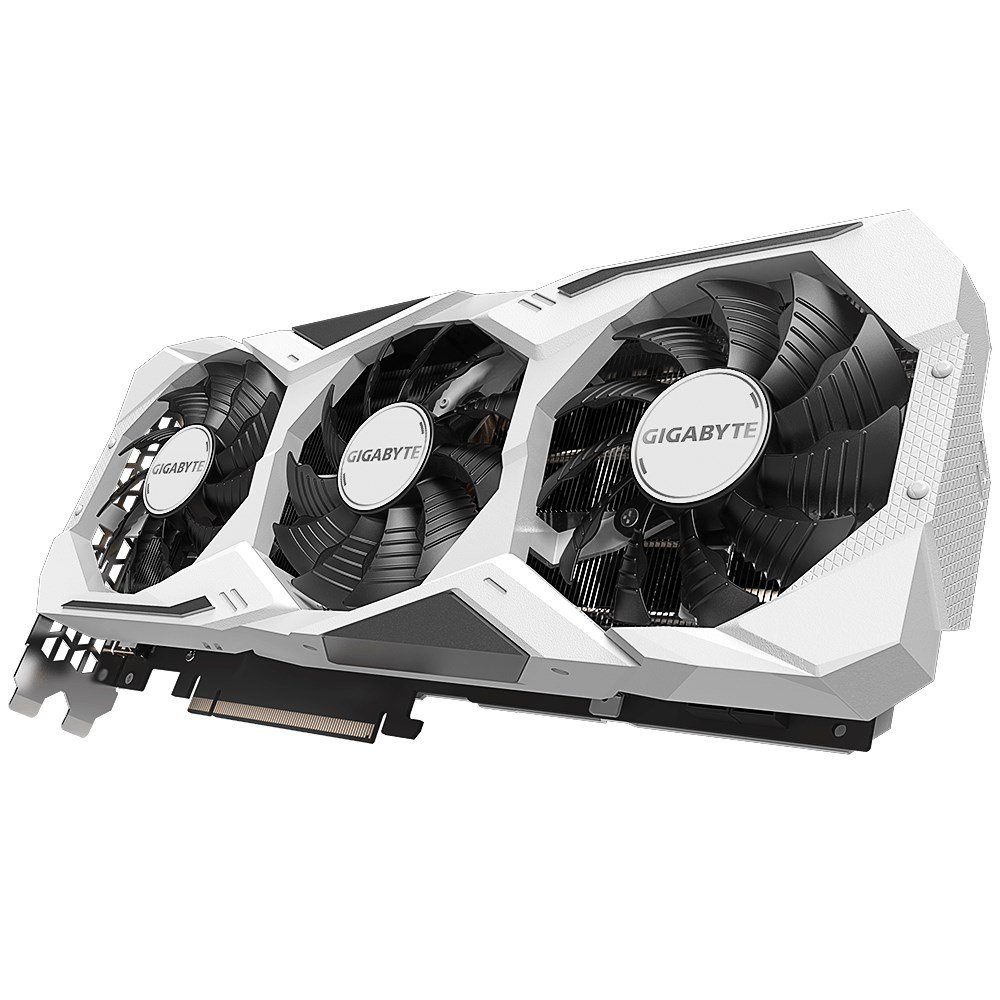

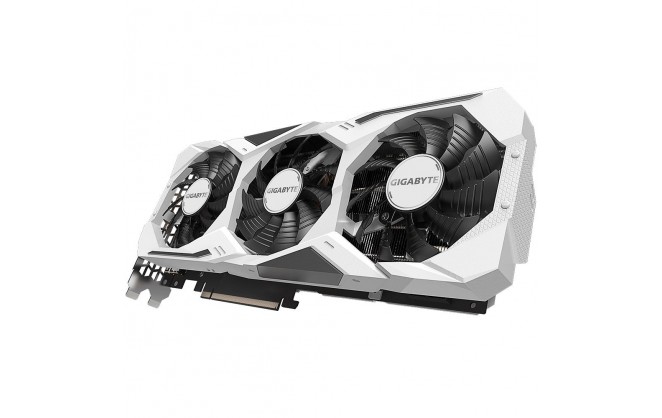

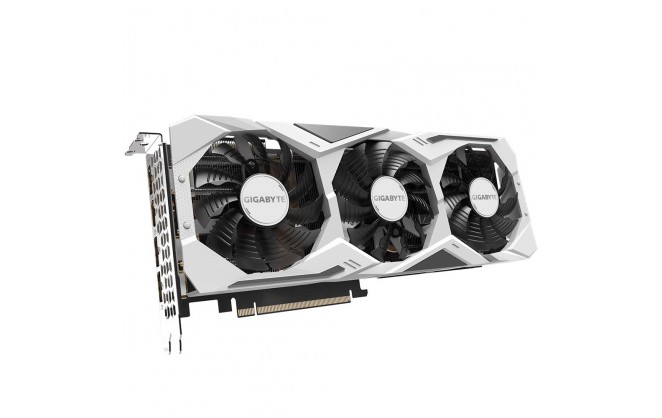

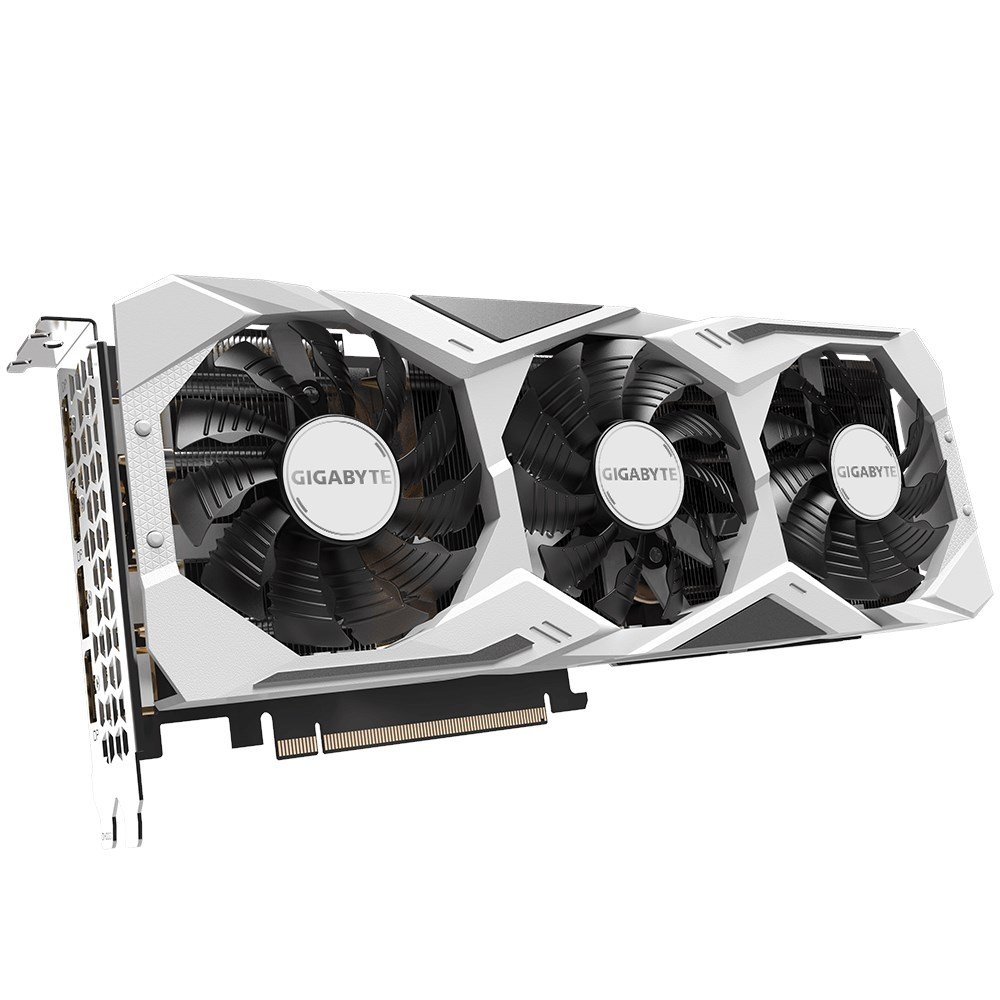

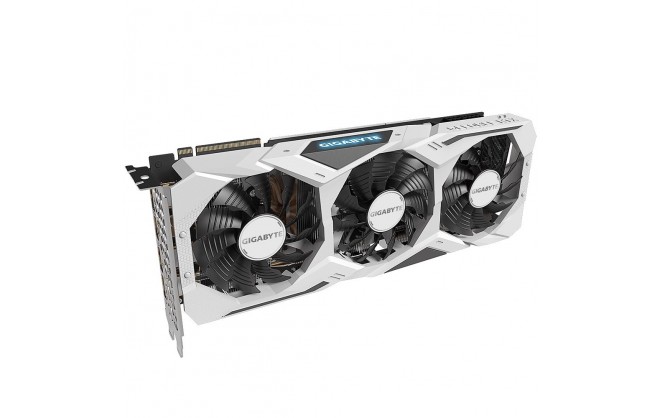

Gigabyte GeForce RTX 2080 SUPER Gaming OC 8GB OC
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 2080 SUPER |
| Chipset Additional Information | GAMING OC WHITE |
| Base Chip Clock | 1845 MHz |
| Number of Cores | 3072 units |
| Graphics Core | CUDA |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 15.5 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
| Memory Bandwidth | 496 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 3.0 x16 |
| HDMI Port | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 3.0 x16 slot Minimum 650W PSU with 1 x 8-pin & 1 x 6-pin PCIe connectors |
Electrical
| Power Connector | 1 x 8-pin PCIe 1 x 6-pin PCIe |
| Recomended Power Supply | 650 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide Driver Disc 4-year Warranty Registration |
| Width | 50.2 mm (Triple Slot) |
| Depth | 286.5 mm |
| Height | 114.5 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 3.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 2080 SUPER |
| PCI-E Pin Type | 6-Pin + 6+2-Pin |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 287 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | GeForce RTX 2080 SUPER |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N208SGAMINGOC WHITE-8GD |
| EAN | 4719331305963 |
| UPC | 889523019733 |
| Condition | New |
