WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 1composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPE DIRECT TOUCH GPU
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

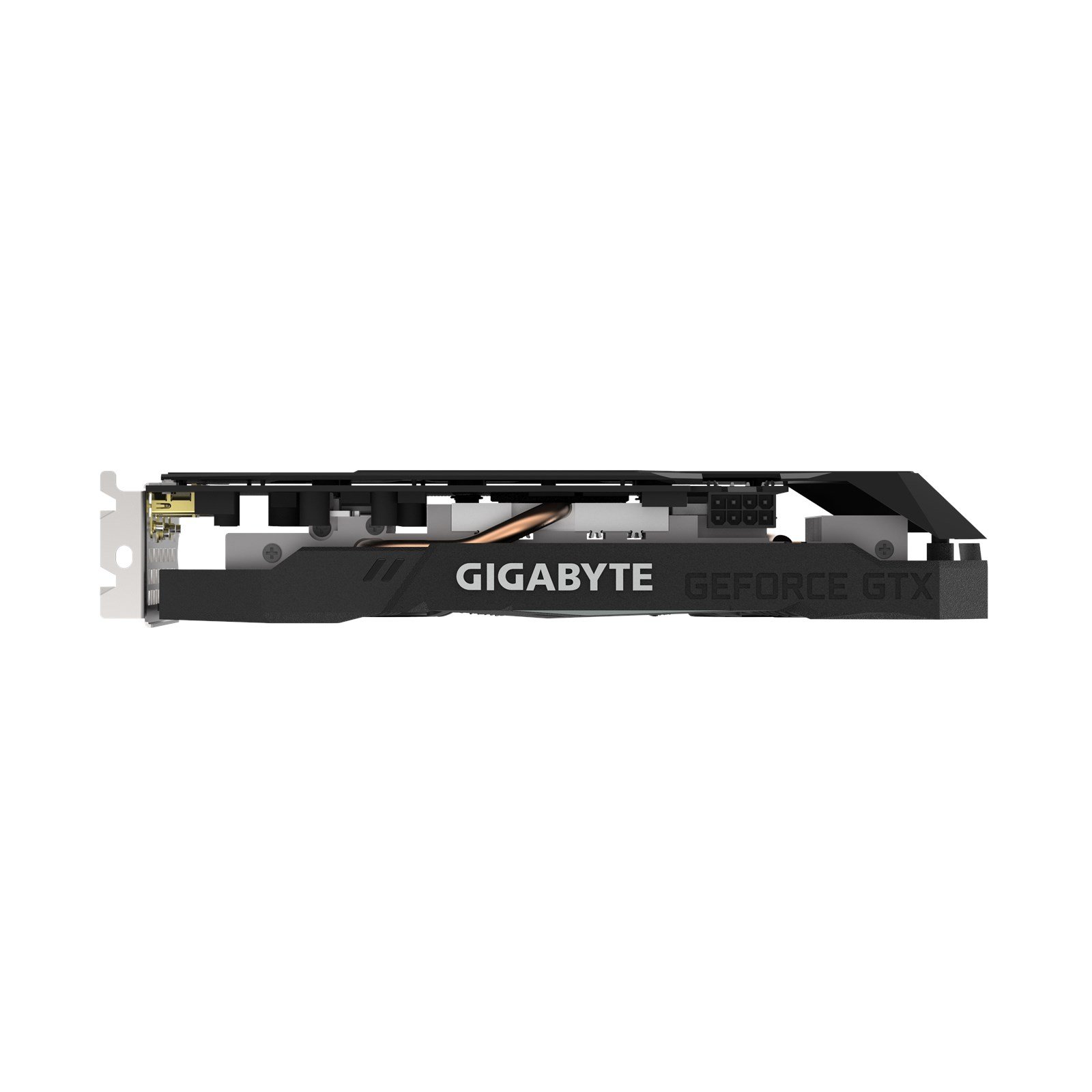

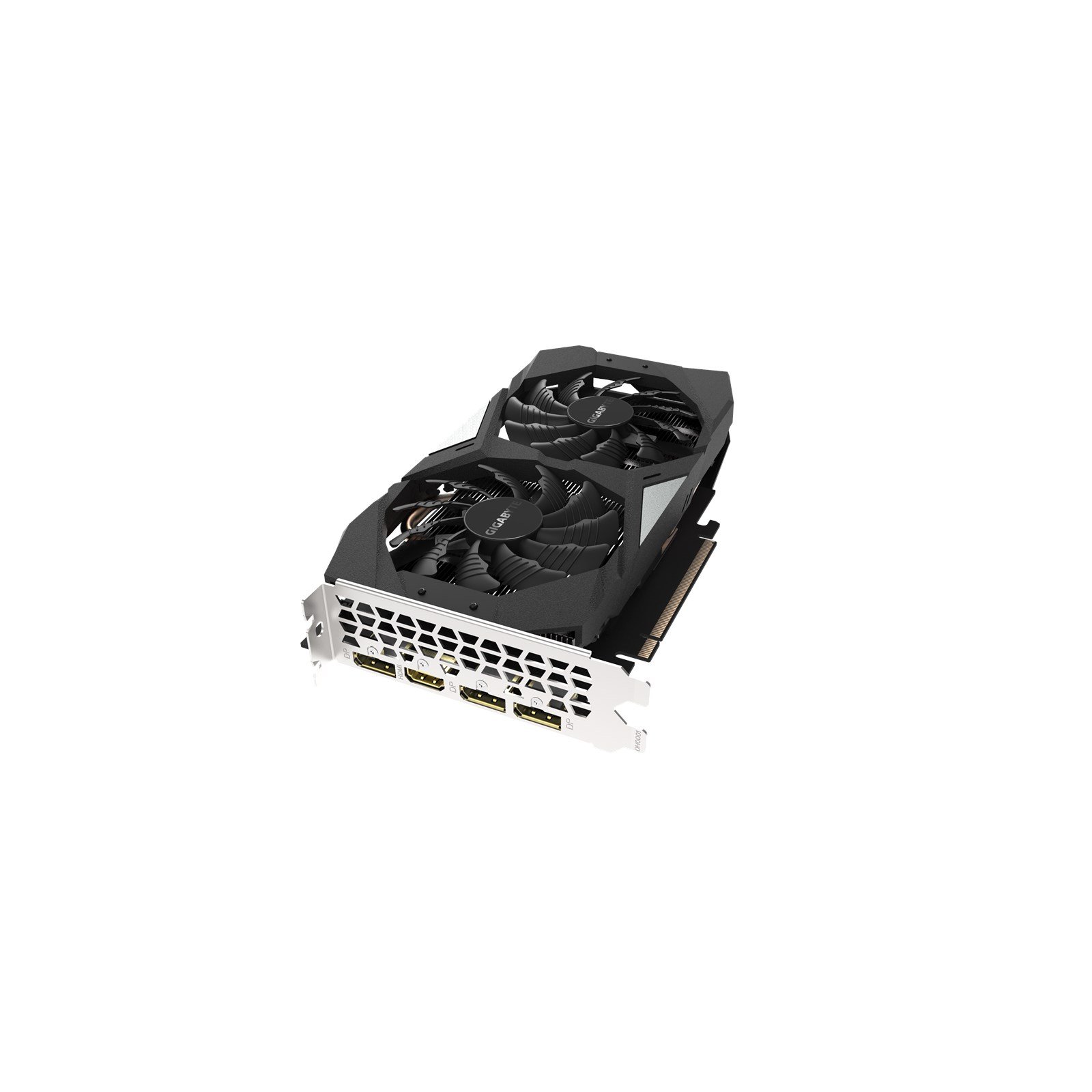

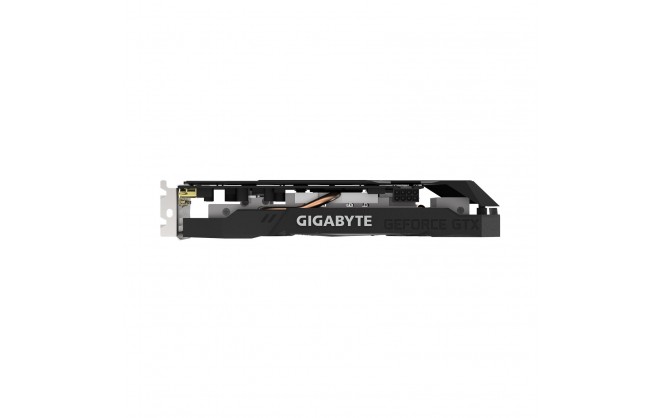

Gigabyte GeForce GTX 1660 6GB OC GPU
GPU
| Chipset Manufacturer | NVIDIA® |
| Chipset Model Name | GeForce® GTX |
| Chipset Model Number | 1660 |
| Boost Chip Clock | 1830 MHz |
| Graphics Core | CUDA |
| Cooling System | Windforce |
Memory
| Memory Size | 6144 MB |
| Memory Clock | 8002 MHz |
| Memory Type | GDDR5 |
| Memory Width | 192 bit |
| Memory Bandwidth | 192 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 3.0 x16 |
| HDMI Port | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
Resolution
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 3.0 x16 slot Minimum 450W power supply with 1 x 8-pin PCIe connector |
Physical
| Form Factor | Graphics Card |
| In The Box | Gigabyte GeForce GTX 1660 Graphics Card Quick Guide Driver Disc |
| Width | 40 mm (Dual Slot) |
| Depth | 224 mm |
| Height | 121 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 3.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Active Fan |
| Low Profile | No |
| NVIDIA GeForce | GTX 1660 |
| PCI-E Pin Type | 8-Pin |
| Cooling Technology | Active Fan |
| VR Ready | NVIDIA |
| GPU Length | 224 mm |
| Card Width | Dual Slot |
Graphics
| Graphics Chipset | GeForce GTX 1660 |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate | No |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N1660OC-6GD |
| EAN | 4719331304485 |
| Condition | New |
