GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
With less than 172mm in length, the graphics card can be easily installed in any small chassis.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

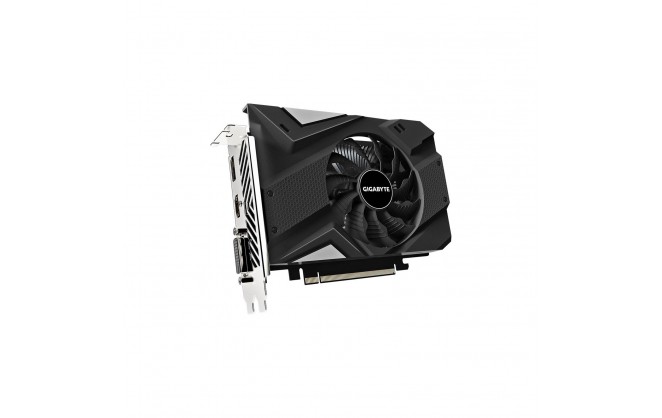

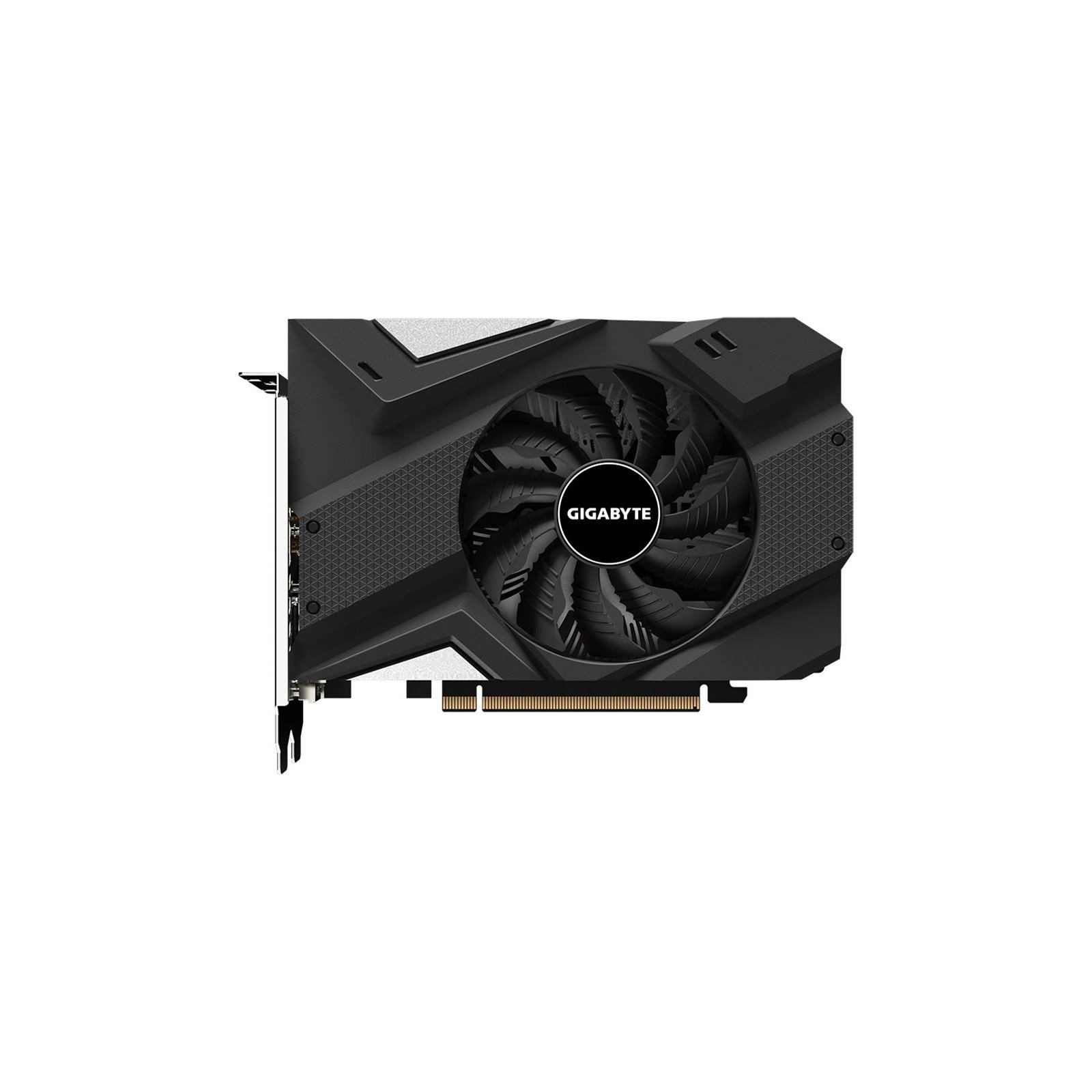

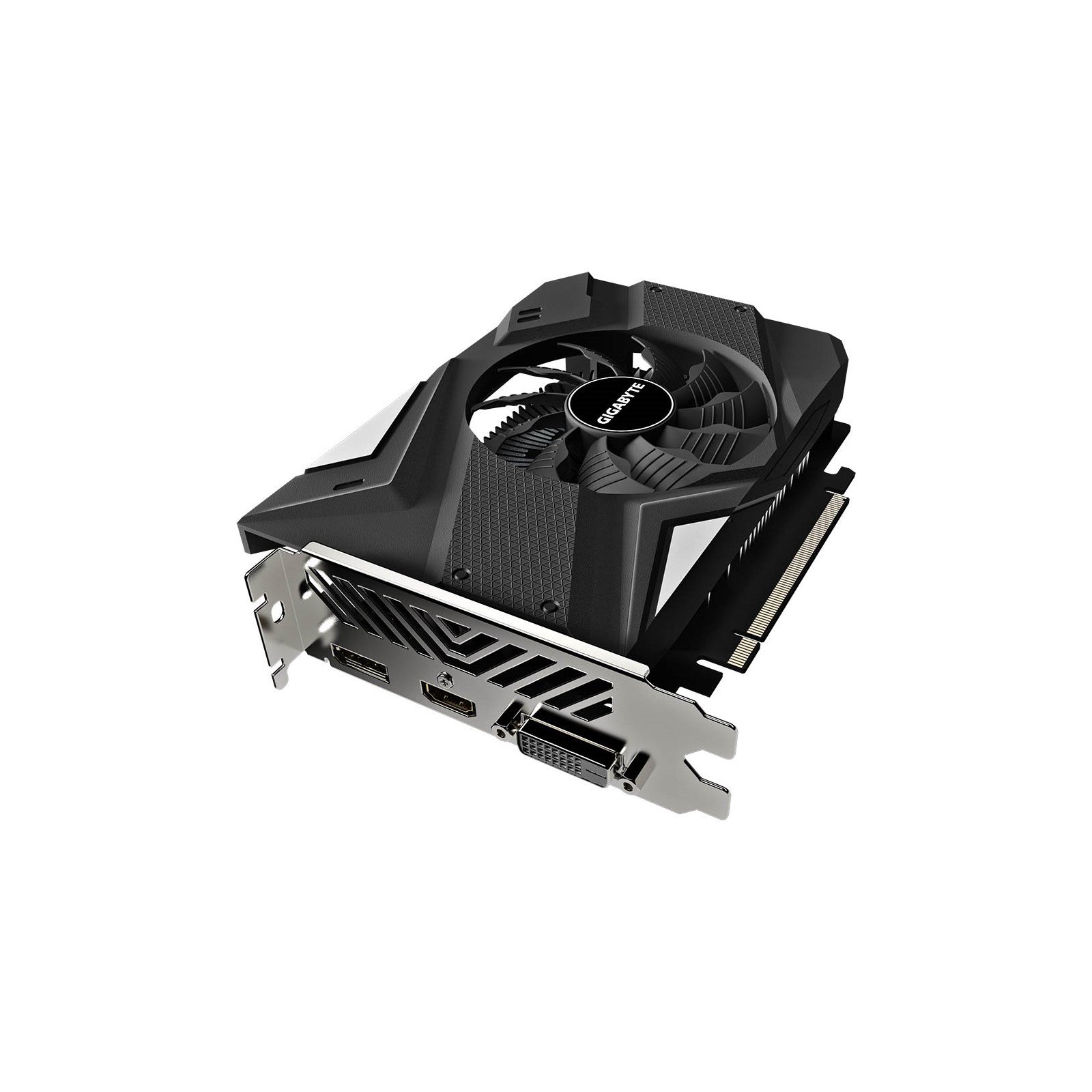

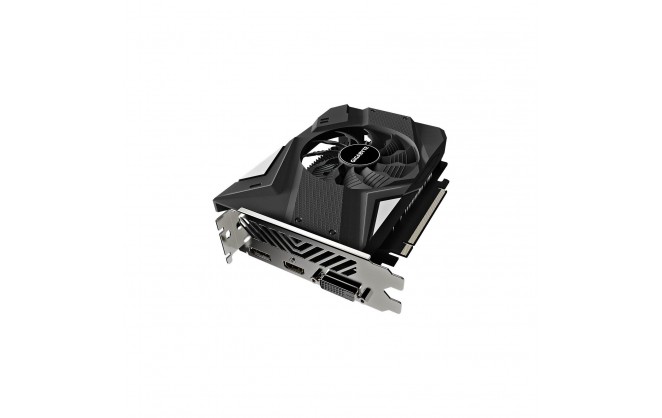

Gigabyte GeForce GTX 1650 4GB OC GPU
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce GTX |
| Chipset Model Number | 1650 |
| Chipset Additional Information | D6 OC rev 2.0 |
| Chip Clock | 1635 MHz |
| Graphics Core | CUDA |
| Number of Cores | 896 cores |
Memory
| Memory Size | 4096 MB |
| Memory Clock | 12 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 128 bit |
| Memory Bandwidth | 192 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 3.0 x16 |
| HDMI Port | 1 x HDMI 2.0b |
| DisplayPort | 1 x DisplayPort 1.4 |
| DVI Port | 1 x DVI-D DL |
Resolution
| Multiple Monitor Support (Max) | Yes (3) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 3.0 x16 slot Recommended 300W or greater PSU with 1 x 6-pin PCIe connector |
Electrical
| Power Connector | 1 x 6-pin PCIe |
| Recomended Power Supply | 300 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 40 mm (Dual Slot) |
| Depth | 172 mm |
| Height | 122 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 3.0 x16 |
| VGA Connection | No |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Active Fan |
| Low Profile | No |
| NVIDIA GeForce | GTX 1650 |
| PCI-E Pin Type | 6-Pin |
| Cooling Technology | Active Fan |
| VR Ready | No |
| GPU Length | 172 mm |
| Card Width | Dual Slot |
Graphics
| Graphics Chipset | GeForce GTX 1650 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N1656OC-4GD V2 |
| EAN | 4719331306922 |
| UPC | 889523023464 |
| Condition | New |
