For sales and support
Call:0161 480 8800
£581.49 ex. vat
£697.79 inc. vat
Share:
Game TUF. Built to Last.
ASUS TUF Gaming Radeon™ RX 9070 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

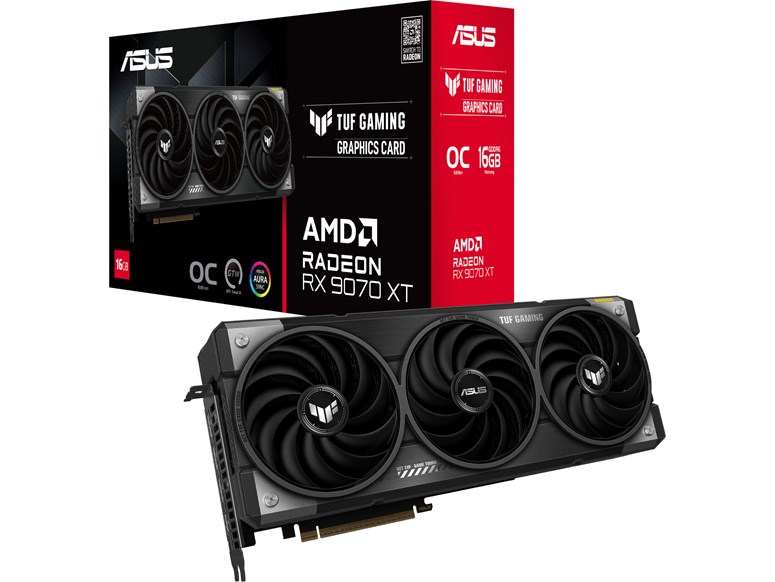

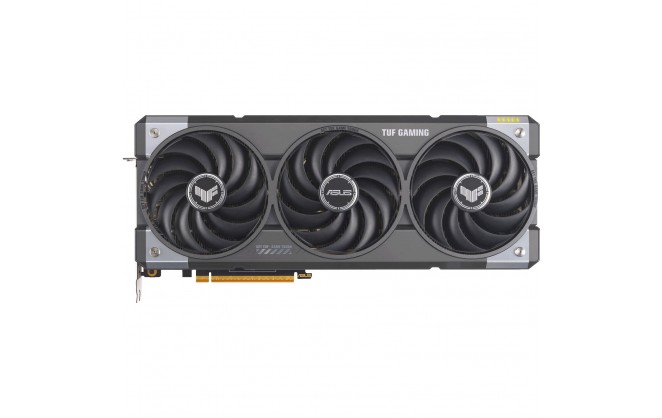

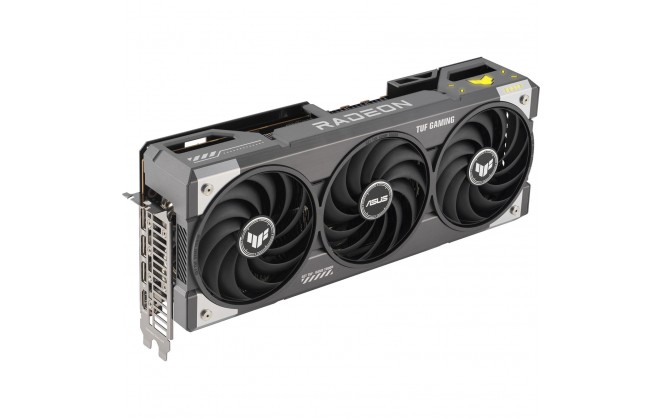

ASUS Radeon RX 9070 XT TUF OC 16GB GDDR6 Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 9070 XT |
| Chipset Additional Information | TUF Gaming OC |
| Base Chip Clock | 1660 MHz |
| Boost Chip Clock | Game Clock: 2520 MHz Boost Clock: Up to 3060 MHz |
| Number of Cores | 4096 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 3 x 8-pin PCIe |
| Power Consumption | 304 W |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card TUF certificate of Reliability TUF Gaming Graphics Card Holder TUF Velcro Hook & Loop TUF Fridge Magnet Thank you card Speedsetup Manual |
| Width | 62.5 mm (3.125 slot) |
| Depth | 330 mm |
| Height | 140 mm |
| Weight | 1.48 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | No |
| Graphics Memory Type | GDDR6 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| AMD Radeon | RX 9070 XT |
| PCIe Pin Type | 3 x 8-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | AMD |
| GPU Length | 330 mm |
| Card Width | 4 |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 24 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
| AI Ready | Yes |
Graphics
| Graphics Chipset | Radeon RX 9070 XT |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YV0L70-M0NA00 |
| EAN | 4711387829578 |
