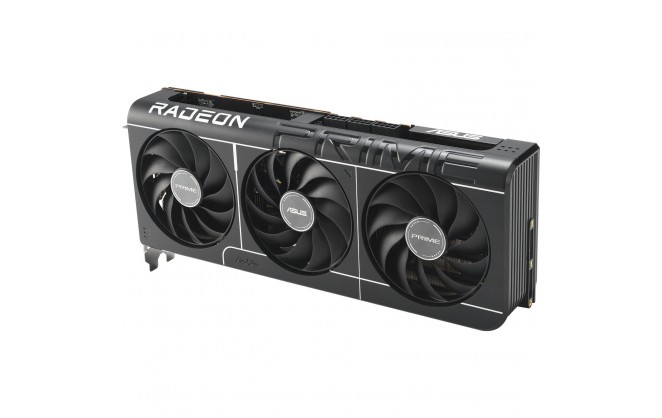

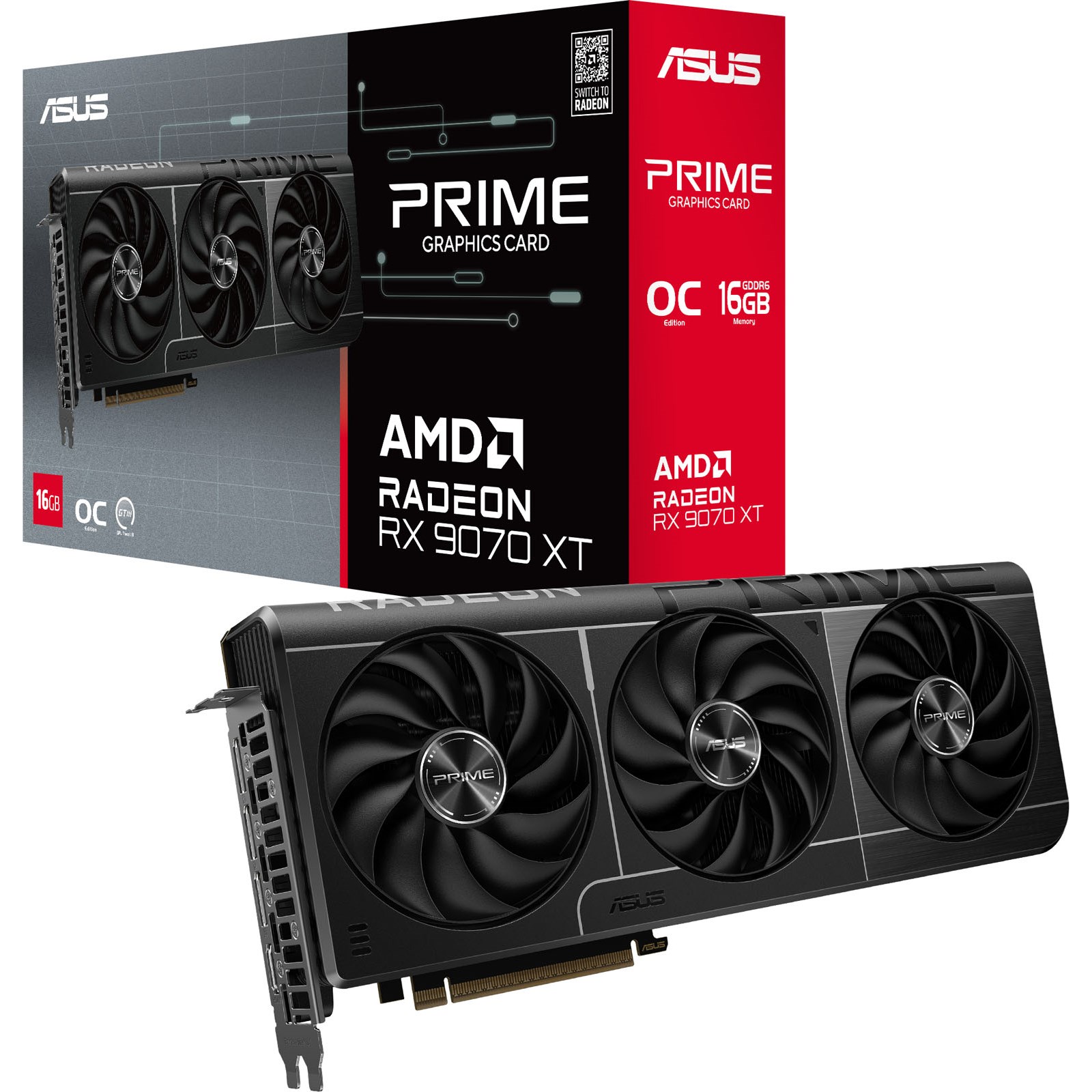

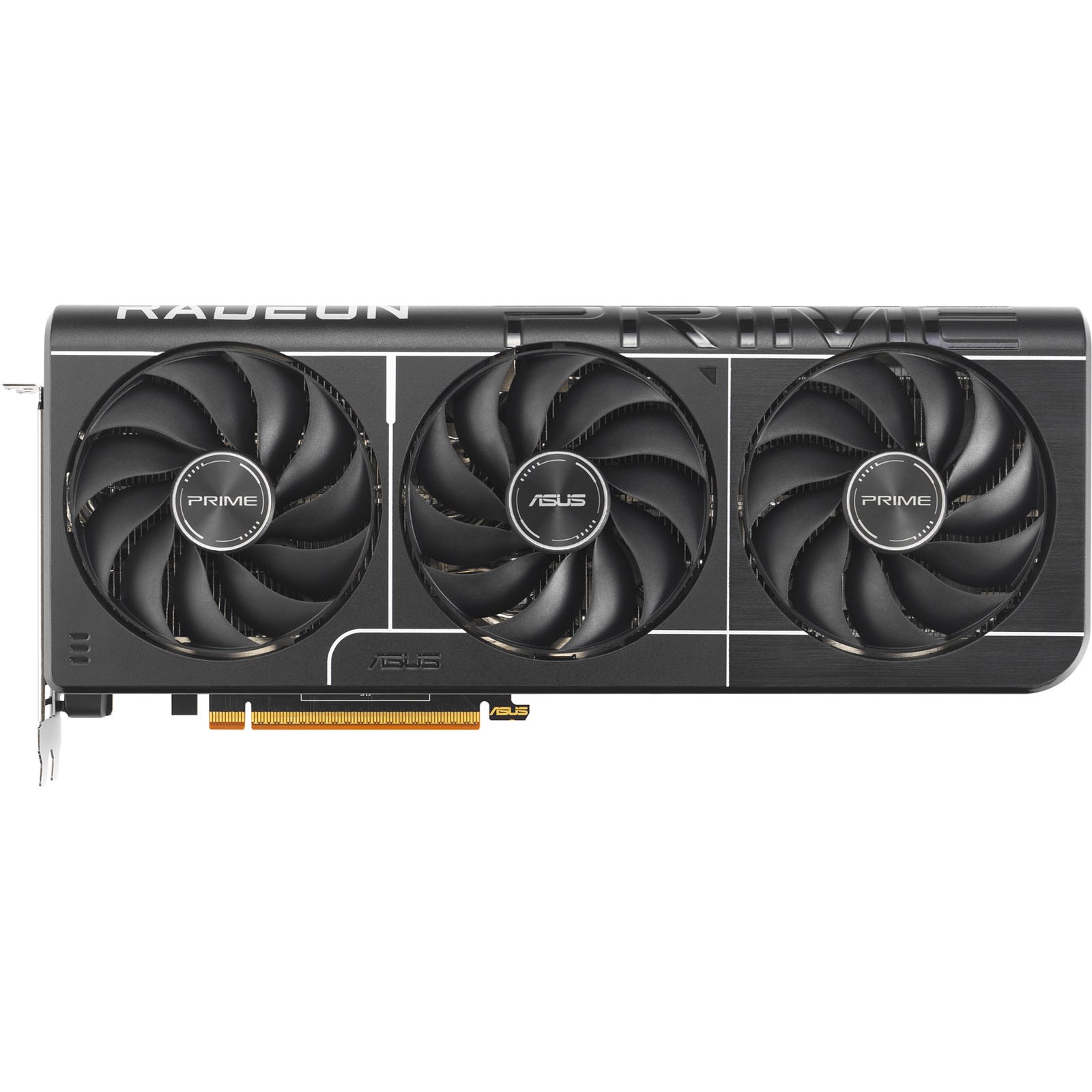

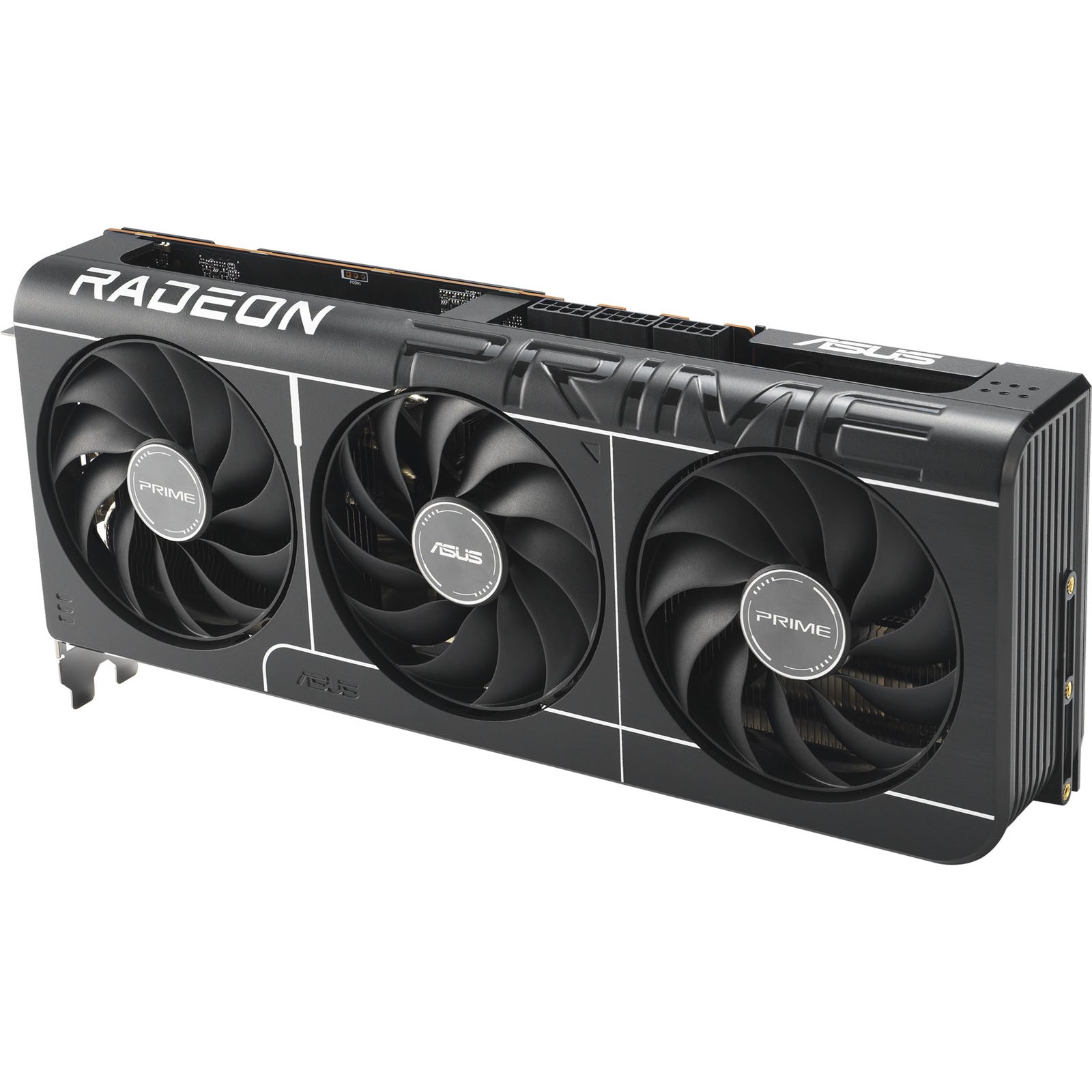

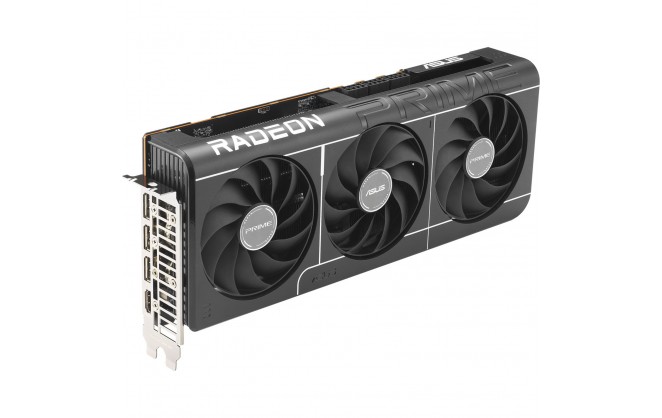

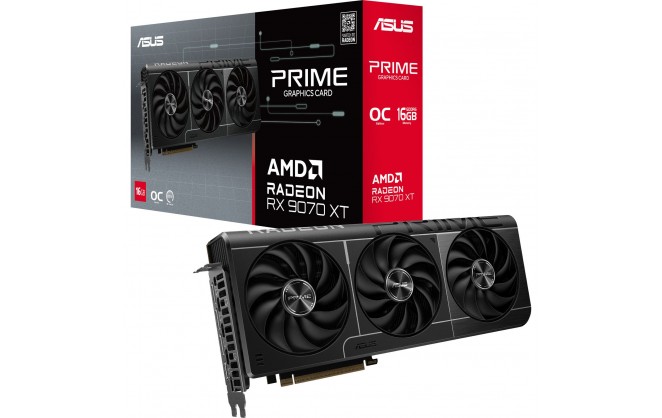

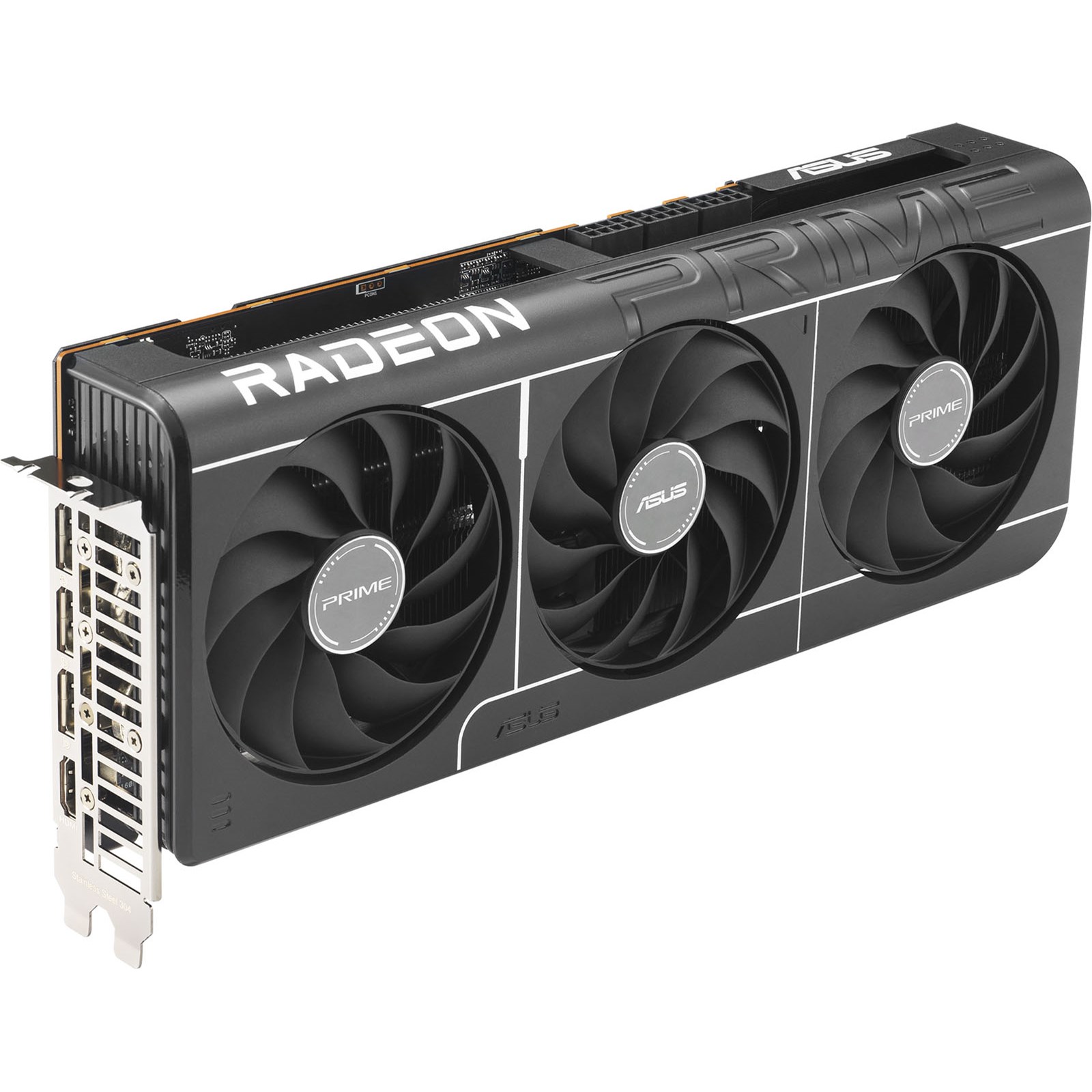

ASUS Radeon RX 9070 XT Prime OC 16GB GDDR6 Graphics Card

Part Number: 90YV0L71-M0NA00
Manufacturer: ASUS
Quickfind Code: 125934

Stock: In Stock

£539.49 ex. vat
£647.39 inc. vat

Product Features:

Condition: New
GPU RX 9070 XT
Capacity 16GB
Connection PCI-E
Memory Type GDDR6
Series RX XT
GPU Manufacturer AMD

+ Read More Information

Product Description

Primed for Power

PRIME Radeon™ RX 9070 XT

Experience Primal performance with the Prime Radeon™ RX 9070 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.

2.5-slot design card compatible with small-form-factor builds ?
Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure ?
Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability ?
2.5-slot design allows for greater build compatibility while maintaining cooling performance ?
Dual-ball fan bearings last up to twice as long as standard sleeve bearings ?
0dB technology lets you enjoy light gaming in relative silence ?
Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles ?
Auto-Extreme manufacturing process for precision and reliability ?
GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring

Technical Specification

ASUS Radeon RX 9070 XT Prime OC 16GB GDDR6 Graphics Card

GPU

Chipset Manufacturer	AMD
Chipset Model Name	Radeon RX
Chipset Model Number	9070 XT
Chipset Additional Information	PRIME OC
Base Chip Clock	1660 MHz
Boost Chip Clock	Game Clock: 2460 MHz Boost Clock: Up to 3010 MHz
Number of Cores	4096

Memory

Memory Size	16384 MB
Memory Clock	20 Gbps
Memory Type	GDDR6
Memory Width	256 bit

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x16
HDMI Port	1 x HDMI 2.1
DisplayPort	3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	3 x 8-pin PCIe
Power Consumption	304 W
Recomended Power Supply	750 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card Thank you card Speedsetup Manual
Width	50 mm (2.5 slot)
Depth	312 mm
Height	130 mm
Weight	1.16 kg

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x16
Config Gaming x8 (CB/CCL)	No
Graphics Memory Type	GDDR6
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
AMD Radeon	RX 9070 XT
PCIe Pin Type	3 x 8-Pin
FreeSync	Yes
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	AMD
GPU Length	312 mm
Card Width	3
Power Requirement (auto)	304 W
GPU Power (TDP)	304 W
Graphics card count	1
PCI Express Power Pins (female)	24
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	No
AI Ready	Yes
