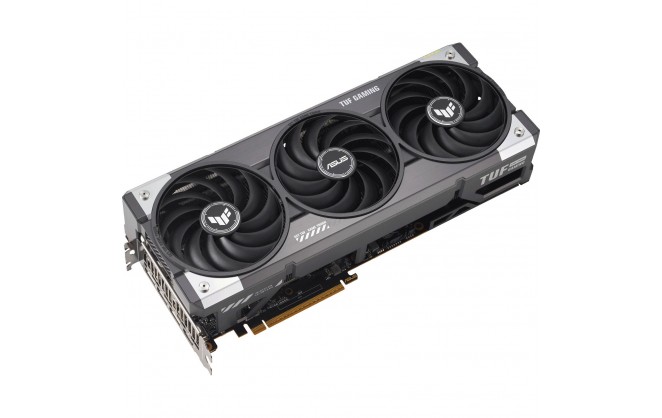

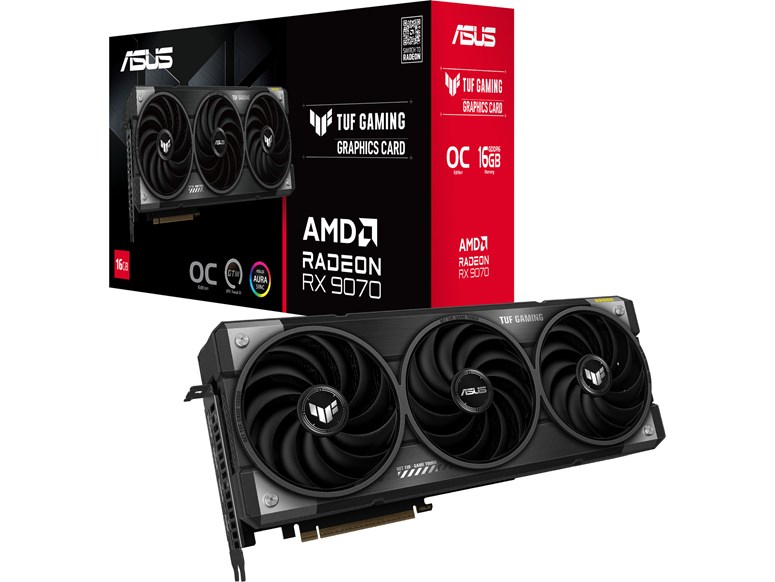

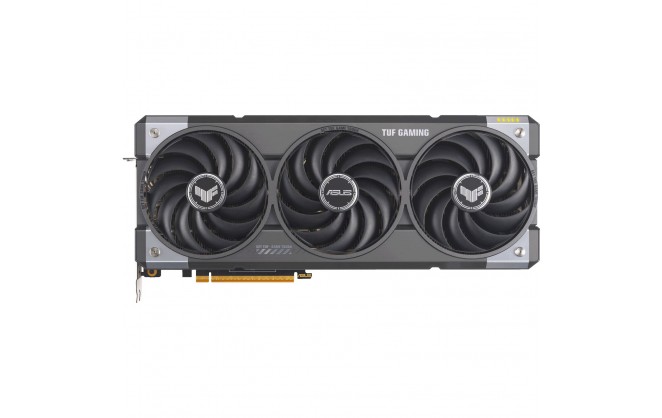

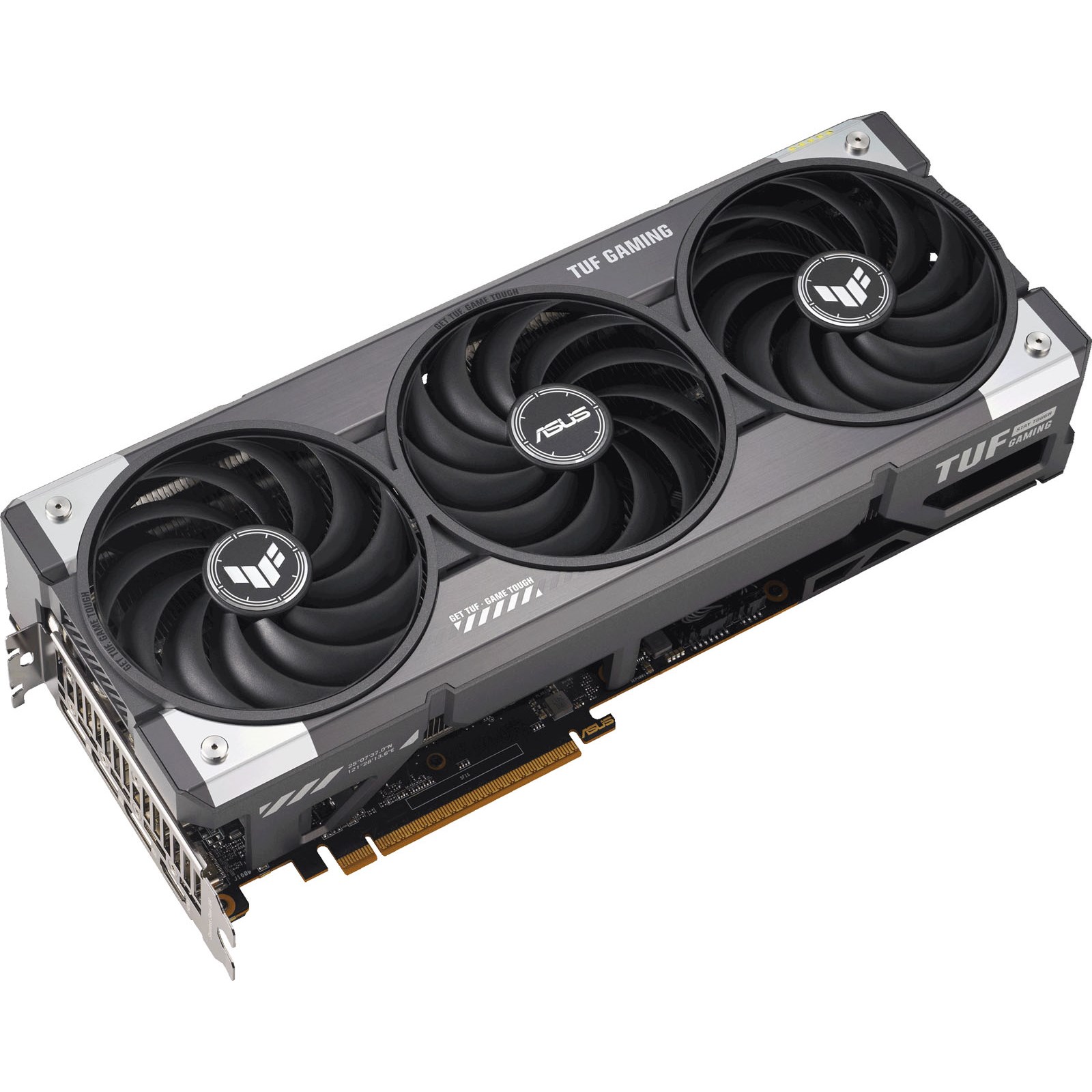

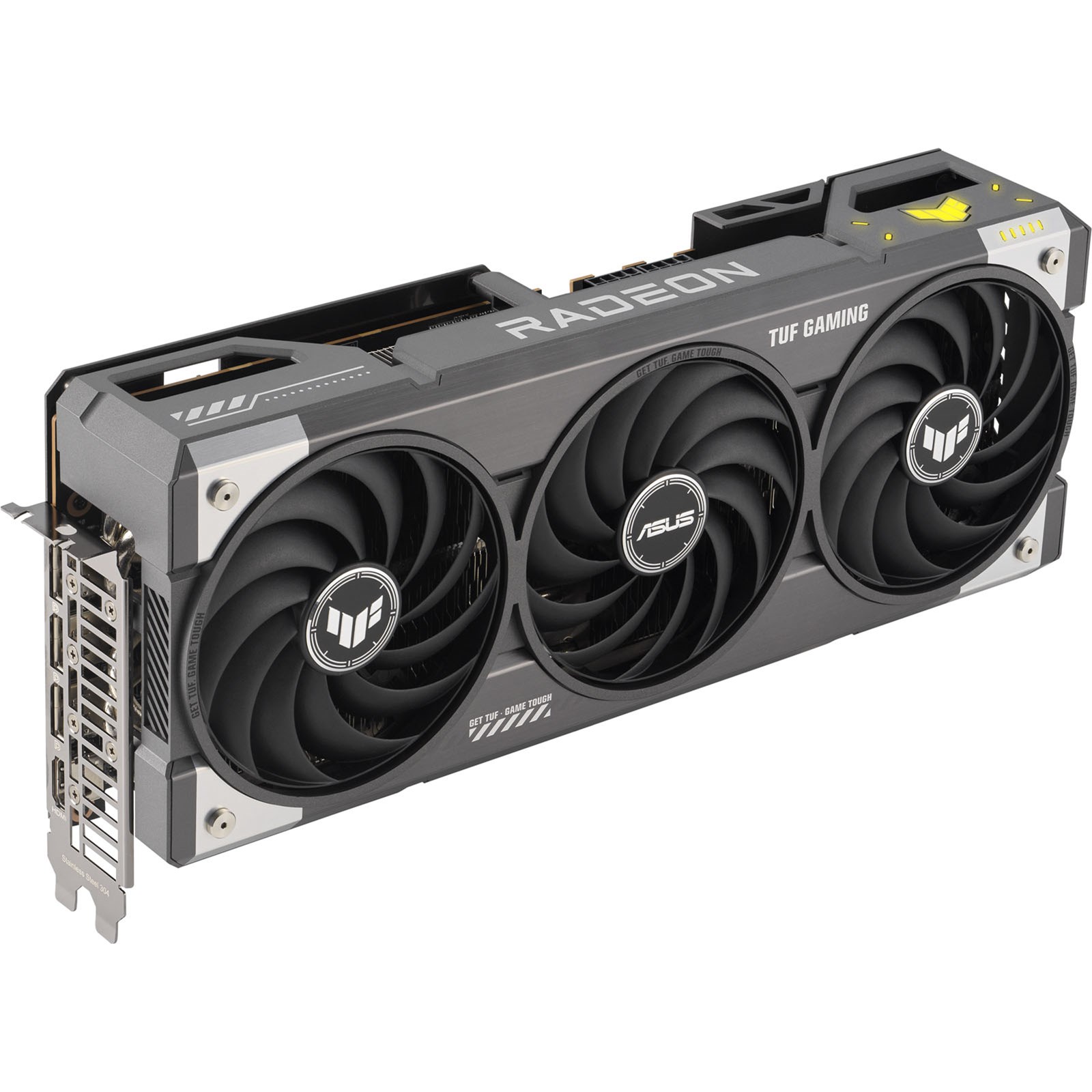

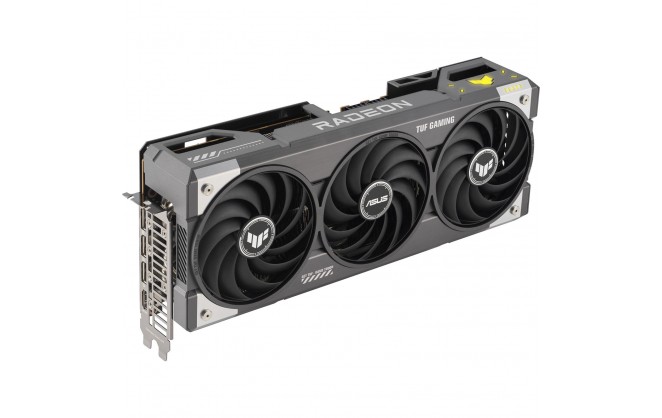

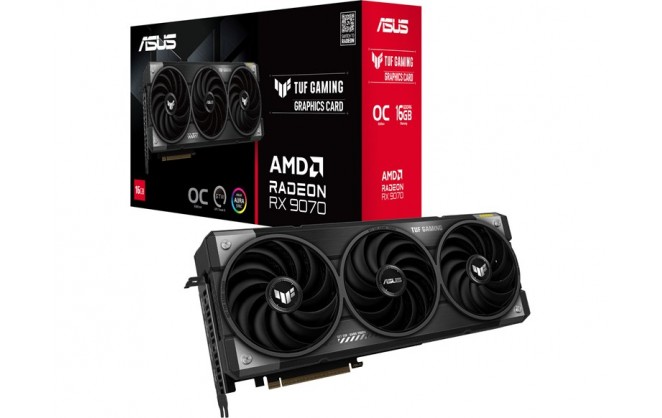

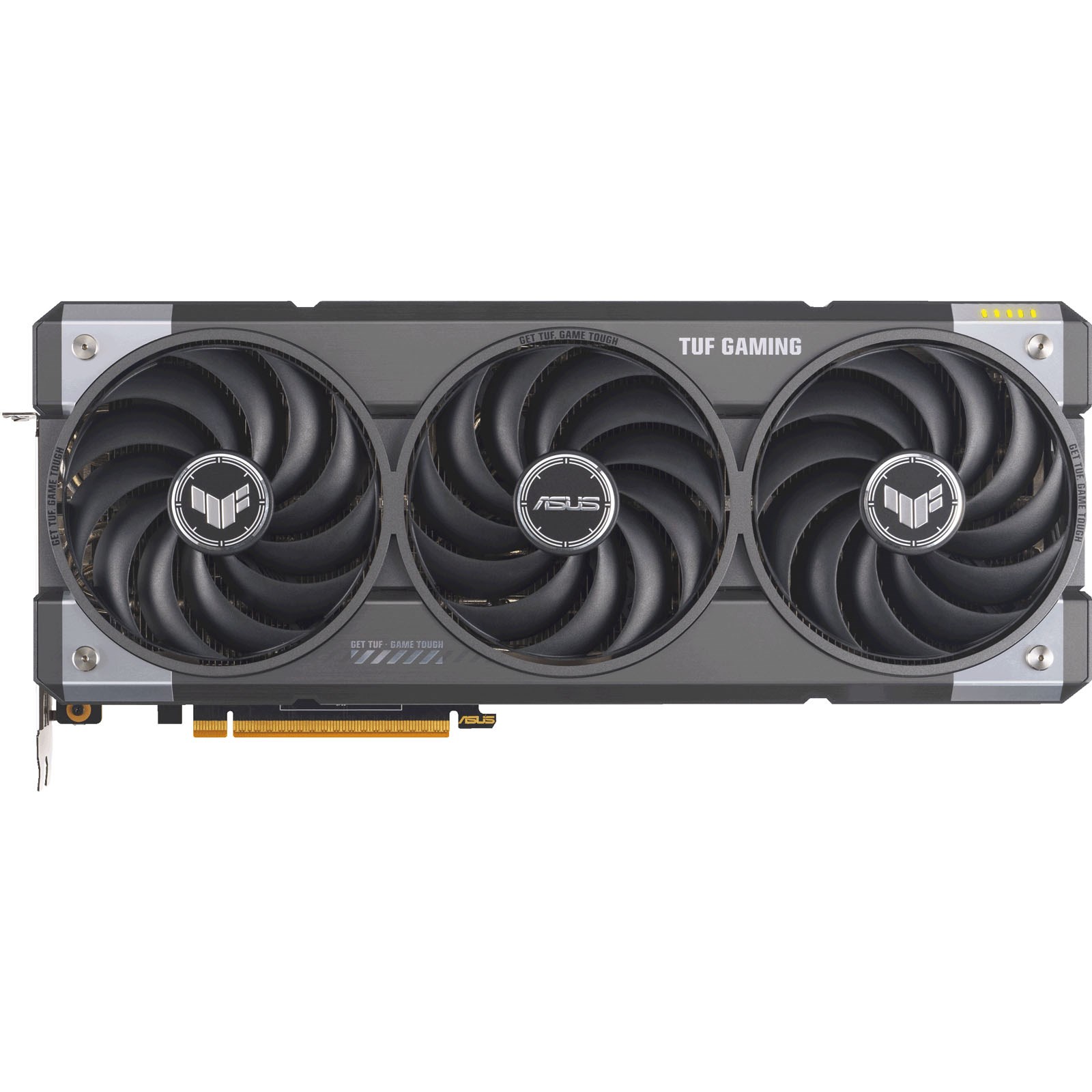

ASUS Radeon RX 9070 TUF OC 16GB GDDR6 Graphics Card

Part Number: 90YV0LI0-M0NA00
Manufacturer: ASUS
Quickfind Code: 125935

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RX 9070
Capacity 16GB
Connection PCI-E
Memory Type GDDR6
Series RX
GPU Manufacturer AMD

+ Read More Information

Product Description

Game TUF. Built to Last.

ASUS TUF Gaming Radeon™ RX 9070

The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

OC mode boosts clock 2670 MHz (OC mode)/ 2190 MHz (Default mode)
Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
Protective PCB coating helps protect against short circuits caused by moisture, dust or debris
Phase-change GPU thermal pad helps ensure optimal thermal performance and longevity, outlasting traditional thermal paste for graphics cards under heavy loads
3.125-slot design with massive fin array optimized for airflow from three Axial-tech fans
Dual ball fan bearings last up to twice as long as conventional designs
ASUS GPU Guard and bracket secure the GPU, reducing the risk of cracks and ensuring stable mounting
Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
Auto-Extreme precision automated manufacturing helps ensure higher reliability
GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring Wait for PM update clock #

Technical Specification

ASUS Radeon RX 9070 TUF OC 16GB GDDR6 Graphics Card

GPU

Chipset Manufacturer	AMD
Chipset Model Name	Radeon RX
Chipset Model Number	9070
Chipset Additional Information	TUF Gaming OC
Base Chip Clock	1330 MHz
Boost Chip Clock	Game Clock: 2170 MHz Boost Clock: 2560 MHz
Number of Cores	3584

Memory

Memory Size	16384 MB
Memory Clock	20 Gbps
Memory Type	GDDR6
Memory Width	256 bit

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x16
HDMI Port	1 x HDMI 2.1
DisplayPort	3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	3 x 8-pin PCIe
Power Consumption	220 W
Recomended Power Supply	850 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card TUF certificate of Reliability TUF Gaming Graphics Card Holder TUF Velcro Hook & Loop TUF Fridge Magnet Thank you card Speedsetup Manual
Width	62.5 mm (3.125 slot)
Depth	330 mm
Height	140 mm
Weight	1.48 kg

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x16
Config Gaming x8 (CB/CCL)	No
Graphics Memory Type	GDDR6
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
AMD Radeon	RX 9070
PCIe Pin Type	3 x 8-Pin
FreeSync	Yes
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	AMD
GPU Length	330 mm
Card Width	3
Power Requirement (auto)	220 W
GPU Power (TDP)	220 W
Graphics card count	1
PCI Express Power Pins (female)	24
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	No
AI Ready	Yes
