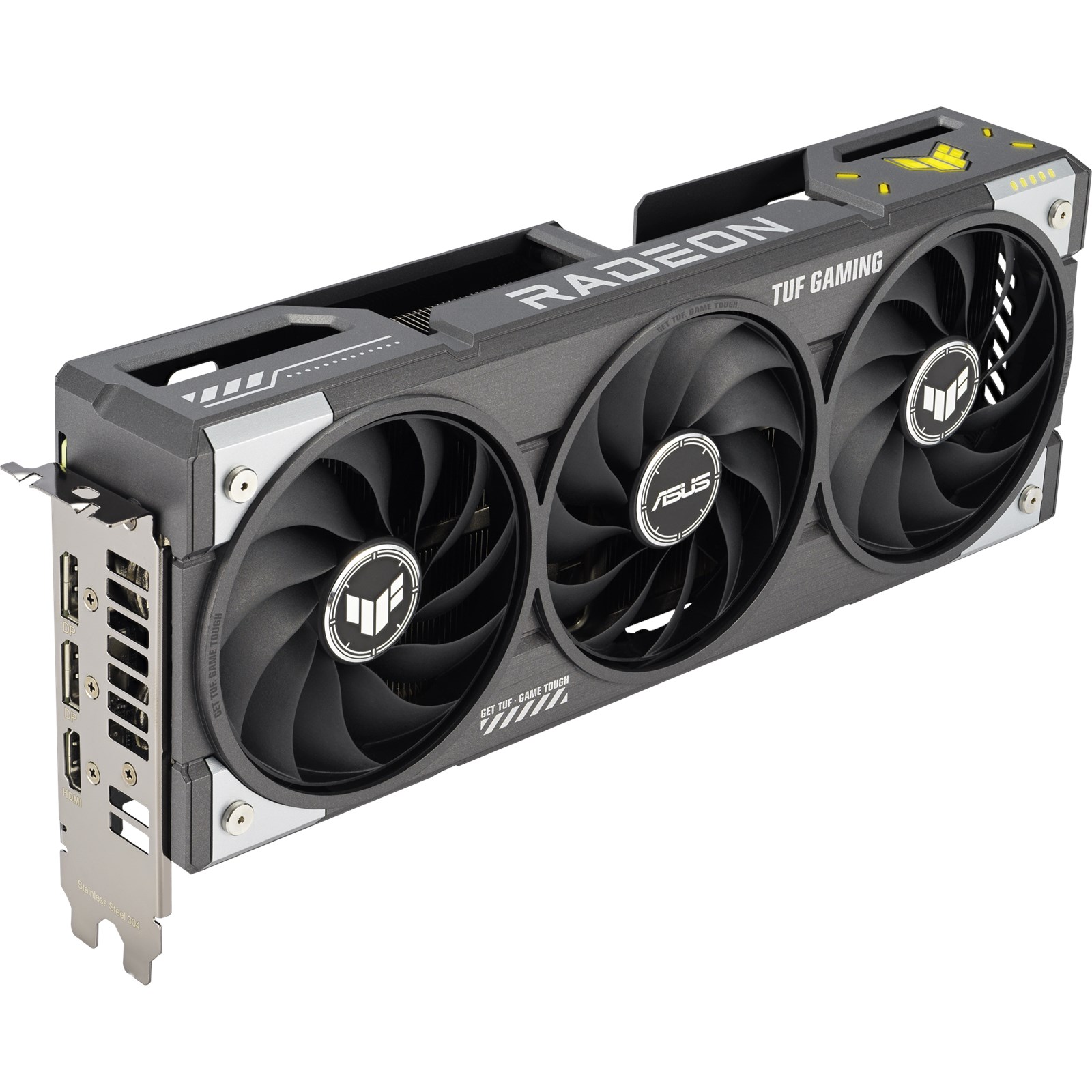

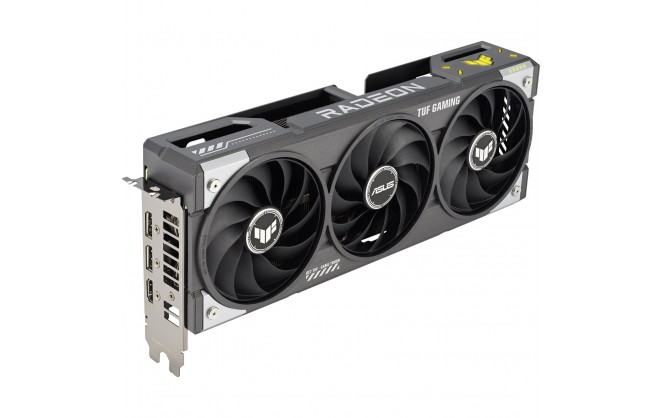

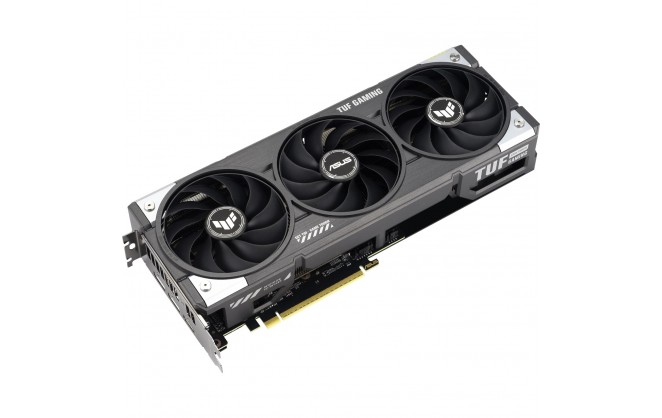

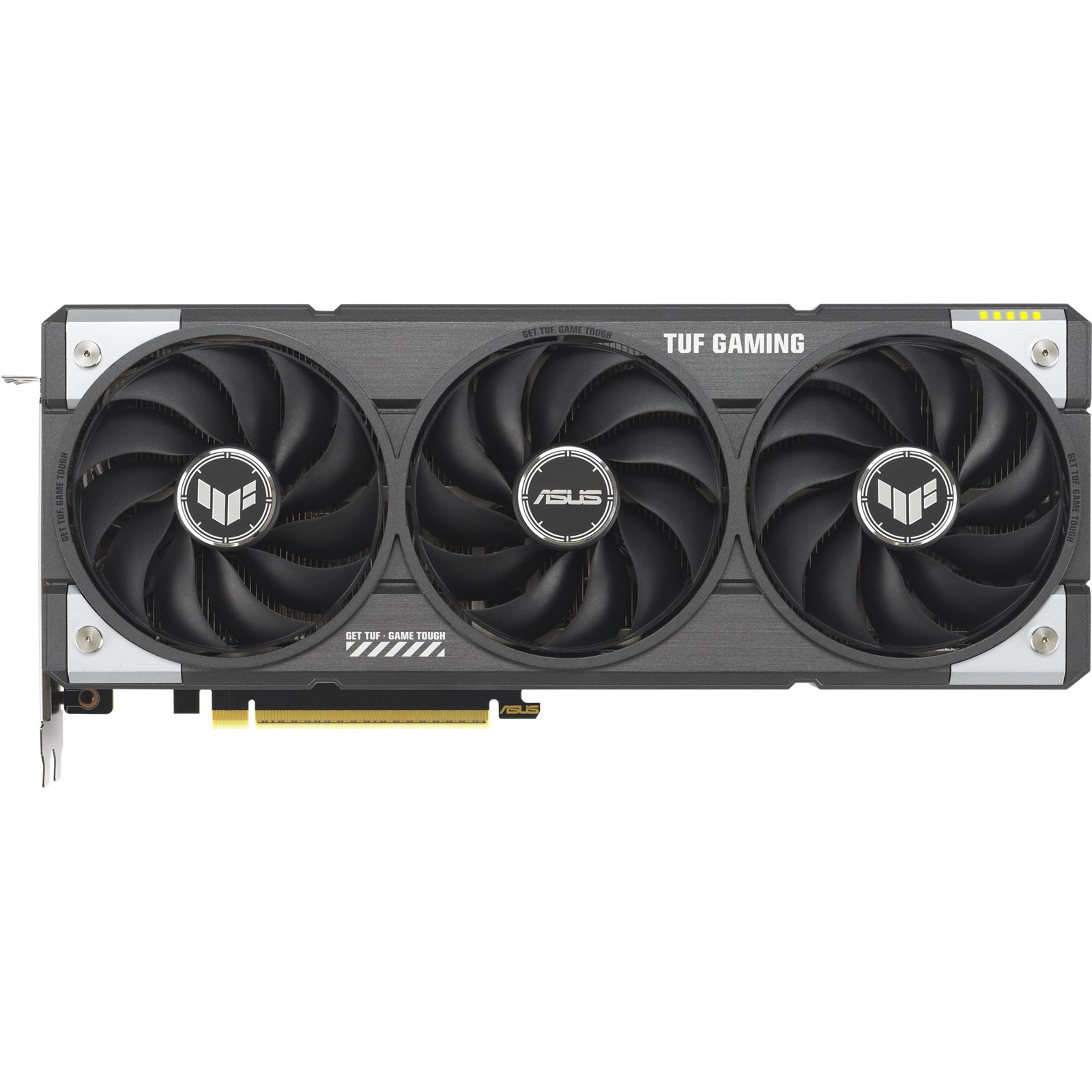

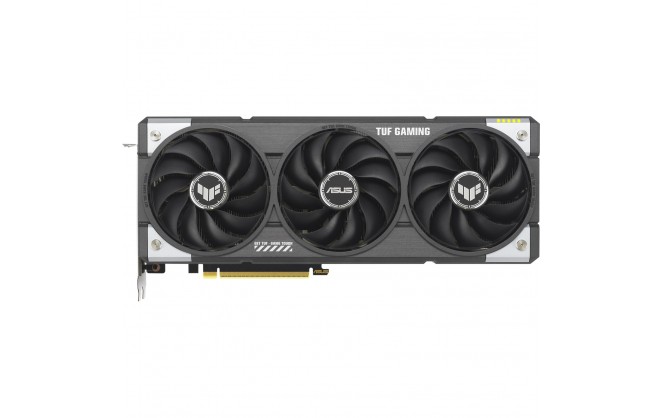

ASUS Radeon RX 9060 XT TUF OC 16GB GDDR6 Graphics Card

Part Number: 90YV0LF0-M0NA00
Manufacturer: ASUS
Quickfind Code: 126002

Stock: In Stock

£338.49 ex. vat
£406.19 inc. vat

Product Features:

Condition: New
GPU RX 9060 XT
Capacity 16GB
Connection PCI-E
Memory Type GDDR6
Series RX XT
GPU Manufacturer AMD

+ Read More Information

Product Description

Game TUF. Built to Last.

ASUS TUF Gaming Radeon™ RX 9060 XT

The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

OC mode (GPU Tweak III): Up to 3340 MHz (Boost Clock)/up to 2800 MHz (Game Clock)
Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
Protective PCB coating helps protect against short circuits caused by moisture, dust or debris
2.5-slot design with massive fin array optimized for airflow from three Axial-tech fans
Dual ball fan bearings last up to twice as long as conventional designs
ASUS GPU Guard secure the GPU, reducing the risk of cracks
Auto-Extreme precision automated manufacturing helps ensure higher reliability
GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring

Technical Specification

ASUS Radeon RX 9060 XT TUF OC 16GB GDDR6 Graphics Card

GPU

Chipset Manufacturer	AMD
Chipset Model Name	Radeon RX
Chipset Model Number	9060 XT
Chipset Additional Information	TUF Gaming OC
Boost Chip Clock	Up to 3340 MHz
Number of Cores	2048

Memory

Memory Size	16384 MB
Memory Clock	20 Gbps
Memory Type	GDDR6
Memory Width	128 bit

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x16
HDMI Port	1 x HDMI 2.1b
DisplayPort	2 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max)	Yes (3)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 8-pin PCIe
Recomended Power Supply	550 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card TUF Certificate of Reliability TUF Velcro Hook & Loop TUF Fridge Magnet Thank You Card Speedsetup Manual
Width	50 mm (2.5 slot)
Depth	304 mm
Height	126 mm
Weight	0.941 kg

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x16
Config Gaming x8 (CB/CCL)	Yes
Graphics Memory Type	GDDR6
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
AMD Radeon	RX 9060 XT
PCIe Pin Type	6+2-Pin
FreeSync	Yes
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	AMD
GPU Length	304 mm
Card Width	3
Power Requirement (auto)	160 W
GPU Power (TDP)	160 W
Graphics card count	1
PCI Express Power Pins (female)	8
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	No
