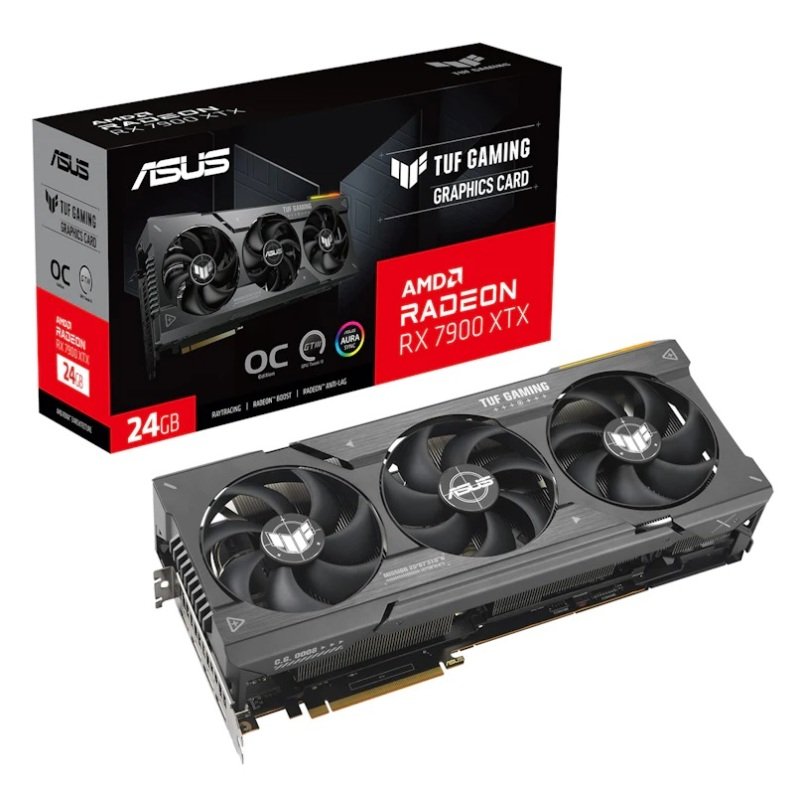

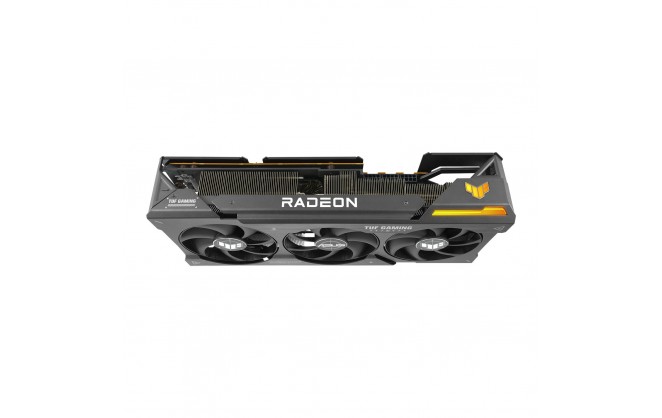

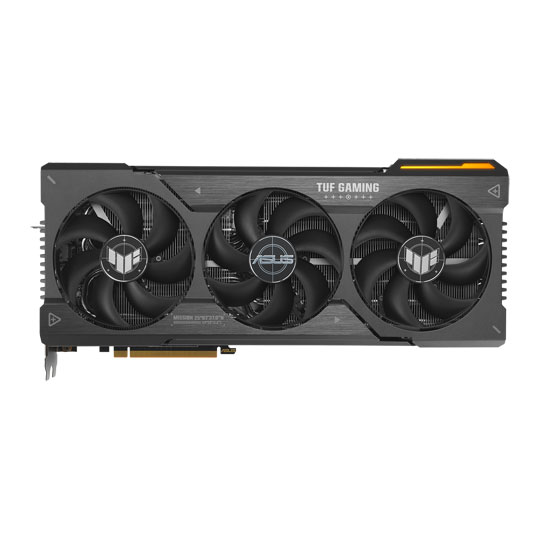

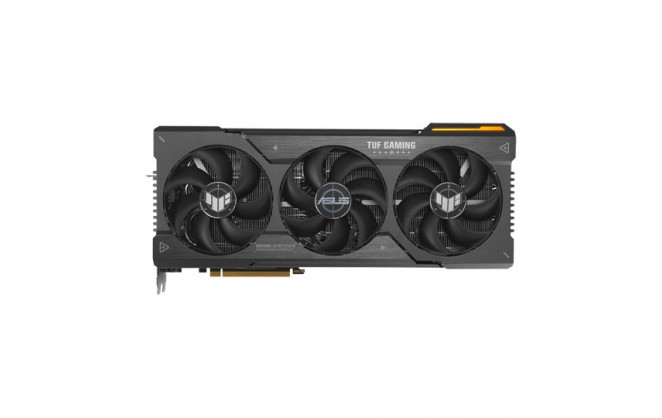

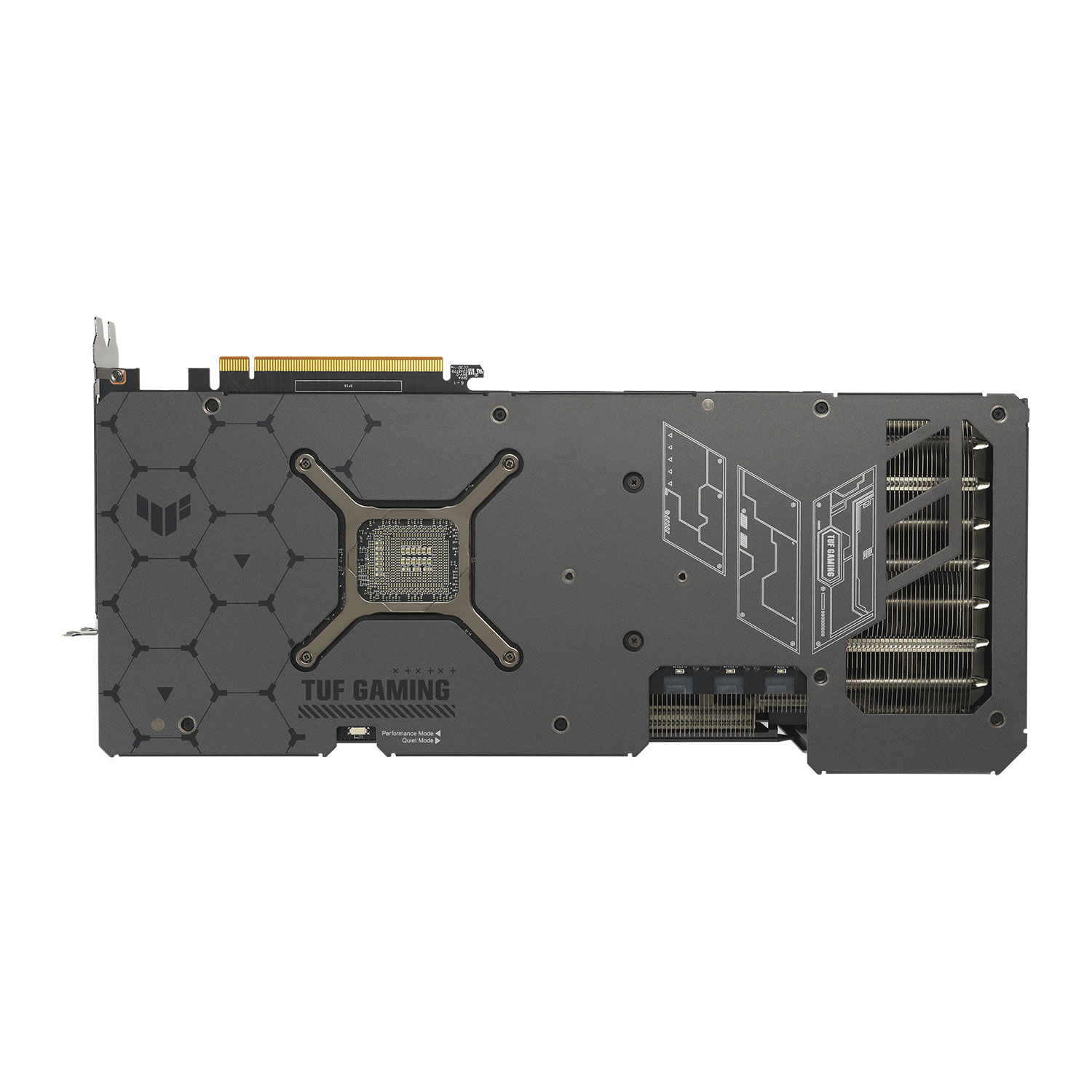

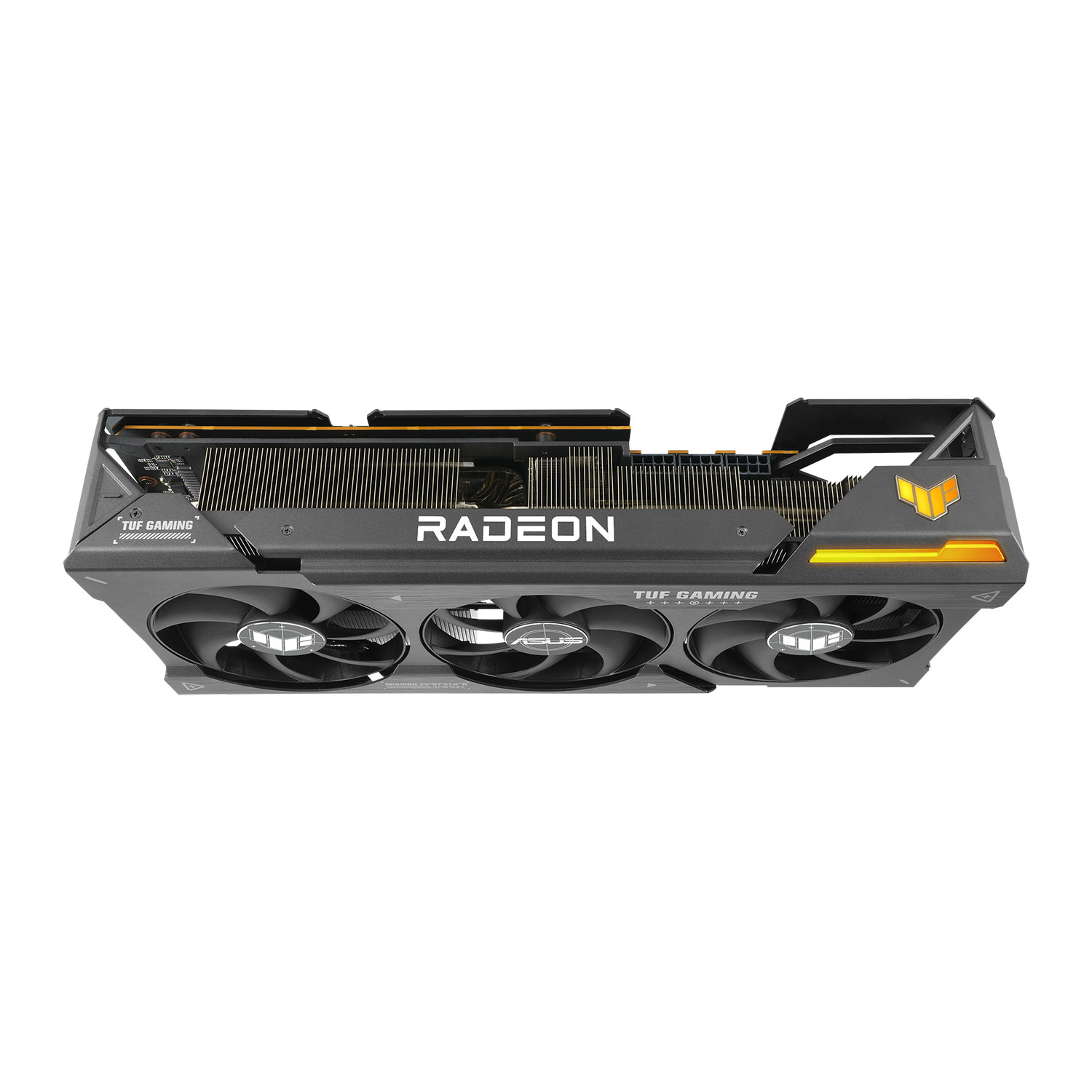

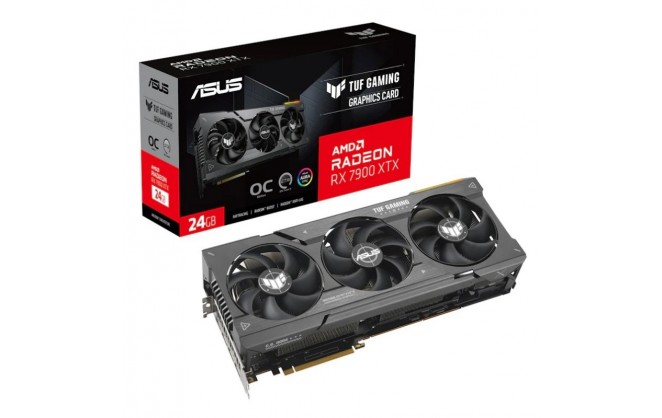

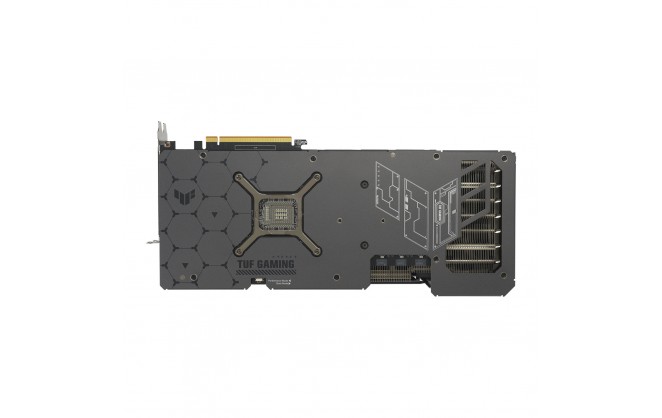

ASUS Radeon RX 7900 XTX 24GB TUF OC Graphics Card

  • Part Number: TUF-RX7900XTX-O24G-GAMING
  • Manufacturer: ASUS
  • Quickfind Code: 125510

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • GPU RX 7900 XTX
  • Capacity 24GB
  • Connection PCI-E
  • Memory Type GDDR6
  • Series RX XTX
  • GPU Manufacturer AMD
+ Read More Information

Share:

Product Description

Features

  • Radeon RX 7900 XTX
  •     24GB GDDR6
  •     Boost Clock: 2615MHz
  •     HDMI x 1 DP x 3

FLYIN' TUF
The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming Radeon™ RX 7900 XTX.

New Direction
Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.63-slot Design
Phase That Blaze

A generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7900 XTX GPU, allowing it to be whisked away by the three Axial-tech fans.

Military-grade 20K Capacitors
Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

Technical Specification

ASUS Radeon RX 7900 XTX 24GB TUF OC Graphics Card

Key Specifications
ChipsetRadeon RX 7900 XTX
EditionTUF Gaming OC
Manufacturing Process
MicroarchitectureRDNA 3
Cores & Clocks
Streams6144
Core Clock
Boost Clock2615 MHz
Video Memory (VRAM)
Memory Size24GB
Memory TypeGDDR6
Memory Clock
Memory Speed (Effective with DDR)
Memory Bus384 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling SolutionTri Fan (3)
Fitted/Included BackplateYes
I/O & Connectivity
InterfacePCIe 4.0
Connectivity
  • 3 x DisplayPort
  • 1 x HDMI
Visuals
AMD CrossFire Support
AMD Freesync SupportYes
AMD FreeSync Version
HDR SupportYes
Microsoft DirectX Support12 API
Max. Concurrent Displays4 Displays
Maximum Digital Resolution7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors2 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU850 W
Maximum GPU Temperature
Physical
Width3.5 Slot
Low Profile SupportN/A
Dimensions352.9 x 158.2 x 72.6 mm
Package TypeRetail
