OC edition
TBD MHz GPU boost clock and TBD memory speed in OC mode for outstanding gaming experience.
16GB GDDR6 Memory
On-board memory for the best gaming experience & the best resolution.
0dB Technology
An advanced controller brings fans to a standstill below 60 Celsius, letting you enjoy light gaming in relative silence.
Fierce Shroud
A striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Mixing surface textures and materials make a statement when vertically mounted and lit by chassis LEDs.
2.9-slot Design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.9-slot footprint.
Armored Underside

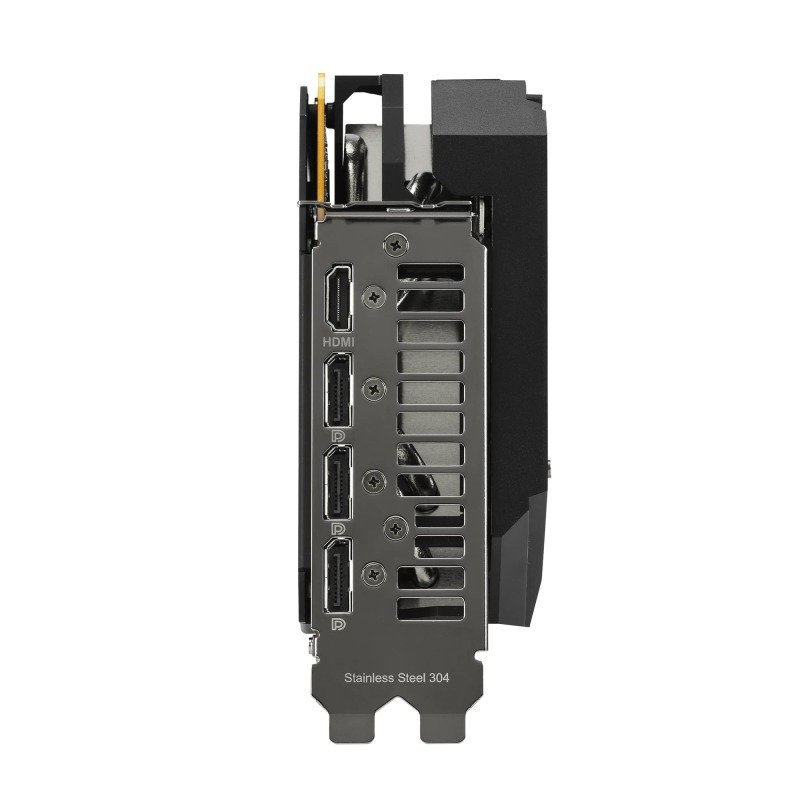

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.
Axial-tech Upgrades

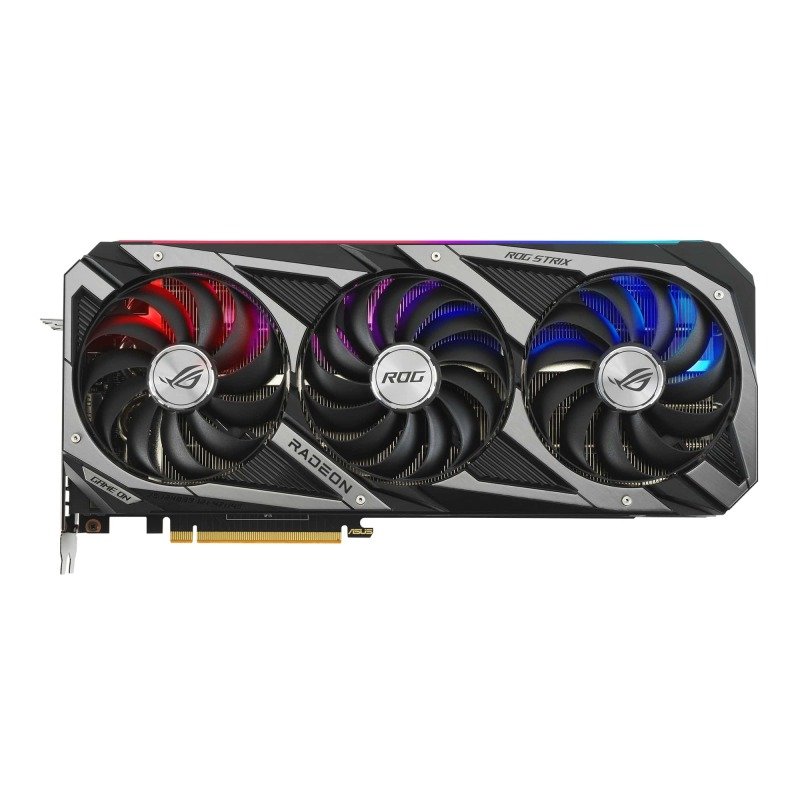

The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.
Premium Components
Top-shelf capacitors, chokes, and MOSFETs are selected to effortlessly deliver hundreds of watts at a millisecond's notice. The Super Alloy Power II parts are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications.
Software Suite
Hardware and software come together to let gamers fully customize and control their gaming experience. GPU Tweak II enables tweaks and monitoring, XSplit offers a robust streaming solution, and wtfast can improve routing to game servers for a more stable gaming connection.
AMD RDNA™ 2 Architecture with Hardware Raytracing
With enhanced compute units, delivering hardware raytracing and variable rate shading, AMD RDNA™ 2 Architecture is the foundation of the next generation of enthusiast gaming platforms from desktops to gaming consoles.
High Performance 4K Gaming
With enhanced compute units delivering powerhouse performance, 4K gaming is now easily possible at smooth framerates and maximum visual settings.
AMD FidelityFX
AMD FidelityFX enables a plethora of lighting, shadow, and reflection effects in the latest games with minimal performance overhead, freeing up your graphics card to power the intense gaming experiences you demand.
PCI® Express 4.0 Support
Features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0.
Radeon™ Anti-Lag
Less lag equals more wins. Radeon Anti-Lag reduces latency, providing ultra-fast response time giving you a dynamic edge over your competition
Modern Display Technologies
- Enjoy high-refresh, tear-free, stutter-free gaming by pairing your AMD Radeon™ graphics card with a certified AMD FreeSync technology-enabled monitor.
- Support for HDMI 2.1 VRR, expands fluid gaming experiences to all HDMI 2.1 VRR enabled displays.
- With modern I/O such as USB-C, power the latest in VR head-mounted displays with just one cable.

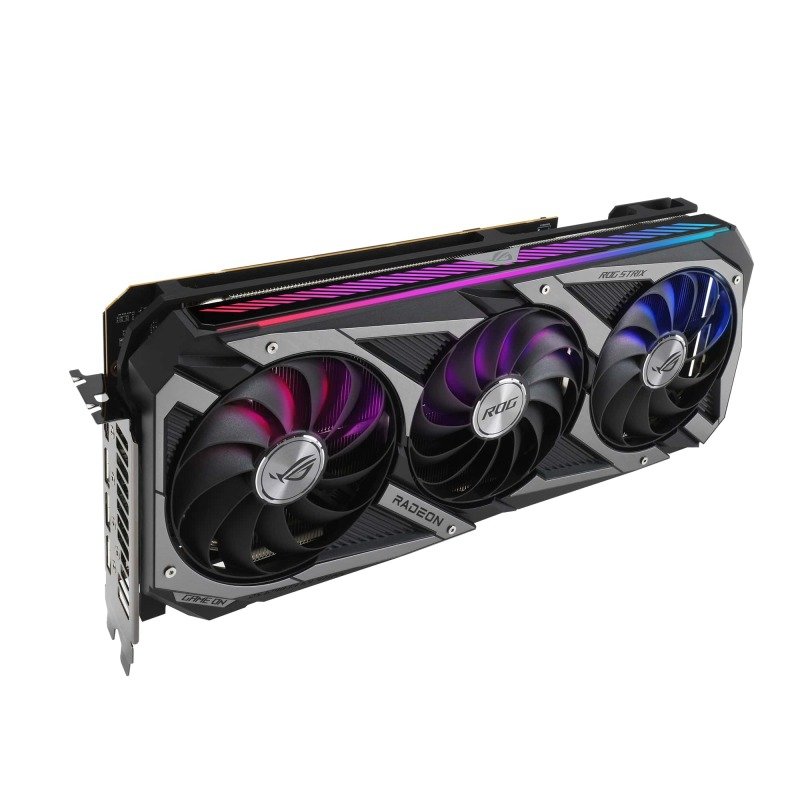

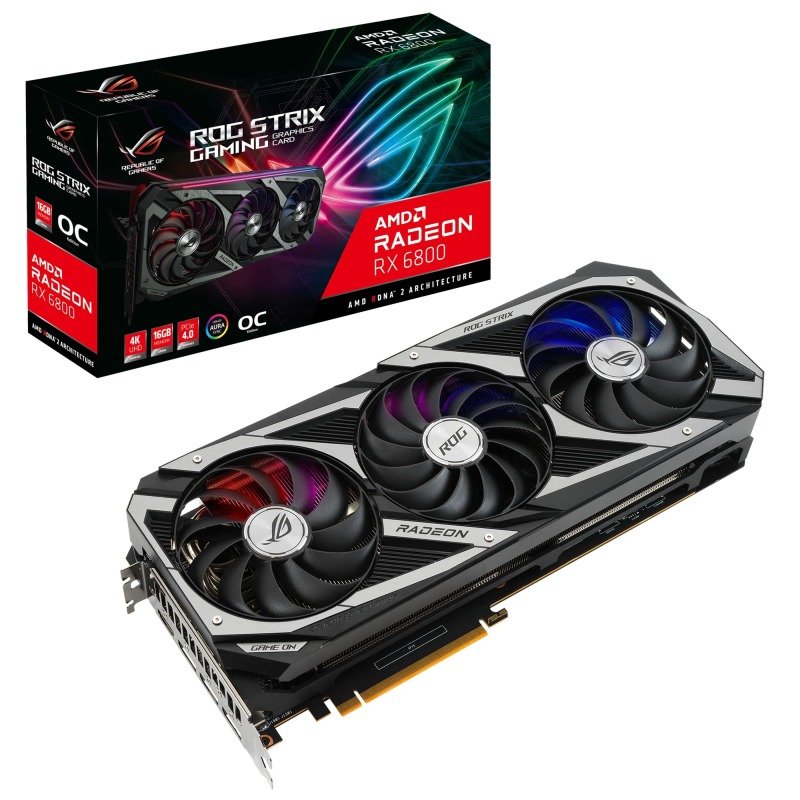

ASUS Radeon RX 6800 16GB ROG STRIX OC Graphics Card
General | |
|---|---|
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | AMD Radeon RX 6800 |
| Boost Clock | 2190 MHz |
| Stream Processors | 3840 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | HDMI ¦ 3 x DisplayPort |
| API Supported | Vulkan, OpenGL 4.6 |
| Features | Dual Bios, AMD CrossFireX Technology, FreeSync Technology, Super Alloy Power II technology, MaxContact technology, ASUS FanConnect II, variable rate shading (VRS), Axial-tech Fan Design, 0dB Technology, Radeon Boost, Radeon Image Sharpening, Radeon Anti-Lag, 2.9-slot Fan Cooler, RDNA 2 Architecture, DirectX Raytracing (DXR), Contrast Adaptive Sharpening (CAS), Temporal Anti-Aliasing (TAA), HDCP |
| Device Type | Graphics card |
Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 16 Gbps |
| Bus Width | 256-bit |
System Requirements | |
| Required Power Supply | 650 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
Miscellaneous | |
| Included Accessories | ROG touch fastener, collection card, ROG ruler |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Width | 5.73 cm |
| Depth | 32 cm |
| Height | 12.87 cm |
