Axial-tech Fan Design
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise, and higher performance.
2.5-slot Design
A carefully designed layout for the shroud, heatsink and heatpipe lets the three Axial-tech fans leverage chassis side-panel ventilation and deliver thermal performance normally associated with larger cooling systems.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.
0dB Technology
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
Auto-Extreme Technology
Fully automated manufacturing for improved reliability and lower environmental impact.
Stainless Steel Bracket
The mounting bracket for the PRIME GeForce RTX 4070 SUPER features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
Software
Hardware and software come together to let you fully customize your experience and get the most out of your graphics card. GPU Tweak III allows for hardware tweaking and monitoring, and QuantumCloud utilizes your spare GPU computing power to generate passive income.

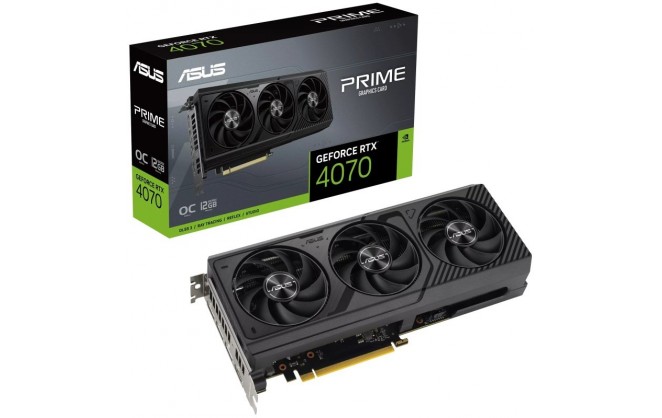

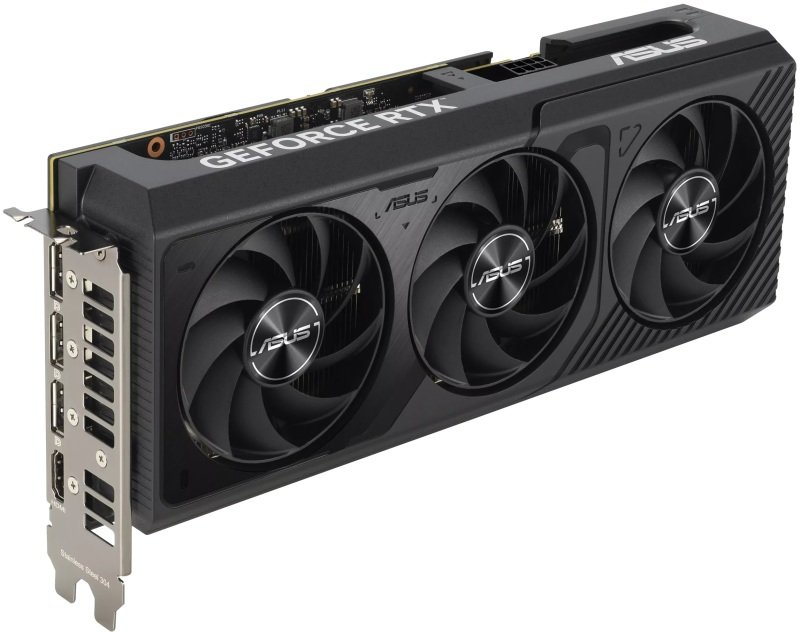

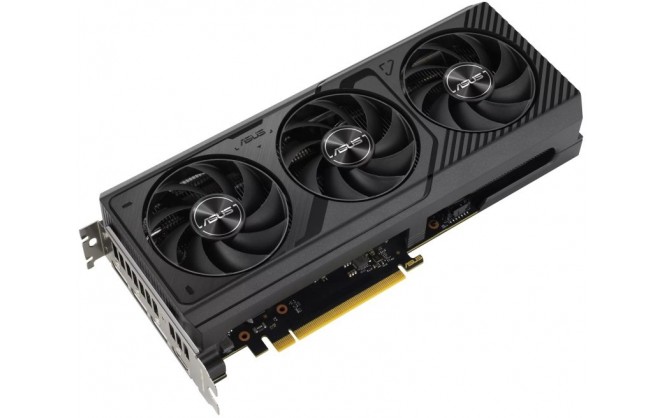

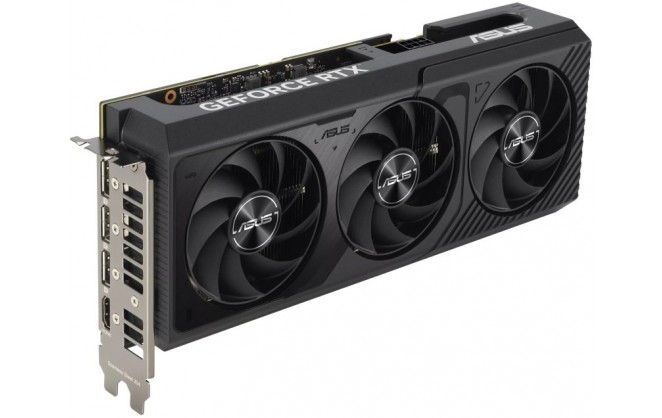

ASUS NVIDIA Prime Geforce RTX 4070 Prime OC Edition 12GB Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 4070 |
| Chipset Additional Information | PRIME OC |
| Boost Chip Clock | 2520 MHz |
| Graphics Core | CUDA |
| Number of Cores | 5888 |
Memory
| Memory Size | 12288 MB |
| Memory Clock | 21 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 192 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 650W or greater PSU with 1 x 8-pin PCIe connector |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | 200 W |
| Recomended Power Supply | 650 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Speedsetup Manual Thank you Card |
| Width | 50 mm (2.5 slot) |
| Depth | 269 mm |
| Height | 120 mm |
| Weight | 0.802 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| Config Gaming x8 (CB/CCL) | Yes |
| Graphics Memory Type | GDDR6X |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 4070 |
| PCIe Pin Type | 6+2-Pin |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 269 mm |
| Card Width | 3 |
| Power Requirement (auto) | 200 W |
| GPU Power (TDP) | 200 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 8 |
| PCIe Physical Slot required | 16 |
| 12VHPVR 16-pin Connector | No |
Graphics
| Graphics Chipset | GeForce RTX 4070 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YV0J19-M0NA00 |
| EAN | 4711387667736 |
| Condition | New |
