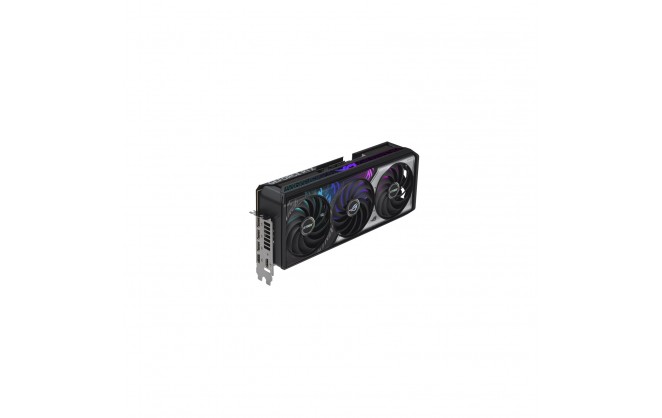

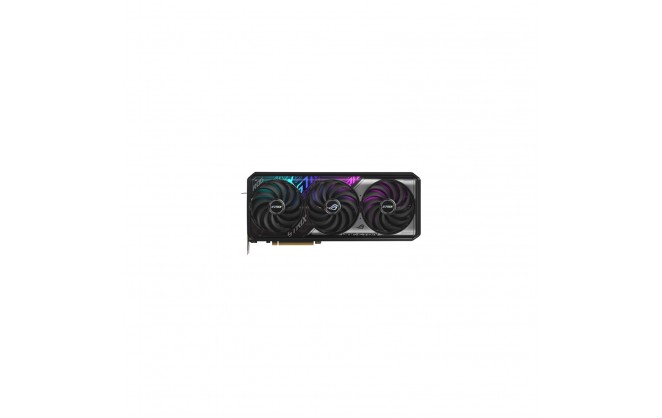

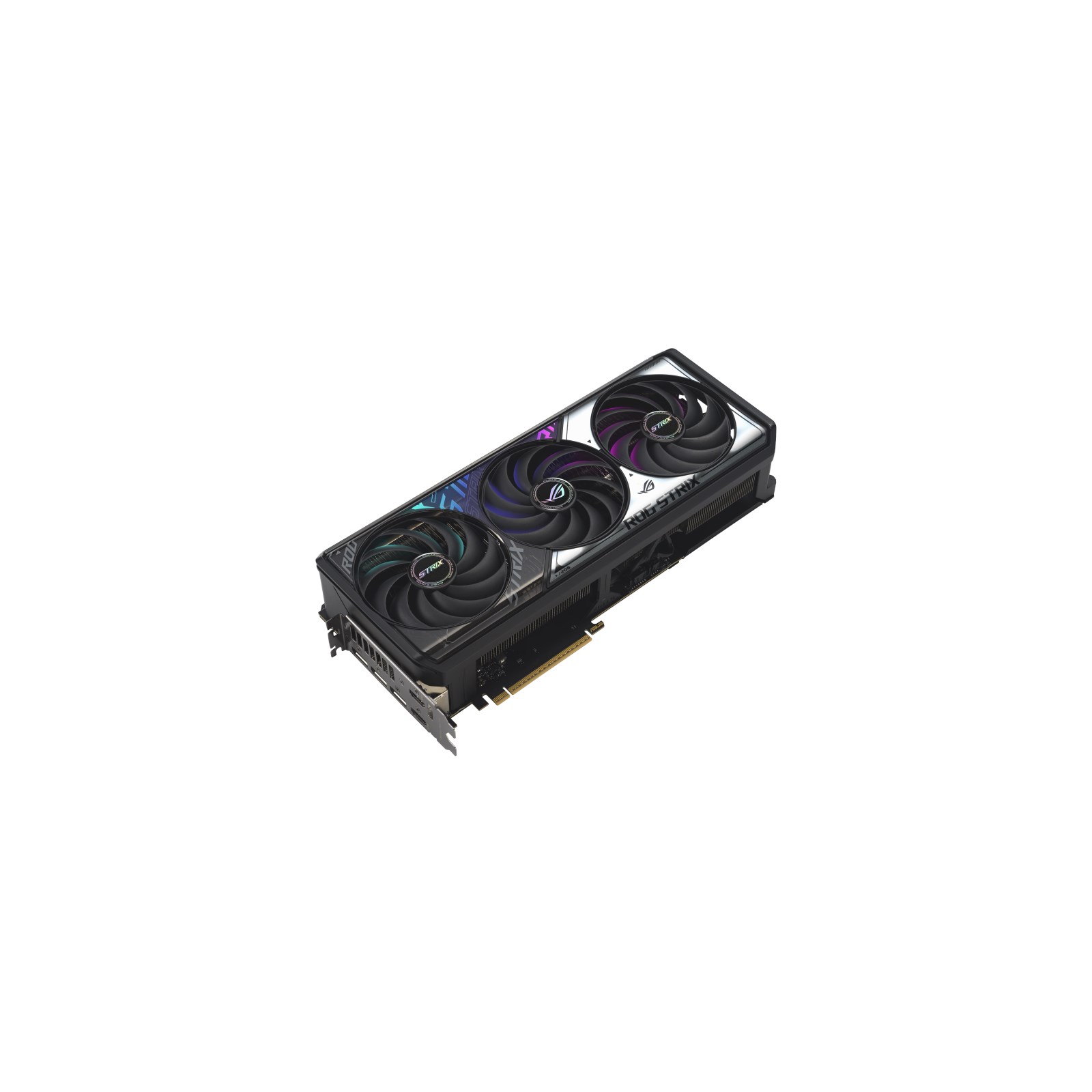

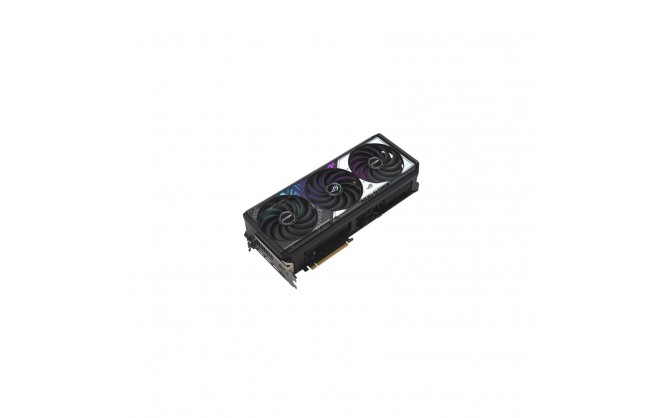

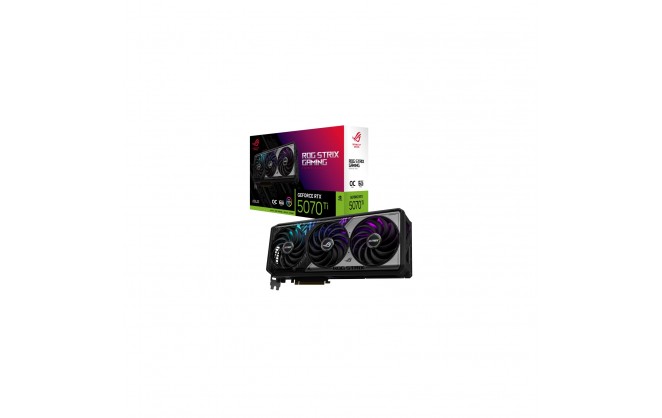

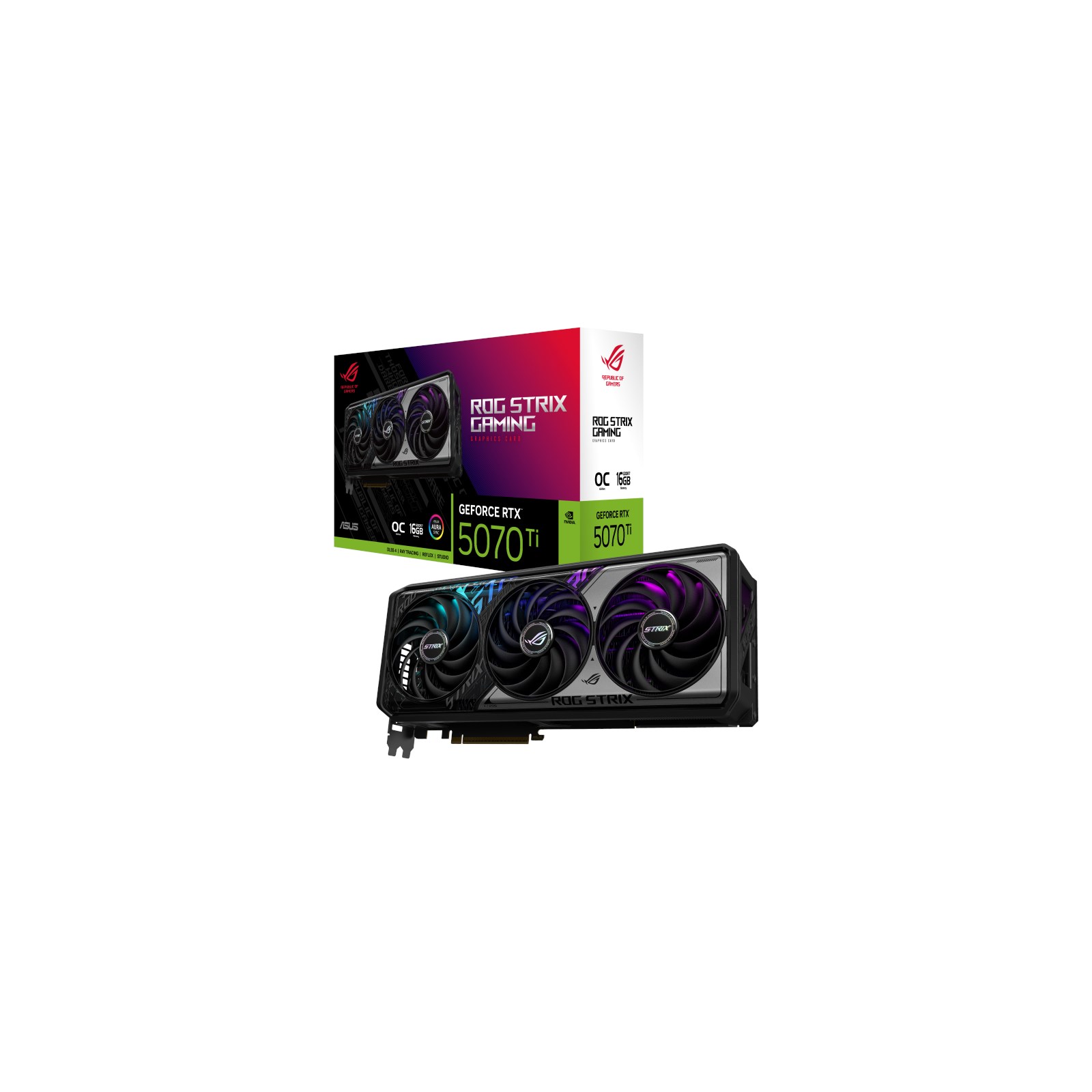

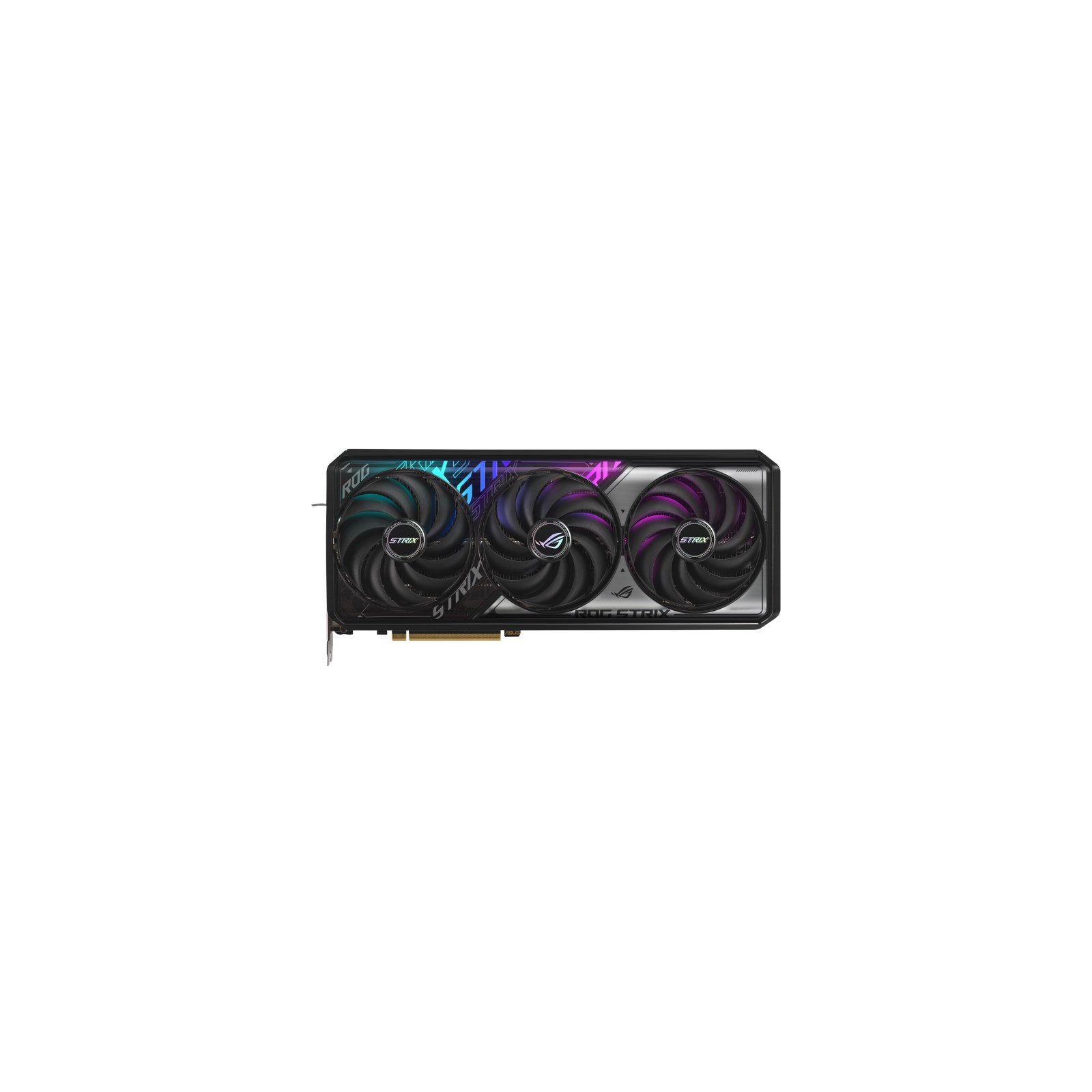

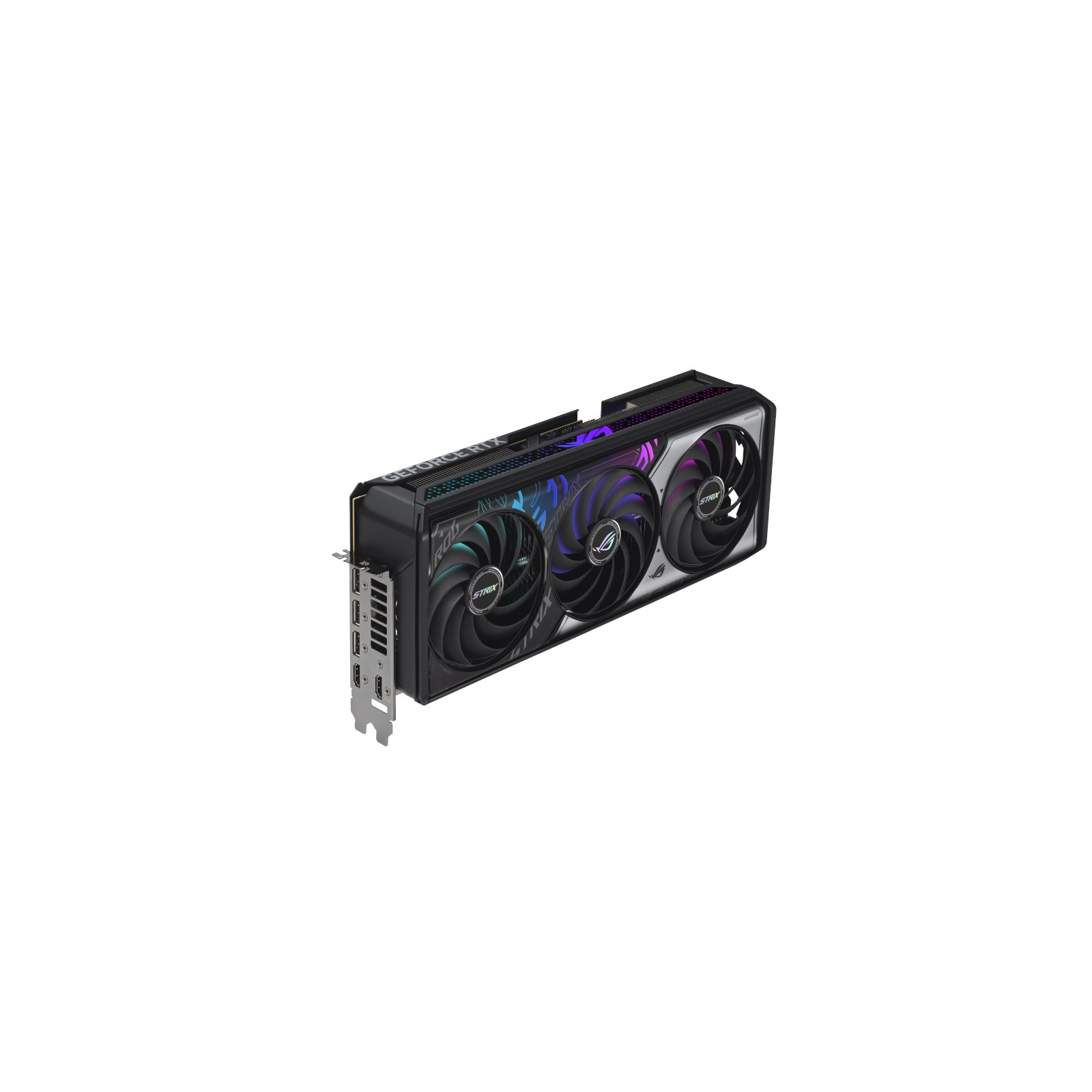

ASUS GeForce RTX 5070 Ti Strix Edition OC 16GB GDDR7 Graphics Card

  • Part Number: 90YV0M90-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 126005
  • Stock: In Stock

£894.49 ex. vat
£1,073.39 inc. vat

Product Features:
  • Condition: New
  • GPU RTX 5070 Ti
  • Capacity 16GB
  • Connection PCI-E
  • Memory Type GDDR7
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

ASUS ROG Strix GeForce RTX 5070 Ti Gaming 16GB OC Graphics Card (ROG-STRIX-RTX5070TI-O16G-GAMING)

Main Features

  • 3.275-slot design: massive fin array optimized for airflow from the three Axial-tech fans
  • Axial-tech fans have been scaled up to propel 31% more air through the card to reach higher performance.
  • 0dB technology lets you enjoy light gaming in relative silence
  • MaxContact design with vapor chamber ensures efficient heat transfer, providing a premium performance
  • Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability.
  • Premium power delivery with digital power control and 15K caps ensure high performance.
  • Protective PCB Coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
  • Aura Sync features Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization.
  • GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring
Technical Specification

ASUS GeForce RTX 5070 Ti Strix Edition OC 16GB GDDR7 Graphics Card

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number5070 Ti
Chipset Additional InformationROG Strix Gaming OC
Boost Chip Clock2602 MHz
Graphics CoreCUDA
Number of Cores8960

Memory

Memory Size16384 MB
Memory Clock28 Gbps
Memory TypeGDDR7
Memory Width256 bit

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version5.0 x16
HDMI Port2 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320

System Requirements

System Requirements1 x PCI Express 5.0 x16 slot

Electrical

Power Connector1 x 12V-2x6 or 3 x 8-pin PCIe
Power Consumption300 W
Recomended Power Supply850 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG PCB Ruler
1 x Thank You Card
1 x Power Cable (1 to 3)
Width64 mm (3.2 slot)
Depth332 mm
Height147.3 mm
Weight1.67 kg

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 5.0 x16
Config Gaming x8 (CB/CCL)Yes
Graphics Memory TypeGDDR7
Main ColourBlack
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan Inc. 0dB Mode
Low ProfileNo
NVIDIA GeForceRTX 5070 Ti
PCIe Pin Type12+4-Pin (16-Pin)
Cooling TechnologyDynamic Fan Inc. 0dB Mode
VR ReadyNVIDIA
GPU Length332 mm
Card Width4
Power Requirement (auto)300 W
GPU Power (TDP)300 W
Graphics card count1
PCI Express Power Pins (female)24
PCIe Physical Slot required16
12VHPWR 16-pin ConnectorYes
AI ReadyNo
12V-2x6 Rating450W

Graphics

Graphics ChipsetGeForce RTX 5070 Ti

Graphics Device

G-SyncYes

Item Details

ManufacturerASUS
Manufacturer Code90YV0M90-M0NA00
EAN4711387920633
