ASUS GeForce RTX 5070 Ti Prime 16GB GDDR7 Graphics Card

  • Part Number: 90YV0MF1-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 125937
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • GPU RTX 5070 Ti
  • Capacity 16GB
  • Connection PCI-E
  • Memory Type GDDR7
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

Primed for Power

Prime GeForce RTX™ 5070 Ti

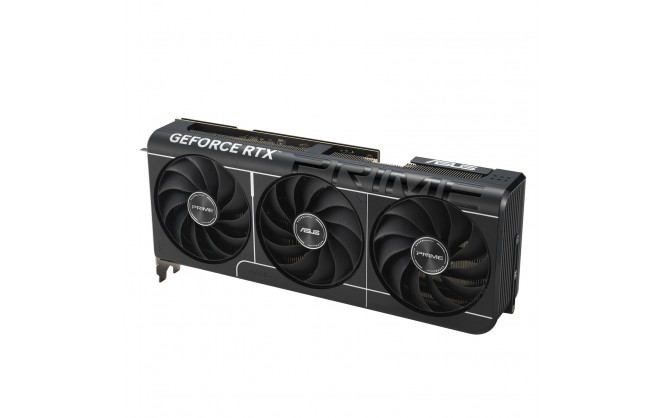

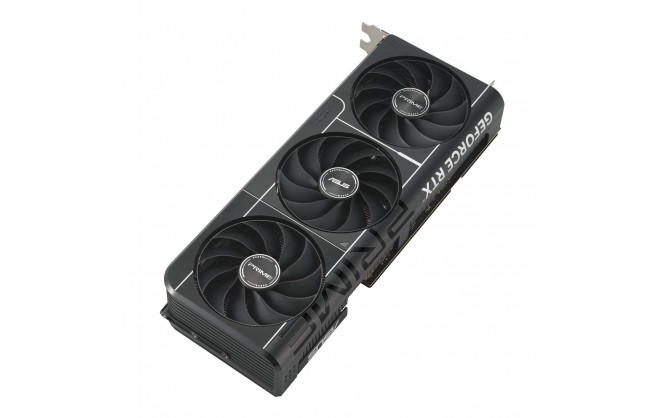

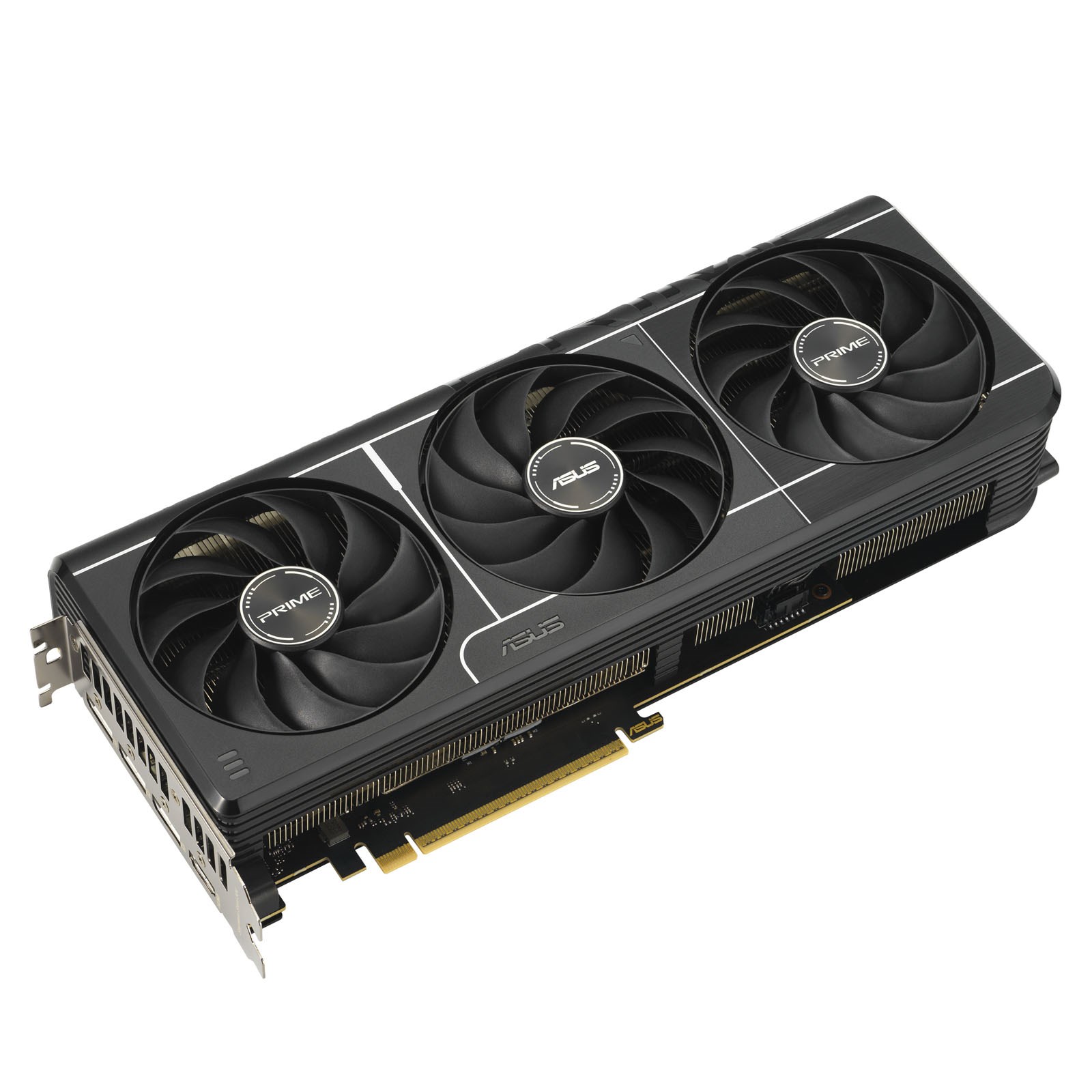

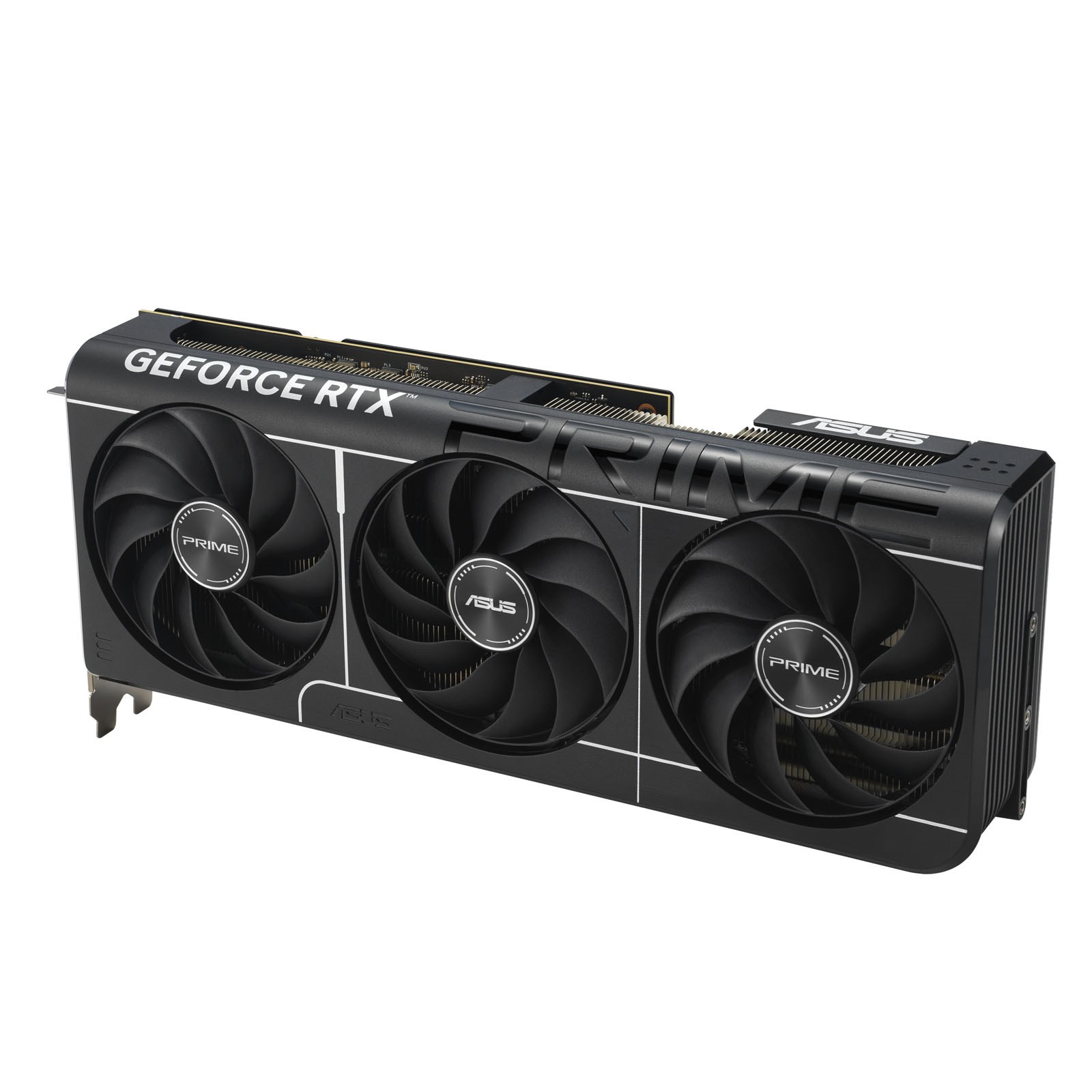

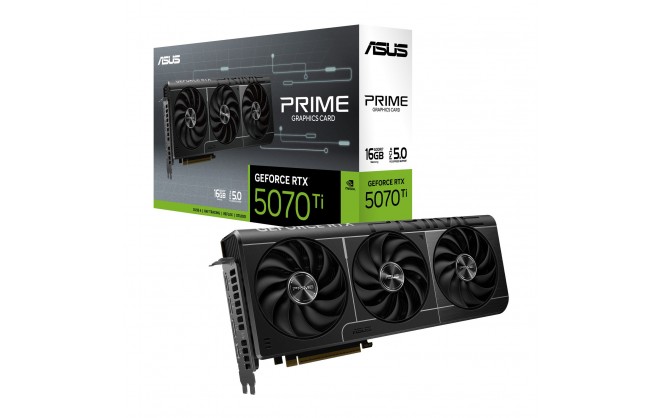

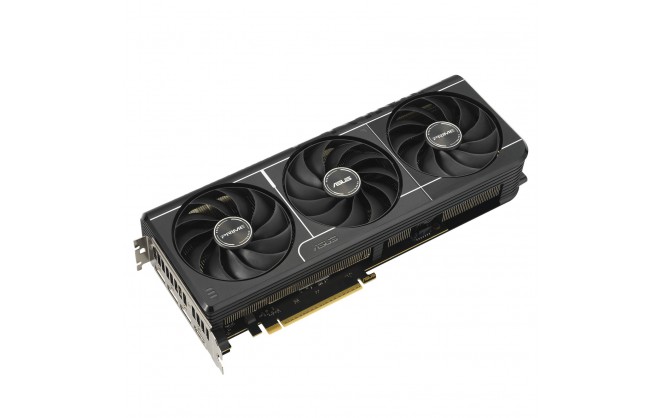

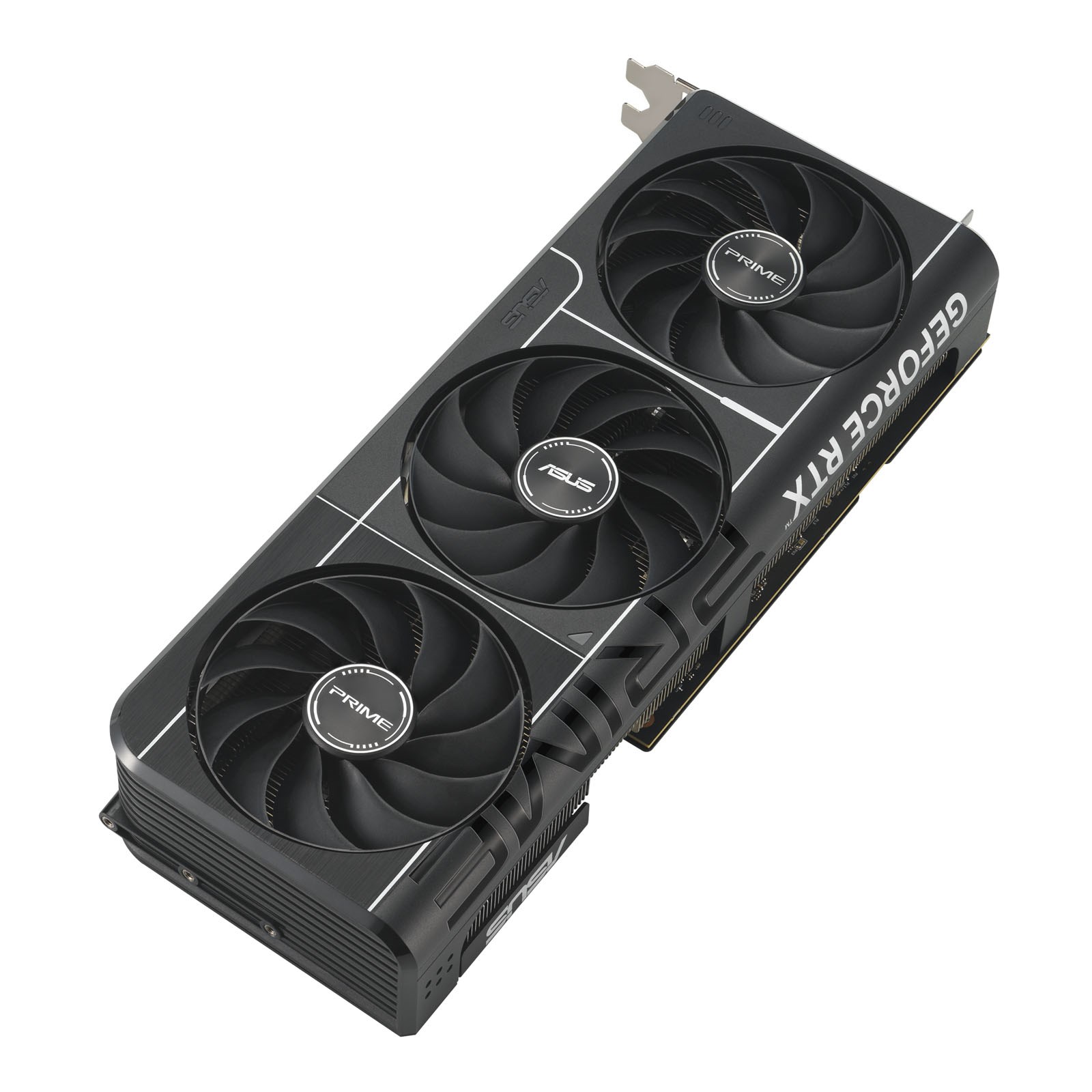

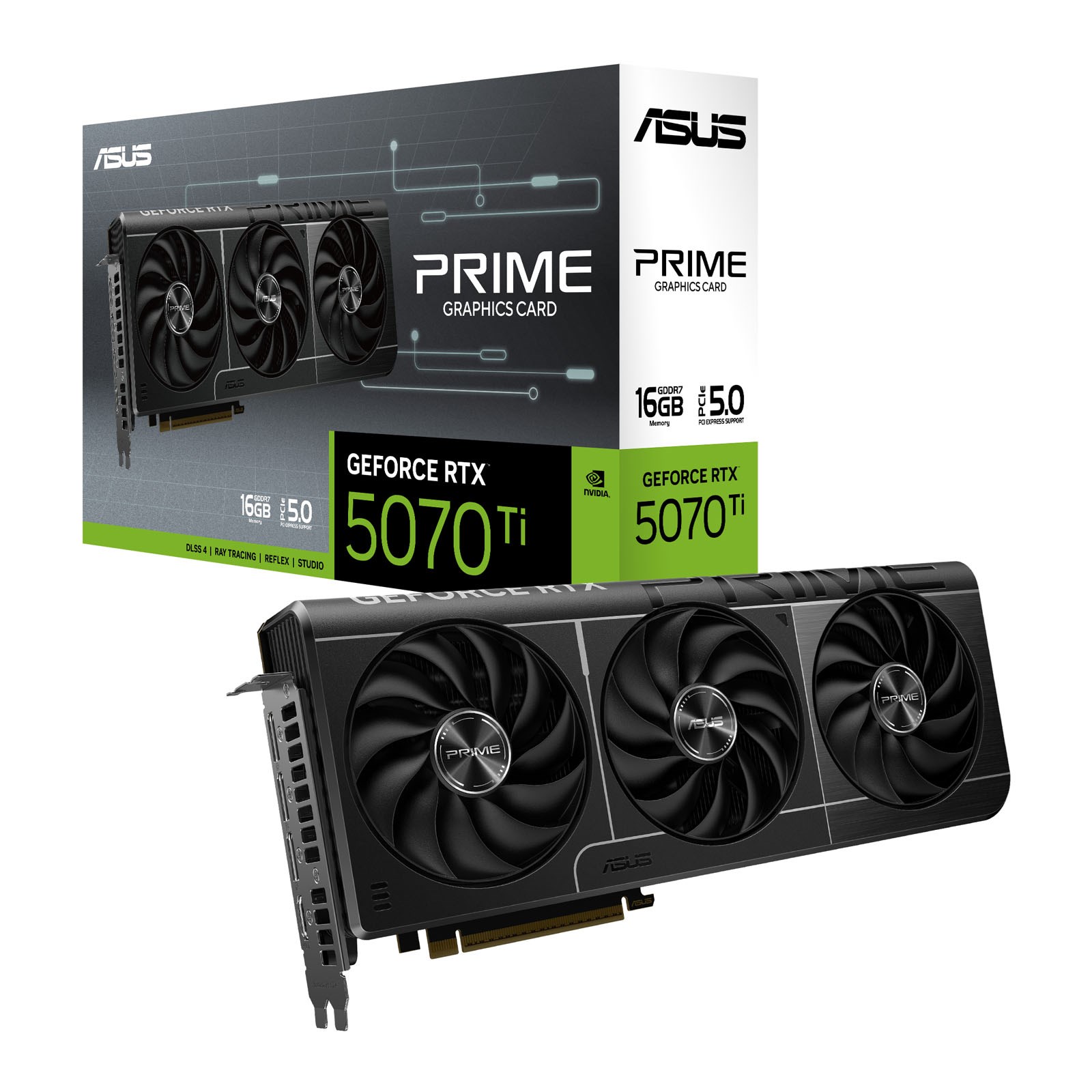

Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-ready graphics card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • SFF-Ready Enthusiast GeForce Card
  • Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure ?
  • Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability ?
  • 2.5-slot design allows for greater build compatibility while maintaining cooling performance ?
  • Dual-ball fan bearings last up to twice as long as standard sleeve bearings ?
  • 0dB technology lets you enjoy light gaming in relative silence ?
  • Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles ?
  • Auto-Extreme manufacturing process for precision and reliability ?
  • GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring ?
Technical Specification

ASUS GeForce RTX 5070 Ti Prime 16GB GDDR7 Graphics Card

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number5070 Ti
Chipset Additional InformationPrime
Base Chip Clock2300 MHz
Graphics CoreCUDA
Number of Cores8960

Memory

Memory Size16384 MB
Memory Clock28 Gbps
Memory TypeGDDR7
Memory Width256 bit
Memory Bandwidth896 GB/s

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version5.0 x16
HDMI Port1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320

System Requirements

System Requirements1 x PCI Express 5.0 x16 slot

Electrical

Power Connector1 x 12V-2x6 or 3 x 8-pin PCIe
Power Consumption300 W
Recomended Power Supply750 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)
Width50 mm (2.5 slot)
Depth306 mm
Height126 mm
Weight1.17 kg

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 5.0 x16
Config Gaming x8 (CB/CCL)Yes
Graphics Memory TypeGDDR7
Main ColourBlack
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan Inc. 0dB Mode
Low ProfileNo
NVIDIA GeForceRTX 5070 Ti
PCIe Pin Type12+4-Pin (16-Pin)
Cooling TechnologyDynamic Fan Inc. 0dB Mode
VR ReadyNVIDIA
GPU Length306 mm
Card Width3
Power Requirement (auto)300 W
GPU Power (TDP)300 W
Graphics card count1
PCI Express Power Pins (female)24
PCIe Physical Slot required16
12VHPWR 16-pin ConnectorYes
AI ReadyYes
12V-2x6 Rating450W

Graphics

Graphics ChipsetGeForce RTX 5070 Ti

Graphics Device

G-SyncYes

Item Details

ManufacturerASUS
Manufacturer Code90YV0MF1-M0NA00
EAN4711387878057
