Experience Primal performance with the Prime GeForce RTX 5070 White Edition, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

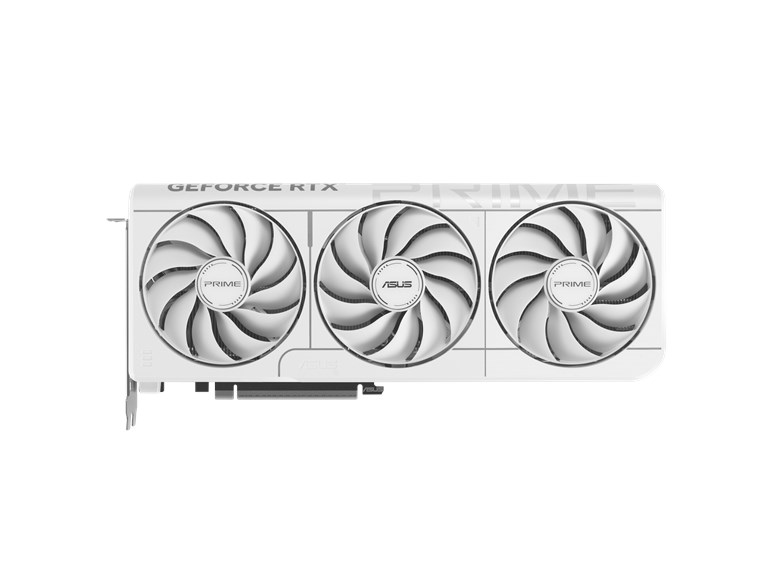

The Prime RTX 5070 White Edition features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

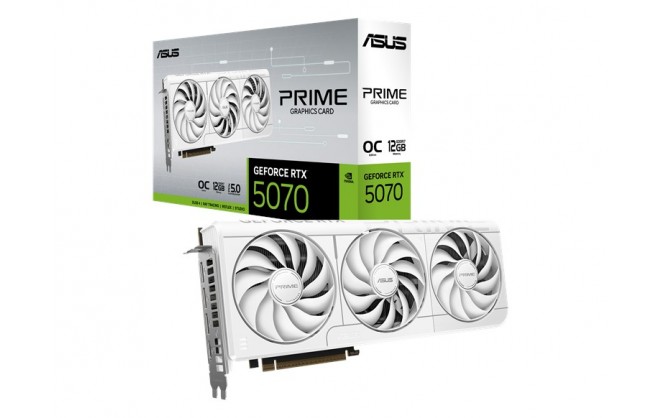

ASUS GeForce RTX 5070 Prime OC 12GB GDDR7 White Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5070 |
| Chipset Additional Information | Prime OC |
| Boost Chip Clock | 2557 MHz |
| Graphics Core | CUDA |
| Number of Cores | 6144 |
Memory
| Memory Size | 12288 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 192 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 12V-2x6 or 2 x 8-pin PCIe |
| Power Consumption | 250 W |
| Recomended Power Supply | 750 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Speedsetup Manual ASUS Velcro Hook & Loop White Thank You Card Adapter Cable (1 to 2) |
| Width | 50 mm (2.5 slot) |
| Depth | 304 mm |
| Height | 126 mm |
| Weight | 1.023 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | Yes |
| Graphics Memory Type | GDDR7 |
| Main Colour | White |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5070 |
| PCIe Pin Type | 12+4-Pin (16-Pin) |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 304 mm |
| Card Width | 3 |
| Power Requirement (auto) | 250 W |
| GPU Power (TDP) | 250 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 16 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | Yes |
| AI Ready | Yes |
| 12V-2x6 Rating | 300W |
Graphics
| Graphics Chipset | GeForce RTX 5070 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YV0M19-M0NA00 |
| EAN | 4711636046121 |
