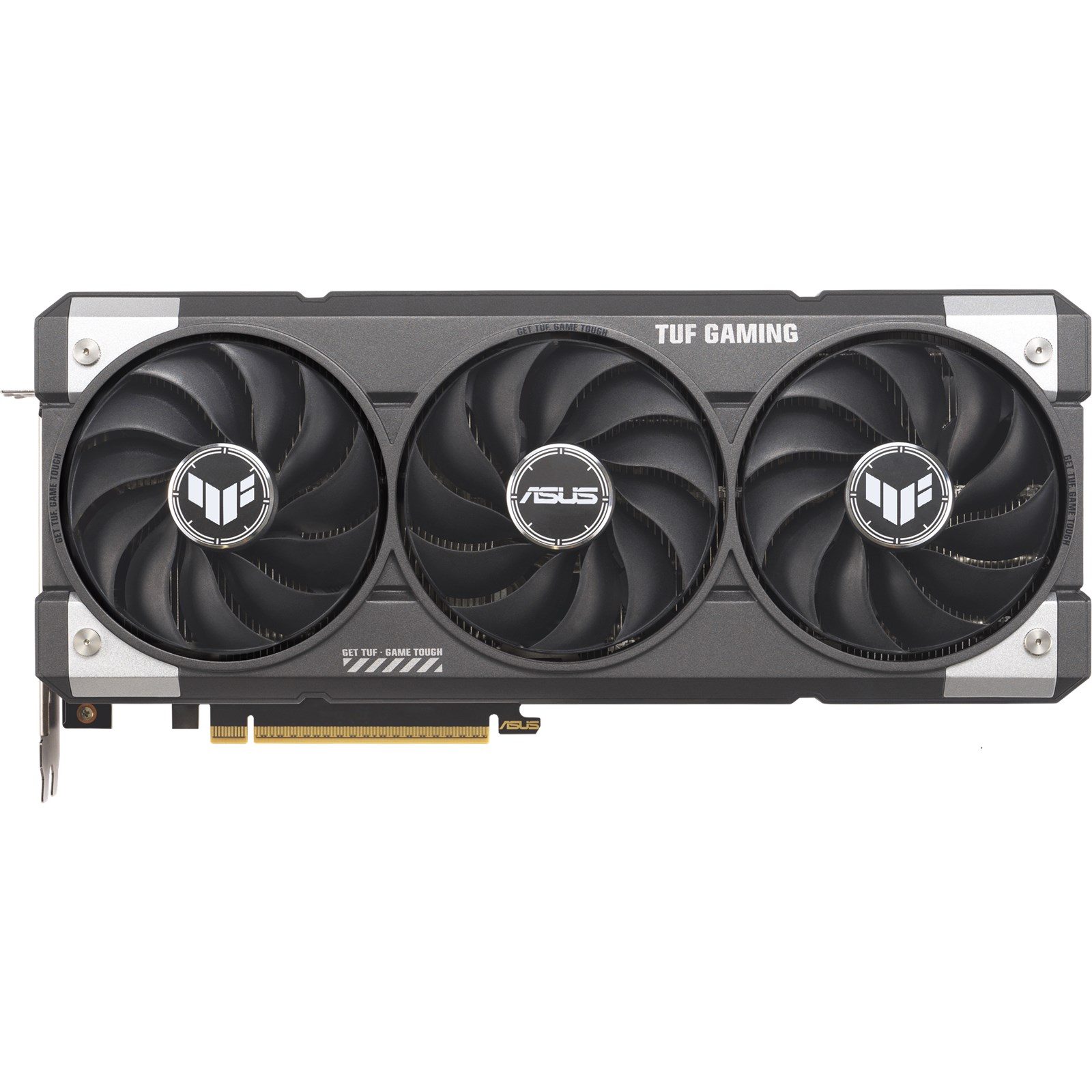

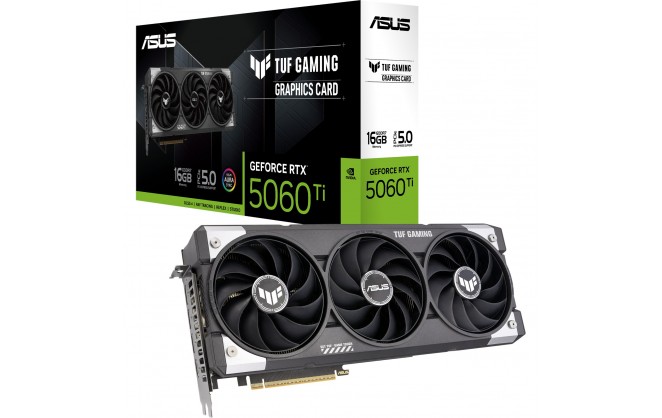

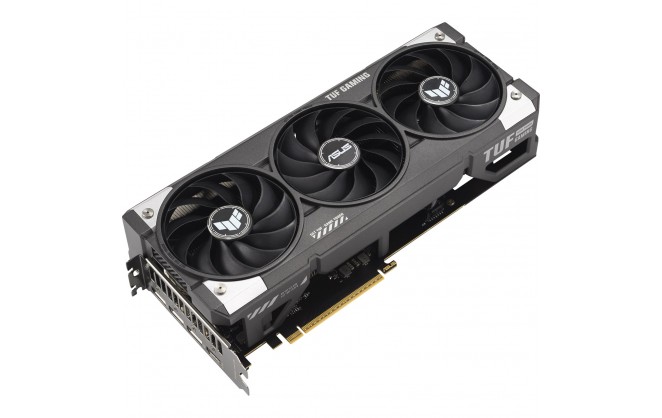

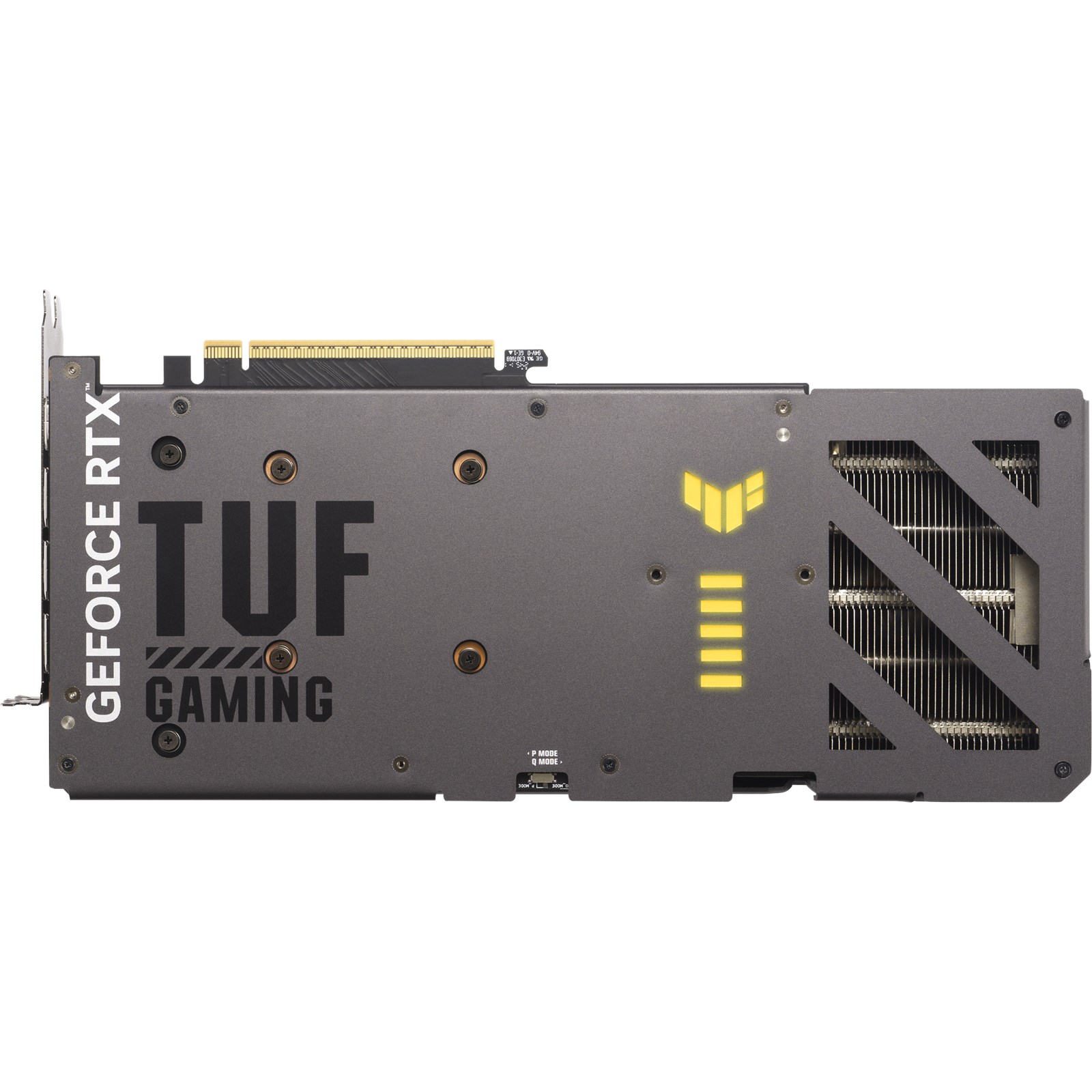

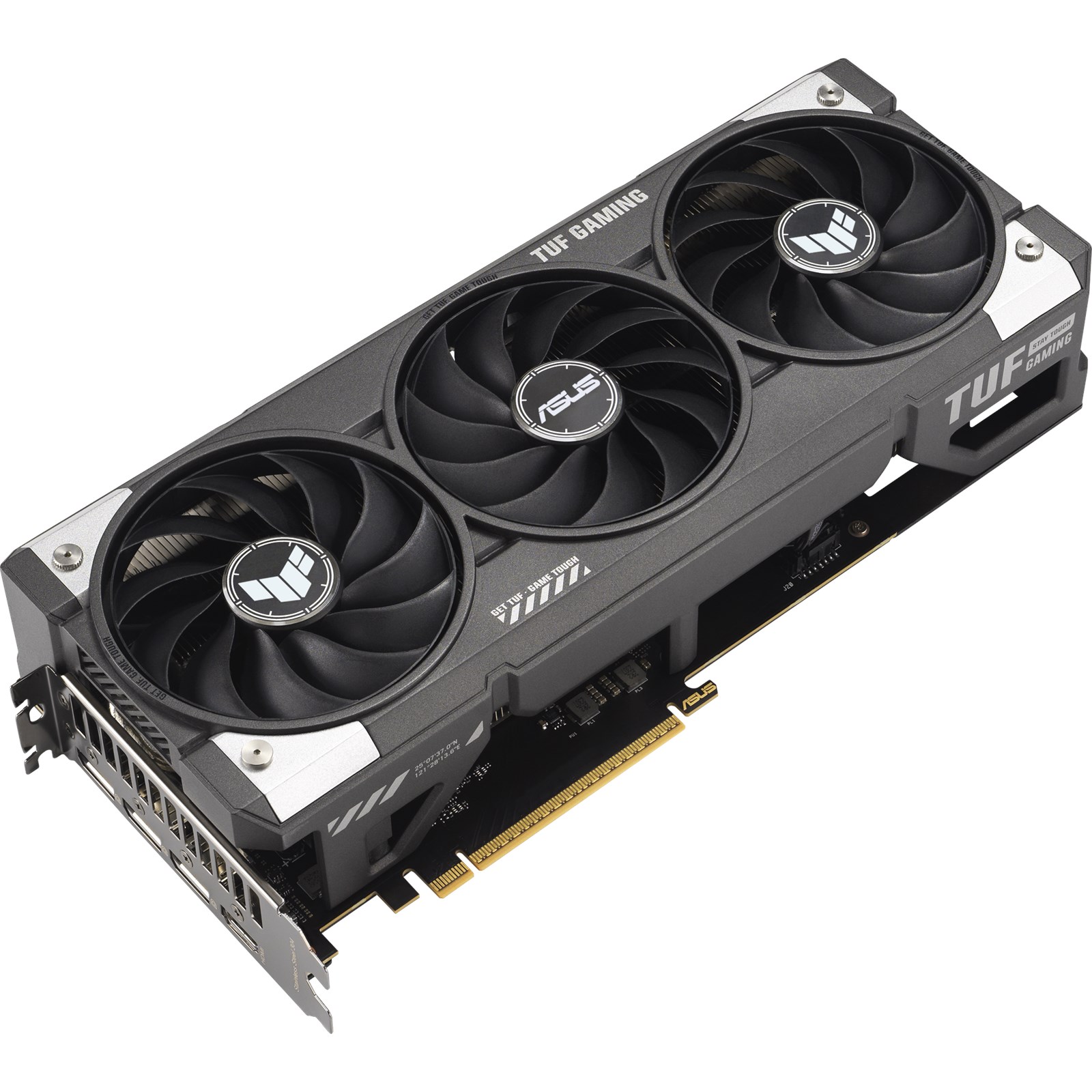

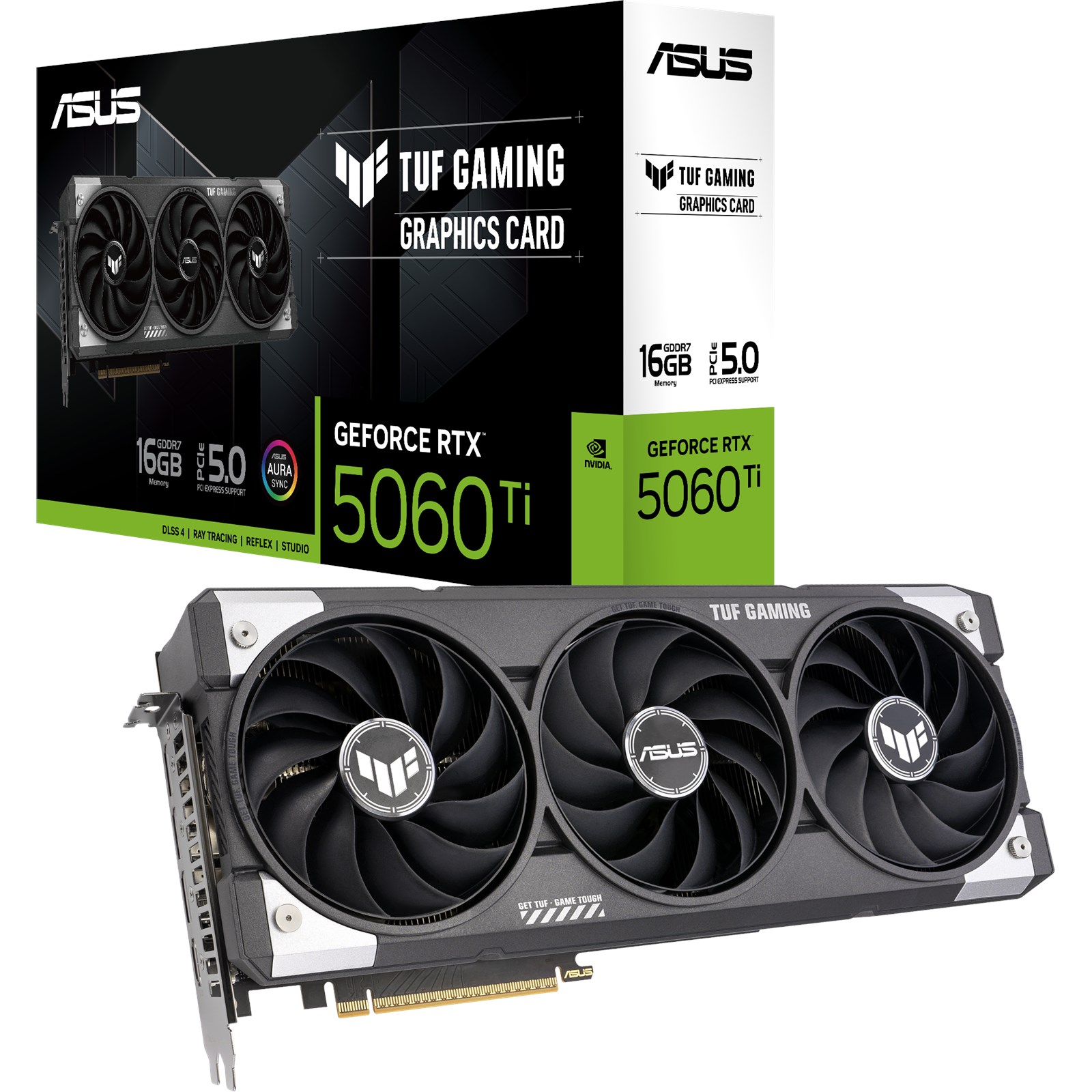

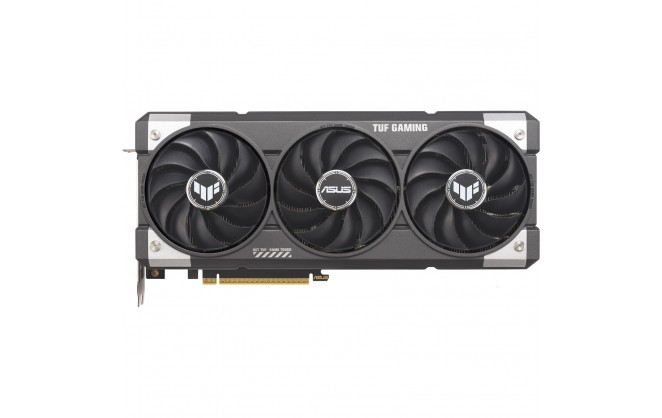

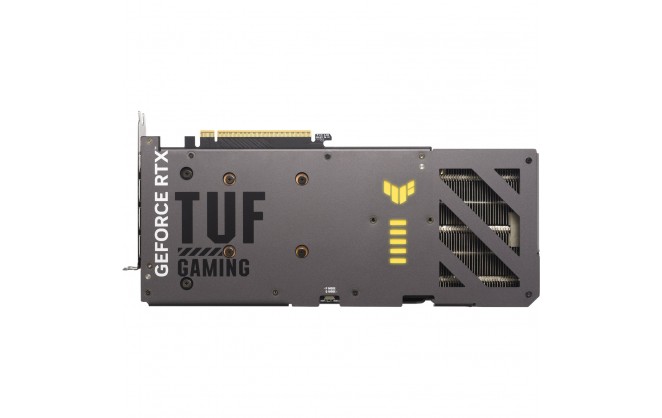

ASUS GeForce RTX 5060 Ti TUF 16GB GDDR7 Graphics Card

Part Number: 90YV0MG1-M0NA00
Manufacturer: ASUS
Quickfind Code: 125820

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RTX 5060 Ti
Capacity 16GB
Connection PCI-E
Memory Type GDDR7
Series RTX
GPU Manufacturer Nvidia

+ Read More Information

Product Description

NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5060 Ti, designed to withstand the harshest conditions and deliver unparalleled performance.

Main Features

AI Performance: 759 AI TOPS
Powered by the NVIDIA Blackwell architecture and DLSS 4
Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
Protective PCB coating helps protect against short circuits caused by moisture, dust or debris
3.1-slot design with massive fin array optimized for airflow from three Axial-tech fans
ASUS GPU Guard secure the GPU, reducing the risk of cracks
Auto-Extreme precision automated manufacturing helps ensure higher reliability

Technical Specification

ASUS GeForce RTX 5060 Ti TUF 16GB GDDR7 Graphics Card

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number	5060 Ti
Chipset Additional Information	TUF Gaming
Boost Chip Clock	2572 MHz
Graphics Core	CUDA
Number of Cores	4608

Memory

Memory Size	16384 MB
Memory Clock	28 Gbps
Memory Type	GDDR7
Memory Width	128 bit
Memory Bandwidth	448 GB/s

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x16
HDMI Port	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 12V-2x6 or 2 x 8-pin PCIe
Power Consumption	180 W
Recomended Power Supply	550 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card Speedsetup Manual TUF Graphics Card Holder TUF Velcro Hook & Loop TUF Gaming Certificate Thank You Card Adapter Cable (1 to 2)
Width	62 mm (3.1 slot)
Depth	302 mm
Height	133.5 mm

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x8
Graphics Memory Type	GDDR7
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
NVIDIA GeForce	RTX 5060 Ti
PCIe Pin Type	12+4-Pin (16-Pin)
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	NVIDIA
GPU Length	302 mm
Card Width	3
Power Requirement (auto)	180 W
GPU Power (TDP)	180 W
Graphics card count	1
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	Yes
AI Ready	Yes
12V-2x6 Rating	300W
