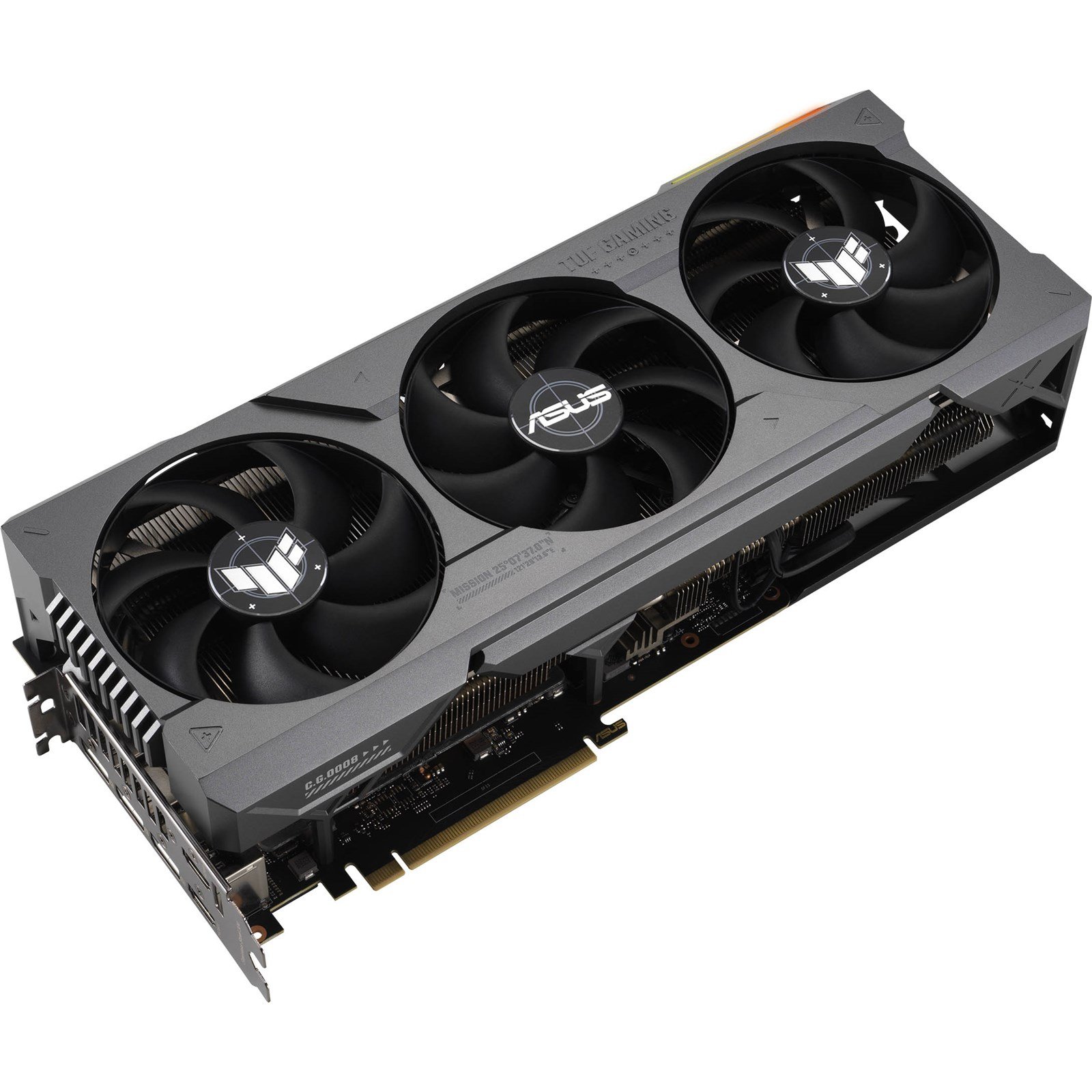

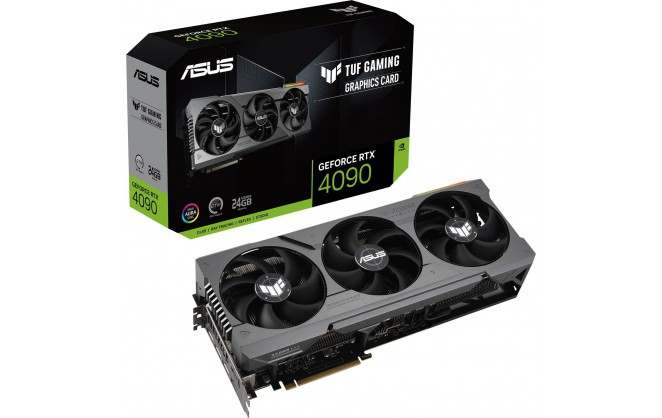

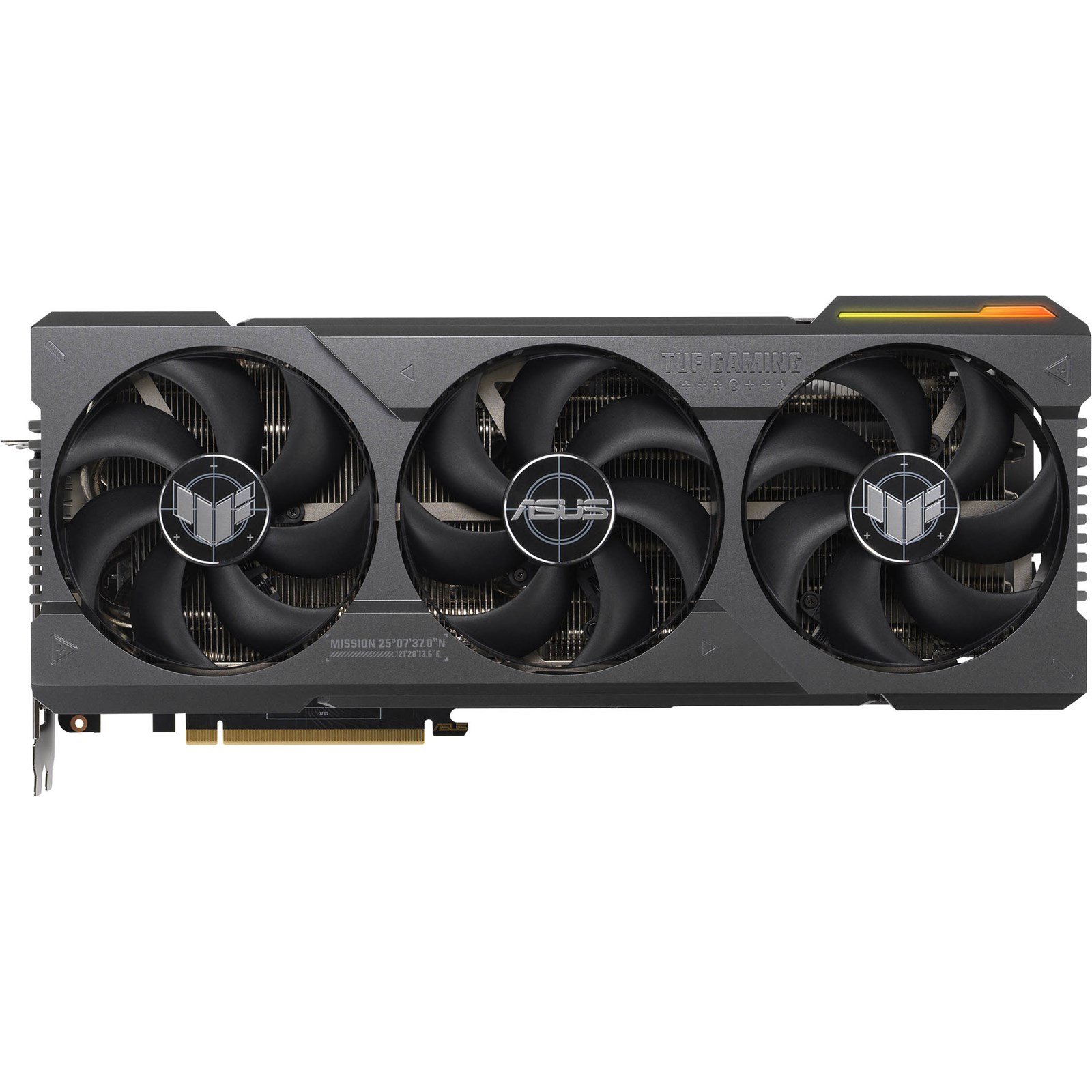

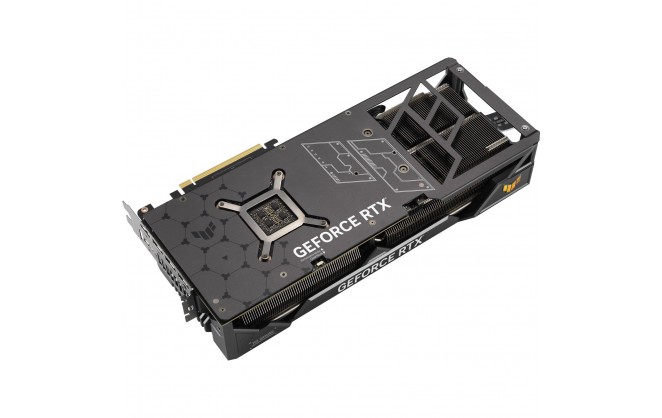

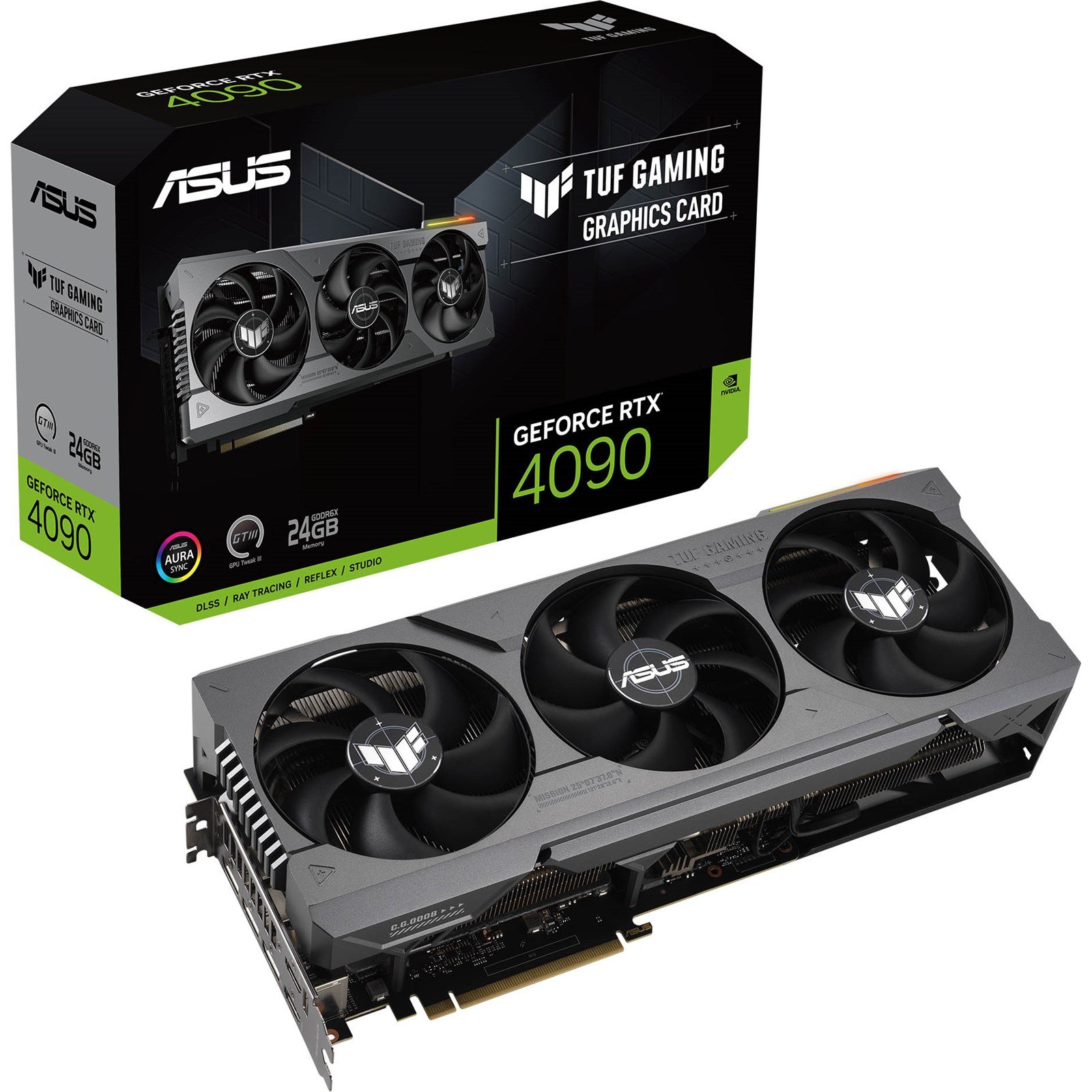

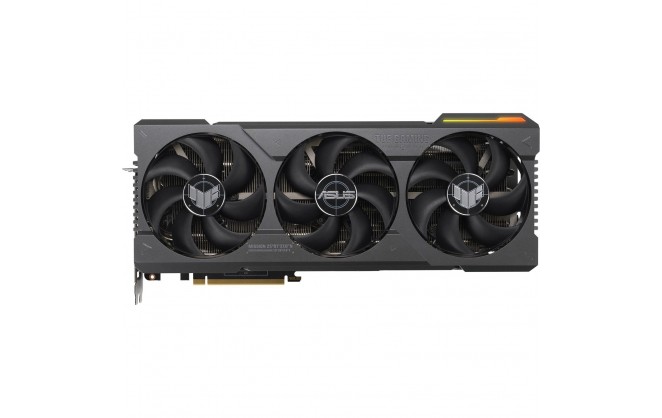

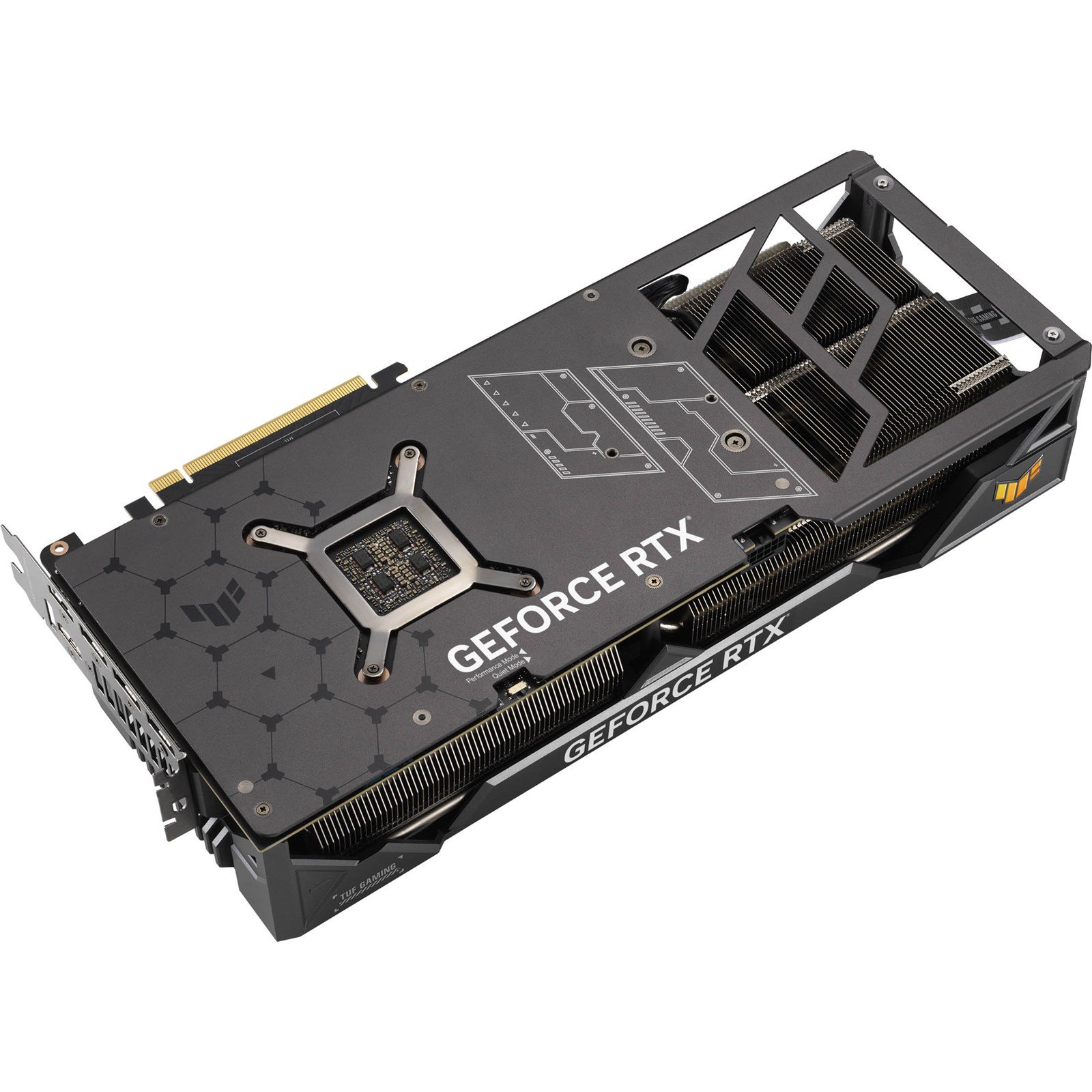

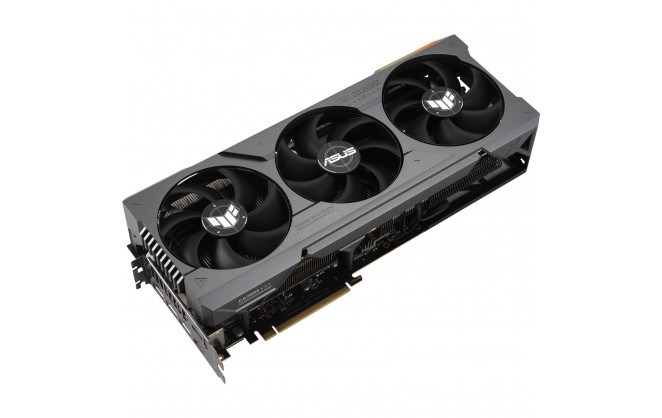

ASUS GeForce RTX 4090 TUF 24GB Graphics Card

  • Part Number: 90YV0IE1-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 125544
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • GPU RTX 4090
  • Capacity 24GB
  • Connection PCI-E
  • Memory Type GDDR6X
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

ARMED FOR FLOW

The NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an aresenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX® 4090.

Main Features

  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Axial-tech fans scaled up to deliver 23% more airflow
  • Dual Ball Fan Bearings last up to twice as long as conventional designs
  • Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
  • Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
  • Auto-Extreme precision automated manufacturing for higher reliability
  • GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Technical Specification

ASUS GeForce RTX 4090 TUF 24GB Graphics Card

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number
Chipset Additional InformationTUF Gaming
Graphics CoreCUDA

Memory

Memory Size24576 MB
Memory Clock21 Gbps
Memory TypeGDDR6X
Memory Width384 bit

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version4.0 x16
HDMI Port2 x HDMI 2.1a
DisplayPort3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320 pixels

System Requirements

System Requirements1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 1 x 16-pin PCIe or 4 x 8-pin PCIe connectors

Electrical

Power Connector1 x 16-pin PCIe
Recomended Power Supply1000 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
Collection Card
Speedsetup Manual
Power Adapter Cable
TUF Graphics Card Holder
TUF Velcro Hook & Loop
Thank You Card
Width72.6 mm (3.6 slot)
Depth348.2 mm
Height160 mm
Weight2.34 kg

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 4.0 x16
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan
Low ProfileNo
Interface Type
NVIDIA GeForceRTX 4090
AMD Radeon
PCI-E Pin Type12+4-Pin
Screen Type
FreeSync
Cooling TechnologyDynamic Fan
VR ReadyNVIDIA
VR Ready PC
GPU Length349 mm
Card Width4
GPU Power (TDP)W
Graphics card count1
PCIe Physical Slot required16
Config GamingYes
Config ProfessionalsYes
Config QuietYes

Graphics

Graphics ChipsetGeForce RTX 4090

Graphics Device

G-SyncYes

Compatibility

Lite Hash RateYes

Item Details

ManufacturerASUS
Manufacturer Code90YV0IE1-M0NA00
EAN4711081936930
UPC195553936934
ConditionNew
