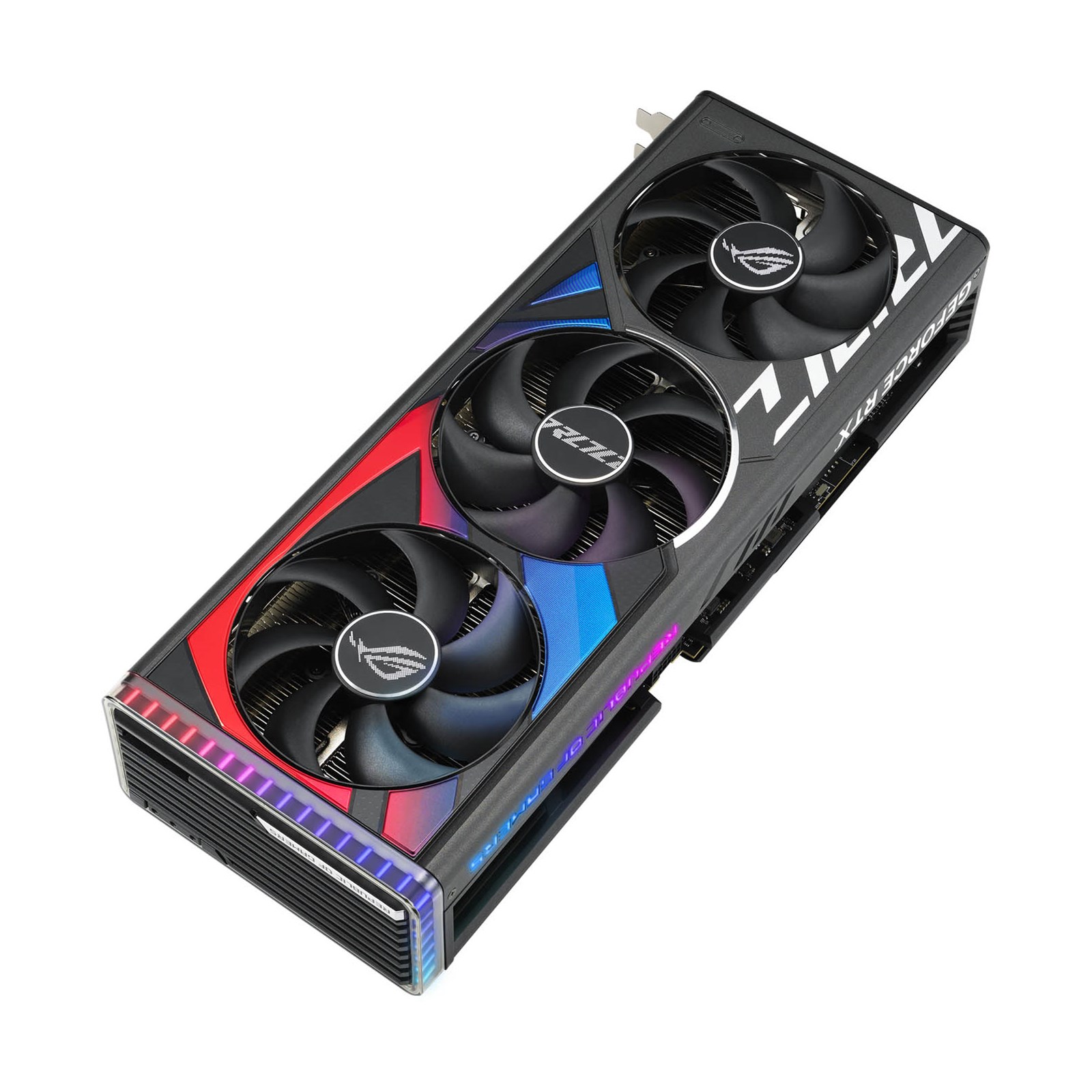

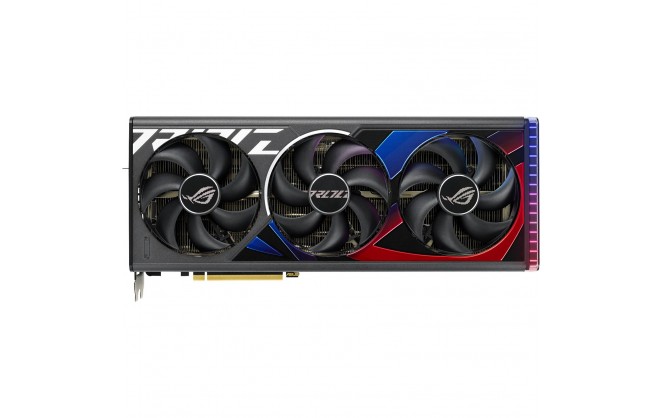

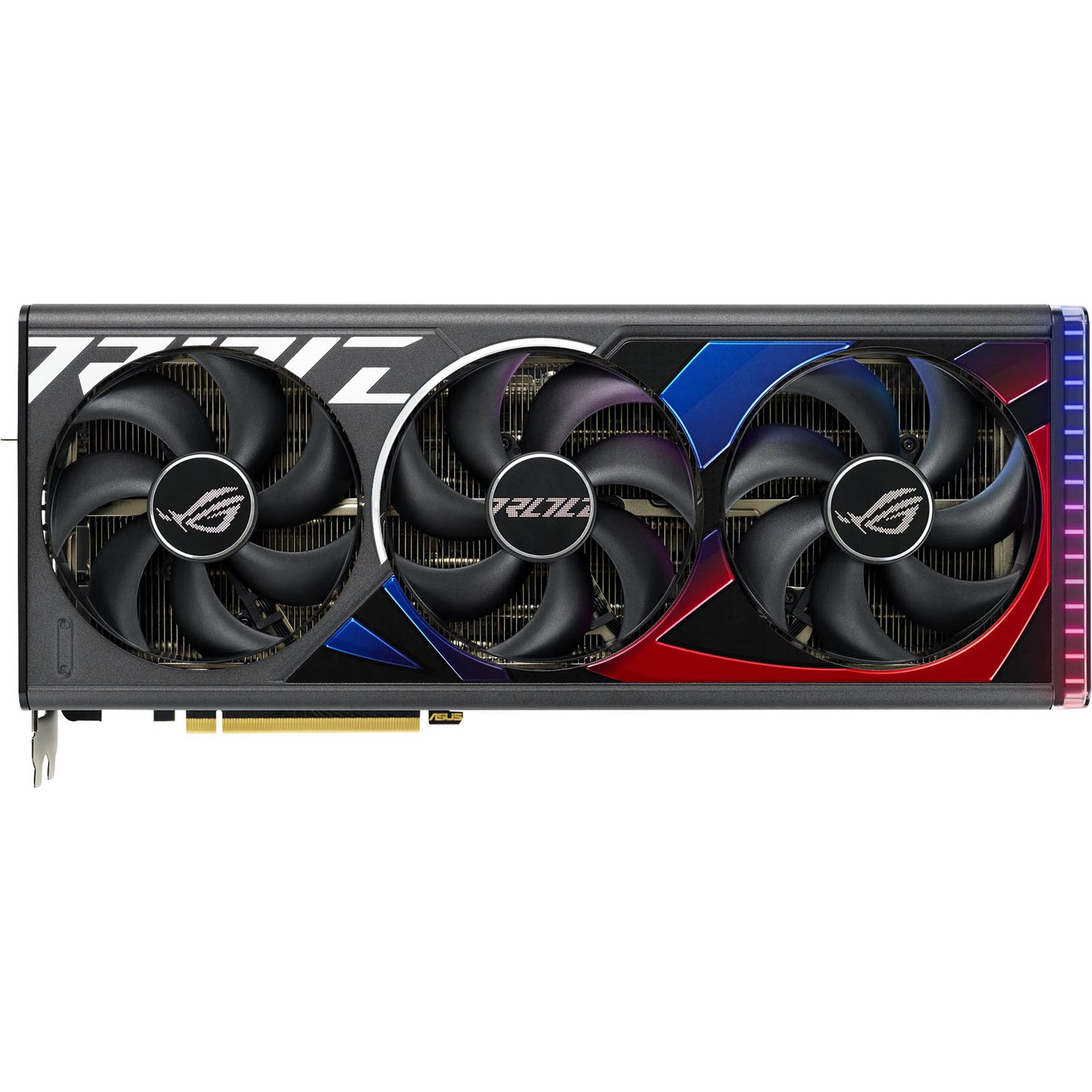

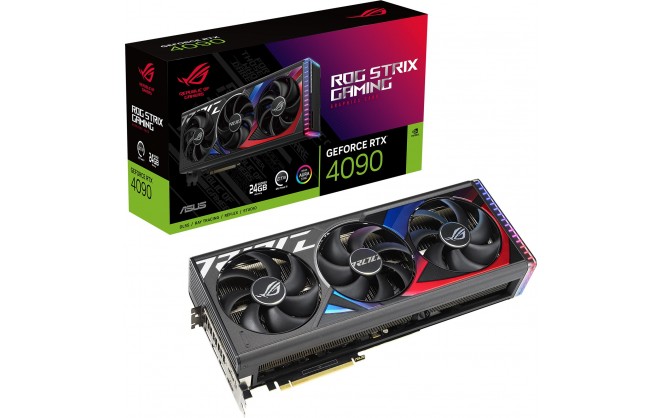

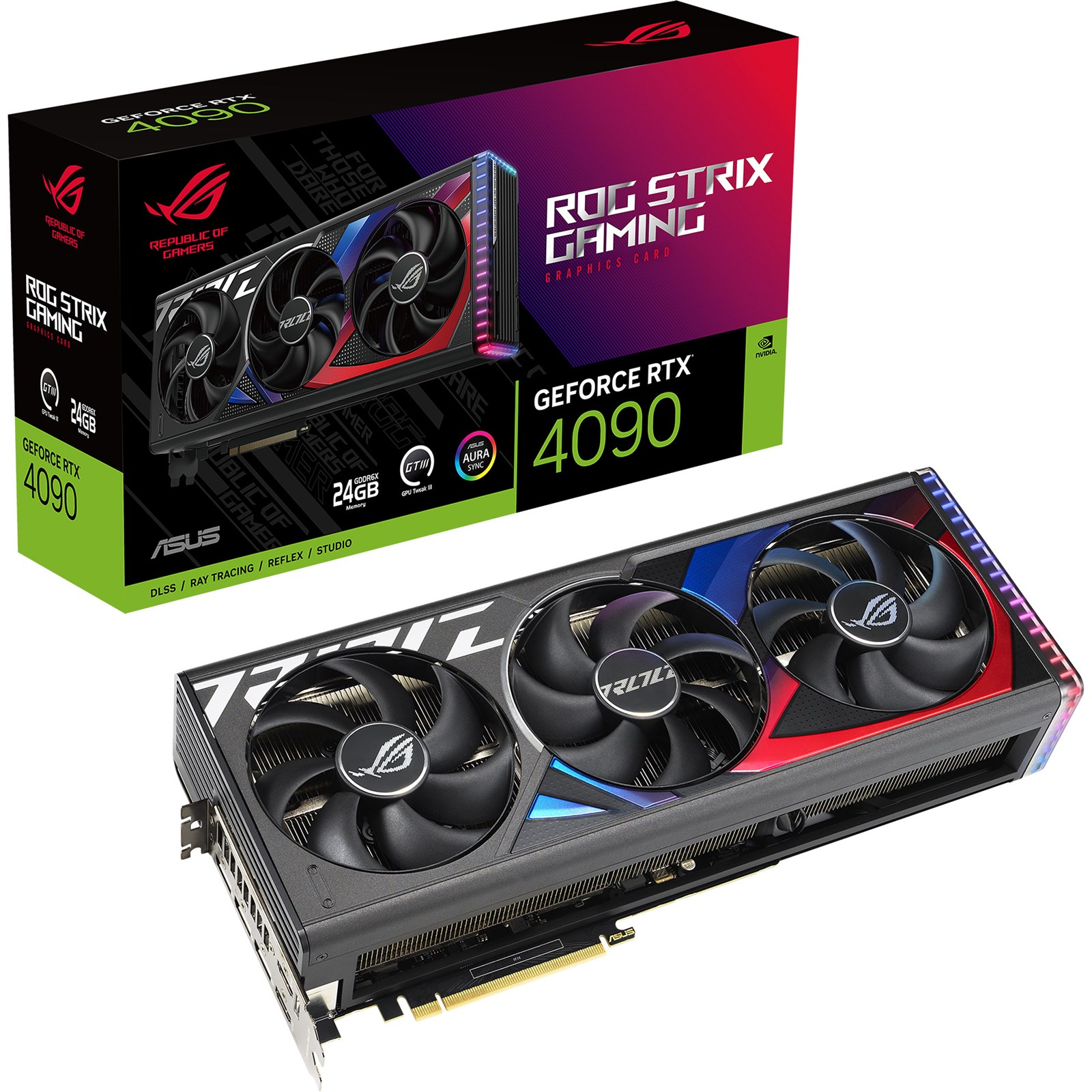

ASUS GeForce RTX 4090 Strix Edition 24GB Graphics Card

Part Number: 90YV0ID1-M0NA00
Manufacturer: ASUS
Quickfind Code: 125617

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RTX 4090
Capacity 24GB
Connection PCI-E
Memory Type GDDR6X
Series RTX
GPU Manufacturer Nvidia

+ Read More Information

WITH THE INCREDIBLE SUM OF ITS PARTS

The ROG Strix GeForce RTX® 4090 brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.

The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

Main Features

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 2X AI performance
3rd Generation RT Cores: Up to 2X ray tracing performance
Axial-tech fans scaled up for 23% more airflow
New patented vapor chamber with milled heatspreader for lower GPU temps
3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Technical Specification

ASUS GeForce RTX 4090 Strix Edition 24GB Graphics Card

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number
Chipset Additional Information	ROG Strix
Boost Chip Clock	2520 MHz
Number of Cores	16384 cores
Graphics Core	CUDA

Memory

Memory Size	24576 MB
Memory Clock	21 Gbps
Memory Type	GDDR6X
Memory Width	384 bit

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	4.0 x16
HDMI Port	2 x HDMI 2.1a
DisplayPort	3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320 pixels

System Requirements

1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 1 x 16-pin or 4 x 8-pin PCIe connectors

Electrical

Power Connector	1 x 16-pin PCIe
Recomended Power Supply	1000 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card Collection Card Speedsetup Manual Adapter Cable ROG Graphics Card Holder ROG Velcro Hook & Loop Thank You Card
Width	70.1 mm (3.5 slot)
Depth	357.6 mm
Height	149.3 mm

Warranty

3 Years

Key Features

Interface Type	PCI Express 4.0 x16
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan
Low Profile	No
Interface Type
NVIDIA GeForce	RTX 4090
AMD Radeon
PCI-E Pin Type	12+4-Pin
Screen Type
FreeSync
Cooling Technology	Dynamic Fan
VR Ready	NVIDIA
VR Ready PC
GPU Length	358 mm
Card Width	4
Power Requirement (auto)	450 W
GPU Power (TDP)	450 W
Graphics card count	1
PCIe Physical Slot required	16
Config Business
Config Enterprise
Config Gaming	Yes
Config Home Office
Config Lifestyle
Config Professionals	Yes
Config Quiet	Yes
Config Rugged
Config Server Rack
Config Silence
Config Students
