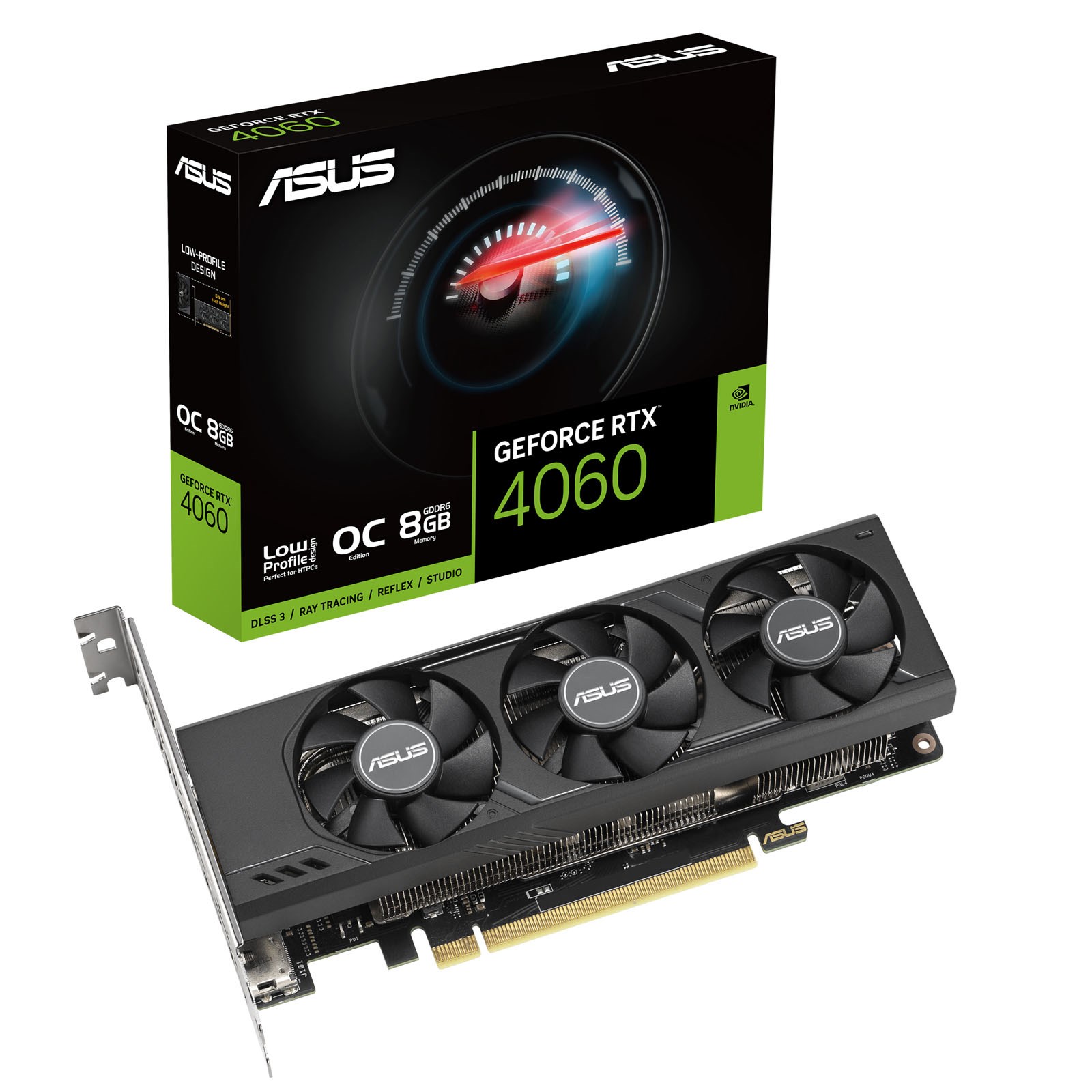

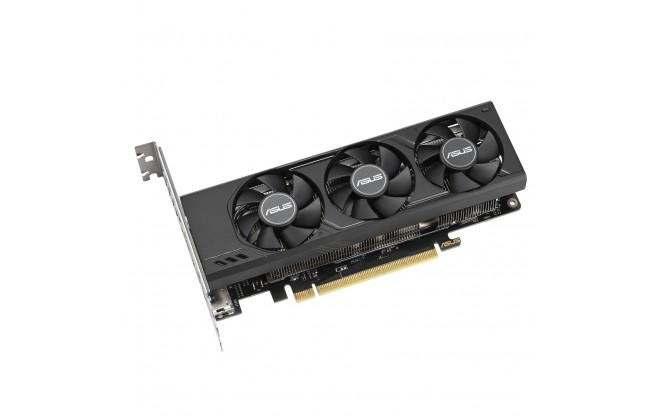

ASUS GeForce RTX 4060 LP BRK OC 8GB GDDR6 Low Profile Graphics Card

  • Part Number: 90YV0JL0-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 125818

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • Connection PCI-E
  • Capacity 8GB
  • GPU Manufacturer Nvidia
  • Memory Type GDDR6
  • Series RTX
  • Low Profile Compatible
  • GPU RTX 4060
+ Read More Information

Share:

Product Description

Big Productivity in a Small Package

ASUS GeForce RTX™ 4060 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.

Main Features

  • AI Performance: 242 AI TOPS
  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2x ray tracing performance
  • OC edition: Boost Clock 2520 MHz (OC Mode)/ 2490 MHz (Default Mode)
  • IP5X dust resistance offers protection from particle ingress for better durability.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
  • Auto-Extreme technology uses automation to enhance reliability.
  • GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.
Technical Specification

ASUS GeForce RTX 4060 LP BRK OC 8GB GDDR6 Low Profile Graphics Card

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number4060
Chipset Additional InformationLP BRK OC
Boost Chip Clock2490 MHz
Number of Cores3072

Memory

Memory Size8192 MB
Memory Clock17 Gbps
Memory TypeGDDR6
Memory Width128 bit

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version4.0 x8
HDMI Port2 x HDMI 2.1a
DisplayPort2 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320

System Requirements

System Requirements1 x PCI Express 4.0 x16 slot

Electrical

Power Connector1 x 6-pin PCIe
Power Consumption115 W
Recomended Power Supply550 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
Speedsetup Manual
LP Bracket
Width39 mm (Dual Slot)
Depth188 mm
Height69 mm

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 4.0 x16
Config Gaming x8 (CB/CCL)Yes
Graphics Memory TypeGDDR6
Main ColourBlack
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan Inc. 0dB Mode
Low ProfileYes
NVIDIA GeForceRTX 4060
PCIe Pin Type6-Pin
Cooling TechnologyDynamic Fan Inc. 0dB Mode
VR ReadyNVIDIA
GPU Length188 mm
Card Width2
Power Requirement (auto)115 W
GPU Power (TDP)115 W
Graphics card count1
PCI Express Power Pins (female)6
PCIe Physical Slot required16
12VHPWR 16-pin ConnectorNo

Graphics

Graphics ChipsetGeForce RTX 4060

Graphics Device

G-SyncYes

Item Details

ManufacturerASUS
Manufacturer Code90YV0JL0-M0NA00
EAN4711387454725
