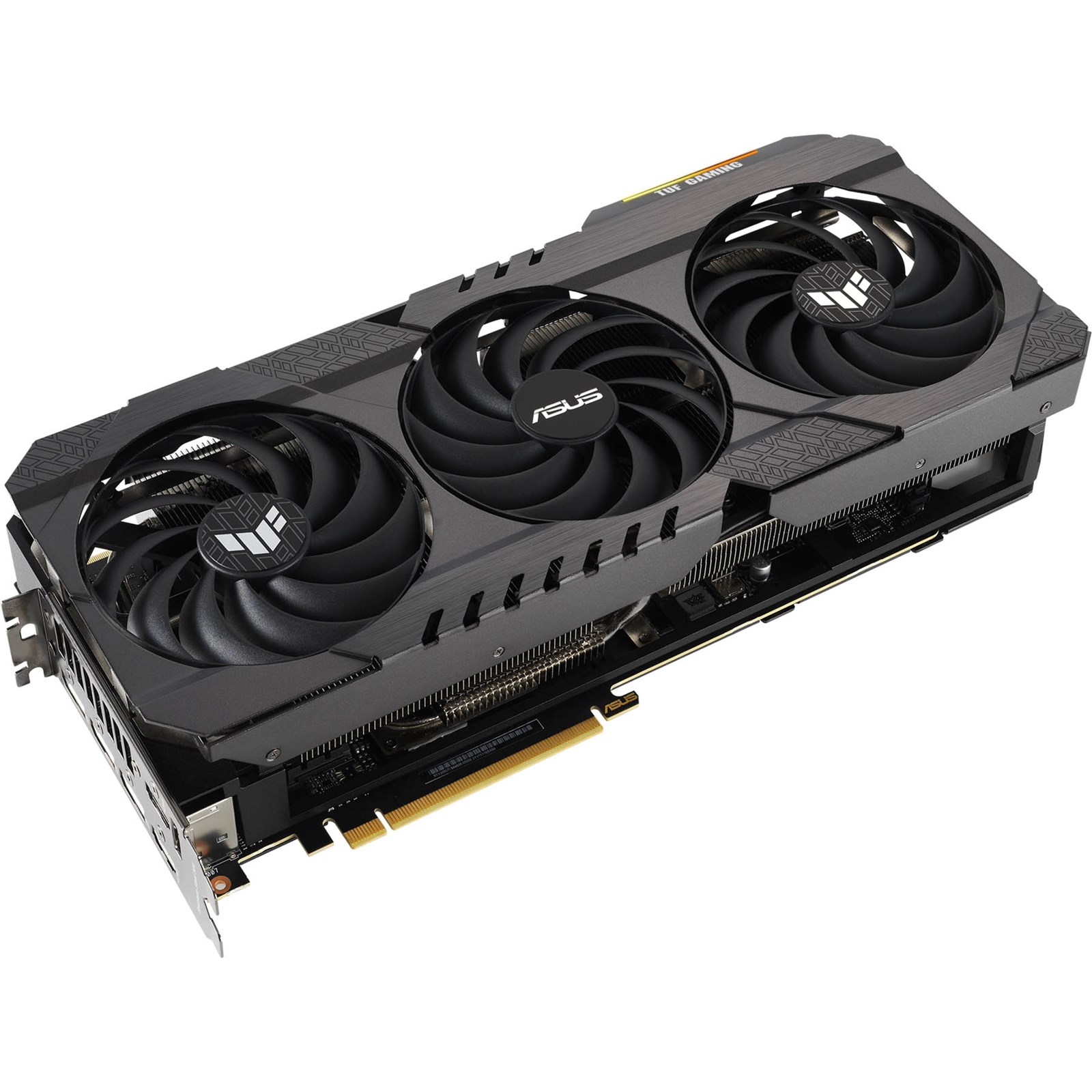

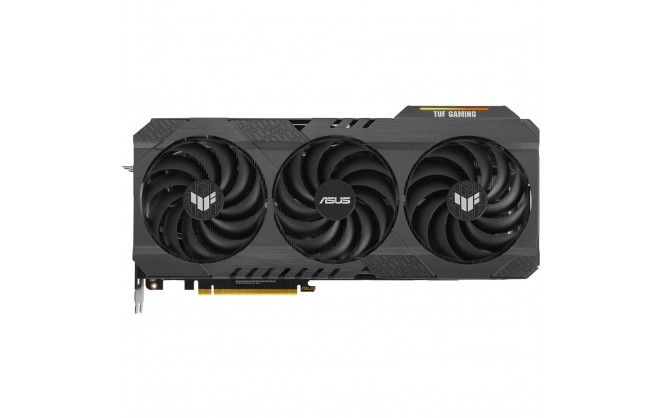

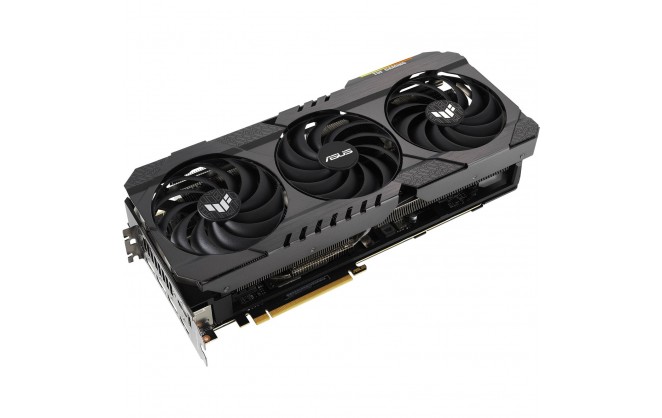

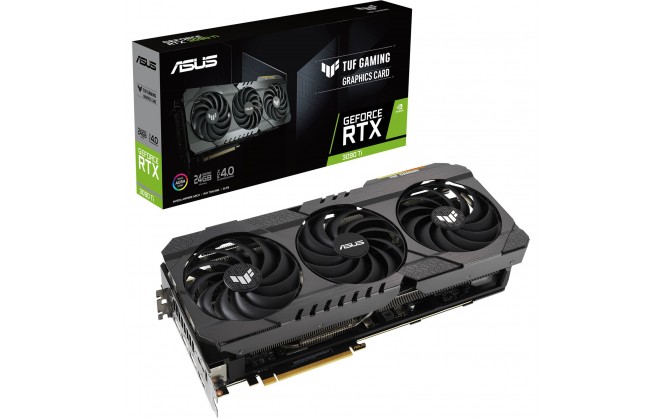

ASUS GeForce RTX 3090 Ti TUF 24GB GPU

  • Part Number: 90YV0HC3-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 125406

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • GPU RTX 3090 Ti
  • Capacity 24GB
  • Connection PCI-E
  • Memory Type GDDR6X
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description
  • NVIDIA Ampere Streaming Multiprocessors: The all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray-tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
  • G6X Memory: This is the world’s fastest graphics memory on the GeForce RTX 3090 Ti.
  • 8K HDR Gaming GPU, Powered by AI: The GeForce RTX 3090 Ti lets you play, capture, and watch your games in brilliant 8K HDR. It features DLSS 8K gaming, GeForce Experience support for 8K HDR game capture, and AV1 decode for efficient playback of 8K HDR streamed video.
  • Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence
  • Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
  • Military-grade Capacitors and other TUF components enhance durability and performance.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring
Technical Specification

ASUS GeForce RTX 3090 Ti TUF 24GB GPU

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number3090 Ti
Chipset Additional InformationTUF Gaming
Graphics CoreCUDA

Memory

Memory Size24576 MB
Memory TypeGDDR6X

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version4.0 x16

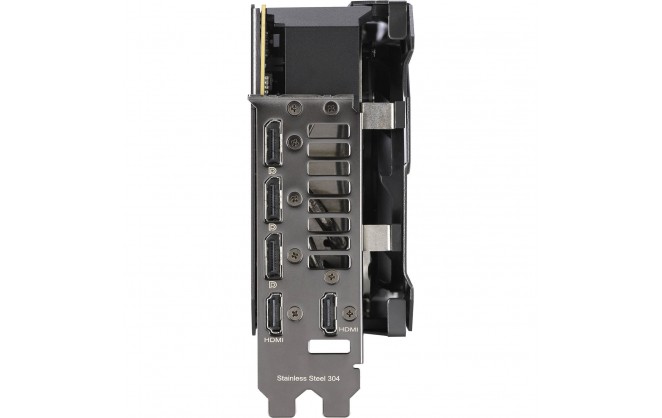

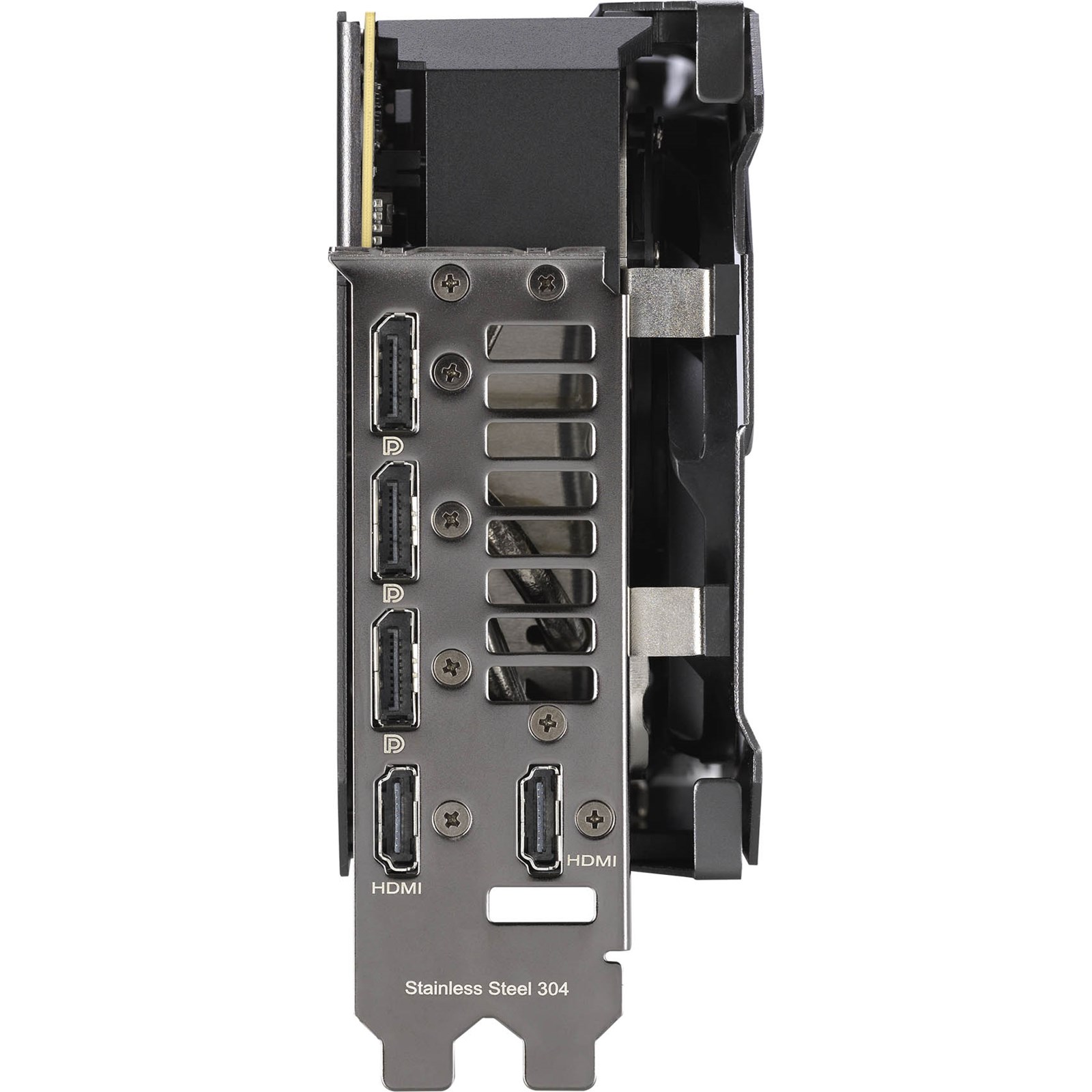

HDMI Port2 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320 pixels

System Requirements

System Requirements1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 1 x 12+4-pin PCIe 5.0 connector or 3 x 8-pin PCIe connectors

Electrical

Power Connector1 x 12+4-pin PCIe 5.0
Recomended Power Supply1000 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
Collection Card
Speedsetup Manual
1 x 12+4-pin to 3 x 8-pin PCIe adapter cable
Width62.8 mm (3.5 slot)
Depth325.9 mm
Height140.2 mm
Weight1.7 kg

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 4.0 x16
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan
Low ProfileNo
NVIDIA GeForceRTX 3090 Ti
PCI-E Pin Type12+4-Pin
Cooling TechnologyDynamic Fan
VR ReadyNVIDIA
GPU Length326 mm
Card WidthQuadruple Slot

Graphics

Graphics ChipsetGeForce RTX 3090 Ti

Graphics Device

G-SyncYes

Item Details

ManufacturerASUS
Manufacturer Code90YV0HC3-M0NA00
EAN4711081655893
UPC195553655897
ConditionNew
