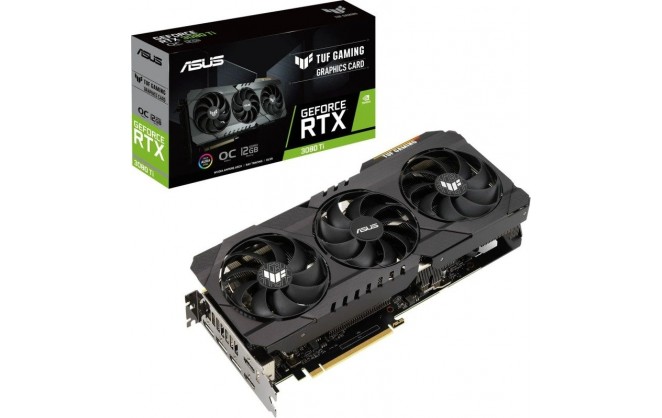

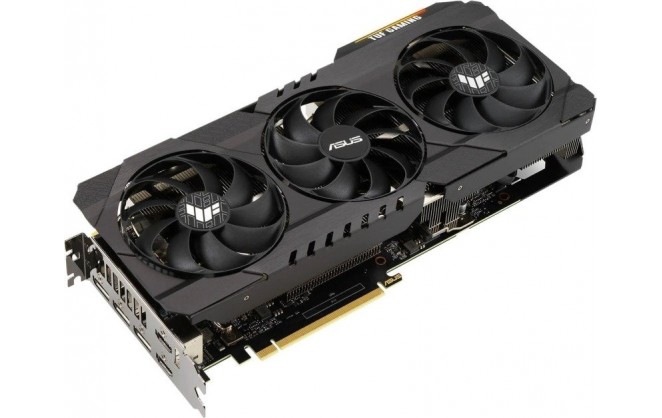

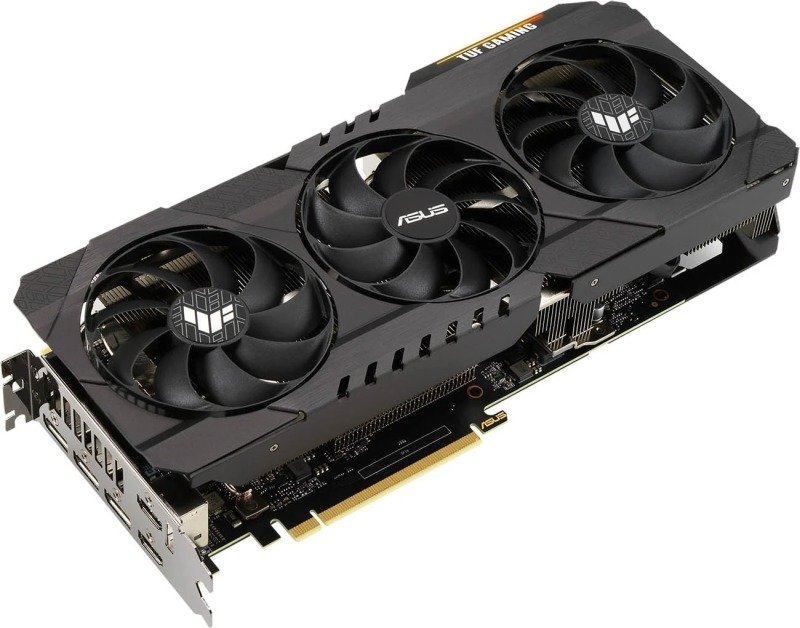

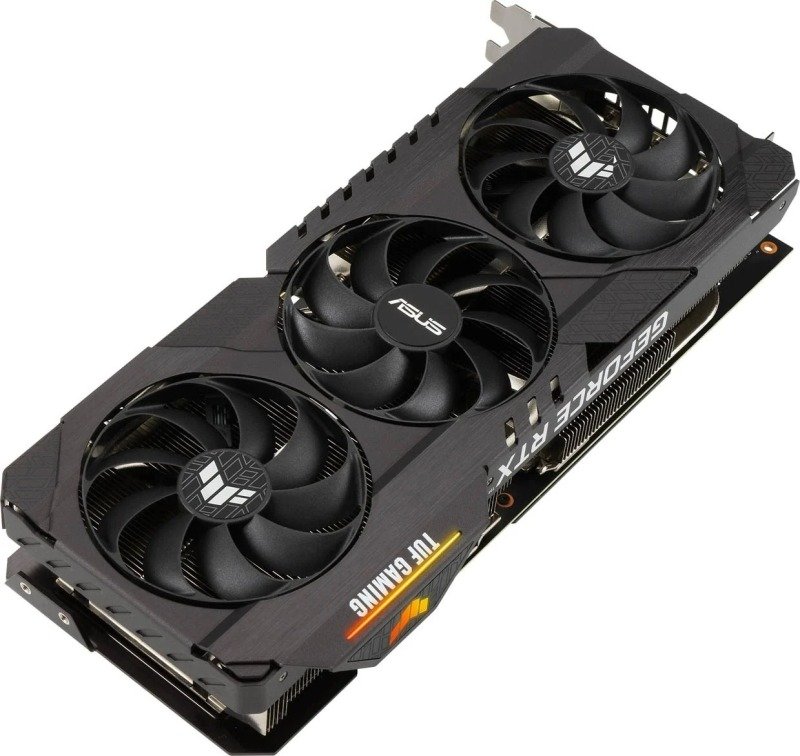

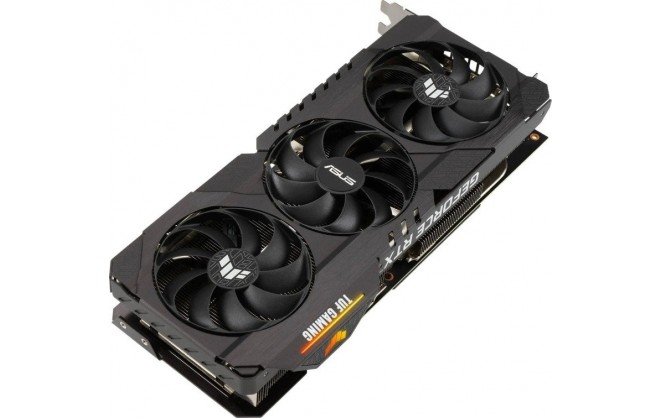

TUF Gaming GeForce RTX™ 3080 Ti OC Edition 12GB GDDR6X buffed-up design with chart-topping thermal performance.
FEATURES
BUILT TUF
The TUF GAMING GeForce RTX™ 3080 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new "old faithful", this card has your back.
AXIAL-TECH UPGRADES
TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
New Directions
The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
MAXCONTACT
To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.
2.7-SLOT DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.
TUF COMPONENTS
Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
FRESH SHROUD
An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.
IT'S COOLER OUT BACK
The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.

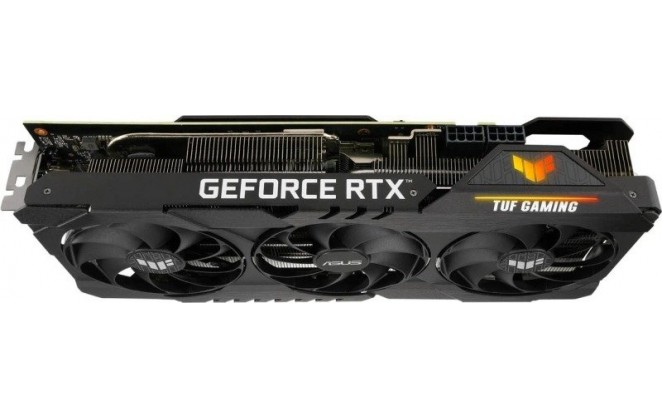

FUNCTIONAL FRONT
The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3080 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
GPU TWEAK II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
ASUS GeForce RTX 3080 Ti 12GB OC TUF GAMING Ampere Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | NVIDIA GeForce RTX 3080 Ti |
| Boost Clock | 1785 MHz |
| CUDA Cores | 10240 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | 2 x HDMI ¦ 3 x DisplayPort |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | Dual Bios, Dual ball Bearing Fan, NVIDIA G-Sync ready, AUTO-EXTREME technology, MaxContact technology, GPU Tweak II, 2.7-slot Fan Cooler, Axial-tech Fan Design, Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, NVIDIA Reflex, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, HDCP |
Memory | |
| Size | 12 GB |
| Technology | GDDR6X SDRAM |
| Memory Speed | 19 Gbps |
| Bus Width | 384-bit |
System Requirements | |
| Required Power Supply | 850 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
Miscellaneous | |
| Included Accessories | Collection card |
| Software Included | XSplit Gamecaster 2 (1 year Premium licence), WTFast Gamers Private Network (6 months Premium licence), ASUS Quantumcloud |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Width | 5.17 cm |
| Depth | 29.99 cm |
| Height | 12.69 cm |
