Features
• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 52 MH/s ETH hash rate (est.).
• OC edition: Boost clock 1890 MHz (OC mode)/ 1860 MHz (Gaming mode)

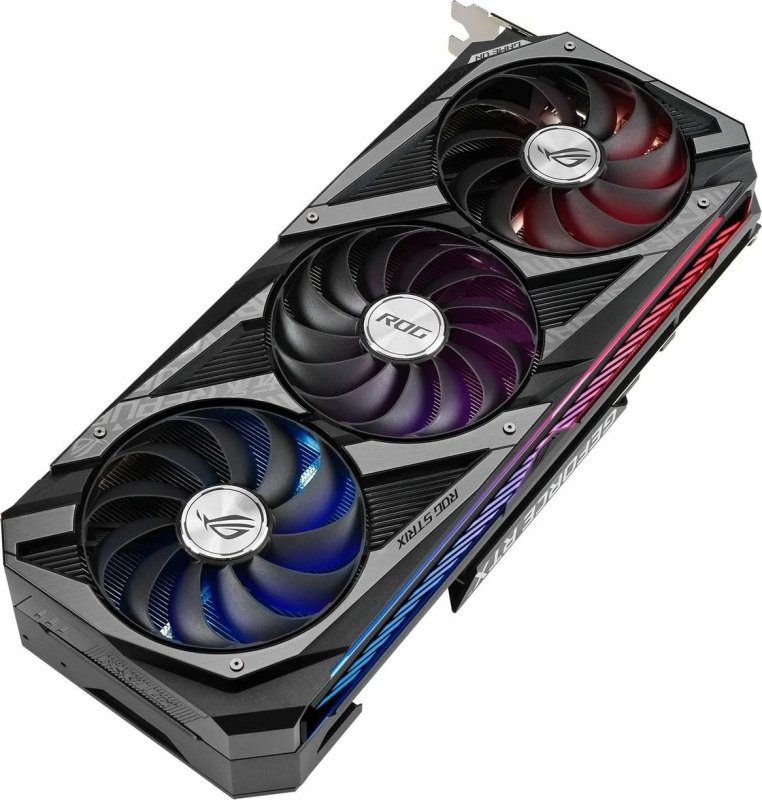

• Axial-tech Fan Design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
• 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
AXIAL-TECH UPGRADES
Our Axial-tech fan design has been optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the heat spreader.
NEW DIRECTIONS
To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. The fans also shut off completely when card power consumption is low and the GPU temperature falls beneath 50 Celsius, keeping noise levels down when the system is under a light load.
MAXCONTACT
To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.
2.9-SLOT DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.

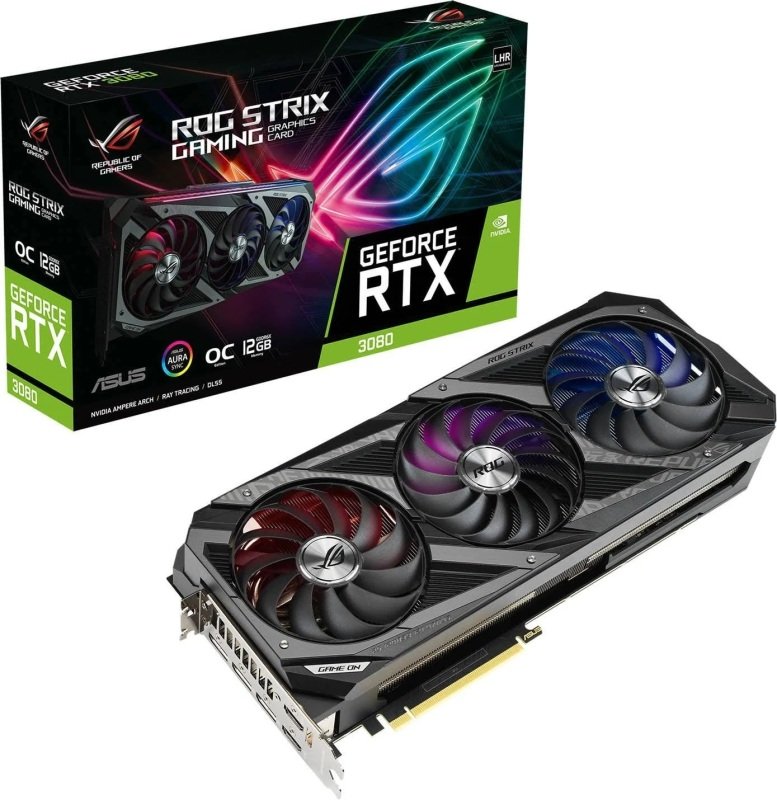

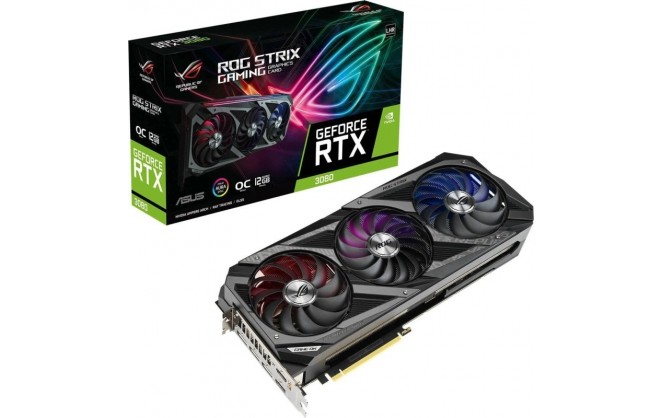

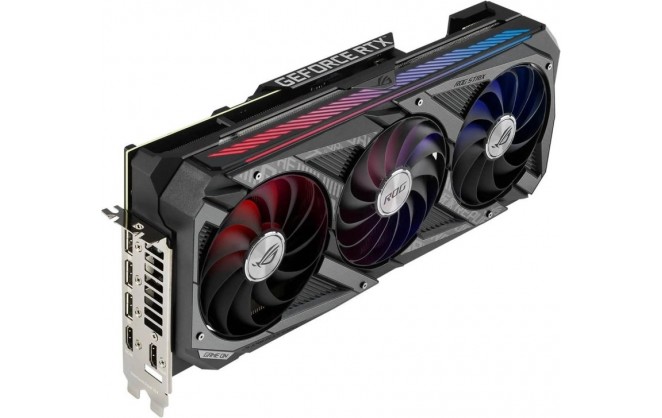

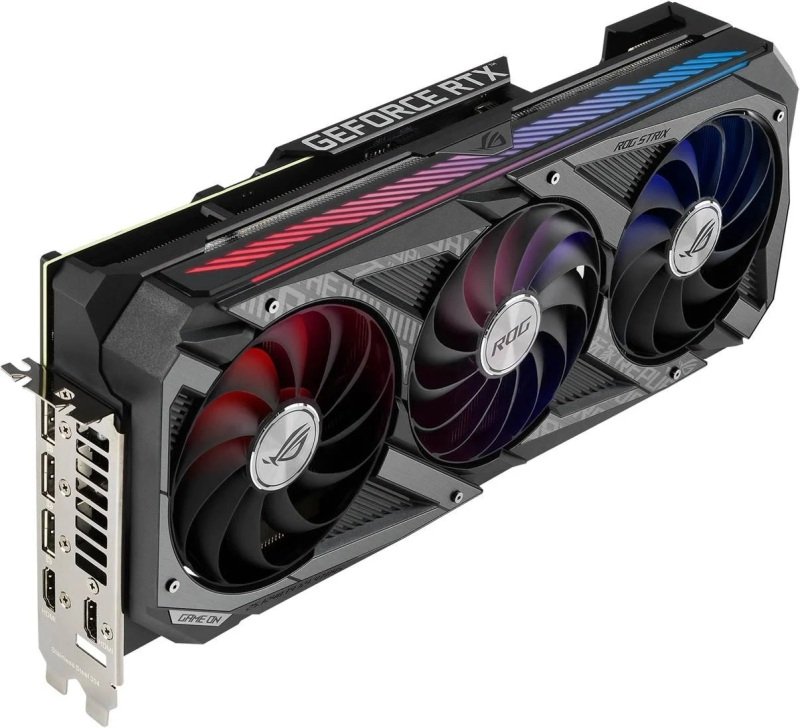

ASUS GeForce RTX 3080 12GB ROG STRIX OC Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | NVIDIA GeForce RTX 3080 |
| Boost Clock | 1890 MHz |
| CUDA Cores | 8960 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

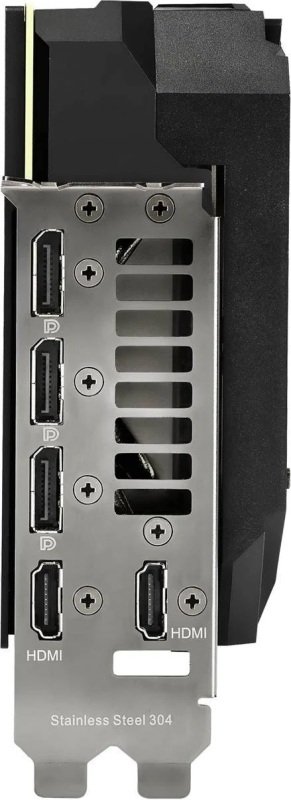

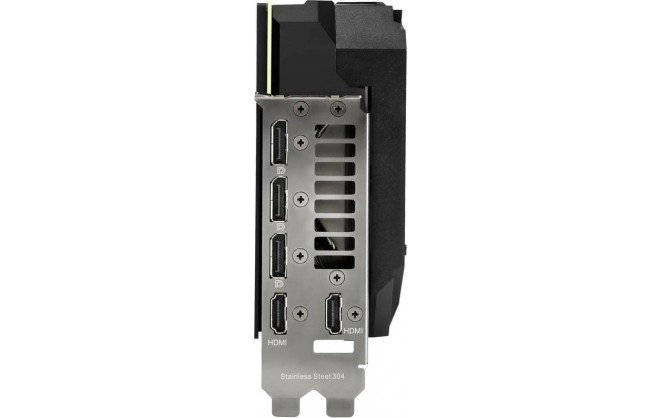

| Interfaces | 2 x HDMI ¦ 3 x DisplayPort |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | Dual Bios, NVIDIA G-Sync ready, Super Alloy Power II technology, AUTO-EXTREME technology, MaxContact technology, ASUS FanConnect II, GPU Tweak II, Real-Time Ray Tracing, Axial-tech Fan Design, Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, 2.9-slot Fan Cooler, NVIDIA Reflex, LHR (Lite Hash Rate), 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, HDCP |
Memory | |
| Size | 12 GB |
| Technology | GDDR6X SDRAM |
| Memory Speed | 19 Gbps |
| Bus Width | 384-bit |
System Requirements | |
| Required Power Supply | 850 W |
| Additional Requirements | 3 x 8 pin PCI Express power connector |
Miscellaneous | |
| Included Accessories | ROG touch fastener, collection card, ROG ruler |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Width | 5.778 cm |
| Depth | 31.85 cm |
| Height | 14.01 cm |
