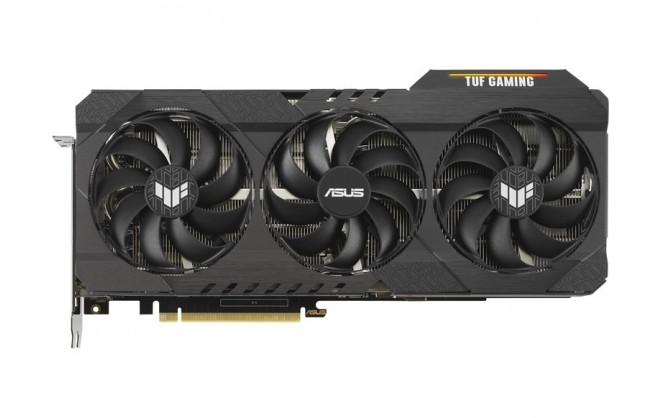

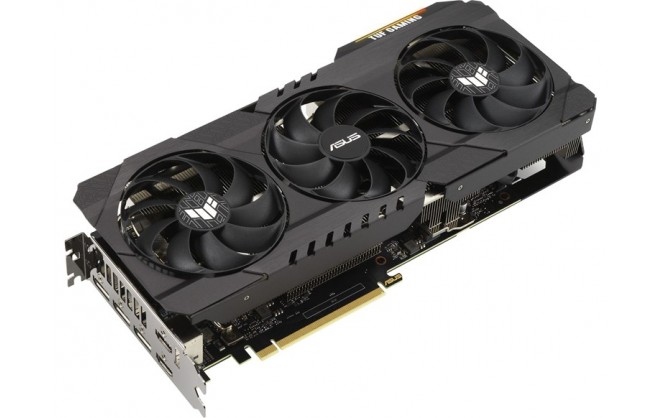

The TUF GAMING GeForce RTX™ 3070 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.
TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.

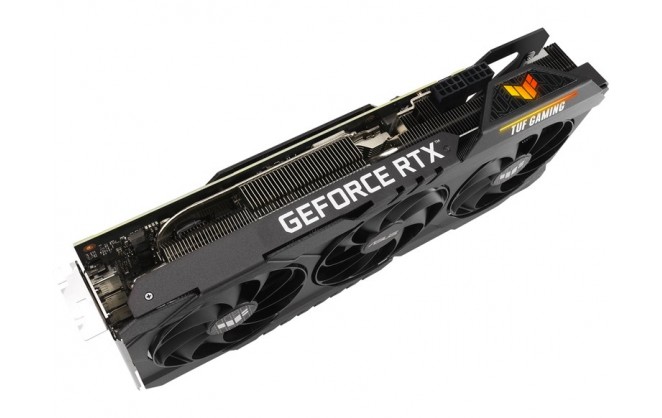

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.
Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
An all-aluminum shroud adds robust protection to TUF Gaming graphisc cards and a no-nonsense industrial design and greyscale colorway fits into any build with ease.
The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.
The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3070 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. ?Get started right away with just one click!
ASUS GeForce RTX 3070 Ti TUF OC 8GB Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | |
| Chipset Additional Information | TUF Gaming V2 OC Edition |
| Boost Chip Clock | 1785 MHz |
| Graphics Core | CUDA |
| Number of Cores | 6144 cores |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 19 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 750W or greater PSU with 2 x 8-pin PCIe connectors |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Recomended Power Supply | 750 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card TUF Certificate of Reliability Collection Card Speedsetup Manual |
| Width | 51.7 mm (2.6 slot) |
| Depth | 299.9 mm |
| Height | 126.9 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| Interface Type | |
| NVIDIA GeForce | RTX 3070 Ti |
| AMD Radeon | |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| Screen Type | |
| FreeSync | |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| VR Ready PC | |
| GPU Length | 300 mm |
| Card Width | 3 |
| GPU Power (TDP) | W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
Graphics
| Graphics Chipset | GeForce RTX 3070 Ti |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate | Yes |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YV0IS1-M0NA00 |
| Alternative Part Number | TUF-RTX3070TI-O8G-V2-GAMING |
| EAN | 4711387004364 |
| Condition | New |
