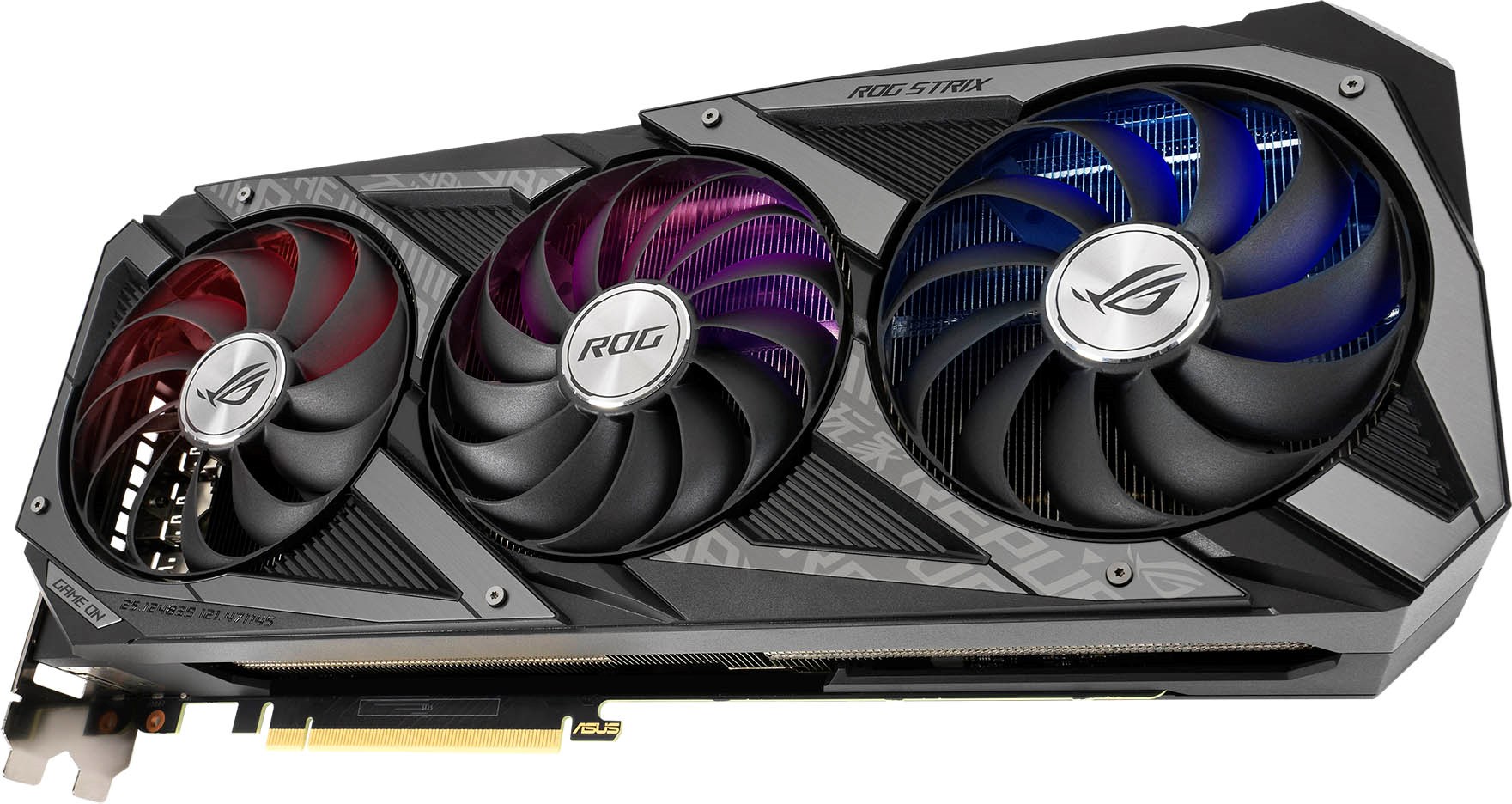

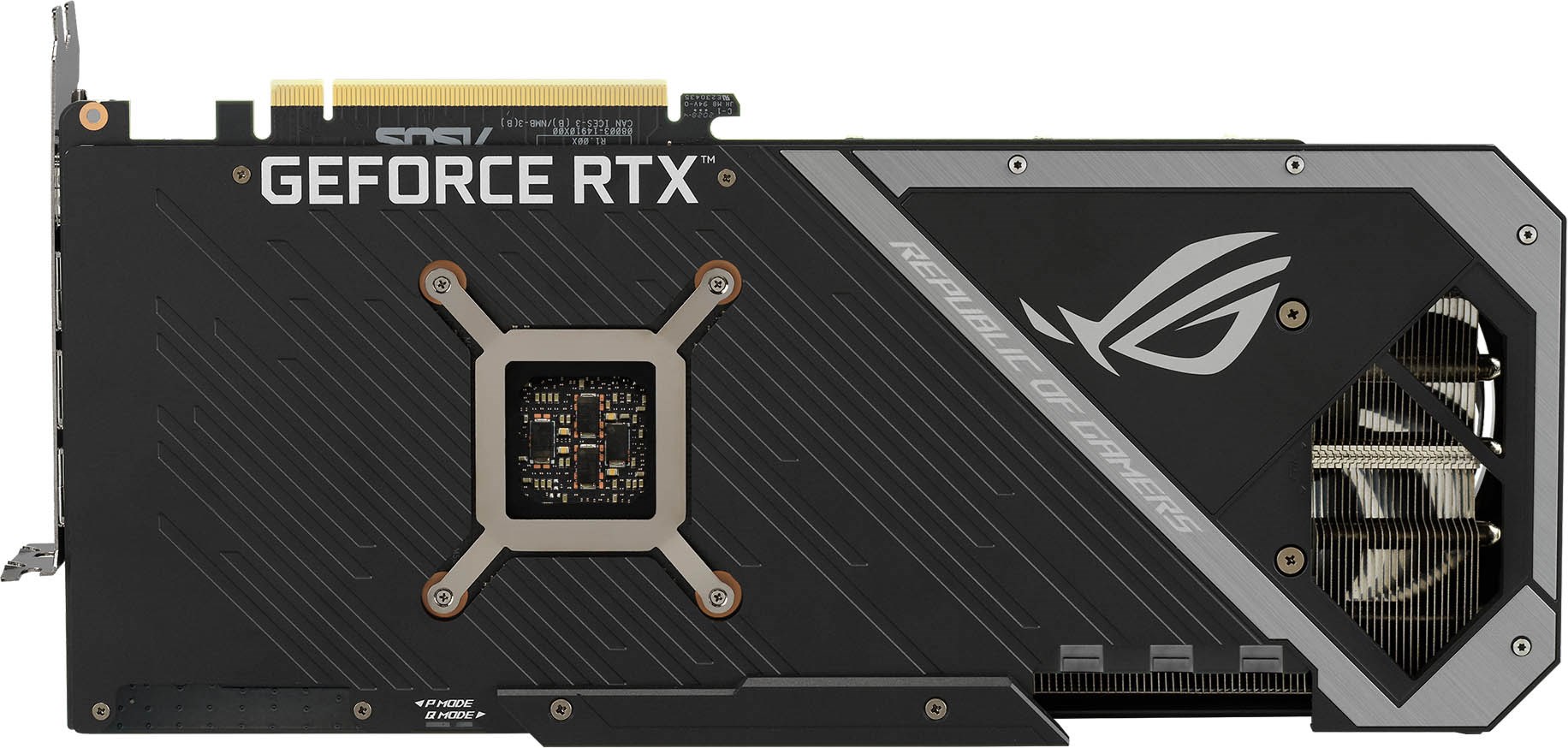

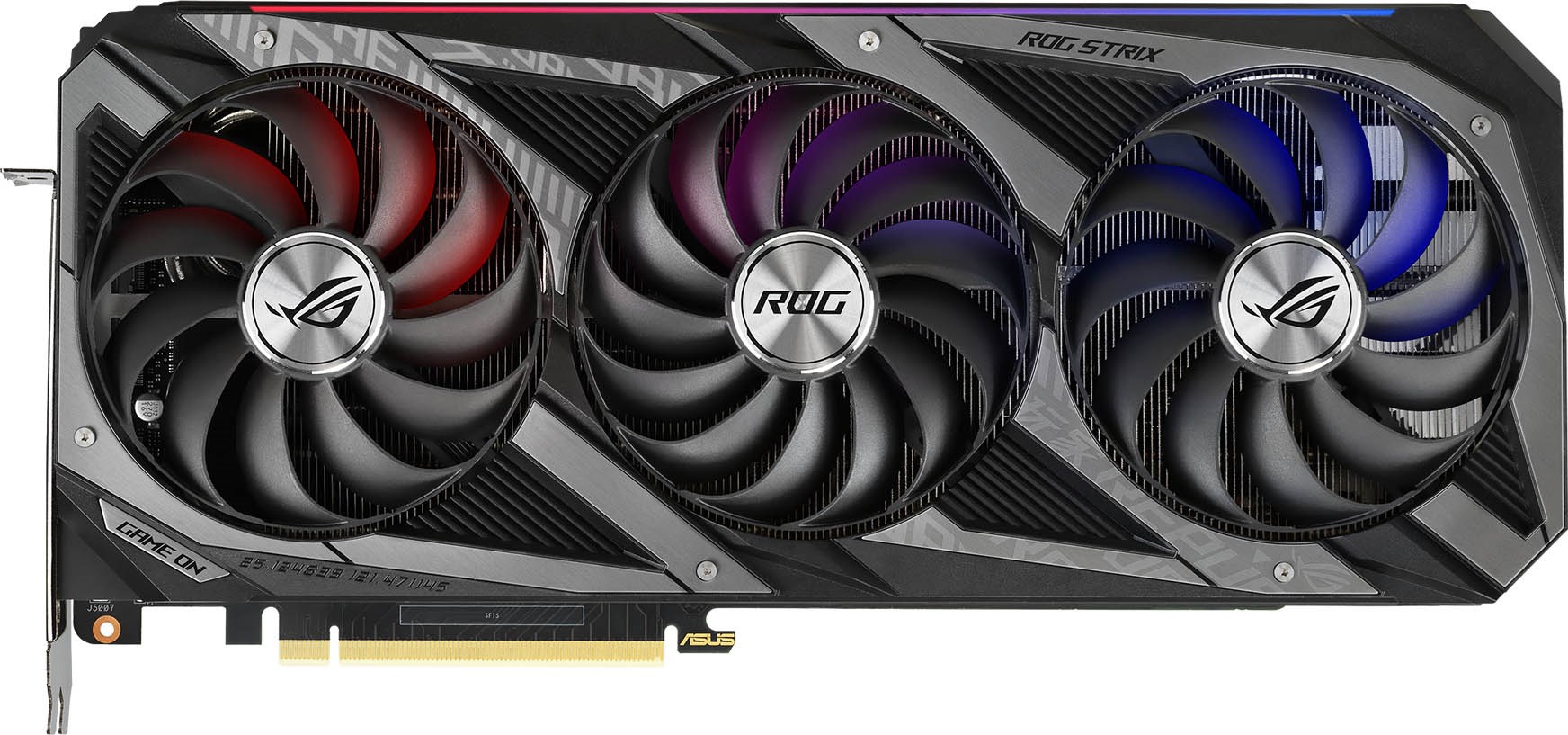

ASUS GeForce RTX 3070 Ti Strix Edition OC 8GB Graphics Card

  • Part Number: 90YV0GW0-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 125429

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • GPU RTX 3070 Ti
  • Capacity 8GB
  • Connection PCI-E
  • Memory Type GDDR6X
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

Take Flight

From top to bottom, the ROG Strix GeForce RTX™ 3070 Ti has been radically improved to accommodate the impressive new NVIDIA Ampere architecture and to deliver the next wave of gaming performance innovation to the market. A fresh design and more metal surrounds a grouping of Axial-tech fans. Last gen's uniform fan layout has been usurped by a new rotation scheme and specialized roles for central and auxiliary fans. Below the blades, a larger, more impressive heatsink is ready for the most demanding thermal loads. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. You've been waiting for the latest and greatest in graphics card design - and this is it.


  • NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
  • Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
  • 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
  • Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Technical Specification

ASUS GeForce RTX 3070 Ti Strix Edition OC 8GB Graphics Card

GPU

Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number3070 Ti
Chipset Additional InformationROG Strix OC
Boost Chip Clock1875 MHz
Number of Cores6144 units
Graphics CoreCUDA

Memory

Memory Size8192 MB
Memory Clock19 Gbps
Memory TypeGDDR6X
Memory Width256 bit
Memory Bandwidth608 GB/s

Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version4.0 x16
HDMI Port2 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320 pixels

System Requirements

System Requirements1 x PCI Express 4.0 x16 slot
Recommended 750W PSU with 3 x 8-pin PCIe connectors

Electrical

Power Connector3 x 8-pin PCIe
Recomended Power Supply750 W

Physical

Form FactorGraphics Card
In The BoxGraphics Card
ROG Velcro Hook & Loop
ROG Ruler
Collection Card
Speedsetup Manual
Width57.78 mm (Triple Slot)
Depth318.5 mm
Height140.1 mm
Weight1.77 kg

Warranty

Warranty3 Years

Key Features

Interface TypePCI Express 4.0 x16
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan
Low ProfileNo
NVIDIA GeForceRTX 3070 Ti
PCI-E Pin Type8-Pin x 3
Cooling TechnologyDynamic Fan
VR ReadyNVIDIA
GPU Length319 mm
Card Width3
Power Requirement (auto)290 W
GPU Power (TDP)290 W
Graphics card count1

Graphics

Graphics ChipsetGeForce RTX 3070 Ti

Graphics Device

G-SyncYes

Compatibility

Lite Hash RateYes

Item Details

ManufacturerASUS
Manufacturer Code90YV0GW0-M0NA00
Alternative Part NumberROG-STRIX-RTX3070TI-O8G-GAMING
EAN4711081243052
ConditionNew
