Features
• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
• OC Edition: Boost clock 1785 MHz (OC mode)/ 1755 MHz (Gaming mode).
• Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• Military-grade capacitors and other TUF components enhance durability and performance.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Built TUF
The TUF GAMING GeForce RTX™ 3060 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new "old faithful", this card has your back.
Axial-tech Upgrades
TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
MaxContact
To get heat up off the die and into the heatsink array, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.
2.7-slot Design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint.

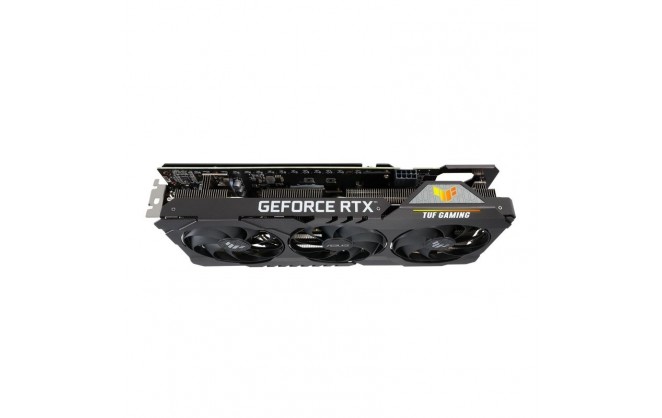

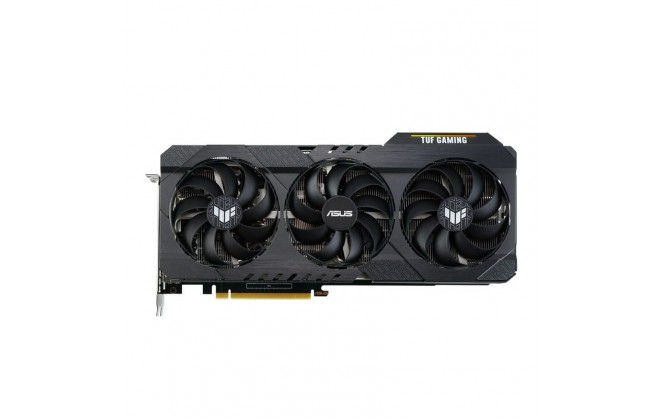

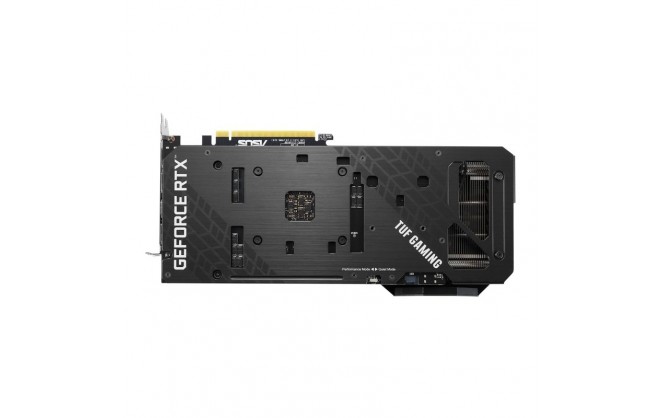

ASUS GeForce RTX 3060 Ti 8GB TUF OC V2 Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | NVIDIA GeForce RTX 3060 Ti |
| Boost Clock | 1785 MHz |
| CUDA Cores | 4864 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces | 2 x HDMI ¦ 3 x DisplayPort |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | Dual Bios, NVIDIA G-Sync ready, AUTO-EXTREME technology, MaxContact technology, RGB Lighting, GPU Tweak II, Real-Time Ray Tracing, 2.7-slot Fan Cooler, Axial-tech Fan Design, Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, NVIDIA Reflex, Dual ball Bearing Fans, LHR (Lite Hash Rate), 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, HDCP |
Memory | |
| Size | 8 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 14 Gbps |
| Bus Width | 256-bit |
System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 8 pin PCI Express power connector |
Miscellaneous | |
| Included Accessories | Collection card |
| Software Included | XSplit Gamecaster 2 (1 year Premium licence), WTFast Gamers Private Network (6 months Premium licence), ASUS Quantumcloud |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Width | 5.4 cm |
| Depth | 30.1 cm |
| Height | 14.3 cm |
