ASUS Dual NVIDIA GeForce RTX 5060 8 GB GDDR7 Graphics Card

  • Part Number: 90YV0PS0-M0NA00
  • Manufacturer: ASUS
  • Quickfind Code: 126022
  • Stock: In Stock

£368.49 ex. vat
£442.19 inc. vat

Product Features:
  • Condition: New
  • GPU RTX 5060
  • Capacity 8GB
  • Connection PCI-E
  • Memory Type GDDR7
  • Series RTX
  • GPU Manufacturer Nvidia
+ Read More Information

Share:

Product Description

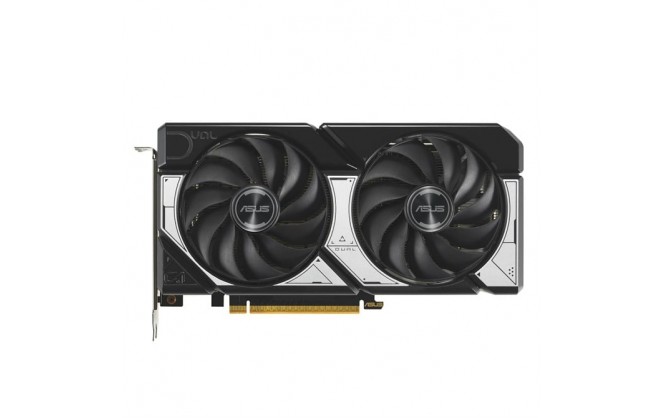

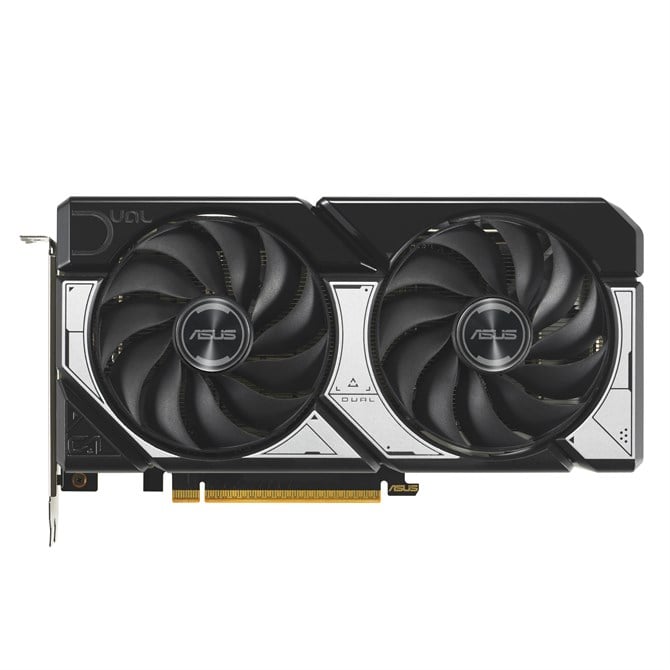

Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 OC Edition Advanced combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans —optimize airflow to the heatsink, helping the card deliver enhanced performance. Designed in a compact 2.5-slot form factor, it is delivering higher engine clocks in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Technical Specification

ASUS Dual NVIDIA GeForce RTX 5060 8 GB GDDR7 Graphics Card

Processor
CUDA
CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.

CUDA cores
3840
Graphics processor family
The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA).
NVIDIA
Graphics processor
Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics.
GeForce RTX 5060
Processor boost clock speed
2550 MHz
Processor frequency (OC mode)
2587 MHz
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
7680 x 4320 pixels
Parallel processing technology support
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs.
Not supported
Maximum displays per videocard
4
Memory
Discrete graphics card memory
8 GB
Graphics card memory type
The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate.
GDDR7
Memory bus
Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC.
128 bit
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
28 Gbit/s

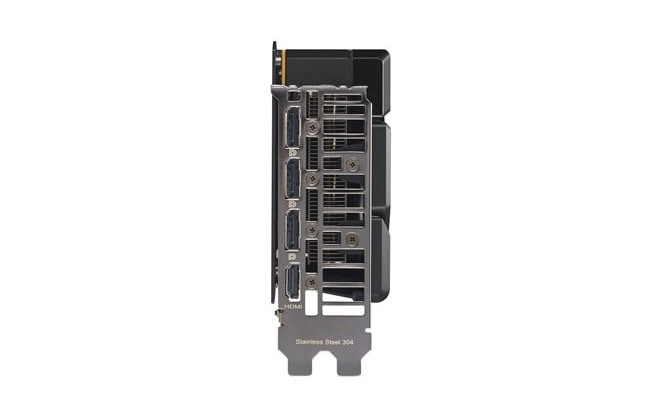

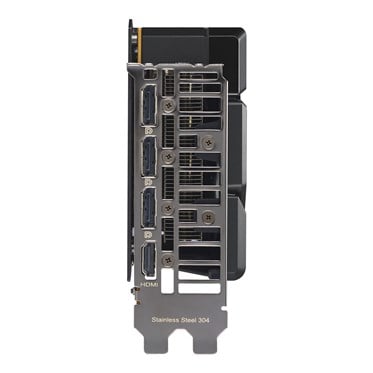

Ports & interfaces
Interface type
PCI Express 5.0
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.1b
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
3
DisplayPort version
2.1b
Performance
TV tuner integrated
Device has an in-built TV tuner.

DirectX version
DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.
12 Ultimate
OpenGL version
OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives.
4.6
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

HDCP version
2.3
Dual Link DVI
A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.

Performance
NVIDIA G-SYNC

NVIDIA Ansel

NPU performance up to
614 TOPs
Overclocked (OC) edition

Design
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Cooling technology
ASUS Axial-tech
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Form factor
The shape or design of the product.
Full-Height/Half-Length (FH/HL)
Number of slots
2.5
Product colour
The colour e.g. red, blue, green, black, white.
Black, White
Power
Minimum system power supply
The lowest power that is needed.
550 W
Supplementary power connectors
1x 8-pin
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
661 g
Length
The measurement or extent of something from end to end.
228 mm
Depth
The distance from the front to the back of something.
50 mm
Height
The measurement of the product from head to foot or from base to top.
123 mm
