The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
You can switch LED on or off depends on the scenarios or your need.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Featuring 16 power phases with SPS components to raise maximum current to GPU and memory to offer enhanced performance.

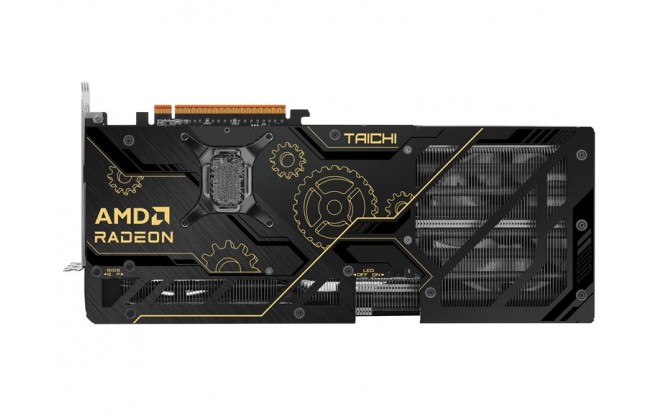

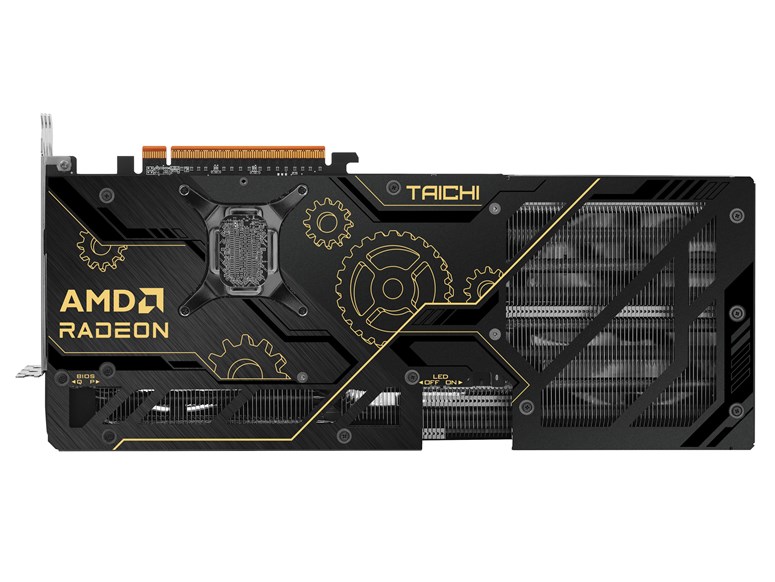

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.

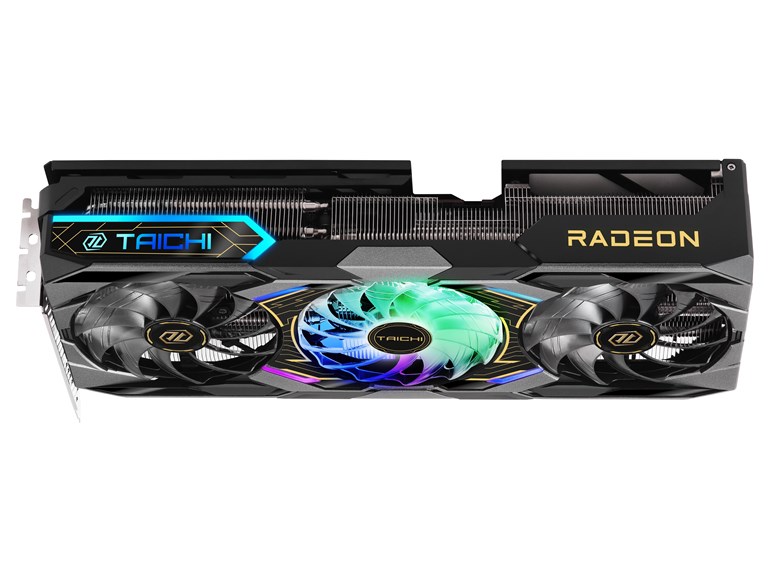

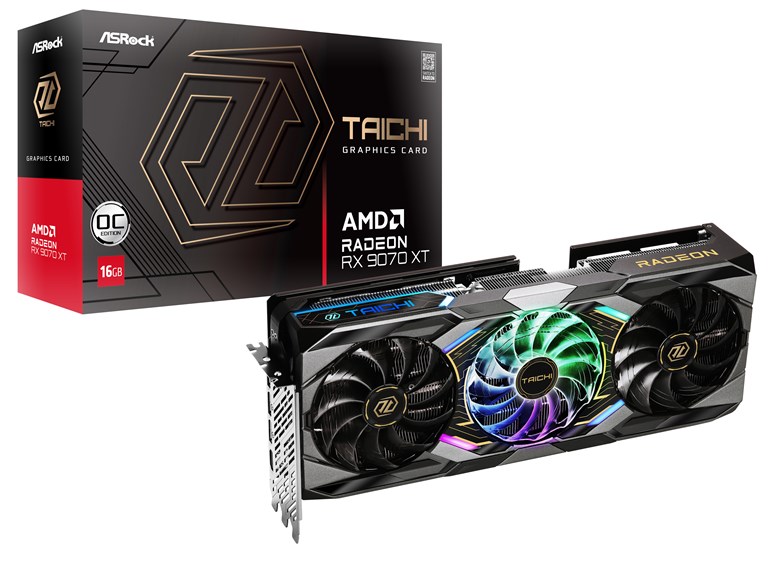

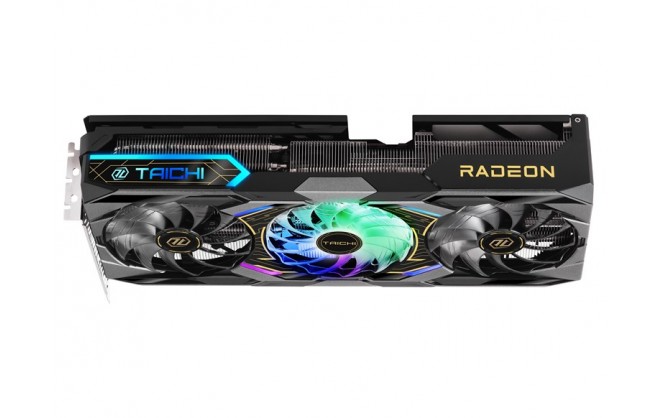

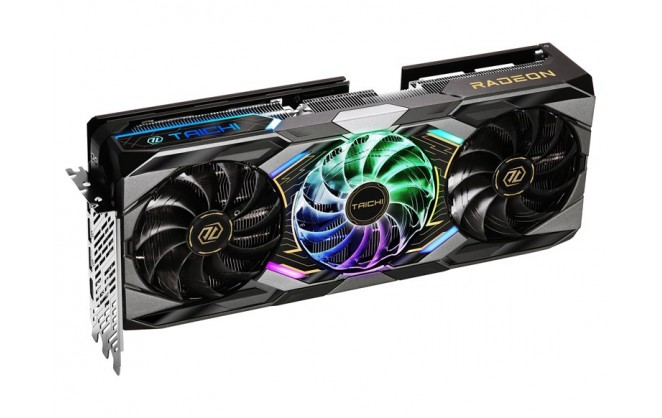

ASRock Radeon RX 9070 XT Taichi OC 16GB GDDR6 Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 9070 XT |
| Chipset Additional Information | Taichi |
| Base Chip Clock | 1660 MHz |
| Boost Chip Clock | Game Clock: 2570 MHz Boost Clock: Up to 3100 MHz |
| Number of Cores | 4096 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Expres |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 12V-2x6 or 3 x 8-pin PCIe |
| Power Consumption | 304 W |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Installation Guide 1 x 12V-2x6 to 3 x 8-pin PCIe adapter VGA Holder |
| Width | 61 mm (3.05 slot) |
| Depth | 330 mm |
| Height | 140 mm |
| Weight | 1.554 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | Yes |
| Graphics Memory Type | GDDR6 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| AMD Radeon | RX 9070 XT |
| PCIe Pin Type | 12+4-Pin (16-Pin) |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | AMD |
| GPU Length | 330 mm |
| Card Width | 3 |
| Power Requirement (auto) | 304 W |
| GPU Power (TDP) | 304 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 24 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | Yes |
| AI Ready | Yes |
| 12V-2x6 Rating | 450W |
Graphics
| Graphics Chipset | Radeon RX 9070 XT |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-GA5HZZ-00UANF |
| EAN | 4711581490444 |
