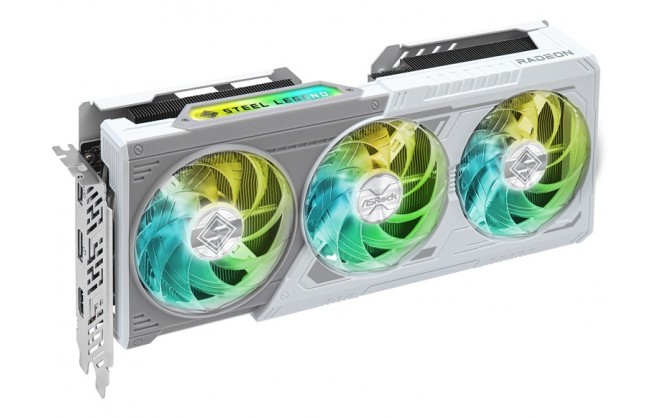

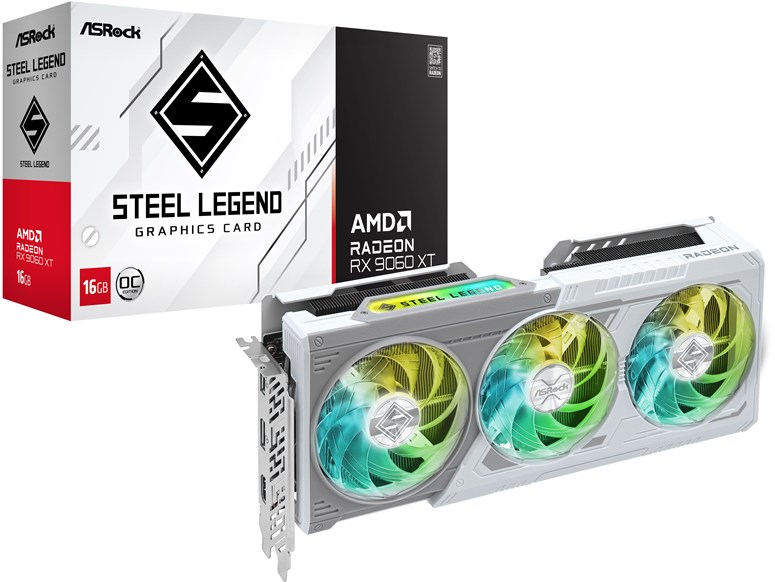

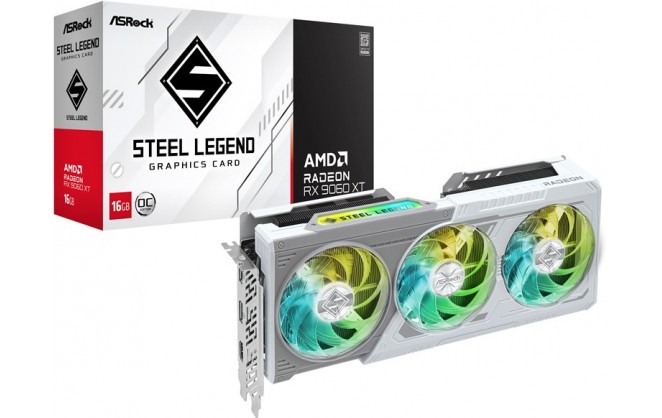

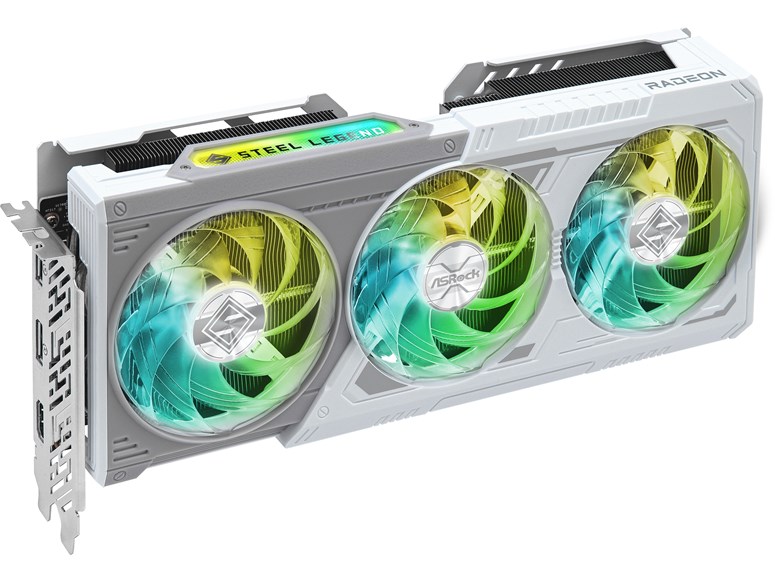

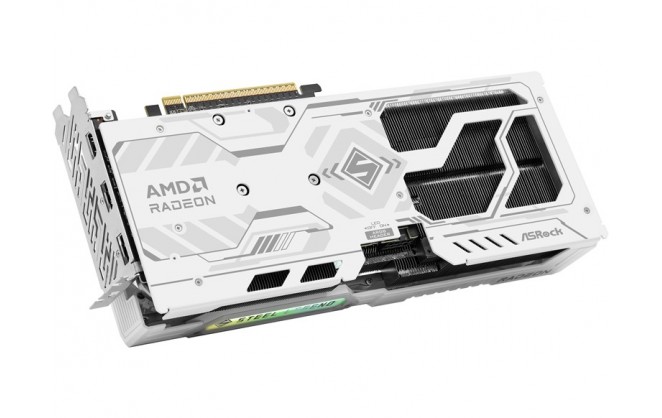

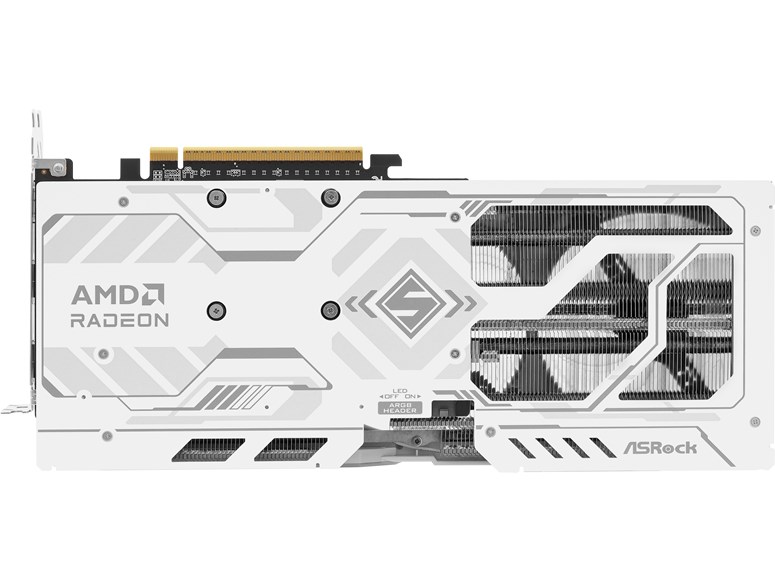

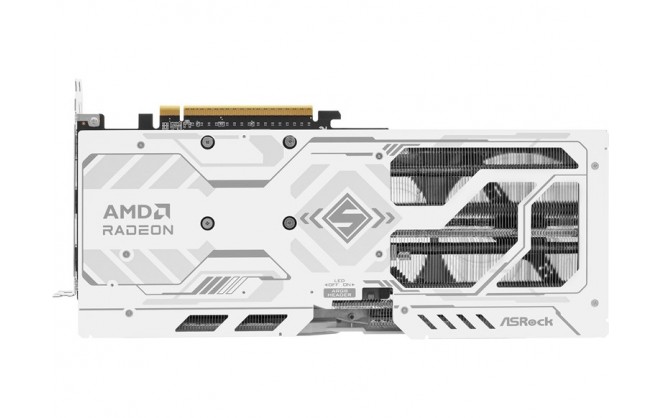

ASRock Radeon RX 9060 XT Steel Legend OC 16GB Graphics Card (RX9060XT SL 16GO)
ASRock Radeon RX 9060 XT Steel Legend OC 16GB GDDR6 Graphics Card
GPU
| Chipset Manufacturer | AMD |
| Chipset Model Name | Radeon RX |
| Chipset Model Number | 9060 XT |
| Chipset Additional Information | Steel Legend OC |
| Boost Chip Clock | 3320 MHz |
| Number of Cores | 2048 |
Memory
| Memory Size | 16384 MB |
| Memory Clock | 20 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 128 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x16 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 2 x DisplayPort 2.1a |
Resolution
| Multiple Monitor Support (Max) | Yes (3) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | 160 W |
| Recomended Power Supply | 550 W |
Physical
| Product Comprises | Graphics Card |
| In The Box | Graphics Card Quick Installation Guide |
| Width | 51 mm (2.5 slot) |
| Depth | 298 mm |
| Height | 131 mm |
| Weight | 967 g |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x16 |
| Config Gaming x8 (CB/CCL) | Yes |
| Graphics Memory Type | GDDR6 |
| Main Colour | White |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| AMD Radeon | RX 9060 XT |
| PCIe Pin Type | 6+2-Pin |
| FreeSync | Yes |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | AMD |
| GPU Length | 298 mm |
| Card Width | 3 |
| Power Requirement (auto) | 160 W |
| GPU Power (TDP) | 160 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 8 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
Graphics
| Graphics Chipset | Radeon RX 9060 XT |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-GA5JZZ-00UANF |
| EAN | 4711581490857 |
