ASrock Radeon RX 7900 XTX Phantom Gaming 24GB OC Graphics Card

  • Part Number: RX7900XTX PG 24GO
  • Manufacturer: Asrock
  • Quickfind Code: 125512
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • GPU RX 7900 XTX
  • Capacity 24GB
  • Connection PCI-E
  • Memory Type GDDR6
  • Series RX XTX
  • GPU Manufacturer AMD
+ Read More Information

Share:

Product Description

ASrock Radeon RX 7900 XTX Phantom Gaming 24GB OC Graphics Card



Key Features

  • Polychrome SYNC
  • Phantom Gaming 3X Cooling System
  • Striped Ring Fan
  • Reinforced Metal Frame
  • Stylish Metal Backplate
  • 0dB Silent Cooling
  • Super Alloy Graphics Card


Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Striped Ring Fan
Designed For Enhanced Airflow
ASRock's all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base

Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

Technical Specification

ASrock Radeon RX 7900 XTX Phantom Gaming 24GB OC Graphics Card

  • Graphics Engine
    - AMD Radeon™ RX 7900 XTX
  • Bus Standard
    - PCI® Express4.0 x16
  • DirectX
    - 12 Ultimate
  • OpenGL
    - 4.6
  • Memory
    - GDDR6 24GB
  • Engine Clock
    - Boost Clock*: Up to 2615 MHz
    - Game Clock**: 2455 MHz

    *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

    **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
  • Stream Processors
    - 6144
  • Memory Clock
    - 20 Gbps
  • Memory Interface
    - 384-bit
  • Resolution
    - Digital Max Resolution: 7680 x 4320

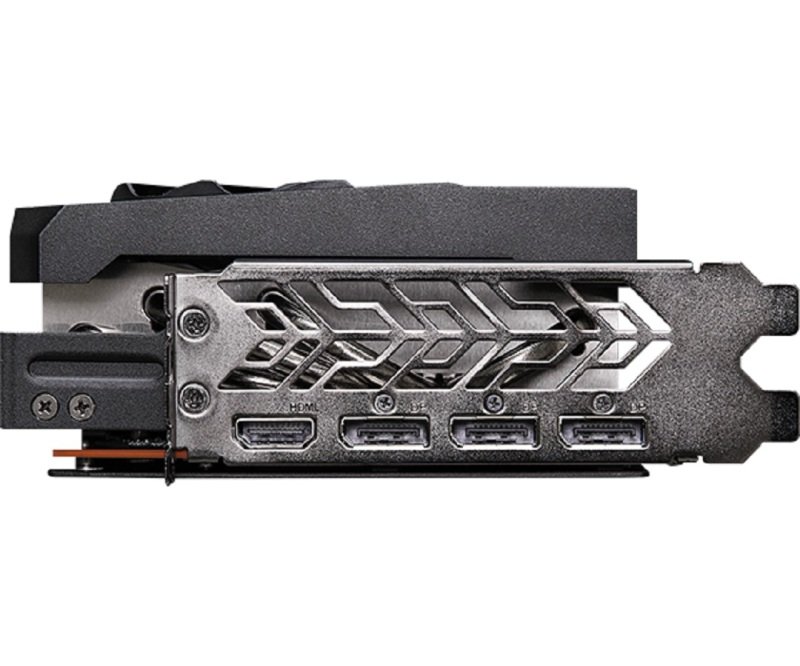

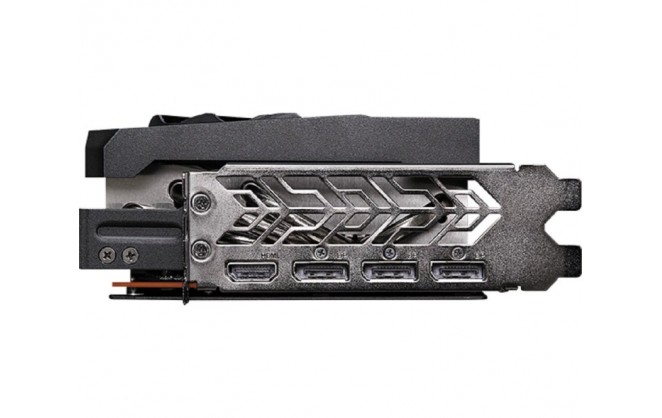

  • Interface
    - 3 x DisplayPort™ 2.1*
    - 1 x HDMI™ 2.1

    *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously.
  • HDCP
    - Yes
  • Multi-view
    - 4
  • Recommended PSU
    - 1000W
  • Power Connector
    - 3 x 8-pin
  • Accessories
    - 1 x Quick Installation Guide
  • Dimensions
    - 330 x 140 x 57.6 mm, 2.8-slot
  • Net Weight
    - 1550 g
