Clock: GPU / Memory
Key Specifications
Key Features
OC Edition
Great Performance.
Delivers great performance which is more higher than reference cards based on the solid hardware design.
Phantom Gaming 3X Cooling System
For Cool and Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Polychrome SYNC
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the build-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
ASRock Tweak 2.0
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

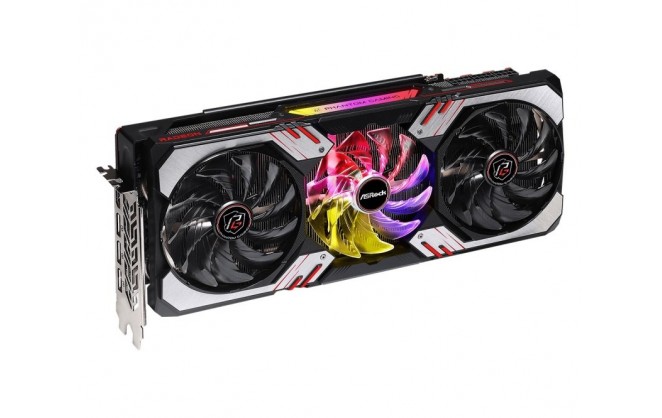

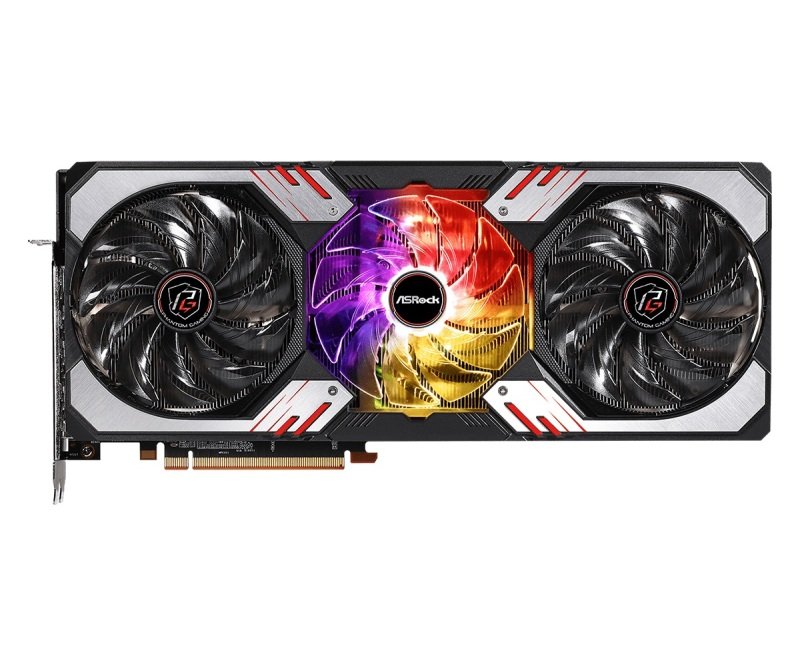

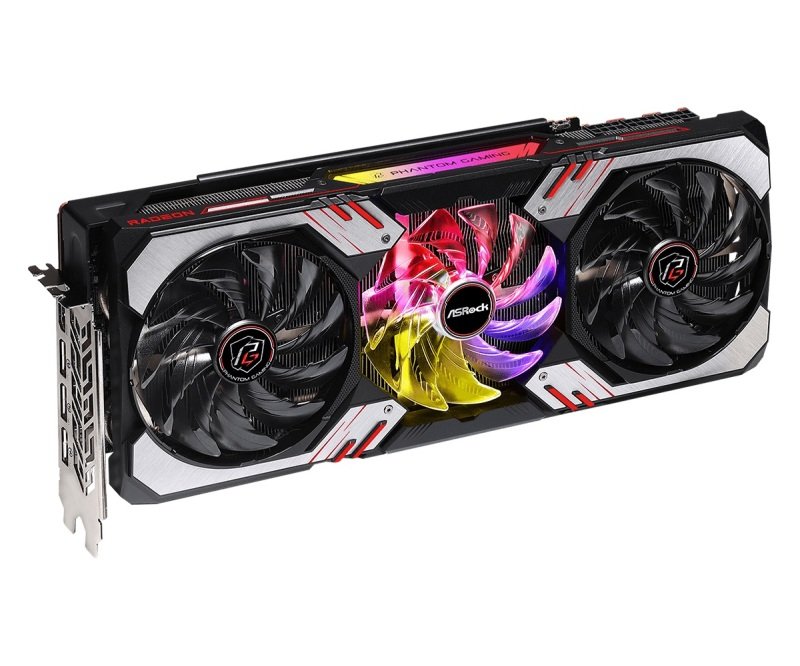

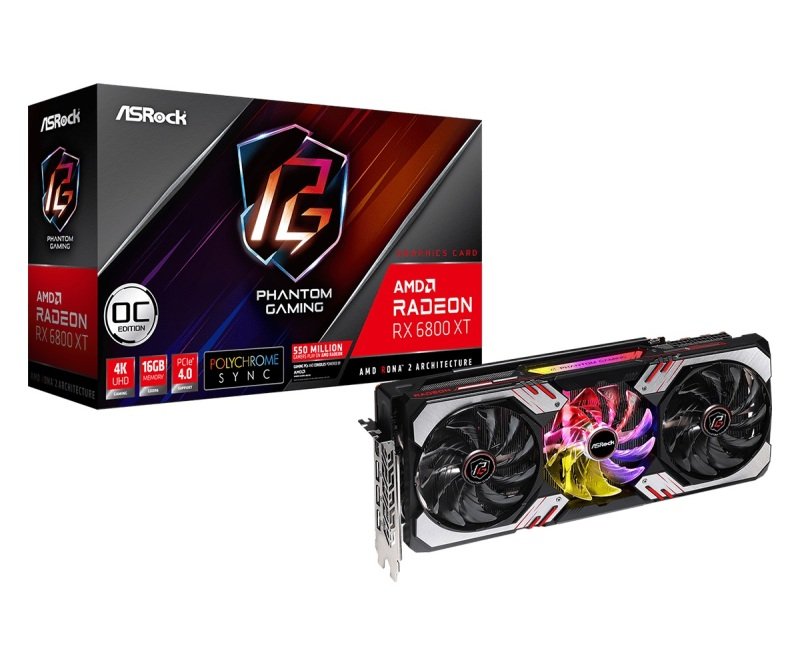

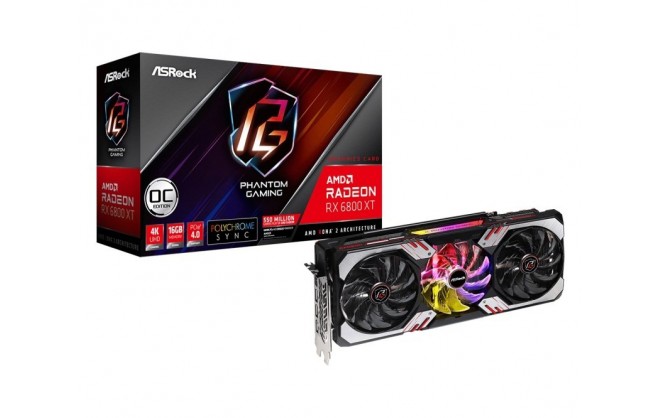

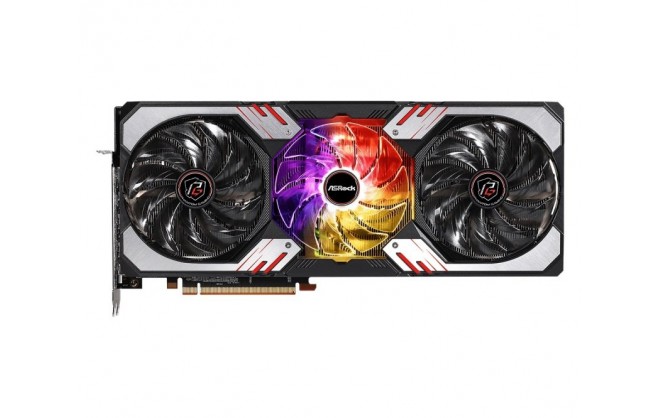

Asrock Radeon RX 6800 XT Phantom Gaming 16GB OC Graphics Card
General | |
|---|---|
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | AMD Radeon RX 6800 XT |
| Core Clock | 1875 MHz |
| Boost Clock | 2310 MHz |
| Stream Processors | 4608 |
| Process Technology | 7 nm |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

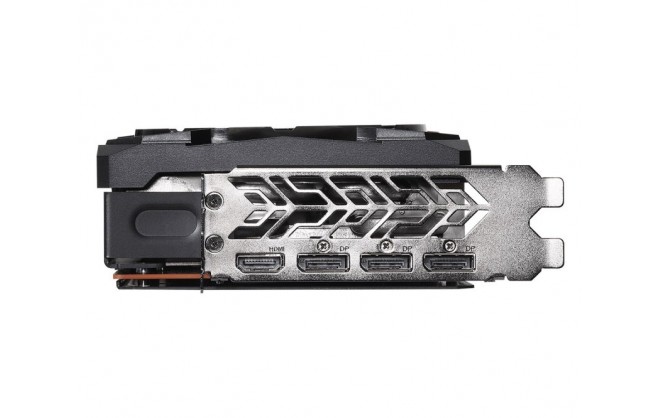

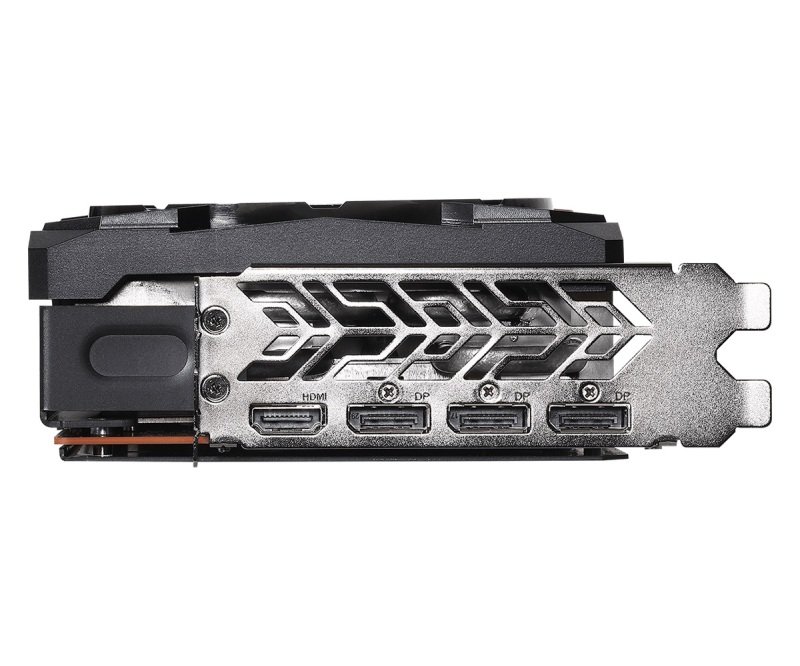

| Interfaces | HDMI ¦ 3 x DisplayPort |
| API Supported | DirectX 12, OpenGL 4.6 |
| Features | AMD Eyefinity Technology, Super Alloy Power technology, FreeSync Technology, metal wraparound backplate, variable rate shading (VRS), Axial-tech Fan Design, 0dB Technology, Radeon Boost, Radeon Image Sharpening, Radeon Anti-Lag, Radeon FidelityFX, Polychrome SYNC, ARGB Lighting, RDNA 2 Architecture, HDCP |
Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 16 Gbps |
| Bus Width | 256-bit |
System Requirements | |
| Required Power Supply | 800 W |
| Additional Requirements | 3 x 8 pin PCI Express power connector |
Miscellaneous | |
| Software Included | AMD Radeon Software Adrenalin 2020 Edition |
| Compliant Standards | DisplayPort 1.4 |
| Width | 5.6 cm |
| Depth | 33 cm |
| Height | 14 cm |
| Weight | 1.784 kg |
