Delivers great performance which is more higher than reference cards based on the solid hardware design.
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

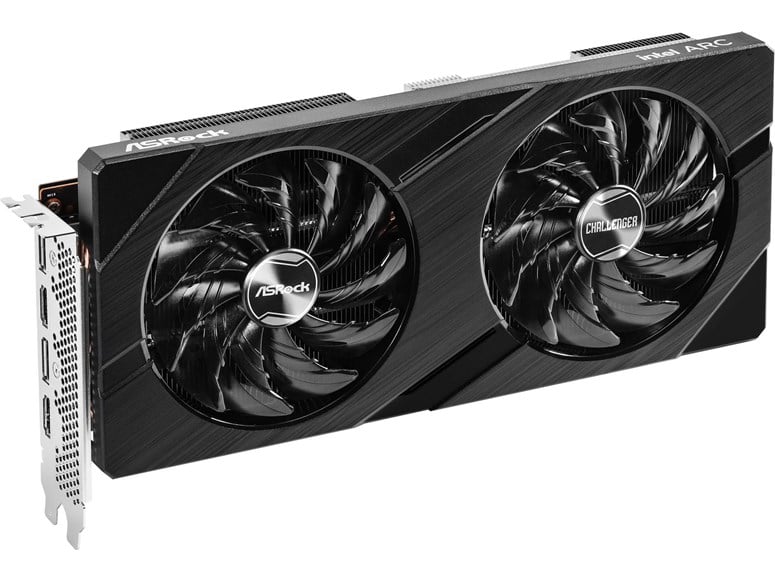

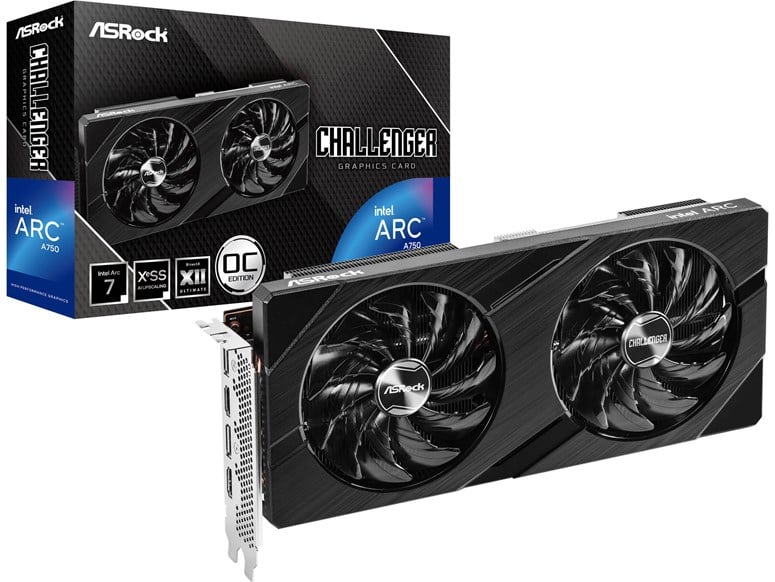

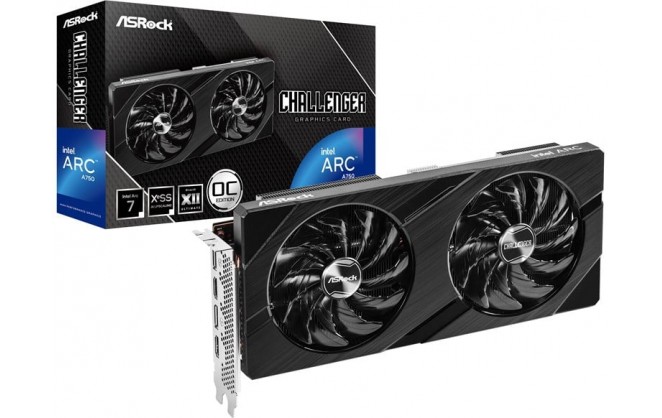

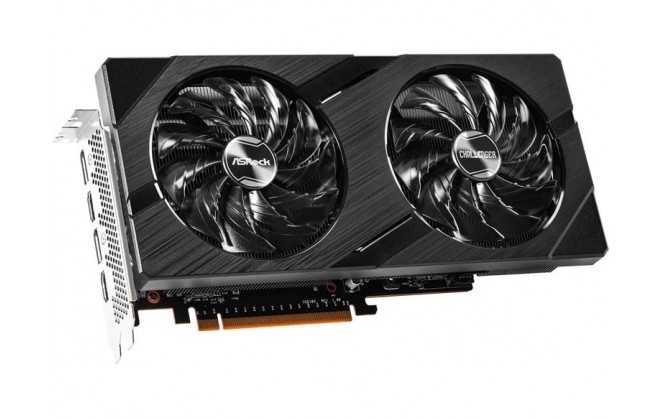

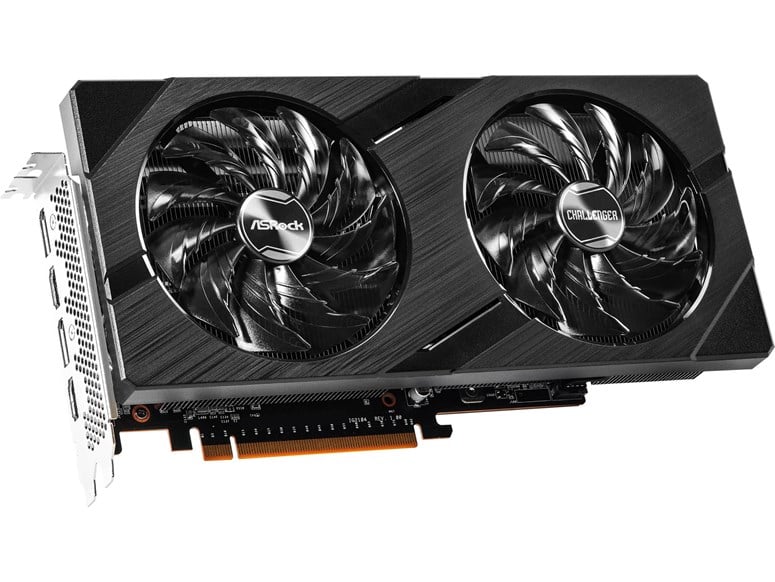

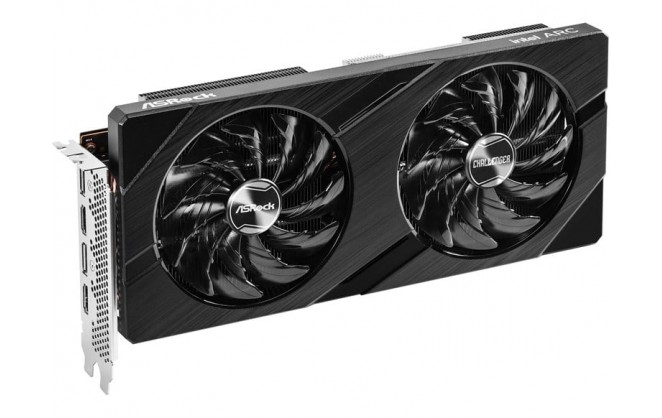

ASRock Arc A750 Challenger D OC 8GB Graphics Card
GPU
| Chipset Manufacturer | Intel |
| Chipset Model Name | Arc |
| Chipset Model Number | A750 |
| Chipset Additional Information | Challenger D OC |
| Chip Clock | 2200 MHz |
| Graphics Core | Intel XMX |
| Number of Cores | 448 |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 16 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 256 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |

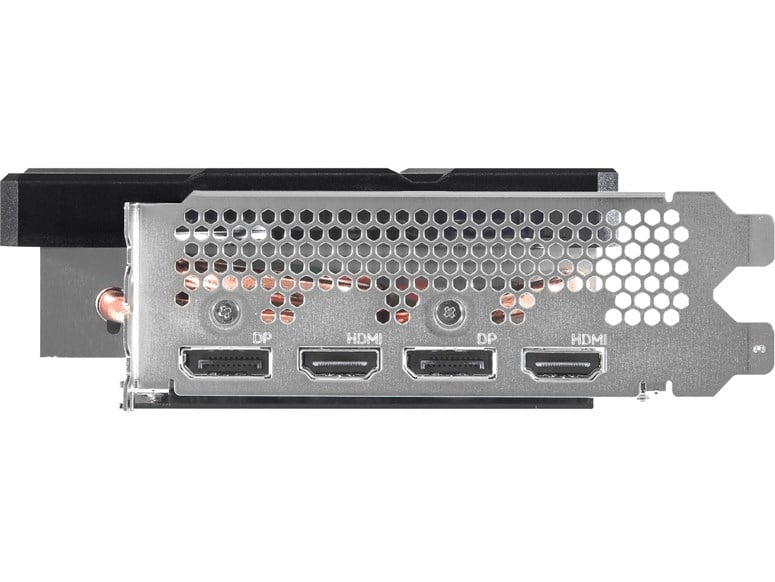

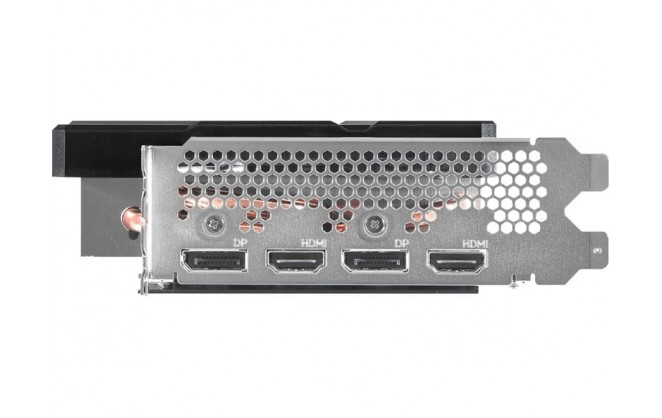

| HDMI Port | 1 x HDMI 2.1 1 x HDMI 2.0b |
| DisplayPort | 2 x DisplayPort 2.0 |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Resizeable BAR enabled Recommended 700W PSU with 2 x 8-pin PCIe connectors |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Recomended Power Supply | 700 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Installation Guide |
| Width | 48 mm (2.5 slot) |
| Depth | 271 mm |
| Height | 132 mm |
| Weight | 785 g |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| Interface Type | |
| NVIDIA GeForce | |
| AMD Radeon | |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| Screen Type | |
| FreeSync | |
| Cooling Technology | Dynamic Fan |
| VR Ready | |
| VR Ready PC | |
| GPU Length | 271 mm |
| Card Width | 3 |
| GPU Power (TDP) | W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
Graphics
| Graphics Chipset | Arc A750 |
Graphics Device
| G-Sync |
Compatibility
| Lite Hash Rate |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-GA3HZZ-00UANF |
| Alternative Part Number | A750 CLD 8GO |
| EAN | 4710483940316 |
| Condition | New |
