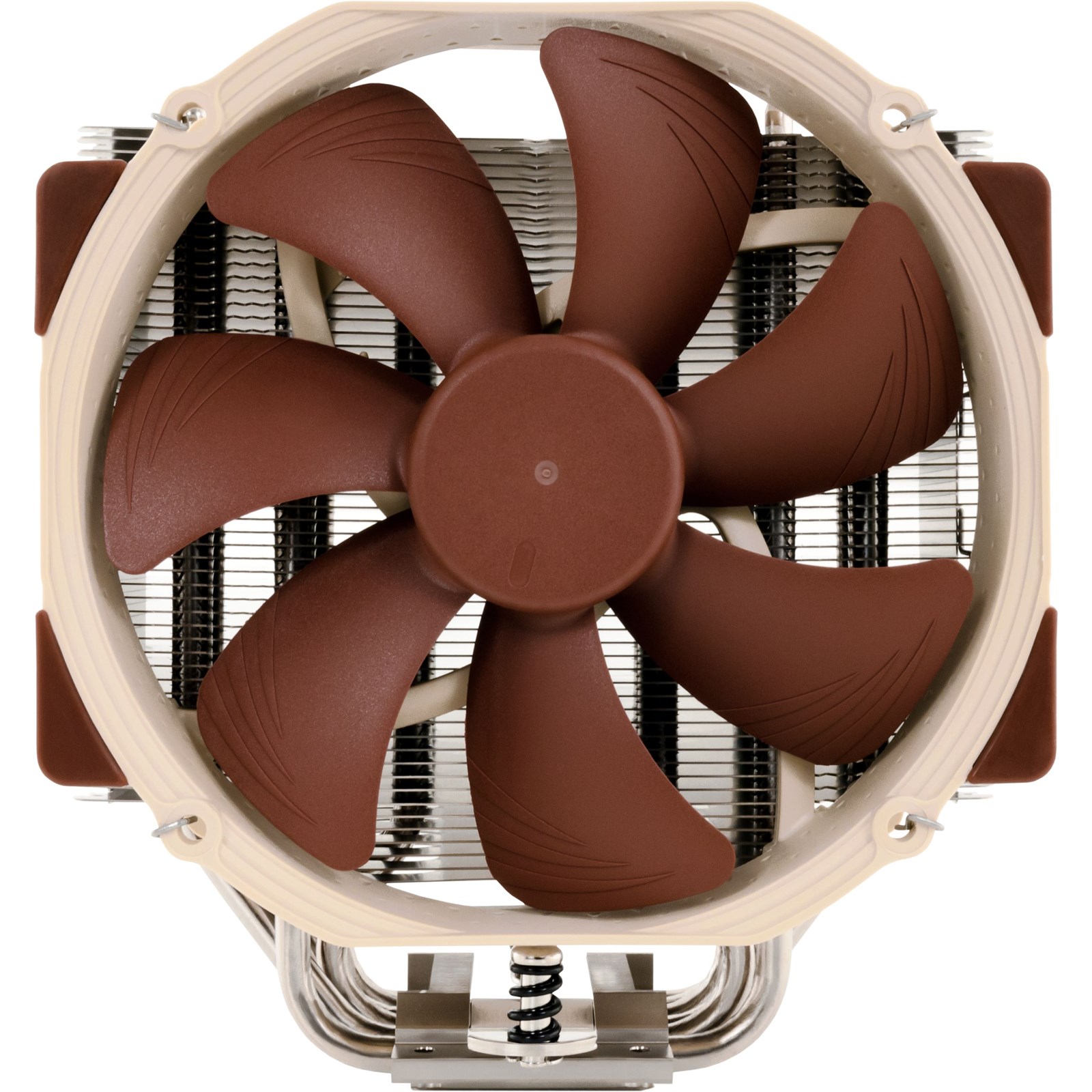

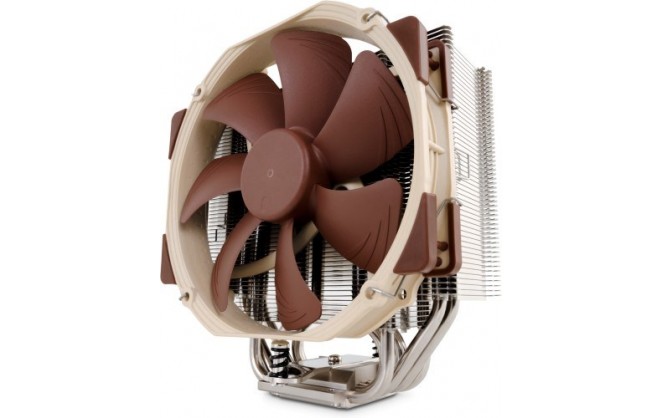

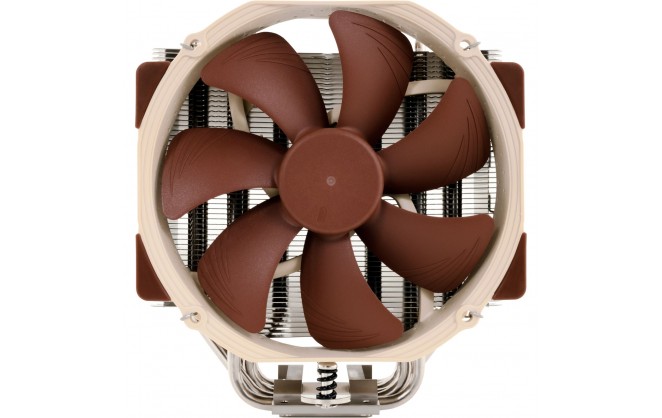

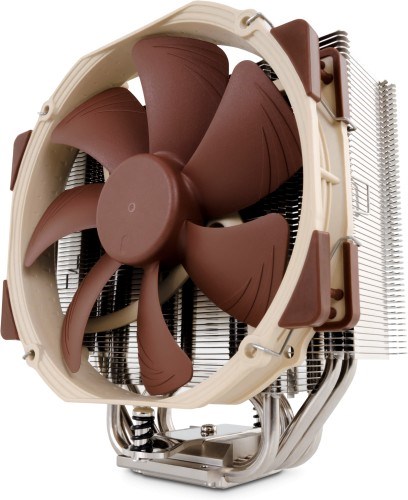

Noctua NH-U14S Ultra-Quiet Slim CPU Cooler with NF-A15 fan

  • Part Number: NH-U14S
  • Manufacturer: Noctua
  • Quickfind Code: 120028

  • Stock: In Stock

£72.15 ex. vat
£86.58 inc. vat


Product Features:
  • Condition: New
  • Size 140mm
  • Socket Type Multi Socket
  • Type CPU Air Cooler
+ Read More Information

Share:

Product Description

Noctua's latest coolers feature their classic U-series single tower CPU coolers which have received more than 400 awards and recommendations from the international press. The S-version's 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading fans with PWM support provide fully automatic speed control allowing it to further improve its predecessor's renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua's proven NT-H1 thermal compound and a six years manufacturer's warranty, these slim tower coolers are a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.

Specifications

  • Socket compatibility Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required)
  • Height (without fan)
    165 mm
    165 mm
  • Width (without fan) 150 mm
  • Depth (without fan) 52 mm
  • Height (with fan) 165 mm
  • Width (with fan) 150 mm
  • Depth (with fan)  78 mm
  • Weight (without fan) 770 g
  • Weight (with fan) 935 g
  • Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
  • Scope of Delivery Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit, Anti-vibration pads and fan-clips for second fan (optional), Noctua Metal Case-Badge
  • Fan specifications -Noctua NF-A15 PWM
  • Bearing SSO2
  • Max. Rotational Speed (±10%) 1500 RPM
  • Max. Rotational Speed with L.N.A. (±10%) 1200 RPM
  • Min. Rotational Speed (PWM) 300 RPM
  • Max. Airflow 82.5 CFM
  • Max. Airflow with L.N.A. 67.9 CFM
  • Max. Acoustical Noise 24.6 dB(A)
  • Max. Acoustical Noise with L.N.A. 19.2 dB(A)
  • Input Power 1.56 W
  • Voltage Range 12 V
  • MTBF > 150,000 hours
  • Warranty 72 months

Main Features

  • Award-winning NH-U series
  • Full RAM compatibility on LGA2011
  • Compatibility with past and future sockets
  • Six year warranty
  • NT-H1 thermal compound
  • Compatible with Intel LGA1155/1156/2011 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2
  • NF-A15 140mm PWM Fan
Technical Specification

Noctua NH-U14S Ultra-Quiet Slim CPU Cooler with NF-A15 fan

Key Features

Compatible with Socket AM3Yes
Compatible with Socket AM2+Yes
Compatible with Socket AM2Yes
Compatible with Socket 939No
Compatible with Socket 940No
Compatible with Socket 754No
Compatible with Socket ANo
Compatible with Socket 1366No
Compatible with Socket 1156Yes
Compatible with Socket 775No
Compatible with Socket 771No
Compatible with Socket 478No
Compatible with Socket 423No
Compatible with Socket 370No
Heatpipe TechnologyYes
Includes FanYes
Compatible with Socket 2011Yes
Compatible with Socket 1155Yes
Compatible with Socket AM3+Yes
Compatible with Socket FM1Yes
Display Model in ShowroomNo
Compatible with Socket FM2Yes
Liquid CoolerNo
Compatible with Socket 1150Yes
Compatible with Socket AM1No
WatercoolerNo
Compatible with Socket 1151Yes
Compatible with Socket AM4No
Cooler Height165 mm
Compatible with Socket TR4No
Compatible with Socket 2066Yes
Radiator SizeN/A mm
Compatible with Socket 1200Yes
Compatible with Socket 1200Yes

Warranty

Warranty1 Year

Item Details

ManufacturerNoctua
Manufacturer CodeNH-U14S
UPC842431014313
ConditionNew
