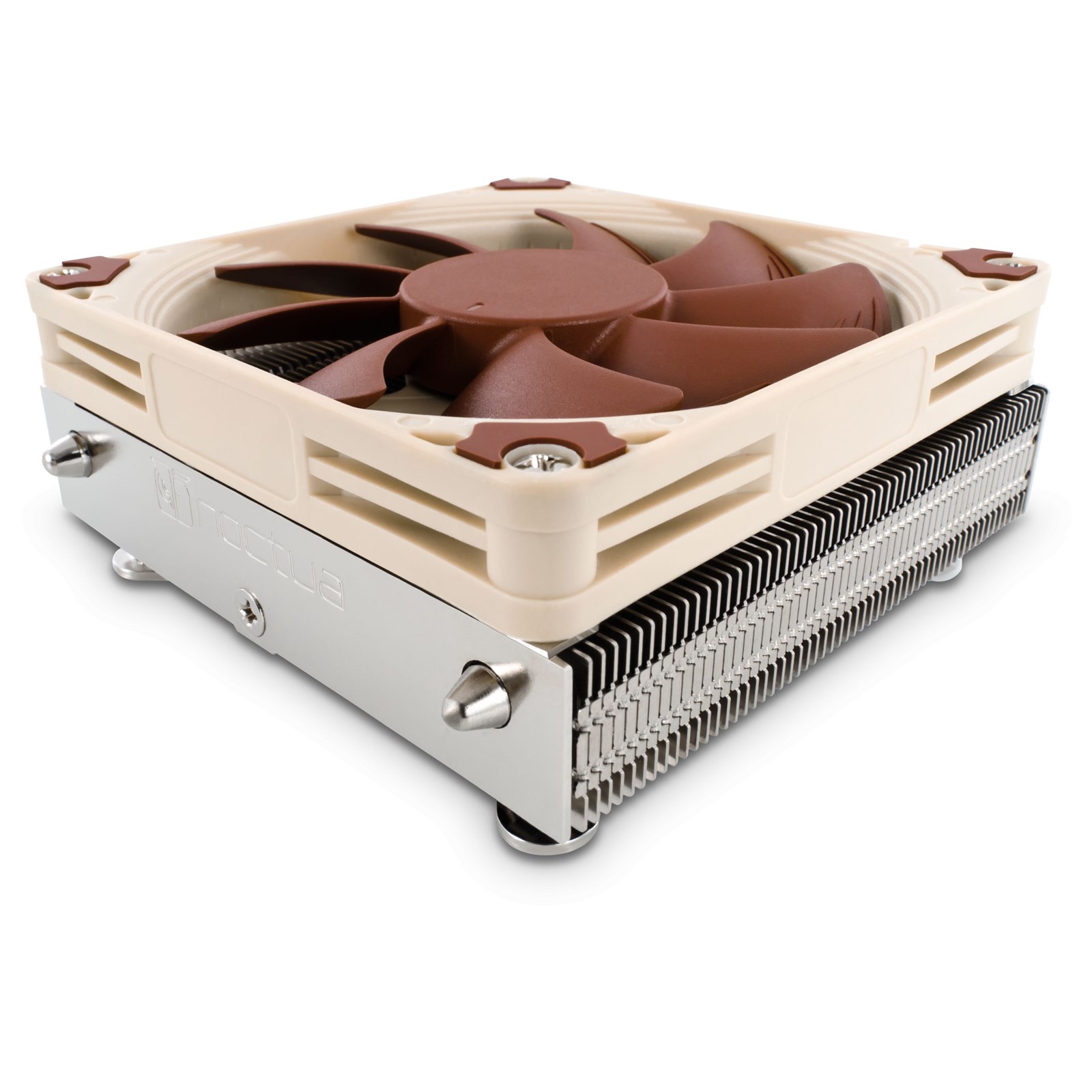

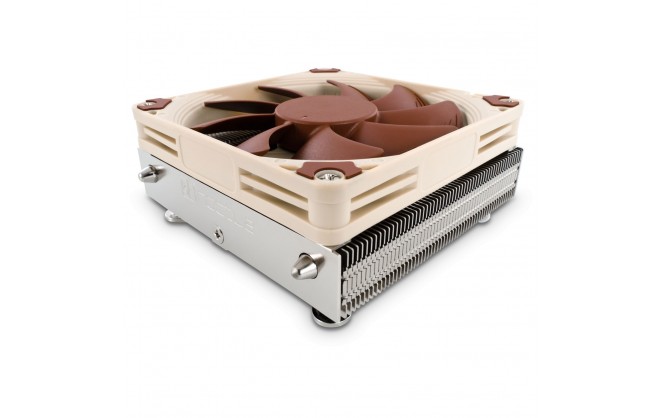

Noctua NH-L9i Intel-only Low Profile Quiet CPU Cooler

Part Number: NH-L9I
Manufacturer: Noctua
Quickfind Code: 120151

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Size 92mm
Socket Type Multi Socket
Type CPU Air Cooler

+ Read More Information

Product Description

The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2 mounting system for LGA115x makes installation child's play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua's renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua's larger coolers into a super-compact package for slim HTPC systems.

Specifications

Socket compatibility LGA1150, LGA1155, LGA1156
Height (without fan) 23 mm
Width (without fan) 95 mm
Depth (without fan) 95 mm
Height (with fan) 37 mm
Width (with fan) 95 mm
Depth (with fan) 95 mm
Weight (without fan) 345 g
Weight (with fan) 420 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility 92x92x14mm, 92x92x25mm
Contents NF-A9x14 PWM premium fan, Low-Noise Adaptor (L.N.A.),
NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit,
Screws for 92x92x25mm fans, Noctua Metal Case-Badge
Fan specifications -
Model Noctua NF-A9x14 PWM
Bearing SSO2
Max. Rotational Speed (± 10%) 2500 RPM
Max. Rotational Speed with L.N.A. (± 10%) 1800 RPM
Min. Rotational Speed (PWM) 300 RPM
Max. Airflow 33.8 CFM
Max. Airflow with L.N.A. 24.0 CFM
Max. Acoustical Noise 23.6 dB(A)
Max. Acoustical Noise with L.N.A. 14.8 dB(A)
Input Power 2.52 W
Voltage Range 12 V
MTBF > 150.000 h
Warranty 24 months

Main Features

37mm low profile
100% RAM compatibility
100% compatibility with PCIe cards on mini-ITX
NF-A9x14 PWM premium fan
Compatible with Intel LGA1150/1155/1156
Six years manufacturer's warranty

Technical Specification

Noctua NH-L9i Intel-only Low Profile Quiet CPU Cooler

Key Features

Compatible with Socket AM3	No
Compatible with Socket AM2+	No
Compatible with Socket AM2	No
Compatible with Socket 939	No
Compatible with Socket 940	No
Compatible with Socket 754	No
Compatible with Socket A	No
Compatible with Socket 1366	No
Compatible with Socket 1156	Yes
Compatible with Socket 775	No
Compatible with Socket 771	No
Compatible with Socket 478	No
Compatible with Socket 423	No
Compatible with Socket 370	No
Heatpipe Technology	No
Includes Fan	Yes
Compatible with Socket 2011	No
Compatible with Socket 1155	Yes
Compatible with Socket AM3+	No
Compatible with Socket FM1	No
Display Model in Showroom	No
Compatible with Socket FM2	No
Liquid Cooler	No
Compatible with Socket 1150	Yes
Compatible with Socket AM1	No
Watercooler	No
Compatible with Socket 1151	Yes
Compatible with Socket AM4	No
Cooler Height	37 mm
Compatible with Socket TR4	No
Compatible with Socket 2066	No
Radiator Size	N/A mm
Compatible with Socket 1200	Yes
Compatible with Socket 1200	Yes
