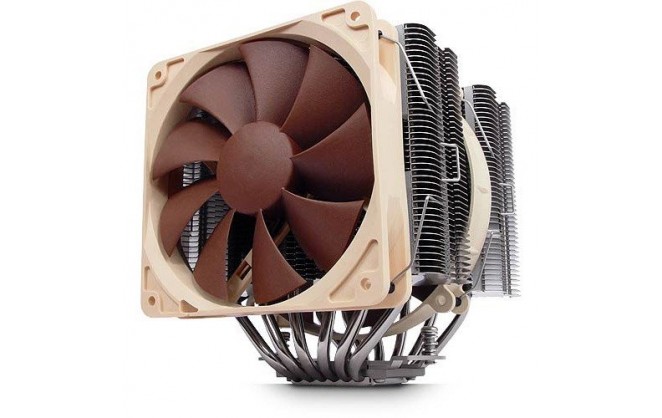

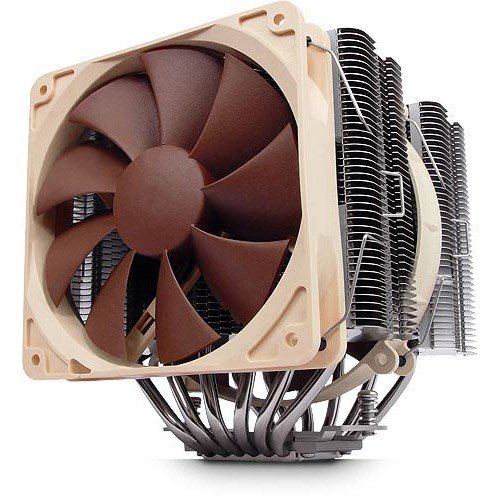

Noctua NH-D14 Dual Radiator and Fan Quiet CPU Cooler

  • Part Number: NH-D14
  • Manufacturer: Noctua
  • Quickfind Code: 120031

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • Size 140mm
  • Socket Type Multi Socket
  • Type CPU Air Cooler
+ Read More Information

Share:

Product Description

Overview

Combining a massive six heatpipe dual radiator design with an exquisite NF-P14/NF-P12 dual fan configuration, the NH-D14 is built for ultimate quiet cooling performance. Topped off with a tube of Noctua's award-winning NT-H1 thermal compound as well as the new SecuFirm2 multi-socket mounting system, the NH-D14 is an elite choice for the highest demands in premium quality quiet cooling.

Six heatpipe dual radiator design
Providing more surface area, better heat-distribution and superior airflow efficiency than conventional tower style heatsinks, the NH-D14s six heatpipe dual radiator design was developed to provide ultimate quiet cooling performance in dual fan mode.

Dual NF-P14/NF-P12 fan setup
The NH-D14 sports a premium quality dual fan setup consisting of Noctua's award-winning NF-P12 (120mm) and NF-P14 (140mm) fans, both of which feature Vortex-Control Notches, SCD technology and SSO-Bearings in order to achieve a perfect balance of performance and quietness.

Asymmetrical design for high compatibility
An asymmetrical design that gives more clearance towards the RAM slots ensures good compatibility despite of the coolers size. The NF-P12 fan can be moved upwards or left off in order to further improve compatibility.

Excellent component cooling
Hanging out at the bottom of the fin-stacks, the NF-P14 fan doesn't only contribute to the NH-D14s superb CPU cooling capabilities but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2 multi-socket mounting system
Noctua's enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, contact pressure and ease-of-use.

NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.

Features

  • Six heatpipe dual radiator design
  • Dual NF-P14/NF-P12 fan setup
  • Asymmetrical design for high compatibility
  • Excellent component cooling
  • SecuFirm2 multi-socket mounting system
  • NT-H1 thermal compound
  • Socket LGA1366, LGA1156, LGA775, AM3, AM2+, AM2 compatible

Specification

  • Socket compatibility Intel LGA1366, LGA1156, LGA775 and AMD AM2, AM2+, AM3 (backplate required)
  • Height (without fan) 160 mm
  • Width (without fan) 140 mm
  • Depth (without fan) 130 mm
  • Height (with fan) 160 mm
  • Width (with fan) 140 mm
  • Depth (with fan) 158 mm
  • Weight (without fan) 900 g
  • Weight (with fan) 1070g one fan or 1240g with both fans installed
  • Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
  • Fan compatibility 140x140x25 & 120x120x25mm
  • Fan Model Noctua NF-P14 / Noctua NF-P12
  • Fan Bearing SSO-Bearing
  • Fan Rotational Speed (+/- 10%) 1200 / 1300 RPM
  • Fan Rotational Speed with U.L.N.A. (+/- 10%) 900 / 900 RPM
  • Fan Airflow 64.9 / 54.3 CFM
  • Fan Airflow with U.L.N.A. 52.2 / 37.3 CFM
  • Fan Acoustical Noise 19.6 / 19.8 dB(A)
  • Fan Acoustical Noise with U.L.N.A. 13.2 / 12.6 dB(A)
  • Fan Input Power 1.2 / 1.08 W
  • Fan Voltage Range 12 V
  • Fan MTBF > 150.000 h
  • Warranty 72 months
Technical Specification

Noctua NH-D14 Dual Radiator and Fan Quiet CPU Cooler

Key Features

Compatible with Socket AM3Yes
Compatible with Socket AM2+Yes
Compatible with Socket AM2Yes
Compatible with Socket 939No
Compatible with Socket 940No
Compatible with Socket 754No
Compatible with Socket ANo
Compatible with Socket 1366Yes
Compatible with Socket 1156Yes
Compatible with Socket 775Yes
Compatible with Socket 771No
Compatible with Socket 478No
Compatible with Socket 423No
Compatible with Socket 370No
Heatpipe TechnologyYes
Includes FanYes
Compatible with Socket 2011No
Compatible with Socket 1155Yes
Compatible with Socket AM3+Yes
Compatible with Socket FM1Yes
Display Model in ShowroomNo
Compatible with Socket FM2Yes
Liquid CoolerNo
Compatible with Socket 1150Yes
Compatible with Socket AM1No
WatercoolerNo
Compatible with Socket 1151Yes
Compatible with Socket AM4No
Cooler Height160 mm
Compatible with Socket TR4No
Compatible with Socket 2066No
Radiator SizeN/A mm
Compatible with Socket 1200Yes
Compatible with Socket 1200Yes

Warranty

Warranty1 Year

Item Details

ManufacturerNoctua
Manufacturer CodeNH-D14
EAN4716123314530
ConditionNew
