Noctua NF-A12x25r PWM 120mm Chassis Fan

Part Number: NF-A12x25r PWM
Manufacturer: Noctua
Quickfind Code: 120409

Stock: In Stock

£21.65 ex. vat
£25.98 inc. vat

Product Features:

Condition: New
Size 120mm
Type Case Fans

+ Read More Information

Product Description

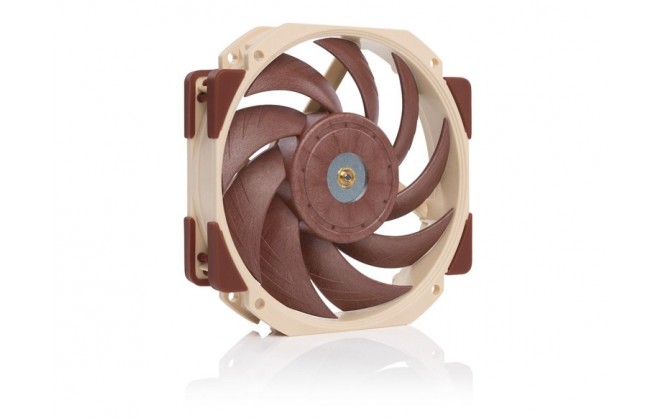

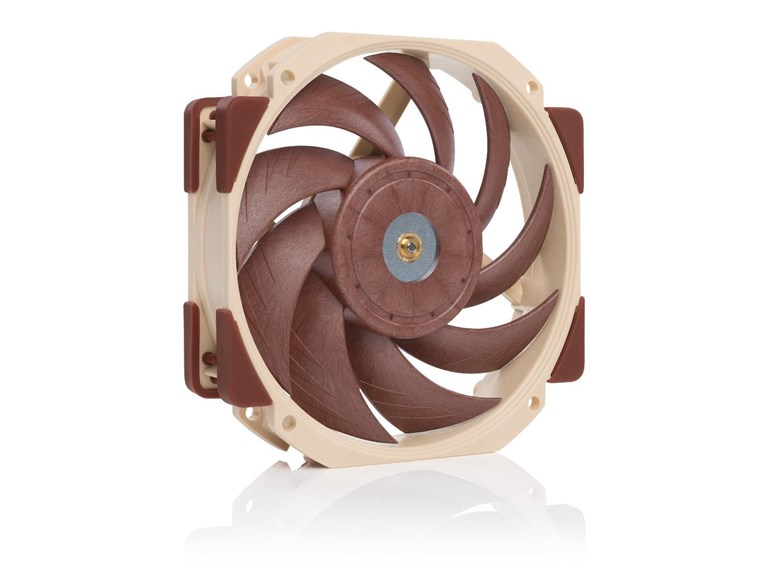

The NF-A12x25r is a round-frame version of Noctua’s award-winning flagship model 120mm NF-A12x25 fan. Its round shape makes it ideal for use on low-height dual-tower CPU coolers like the NH-D12L as well as other space-restricted applications that cannot accommodate square-frame 120mm fans. Just like the square NF-A12x25, the round NF-A12x25r uses a record-tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Sharing the same state-of-the-art impeller design with Flow Acceleration Channels, the NF-A12x25r achieves the same class-leading quiet cooling performance as its square-frame sibling. It also supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25r is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for all 120mm applications that require a round frame.

Technical Specification

Noctua NF-A12x25r PWM 120mm Chassis Fan

Attributes

Fan Speed	450 ~ 200 RPM
Air Flow	84.5 ~ 102.1 m3/h
Bearing Type	SSO2
Connector	4-pin PWM
Static Pressure	1.65 ~ 2.34 mmH2O
Lifetime	> 150,000 hours

Electrical

Voltage	12 V
Current	0.14 A

Environmental

Noise Level

18.8 ~ 22.6 dB(A)

Physical

Form Factor	Chassis Fan
Case Colour	Beige
In The Box	Fan NA-RC14 Low-Noise Adaptor (L.N.A) NA-YC1 4-pin PWM y-cable NA-EC1 30cm extension cable 4x NA-AV2 anti-vibration mounts Fan screws
Fan Width	cm
Fan Depth	120 mm
Fan Height	25 mm

Warranty

6 Years

Key Features

Main Colour	Beige
Internal/External Use
Number of Speeds
Fan Diameter
Fan Size	120 mm
Display Model in Showroom
L.E.D Fan	No LED
Number of Fans	1 fan(s)
LED Controller Included
LED Strip(s) Included
Fan Connector	4-pin PWM
Power Requirement (auto)	3 W
