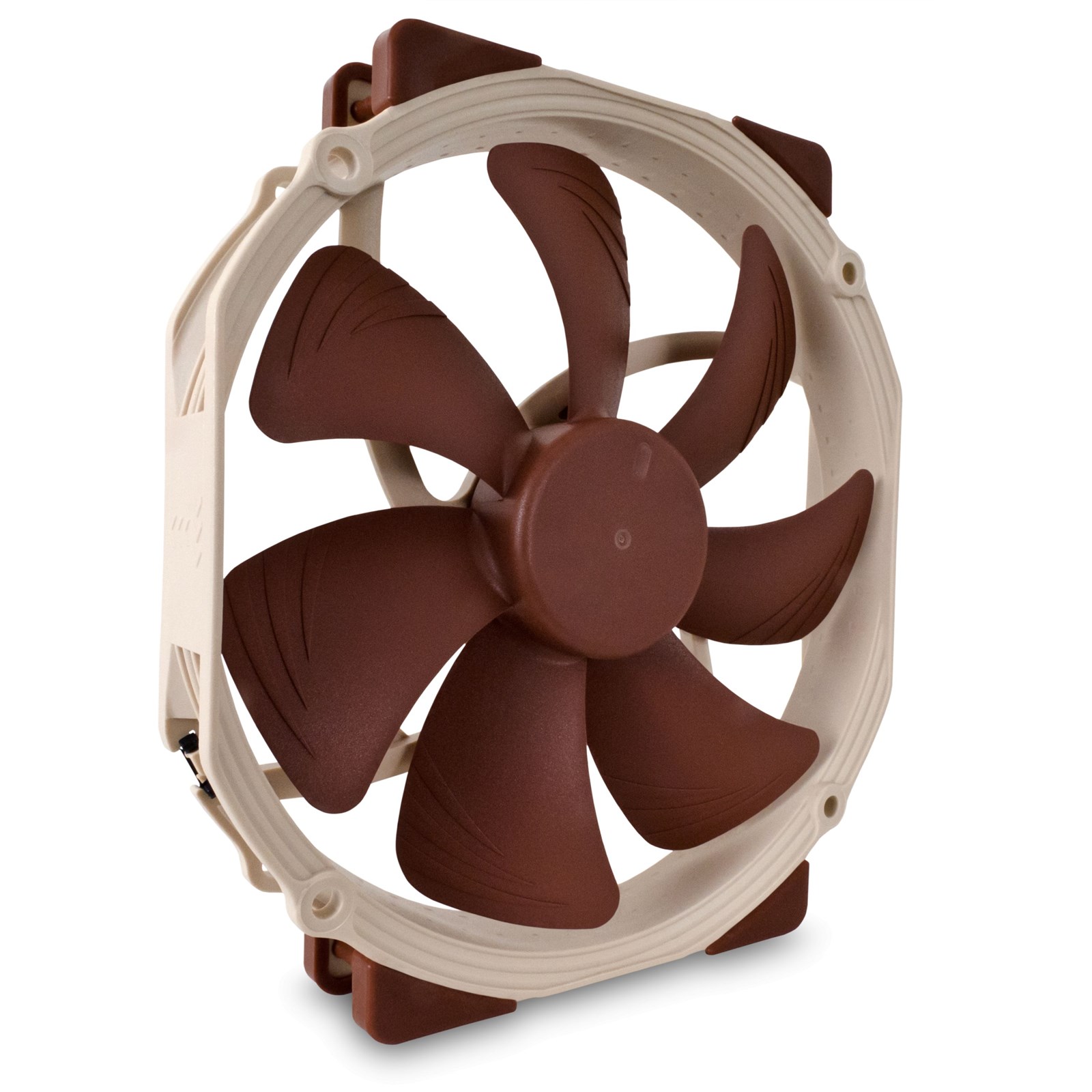

NF-A15 PWM Round Frame Premium PWM Fan

Part Number: NF-A15-PWM
Manufacturer: Noctua
Quickfind Code: 120258

Stock: In Stock

£18.78 ex. vat
£22.54 inc. vat

Product Features:

Condition: New
Size 120mm
Type Case Fans

+ Read More Information

Product Description

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua's AAO (Advanced Acoustic Optimisation) standard. The NF-A15s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today's high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua's custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturers warranty, the NF-A15 is a premium choice for the highest demands.

Specifications

Size 140x150x25 mm
Connector 4-pin PWM
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) 1200 RPM
Rotational Speed with L.N.A. (+/- 10%) 900 RPM
Min. Rotational Speed (PWM) 300 RPM
Airflow 67.9 CFM
Airflow with L.N.A. 52.2 CFM
Acoustical Noise 19.2 dB(A)
Acoustical Noise with L.N.A. 13.8 dB(A)
Static Pressure 1.51 mm H2O
Static Pressure with L.N.A. 0.89 mm H2O
Max. Input Power 0.96 W
Max. Input Current 0.08 A
Voltage 12 V
MTBF > 150.000 h
Contents Low-Noise Adaptor (L.N.A.), 4-Pin Y-Cable, 30cm Extension Cable, 4 Vibration-Compensators, 4 Fan
Screws
Warranty 72 months
