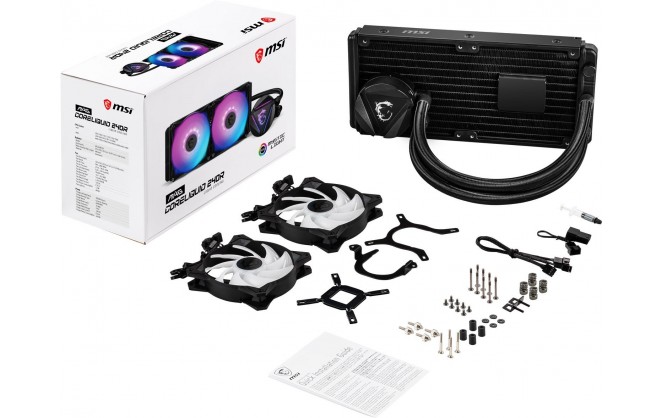

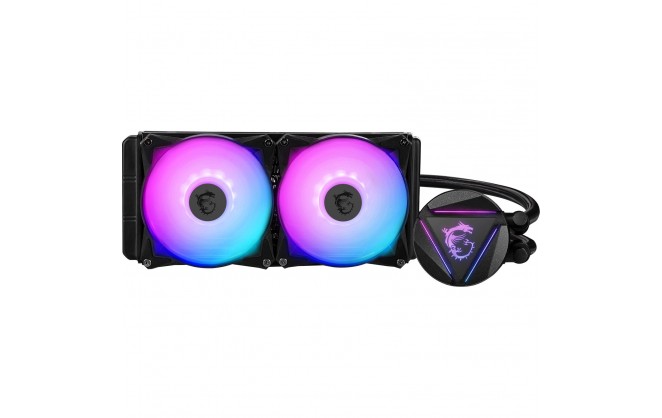

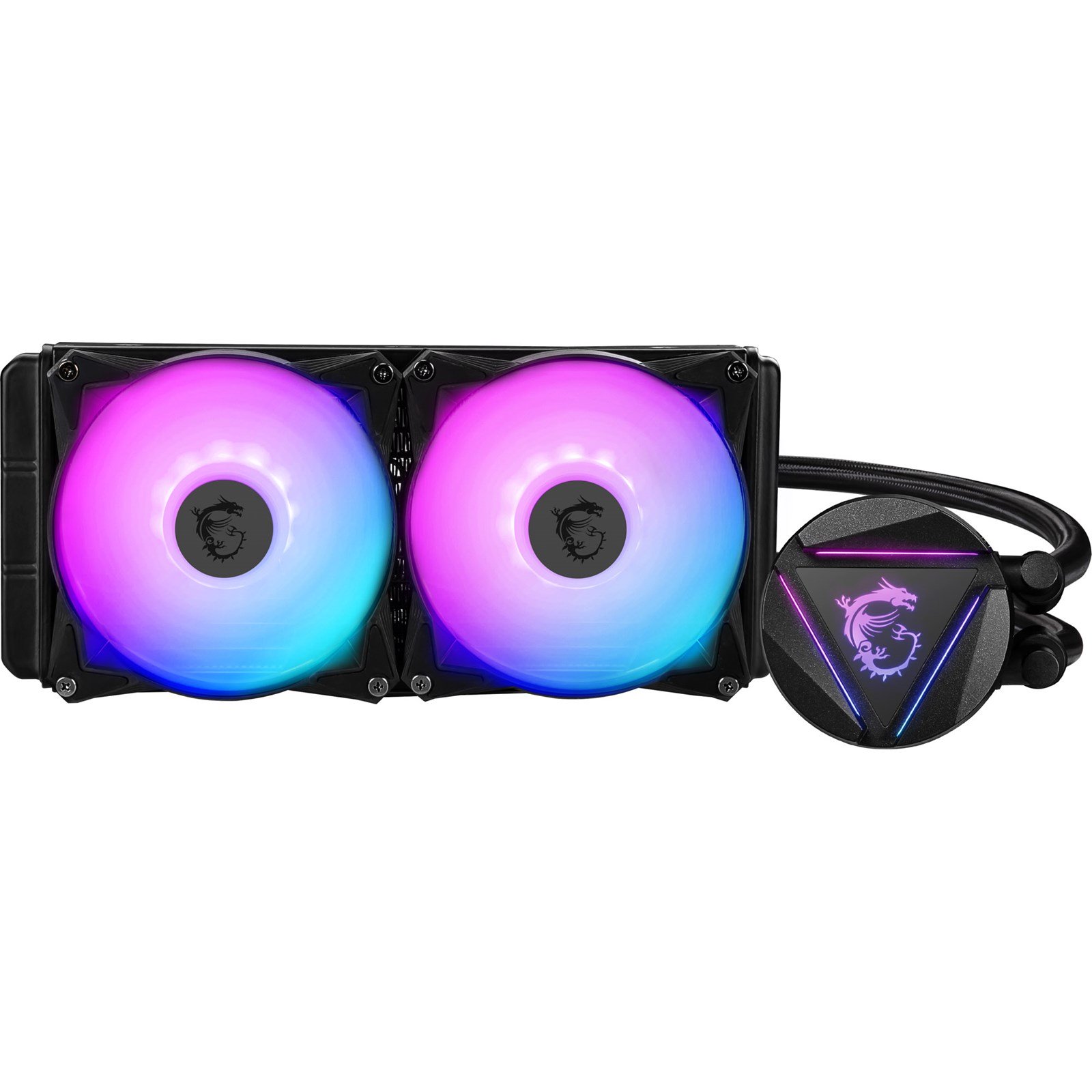

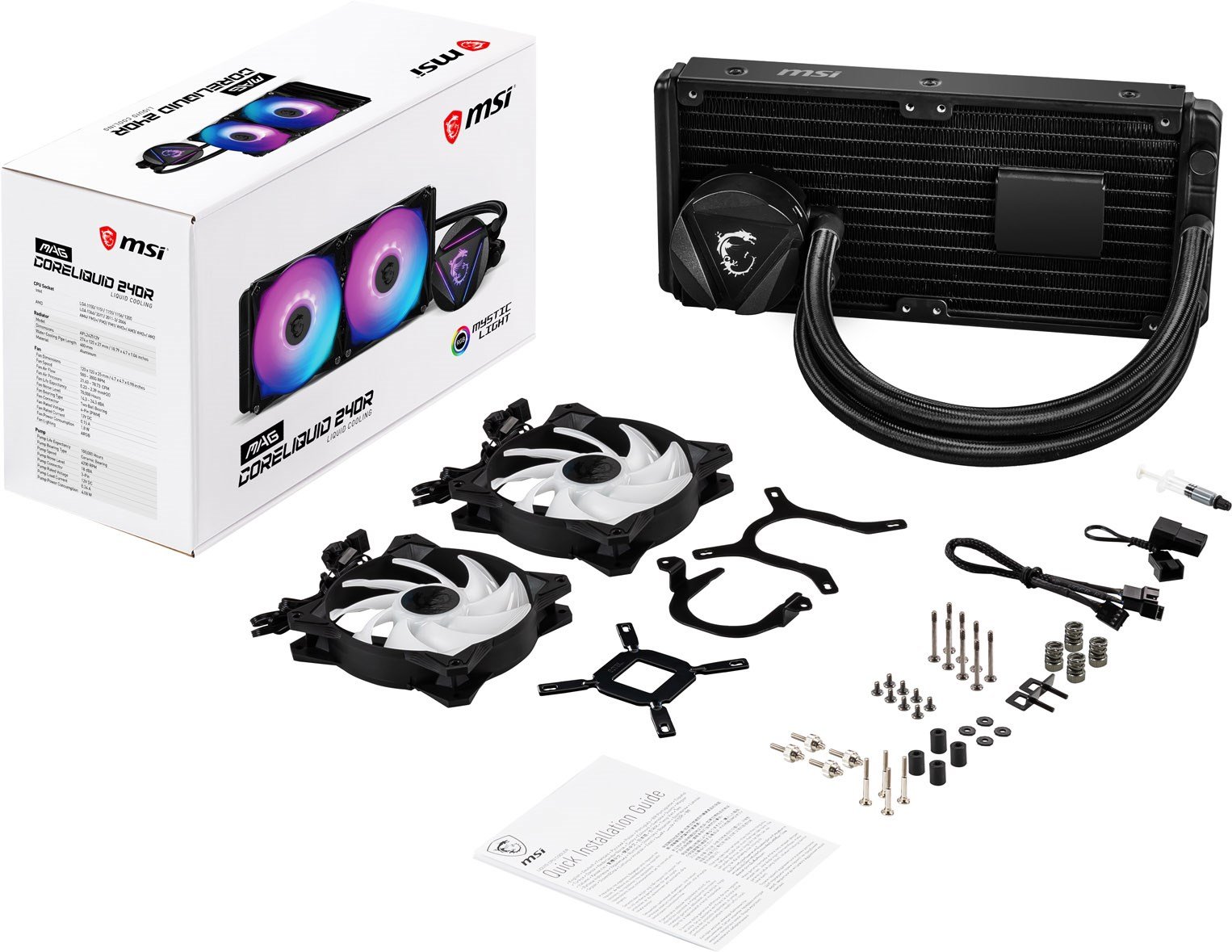

MSI MAG CORELIQUID 240R CPU All-in-One Cooler

  • Part Number: 306-7ZW1B31-813
  • Manufacturer: MSI
  • Quickfind Code: 120051

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • Size 240mm
  • Socket Type Multi Socket
  • Type CPU AIO Watercooler
  • RGB / LED Colour RGB
+ Read More Information

Share:

Product Description

Take cooling underwater with the MAG CORELIQUID Series from MSI. Stay cool under pressure with a liquid cooler design constructed from high quality materials that remain durable and deliver unstoppable cooling performance even under extreme operating conditions. Wreak havoc without sacrificing style with the intuitive 270-degree rotating blockhead inlaid with a deep aggressive aesthetic and ARGB lighting. The MAG CORELIQUID Series design has been engineered to painstaking depths to look cool and stay cool without compromise.



Main Features

  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
  • A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
  • Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
Technical Specification

MSI MAG CORELIQUID 240R CPU All-in-One Cooler

CPU Types

SocketIntel: LGA 1150/1151/1155/1156/1200 and 1366/2011/2011-3/2066
AMD: AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

Fan

Fan Bearing TypeTwo Ball
Fan Speed500 ~ 2000 RPM
Fan Noise Level14.3 ~ 34.3 dBA
Fan Air Pressure0.23 ~ 2.39 mmH2O
Airflow21.63 ~ 78.73 CFM

Fan Speed Controller

Connector4 pin PWM
Allowable Power1.8 W
Voltage12 VDC
Current0.15 A

Physical

Form FactorAIO Cooler
Case ColourBlack
Cable Length350 ~ 550 mm
Heatsink MaterialAluminium
Width274 mm
Depth120 mm
Height48.58 mm
Fan Width120 mm
Fan Depth120 mm
Fan Height25 mm
Heatsink Width80.57 mm
Heatsink Height48.58 mm
Heatsink Depth66.82 mm

Key Features

Compatible with Socket AM3Yes
Compatible with Socket AM2+Yes
Compatible with Socket AM2Yes
Compatible with Socket 1366Yes
Compatible with Socket 1156Yes
Heatpipe TechnologyNo
Includes FanYes
Compatible with Socket 2011Yes
Compatible with Socket 1155Yes
Compatible with Socket AM3+Yes
Compatible with Socket FM1Yes
Display Model in ShowroomNo
L.E.D FanRGB
Compatible with Socket FM2Yes
Liquid CoolerYes
Compatible with Socket 1150Yes
WatercoolerYes
Compatible with Socket 1151Yes
Compatible with Socket AM4Yes
Cooler Height49 mm
Compatible with Socket 2066Yes
Radiator Size240 mm
Compatible with Socket 1200Yes

Warranty

Warranty1 Year

Item Details

ManufacturerMSI
Manufacturer Code306-7ZW1B31-813
EAN4719072697556
UPC824142205662
ConditionNew
