Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced.

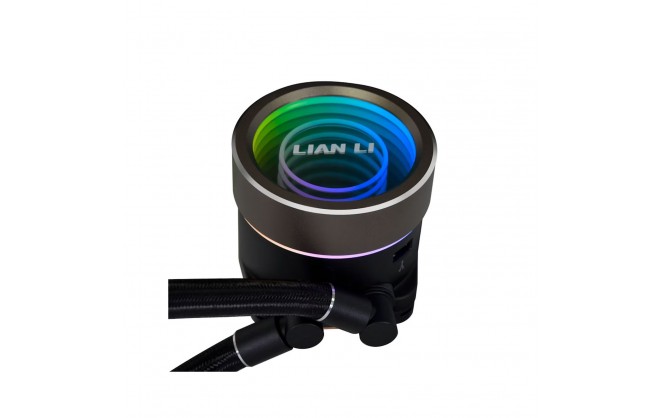

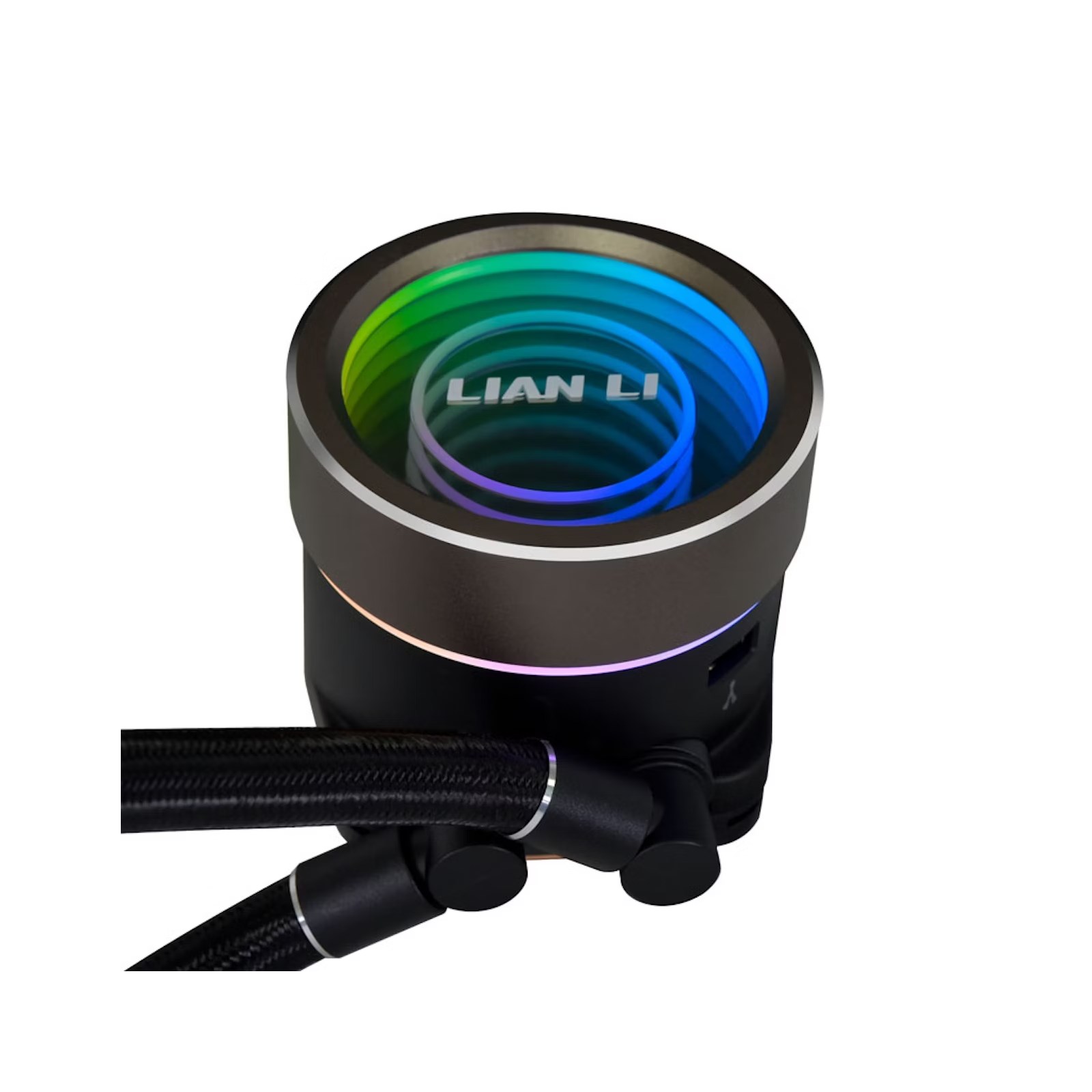

The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance.
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator.
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.

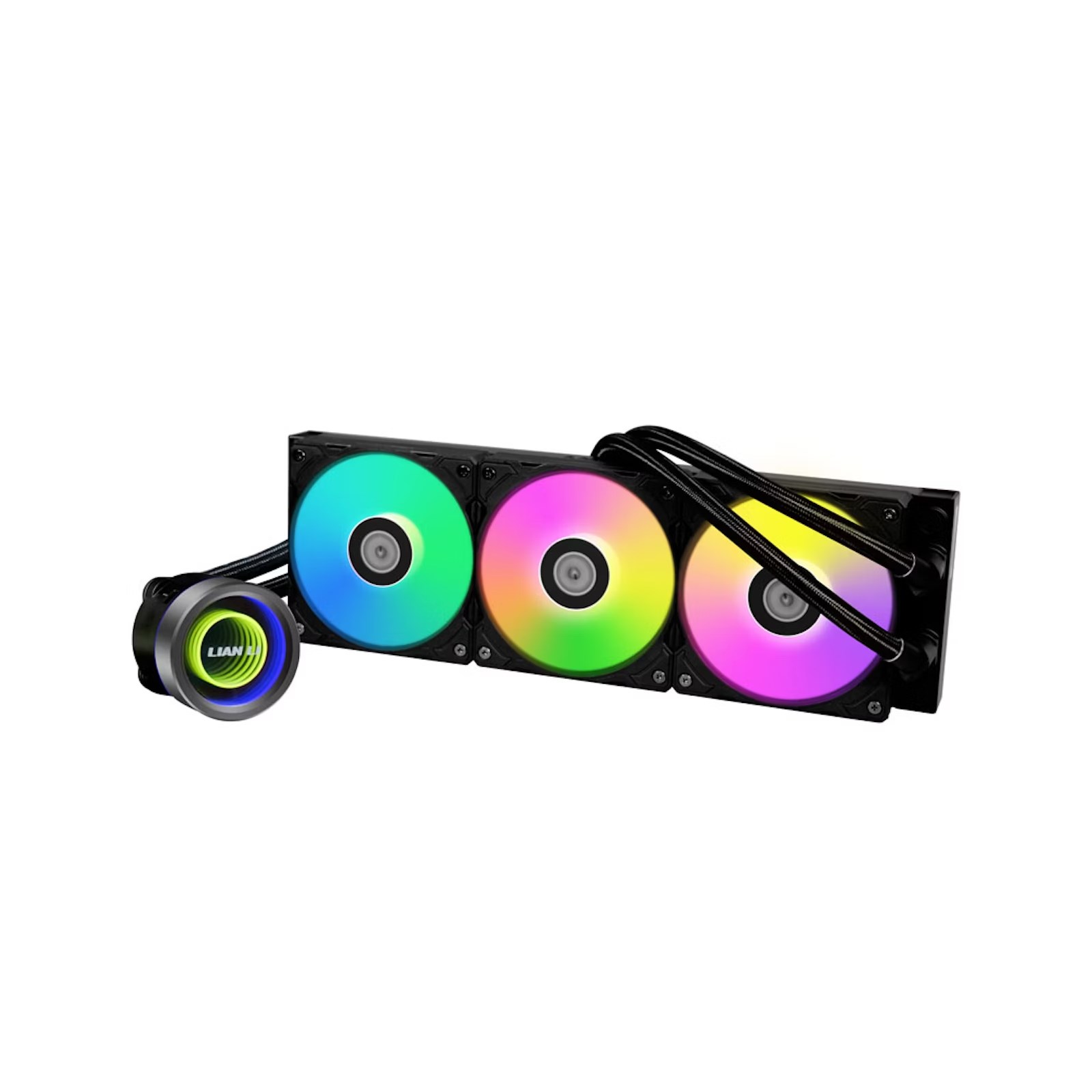

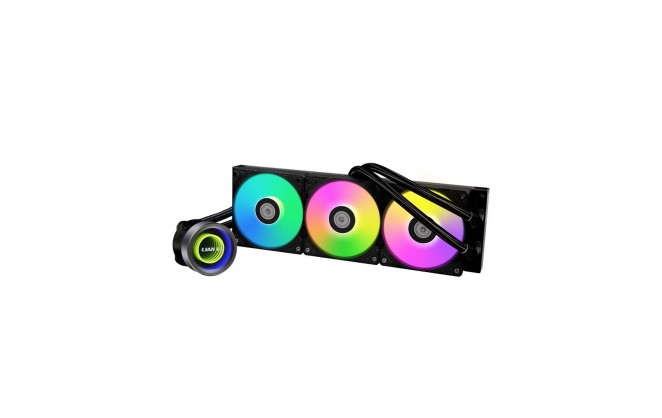

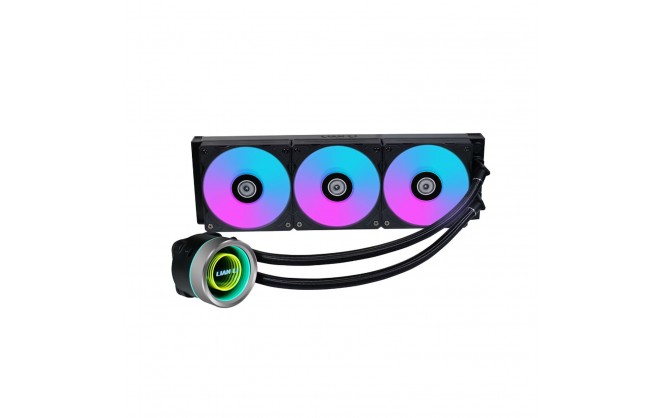

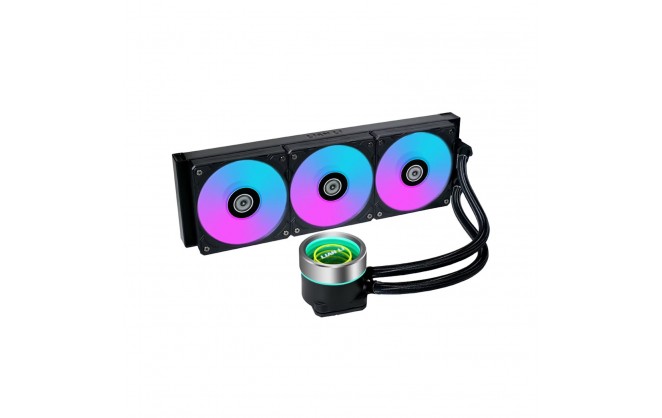

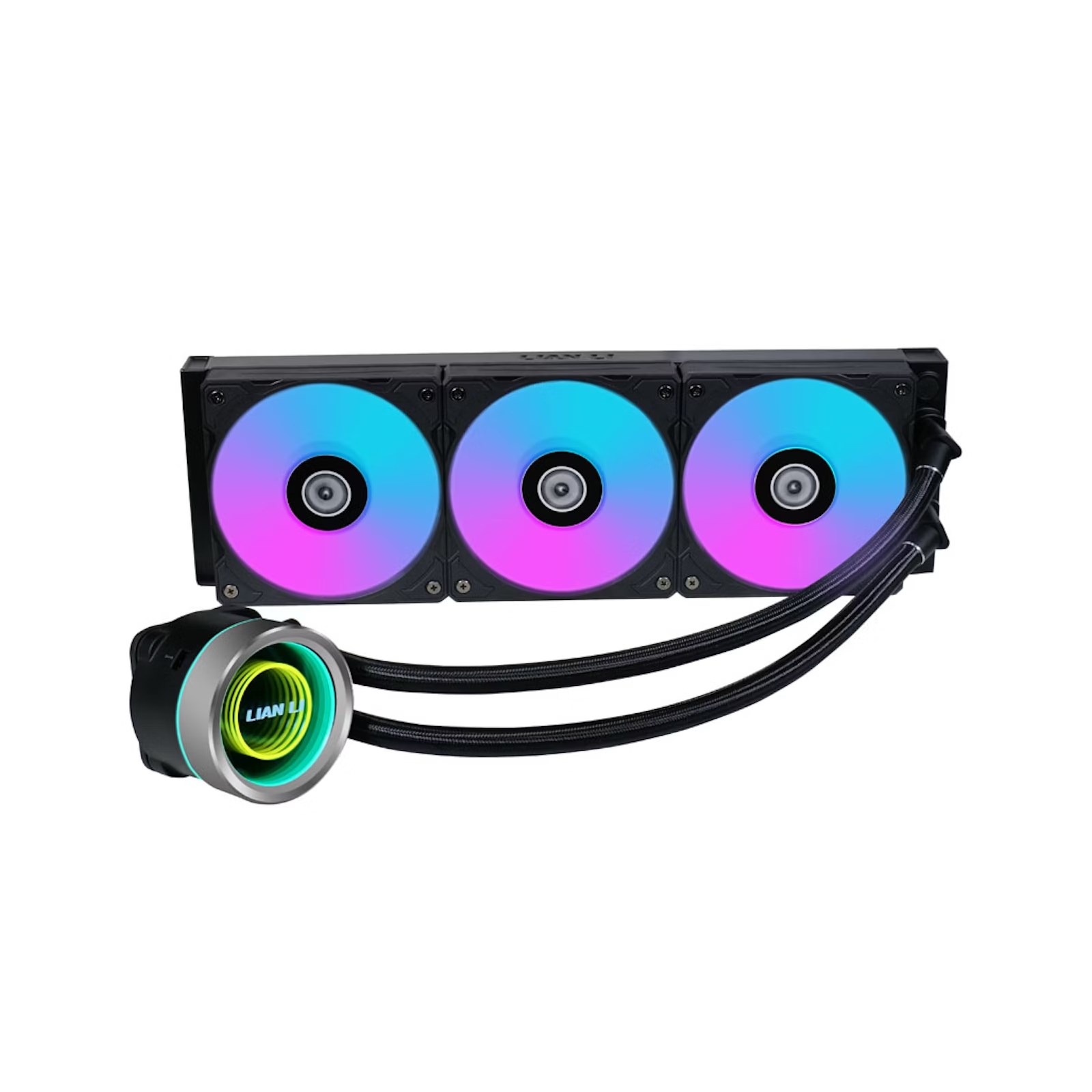

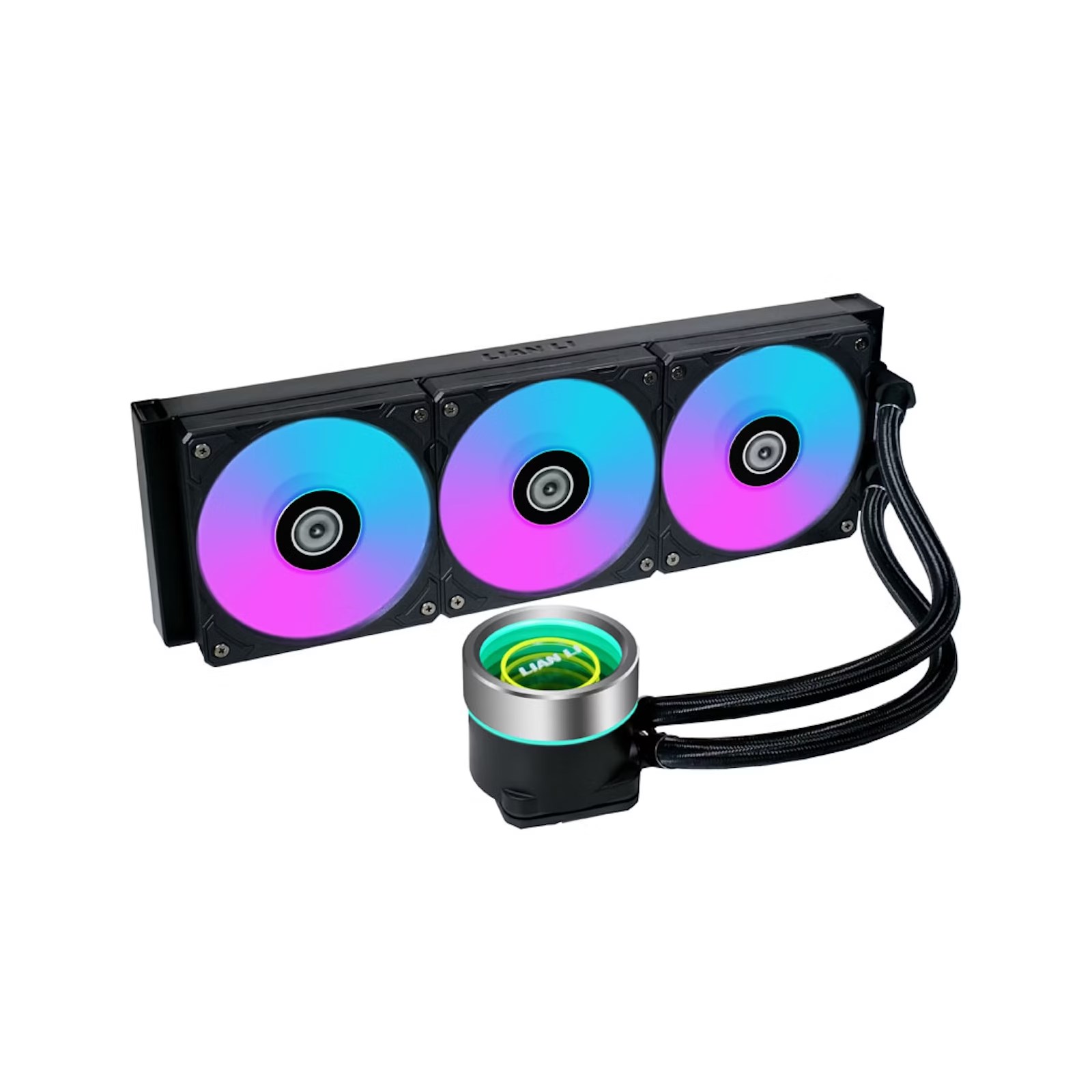

Lian Li Galahad II Trinity RGB 360mm Liquid AiO CPU Cooler Black
CPU Types
| Socket | Intel: LGA 1700 / 1200 / 115x AMD: AM5 / AM4 |
Fan
| Fan Speed | 300 ~ 2450 RPM |
| Fan Noise Level | 30 dBA |
| Static Pressure | 3.26 mmH2O |
| Airflow | 79.9 CFM |
Fan Speed Controller
| Connector | 4-pin PWM |
Physical
| Form Factor | AiO CPU Cooler |
| Case Colour | Black |
| Base Material | Copper |
| Heatsink Material | Aluminum |
| Width | 74 mm |
| Depth | 74 mm |
| Height | 69 mm |
| Fan Width | 120 mm |
| Fan Depth | 120 mm |
| Fan Height | 25 mm |
| Heatsink Width | 119.2 mm |
| Heatsink Height | 27 mm |
| Heatsink Depth | 397.5 mm |
Warranty
| Warranty | 5 Years |
Key Features
| Main Colour | Black |
| Includes Fan | Yes |
| Socket 2066/2011 | No |
| Socket 115x | Yes |
| Socket AM2(+)/AM3(+) | No |
| L.E.D Fan | ARGB |
| Socket FM2/FM1 | No |
| Liquid Cooler | Yes |
| Compatible with Socket 1150 | Yes |
| Socket AM5/AM4 | Yes |
| Cooler Height | 69 mm |
| Socket SP3/TR4/sTRX4/sWRX80 | No |
| Socket 3647 | No |
| Number of Fans | 3 fan(s) |
| Radiator Size | 360 mm |
| Socket 1200 | Yes |
| RGB Software Type | Lian Li L-Connect3 |
| Socket 1700 | Yes |
| Power Requirement (auto) | 19 W |
| Cooler count | 1 |
| Our Cooling Rating (TDP) | 260 W |
| Socket SP6/sTR5 | No |
| Socket 4677 | No |
| Create Your Own Gaming PC (CCL) | No |
| Socket 1851 | Yes |
| Bundle Config - Home (CB) | No |
Item Details
| Manufacturer | Lian Li |
| Manufacturer Code | GA2T36B BLACK |
| EAN | 4718466013507 |
| UPC | 840353044333 |
