Kolink Umbra EX180 Black Edition CPU Cooler

  • Part Number: UMBRA EX180 BE
  • Manufacturer: Kolink
  • Quickfind Code: 120424
  • Stock: In Stock

£24.18 ex. vat
£29.02 inc. vat

Product Features:
  • Condition: New
  • Size 120mm
  • Socket Type Multi Socket
  • Type CPU Air Cooler
+ Read More Information

Share:

Product Description

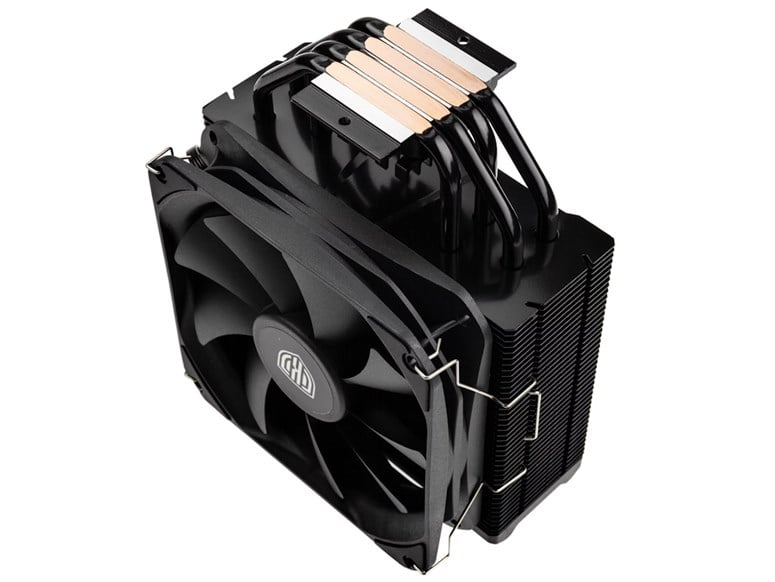

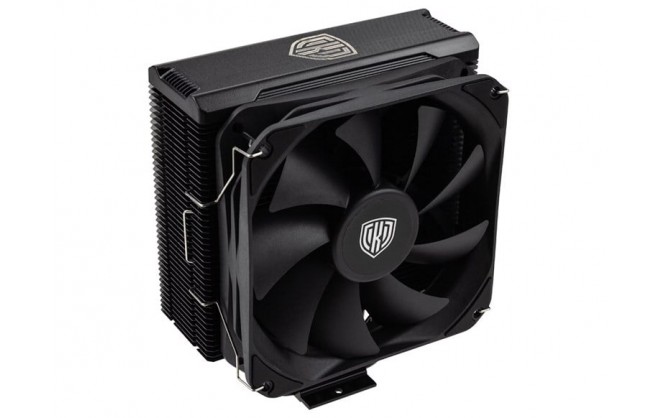

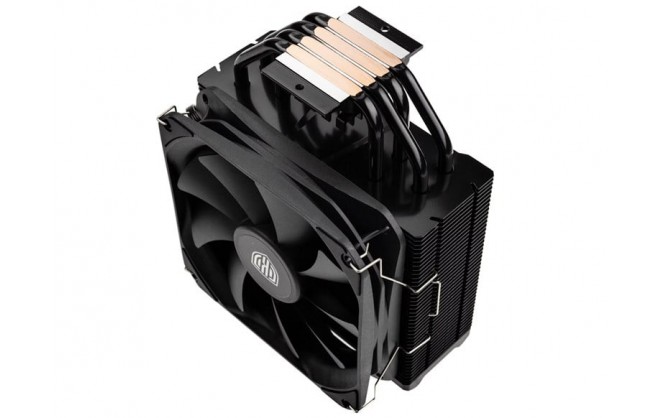

The Kolink Umbra EX180 Black Edition is a high-performance single-tower CPU cooler. Equipped with four 6mm heatpipes and a powerful 120mm PWM fan, it is up to the task to deal with CPUs with up to 180W TDP. The mounting system and the slim design with high RAM compatibility allow for an easy installation.

The Kolink Umbra EX180 Black Edition features four 6 mm copper heatpipes, which are embedded in the aluminium cooler base. What's more, the Kolink Umbra EX180 Black Edition comes with a powerful PWM fan. Thanks to its high static pressure and remarkable performance, the CPU cooler is capable of handling CPUs with a TDP of up to 180 watts.

Design and Lighting

All parts of the cooler have a matte black finish. The aluminium components of the cooler have undergone a black electrophoresis surface process. Both processes help avoid oxidation and corrosion, ensuring durability and an immaculate look.

High Compatibility and Easy to Upgrade

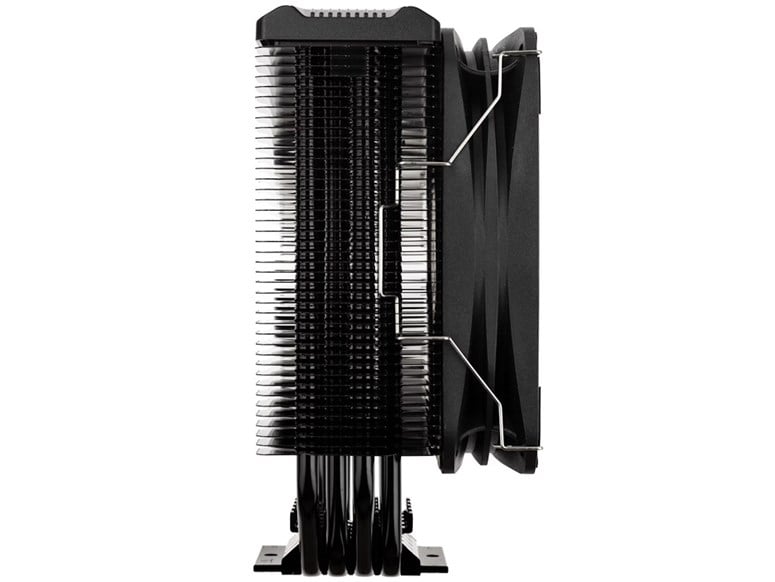

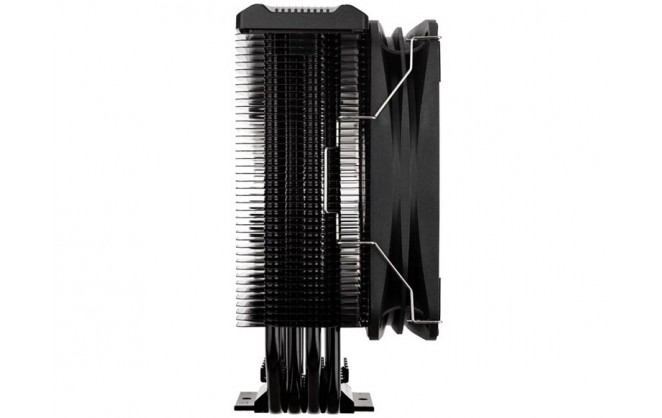

The slim cooler design ensures high compatibility with RAM modules. This enables you to use any RAM module of your choice without being limited in size and shape.

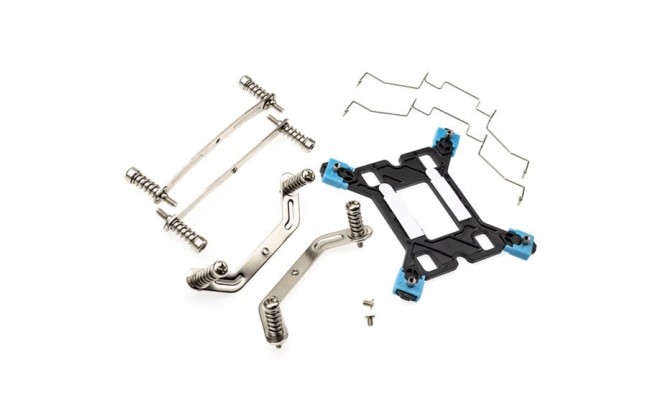

Thanks to the versatile mounting system, the Kolink Umbra EX180 Black Edition is easy to install and guarantees high compatibility with AMD and Intel CPU sockets, including AMD AM5 and Intel 1700. The package contents include the high-end thermal paste with 12.8W(m-K) conductivity to achieve maximum cooling performance.

Main Features

  • High-performance single-tower cooler
  • With four 6mm copper heatpipes
  • Powerful 120mm PWM fan
  • Minimalistic all-black looks
  • Slim design with high RAM compatibility
  • For CPUs with up to 180W TDP
Technical Specification

Kolink Umbra EX180 Black Edition CPU Cooler

CPU Types

SocketIntel LGA 1700, 1200, 115x, 20xx
AMD AM4, AM5

Fan

Fan Speed800 ~ 1800 RPM
Fan Noise Level28.6 dBA Max
Static Pressure2.12 mmH2O Max
Cooling Capacity180 W
Airflow73.6 CFM Max

Fan Speed Controller

Connector4-pin PWM
Allowable Power4.5 W
Voltage7 ~ 12 V
Current0.38 A

Physical

Form Factor
Case ColourBlack
Base MaterialCopper
Heatsink MaterialAluminium
Width130 mm
Depth75 mm
Height157 mm
Weight500 g
Fan Width12 cm
Fan Depth120 mm
Fan Height25 mm

Warranty

Warranty1 Year

Wireless Communications

Bluetooth

Key Features

Firewire
IDE/EIDE Supported
Installed Processors (Max)
Integrated Graphics Supported
Maximum RAMGB
RAID Supported
SATA Supported
SCSI/SAS Supported
Memory Type
Wireless Network
Chipset Manufacturer
Supported Processor Manufacturer
Number of PCI Slotsslot(s)
Number of PCI-X Slotsslot(s)
Number of PCI Express Slotsslot(s)
Main Colour
Internal/External Use
Fan Diameter
Socket(s)
Memory Channel
On-board Audio Type
Number of SATA Portsport(s)
Number of USB Portsport(s)
SATA III Support
USB 3.0 Support
Multi GPU Support
Compatible with Socket AM3
Compatible with Socket AM2+
Compatible with Socket AM2
Compatible with Socket 939
Compatible with Socket 940
Compatible with Socket 754
Compatible with Socket A
Compatible with Socket 1366
Compatible with Socket 1156Yes
Compatible with Socket 775
Compatible with Socket 771
Compatible with Socket 478
Compatible with Socket 423
Compatible with Socket 370
Heatpipe TechnologyYes
Includes FanYes
VGA Connection
DVI Connection
HDMI Connection
DisplayPort Connection
Memory Type
Fan Sizemm
Motherboard Form Factor
Compatible with Socket 2011Yes
Compatible with Socket 1155Yes
Compatible with Socket AM3+
Compatible with Socket FM1
Display Model in Showroom
Wake on LAN
L.E.D FanNo LED
Compatible with Socket FM2
Motherboard Power Connectors
Motherboard Chipset
Thunderbolt
Liquid CoolerNo
Compatible with Socket 1150Yes
Compatible with Socket AM1
Motherboard Model
WiFi SpeedMbps
WatercoolerNo
USB 3.1 Support
Internal USB3.0 Header
Compatible with Socket 1151Yes
Compatible with Socket AM4Yes
Cooler Height157 mm
Compatible with Socket TR4
M.2 Support
Compatible with Socket 2066Yes
On-board RGB Control
Memory SpeedMHz
Skip Audio Test
Compatible with Socket 3647
RGB Header Type
Addressable RGB
Internal USB Type-C Header
Radiator Lengthmm
Compatible with Socket 1200
Compatible with Socket 1200Yes
RGB Software Type
Microsoft Processor List
Compatible with Socket 1700Yes
Power Requirement (auto)5 W
Cooler count1
Max Memory Speed Supported (Non-overclocked)MHz
Max Memory Speed Supported (overclocked)MHz
CPU Power Pins (female)
PCI Express Power Pins (female)
Total M.2 Slots
Maximum NVMe M.2 ports
Maximum SATA M.2 ports
PCI-e slots
SATA ports
No. of front USB2.0 ports supported
No. of front USB3.0 ports supported
No. of front USB-C ports supported

CPU

CPU Socket
CPU Brand

Graphics

Graphics Chipset

Item Details

ManufacturerKolink
Manufacturer CodeUMBRA EX180 BE
EAN5999094004719
UPC843816102205
ConditionNew
