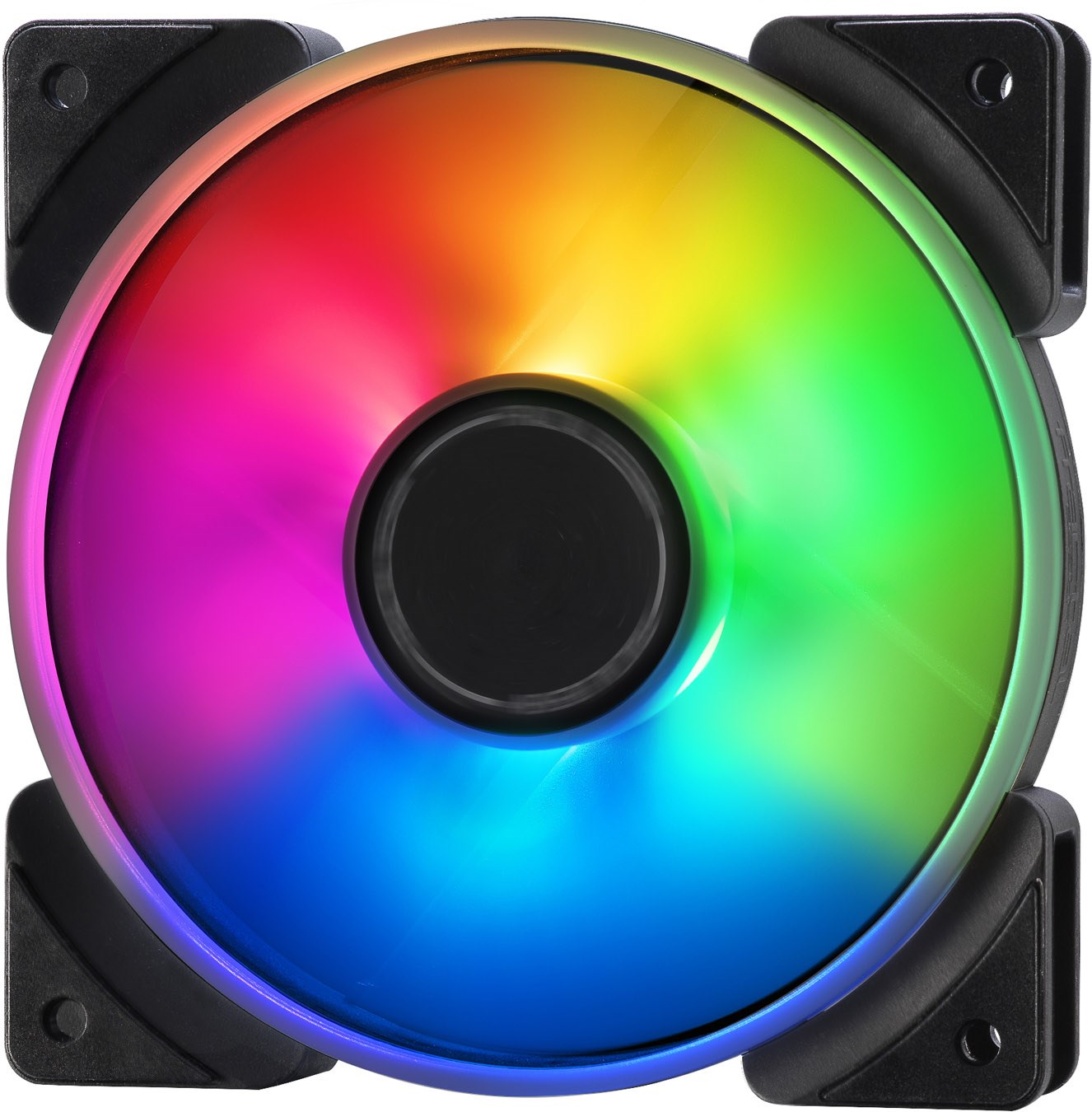

Fractal Design Prisma AL-12 PWM 120mm ARGB Chassis Fan
- Part Number: FD-FAN-PRI-AL12-PWM
- Manufacturer: Fractal Design
- Quickfind Code: 120115
- Stock: Out Stock
Contact for availability
Share:
For sales and support
Call:0161 480 8800
Product Description
Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Let your system shine
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring produce an exceptionally uniform glow
- Chainable RGB cables simplify wiring and make the most of available connections
- Black sleeved power cables offer an extra touch of style
- Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
Uniform light
Specially designed white semi-opaque fan blades and outer ring produce an exceptionally uniform glow.
Vibrant colors
Six hub-mounted individually addressable RGB LEDs deliver powerful lighting in a full spectrum of color choices.
Full control
PWM control with a wide speed range ideal for CPU heatsinks and radiators.
Aerodynamic performance
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Integrated vibration-damping corners made from high-quality synthetic rubber
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
Main Features
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring
- Long Life Sleeve-bearings provide silent operation with a long lifespan
Technical Specification
Fractal Design Prisma AL-12 PWM 120mm ARGB Chassis Fan
Attributes
| Fan Speed | 500 ~ 2000 RPM |
| Air Flow | 20.68 ~ 85.71 CFM |
| Bearing Type | LLS |
| Connector | 4-pin PWM power 3-pin 4V ARGB |
| Static Pressure | 0.36 ~ 2.78 mmH2O |
| Lifetime | 100,000 hours |
Electrical
| Voltage | 12 V |
| Current | 0.18 A |
Environmental
| Noise Level | 14.8 ~ 32.7 dBA |
Physical
| Form Factor | Chassis Fan |
| Case Colour | Black |
| Cable length | 500 mm |
| In The Box | Prisma AL-12/PWM Fan 4 x Screws |
| Fan Width | 120 mm |
| Fan Depth | 120 mm |
| Fan Height | 25 mm |
| Fan Weight | 169 g |
Key Features
| Main Colour | Black |
| Fan Size | 120mm mm |
| Display Model in Showroom | No |
| L.E.D Fan | RGB |
| Number of Fans | 1 fan(s) |
| LED Controller Included | No |
| LED Strip(s) Included | No |
| Fan Connector | 4-pin PWM |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | Fractal Design |
| Manufacturer Code | FD-FAN-PRI-AL12-PWM |
| EAN | 7340172701590 |
| Condition | New |
