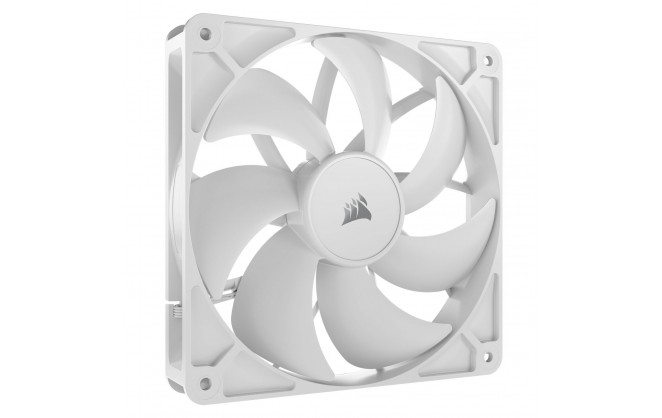

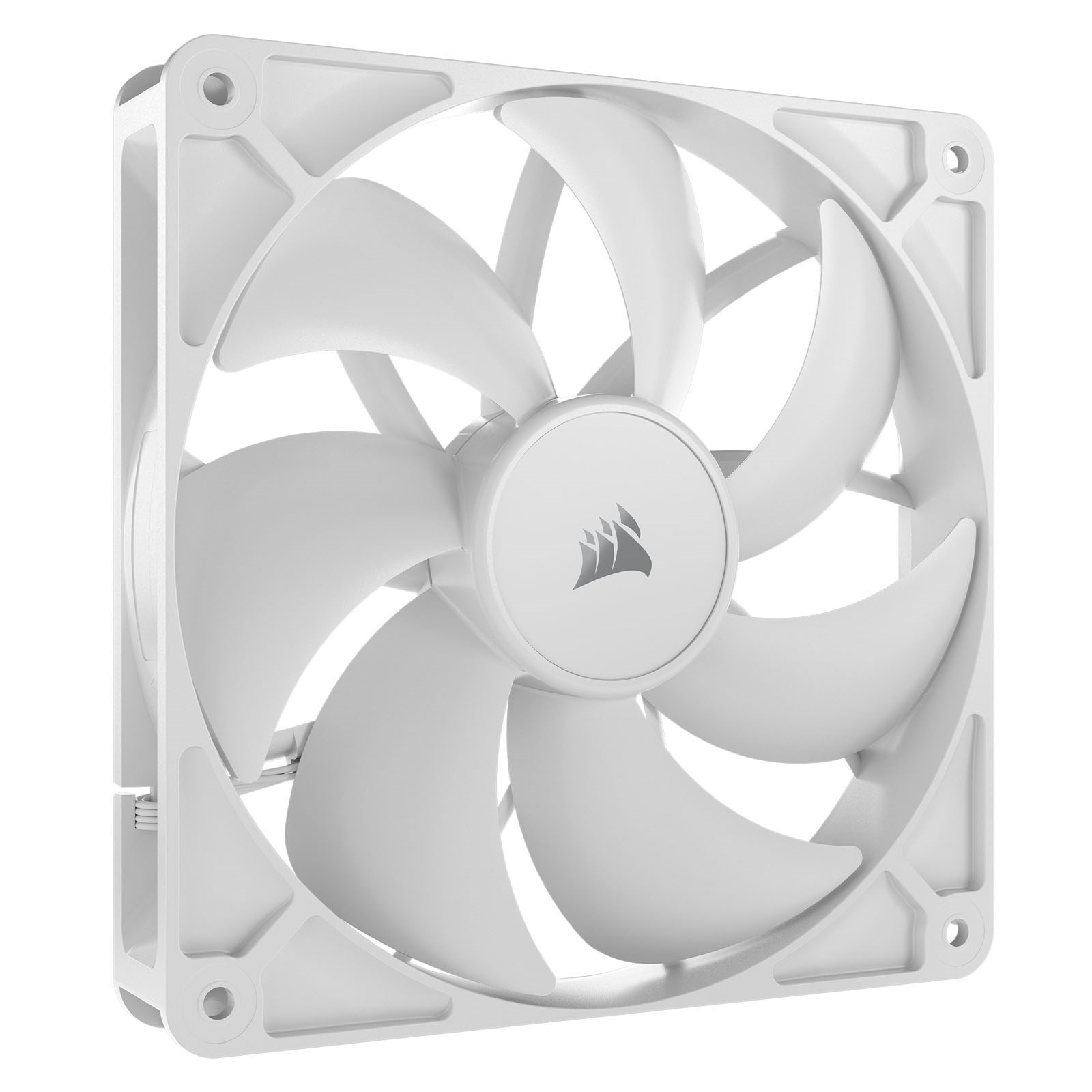

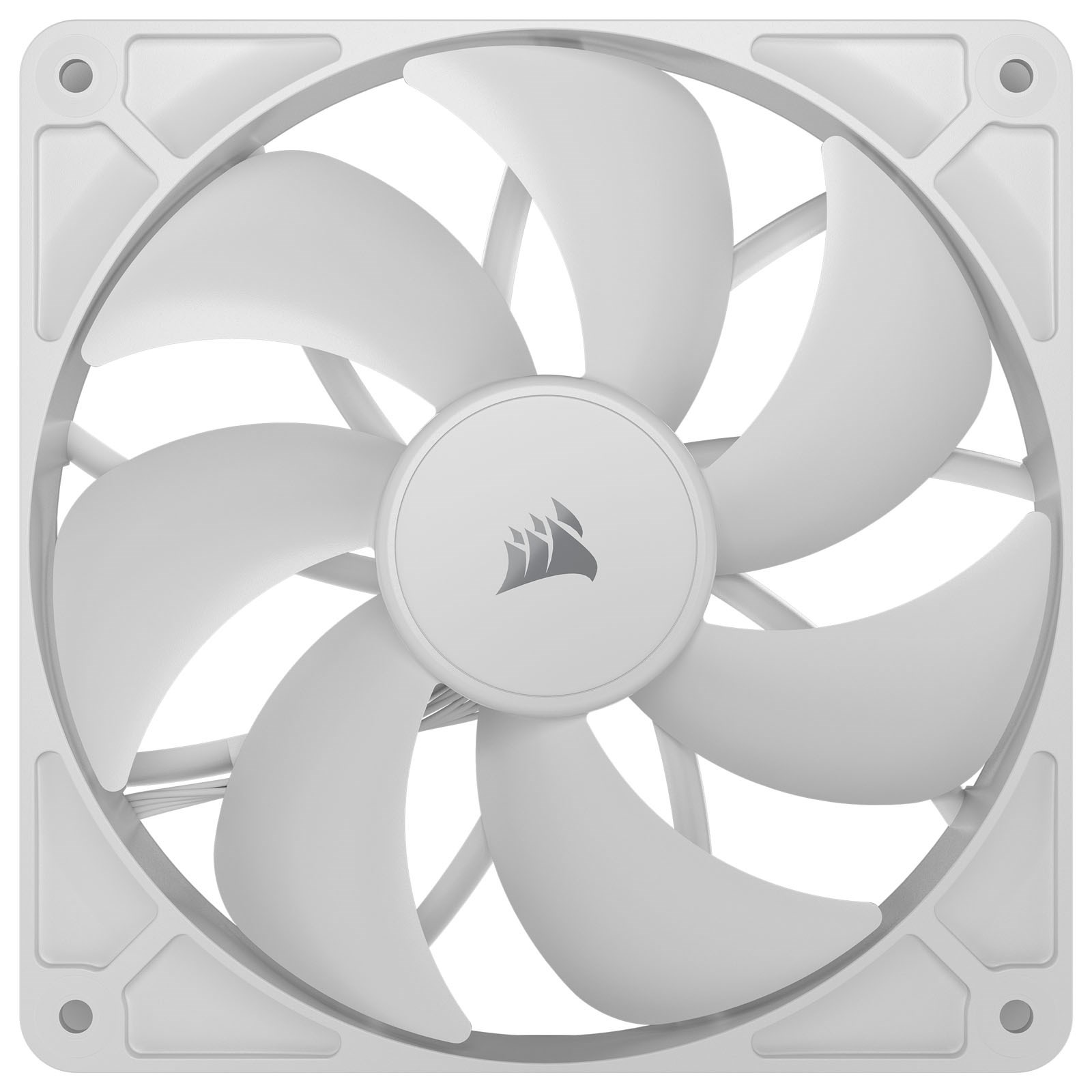

Corsair RS140 140mm PWM Chassis Fan White

Part Number: CO-9050194-WW
Manufacturer: Corsair
Quickfind Code: 120689

Stock: In Stock

£13.89 ex. vat
£16.67 inc. vat

Product Features:

Condition: New
Size 140mm
Type Case Fans

+ Read More Information

Product Description

Add a CORSAIR RS140 140mm PWM Fan to your cooling setup – daisy-chained 4-pin PWM connectors let you link to your other RS fans and control them all through just a single 4-pin PWM header on your motherboard. Enjoy fan speeds up to 1,700 RPM, with the static pressure to also serve as radiator fans. CORSAIR AirGuide technology with anti-vortex vanes directs airflow for concentrated, powerful cooling. Magnetic Dome bearings ensure quieter operation and increased longevity, while Zero RPM mode offers silent operation at low loads.

Main Features

Streamlined Fan Connections: Daisy-chain multiple fans together and control them all through just a single 4-pin PWM connector
Precise PWM Speeds: Set your fan speeds up to 1,700 RPM while providing up to 95.5 CFM airflow to your system
CORSAIR AirGuide Technology: Anti-vortex vanes direct airflow at your hottest components for concentrated cooling, pushing air in the direction you need when mounted to a radiator or heatsink
High Static Pressure: RS fans work well as radiator fans with a static pressure of 3.46mm-H2O to push through obstructions
Quiet Operation with Magnetic Dome Bearing: CORSAIR's Magnetic Dome bearing minimizes noise and reduces friction for greater longevity
Quiet Operation with Magnetic Dome Bearing: CORSAIR's Magnetic Dome bearing is a refinement of the renowned magnetic levitation bearing, minimizing noise and reducing friction for greater longevity
Zero RPM Mode: Supports Zero RPM PWM signals to completely eliminate fan noise at low loads

Technical Specification

Corsair RS140 140mm PWM Chassis Fan White

Attributes

Fan Speed	330 ~ 1700 RPM
Air Flow	14.6 ~ 95.5 CFM
Bearing Type	Magnetic Dome
Connector	4-pin PWM
Static Pressure	0.11 ~ 3.46 mmH2O

Electrical

Current

0.45 A

Environmental

Noise Level

10 ~ 36 dBA

Physical

Form Factor	Chassis Fan
Case Colour	White
Cable length	600 mm
In The Box	Fan 4 x Screws
Fan Width	140 mm
Fan Depth	140 mm
Fan Height	25 mm
Fan Weight	0.21 kg

Warranty

5 Years

Key Features

Main Colour	White
Fan Size	140 mm
L.E.D Fan	No LED
Number of Fans	1 fan(s)
RGB LED Controller Included	No
LED Strip(s) Included	No
Fan Connector	4-pin PWM
Power Requirement (auto)	3 W
