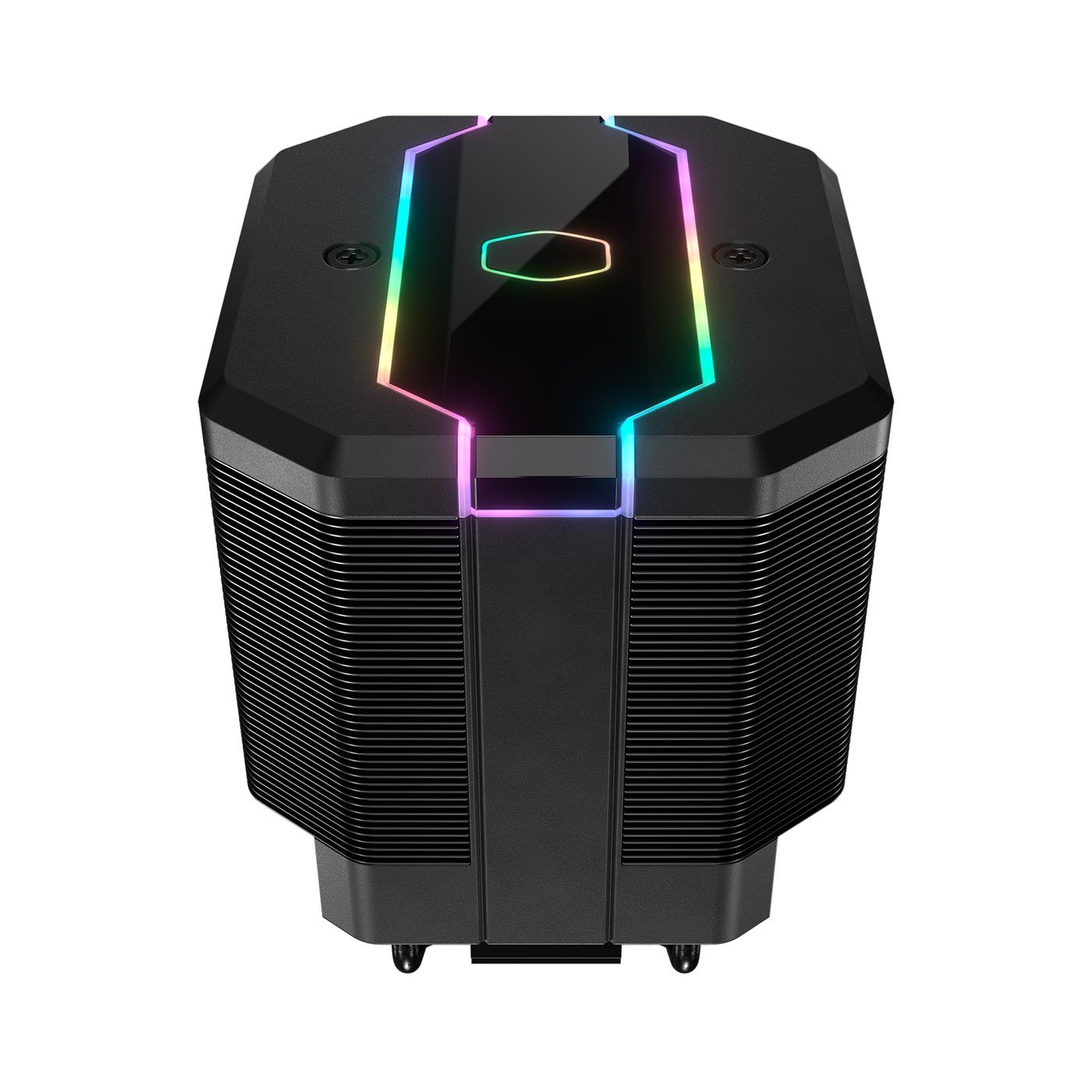

The MasterAir MA620M comes with dual blacked out aluminum towers with a uniform 6 heat pipe layout to dissipate the heat evenly. The Masterfan SF120R provides high air pressure with silent performance to cool away the heat from the heat pipes in silence. Easy mounting system along with array of Addressable RGB LED lighting makes the MA620M the best option in the market for an air cooling solution.

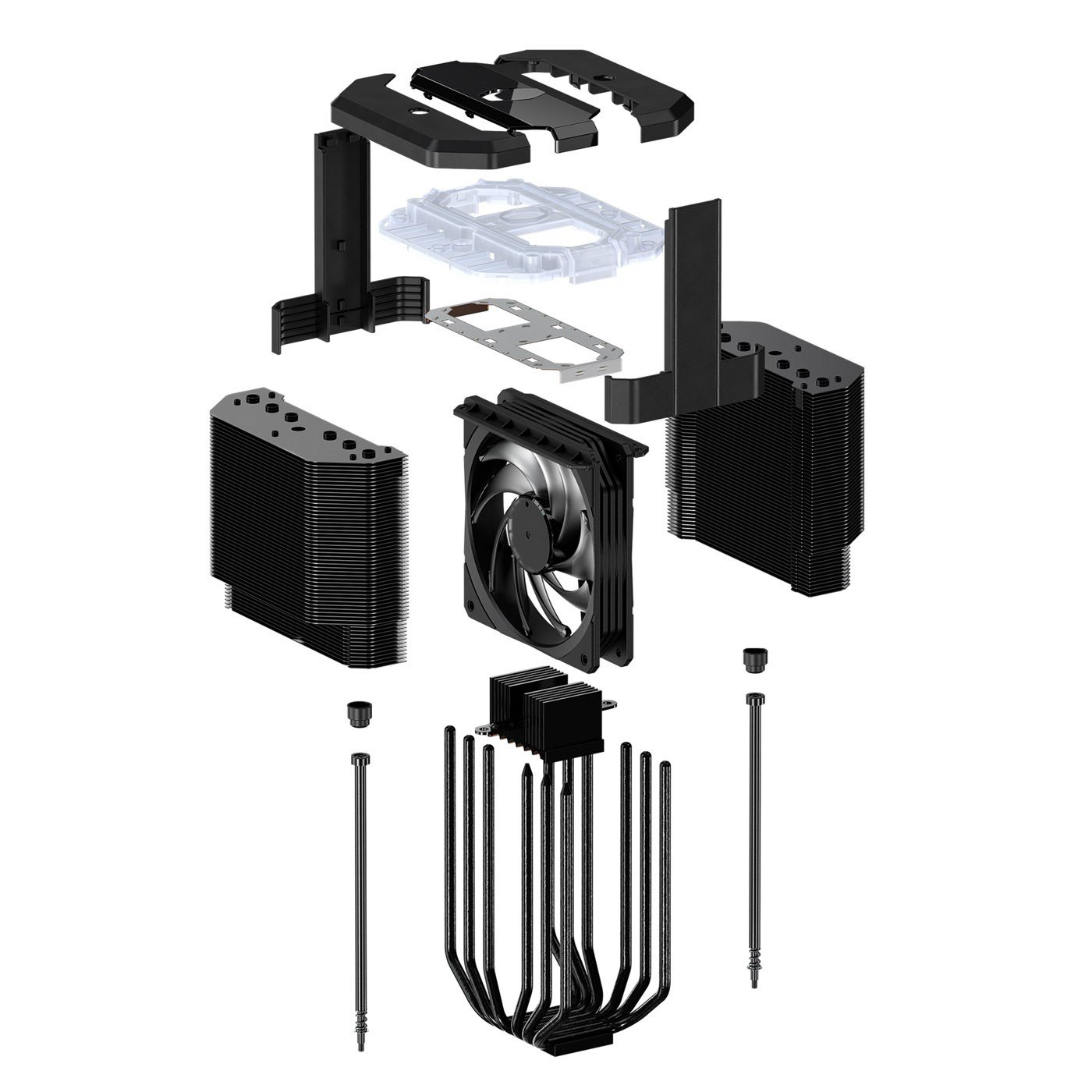

Dual Tower Heatsink
A combination of 2 sets of heatsink allows bigger and more spread out surface area. The black paint enhances radiation cooling performance.
6 Heatpipe Array
Enhanced thermal conductivity and uniform layout distributes heat over more evenly across heatsinks.
Easy Mounting System
Exclusive All-In-One mounting design for easy installation.
The New SF120R Fan
With silent driver IC and a wide range of speed settings, it can be used for silent operation or fine-tuned for maximum cooling performance.
Addressable RGB Led Controller
The wired Addressable RGB LED Controller allows for customizable colors and effects with just the touch of a button. software.
LIGHTING BADGE
The Cooler Master hexagon logo and embedded Addressable RGB lighting strip provides unique perspective light effect.
Cooler Master MasterAir MA620M Dual Tower Air CPU Cooler with RGB
CPU Types
| Socket | LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
Fan
| Fan Speed | 650 ~ 2000 RPM ± 10% |
| Fan Noise Level | 8 ~ 30 dBA |
| Lifetime | 160,000 hours |
| Fan Air Pressure | 2.0 mmH2O (Max) |
| Airflow | 57.3 CFM (Max) |
Fan Speed Controller
| Connector | 4 pin PWM |
| Voltage | 12 VDC |
| Current | 0.16 A |
Physical
| Form Factor | CPU Cooler |
| Case Colour | Black |
| Heatsink Material | 6 Heat Pipes Aluminium Fans |
| Width | 125 mm |
| Depth | 135 mm |
| Height | 165 mm |
| Weight | 1.62 kg |
| Fan Width | 120 mm |
| Fan Depth | 120 mm |
| Fan Height | 25 mm |
Warranty
| Warranty | 5 Years |
Key Features
| Compatible with Socket AM3 | Yes |
| Compatible with Socket AM2+ | Yes |
| Compatible with Socket AM2 | Yes |
| Compatible with Socket 939 | No |
| Compatible with Socket 940 | No |
| Compatible with Socket 754 | No |
| Compatible with Socket A | No |
| Compatible with Socket 1366 | No |
| Compatible with Socket 1156 | Yes |
| Compatible with Socket 775 | No |
| Compatible with Socket 771 | No |
| Compatible with Socket 478 | No |
| Compatible with Socket 423 | No |
| Compatible with Socket 370 | No |
| Heatpipe Technology | Yes |
| Includes Fan | Yes |
| Compatible with Socket 2011 | Yes |
| Compatible with Socket 1155 | Yes |
| Compatible with Socket AM3+ | Yes |
| Compatible with Socket FM1 | Yes |
| Display Model in Showroom | No |
| L.E.D Fan | No LED |
| Compatible with Socket FM2 | Yes |
| Liquid Cooler | No |
| Compatible with Socket 1150 | Yes |
| Compatible with Socket AM1 | No |
| Watercooler | No |
| Compatible with Socket 1151 | Yes |
| Compatible with Socket AM4 | Yes |
| Cooler Height | 165 mm |
| Compatible with Socket TR4 | No |
| Compatible with Socket 2066 | Yes |
| Radiator Size | N/A mm |
| Compatible with Socket 1200 | Yes |
| Compatible with Socket 1200 | Yes |
Item Details
| Manufacturer | Cooler Master |
| Manufacturer Code | MAM-D6PN-120PA-R1 |
| EAN | 4719512090541 |
| Condition | New |
