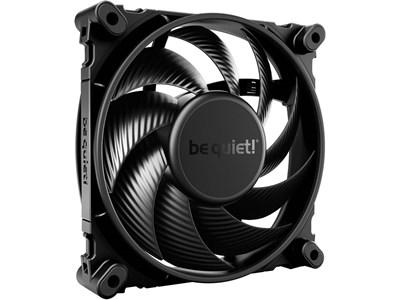

be quiet! Silent Wings 4 120mm High-Speed PWM Chassis Fan

Part Number: BL094
Manufacturer: BeQuiet!
Quickfind Code: 120362

Stock: In Stock

£18.89 ex. vat
£22.67 inc. vat

Product Features:

Condition: New
Size 120mm
Type Case Fans

+ Read More Information

NO COMPROMISE SILENCE AND PERFORMANCE

Equally quiet and performant operation

Silent Wings 4 120mm PWM high-speed is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 120mm PWM high-speed a fan that makes no compromises between very quiet operation and highest performance.

OPTIMIZED FOR HIGH-END PERFORMANCE

Minimum tolerances for maximum air pressure

Silent Wings 4 120mm PWM high-speed makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 120mm PWM high-speed allows the user to run even the most demanding applications.

DIFFERENT MOUNTING OPTIONS

For any purpose

Silent Wings 4 120mm PWM high-speed has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.

6-POLE FAN MOTOR

The key for virtually inaudible operation when needed

6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 31.2dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed.

FLUID-DYNAMIC BEARING

For a sustainable operation

The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 120mm PWM high-speed.

ELEGANT LOOK

Magnificent appearance from all angles

Be it as a radiator fan or in the case: Silent Wings 4 120mm PWM high-speed always makes a good impression. The all-black design combined with the high-grade fan sticker makes the fan shine in any system. This makes Silent Wings 4 120mm PWM high-speed a high performant and an incredibly good-looking fan.

Main Features

Optimized fan blades for the highest performance on radiators and heat sinks
Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
Very silent operation even at maximum speed
6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
Anti-vibration mounting with push pins and screwed installation option
Super-long lifespan of up to 300,000h
Elegant look with high-grade fan sticker in an all-black design
5-year manufacturer warranty

Technical Specification

be quiet! Silent Wings 4 120mm High-Speed PWM Chassis Fan

Attributes

Fan Speed	Up to 2500 RPM
Air Flow	Up to 76.7 CFM
Bearing Type	FDB
Connector	4-pin PWM
Fan Air Pressure	Up to 3.96 mmH2O
Lifetime	Up to 300,000 hours

Electrical

Voltage	5 ~ 13.2 V
Current	0.2 A

Environmental

Noise Level

Up to 31.2 dBA

Physical

Form Factor	Chassis Fan
Case Colour	Black
Cable length	500 mm

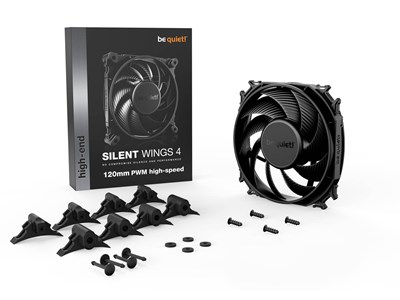

In The Box	Chassis Fan 4 x Screws 4 x Push Pins Rubber & Hard Plastic mountings
Fan Width	cm
Fan Depth	120 mm
Fan Height	25 mm
Fan Weight	0.19 kg

Warranty

5 Years

Key Features

Main Colour	Black
Internal/External Use
Number of Speeds
Fan Diameter
Fan Size	120 mm
Display Model in Showroom
L.E.D Fan	No LED
Number of Fans	1 fan(s)
LED Controller Included
LED Strip(s) Included
Fan Connector	4-pin PWM
Power Requirement (auto)	3 W
